AS-2015CS-TNR | Supermicro Single Socket Epyc 9004 2U Server
Başlayan €3.606,34*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-2015CS-TNR
Unlock Cloud Efficiency and Performance with the Supermicro AS-2015CS-TNR
The Supermicro AS-2015CS-TNR is a powerful 2U CloudDC server built to handle demanding workloads. Featuring 12 hot-swap bays for NVMe/SAS/SATA drives, 4 PCIe 5.0 x16 slots, and 2 AIOM slots, this server is perfect for businesses needing advanced storage, high-speed networking, and scalability.
Why Choose the Supermicro AS-2015CS-TNR?
The Supermicro brand is synonymous with reliability and cutting-edge innovation. The AS-2015CS-TNR stands out in a crowded market, offering unmatched performance for cloud and enterprise workloads. With industry-leading features such as advanced storage options and PCIe Gen 5, it provides a robust platform for businesses aiming for peak performance. The server’s scalability and ease of upgrade ensure that it remains a top choice for organisations needing both power and flexibility in a high-performance server. Choosing Supermicro means investing in trusted quality, and the AS-2015CS-TNR delivers on that promise.
This server excels in cloud computing, enterprise applications, and data storage. With support for AMD EPYC™ processors and DDR5 memory, it offers unmatched performance and future-proofing for your infrastructure.
Key Applications:
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Step into the future of cloud computing with the Supermicro AS-2015CS-TNR. Designed for enterprise-level applications, this high-performance server offers the perfect blend of speed, scalability, and power. Ready to transform your business operations? CALL US today or REGISTER YOUR COMPANY as a partner with Happyware for exclusive benefits and support!
Supermicro AS-2015CS-TNR Teknik Özellikleri
| AS-2015CS-TNR | Single AMD EPYC 9004 CPU, 12x 3.5" hot-swap drive bays, 6x PCIe Gen5 (2x FHFL, 2x FHHL, 2x AIOM), Networking via Slim-AIOM, 2x 1200W redundant PSUs |
| Processor | |
|---|---|
| CPU | Single Socket SP5 4th Generation AMD EPYC™ 9004 Series Processor Support CPU TDP up to 360W * |
| Cores | Up to 96C/192T |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. |
| System Memory | |
|---|---|
| Memory Capacity | 12 DIMM slots Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz |
| Memory Type | 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory |
| Memory Voltage | 1.1 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip |
| Network Connectivity | Via Slim-AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |

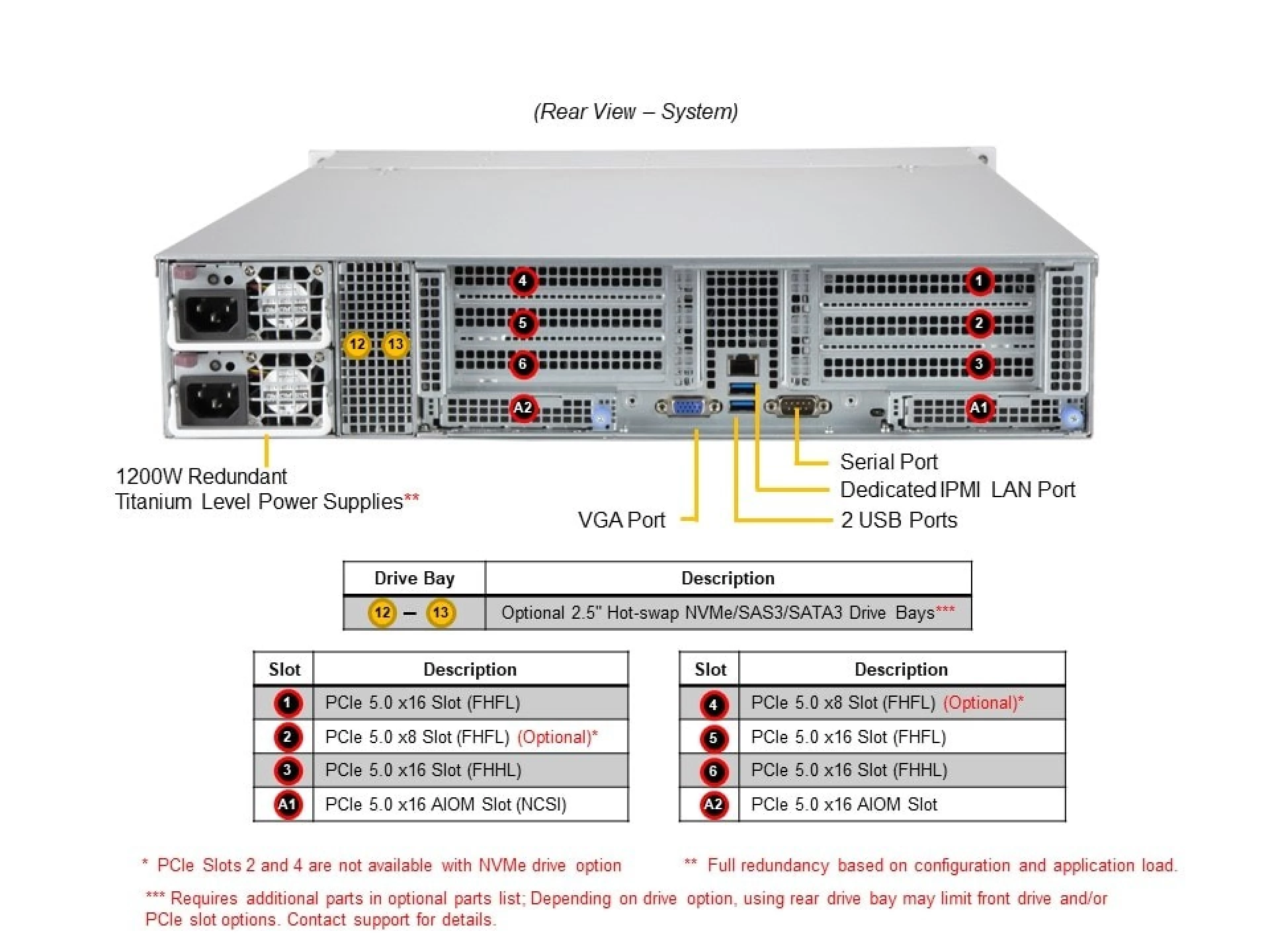

| Input/Output | |
|---|---|
| LAN | 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (2 rear) |
| Video | 1 VGA port |
| Serial Port | 1 COM Port (1 rear) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash ROM |
| BIOS Features | ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support |
| Management | |
|---|---|
| Software | IPMIView for Linux/ Windows IPMICFG SSM SPM SUM Watch Dog SuperDoctor® 5 |
| Power Configurations | Power-on mode control for AC power loss recovery ACPI Power Management |
| PC Health Monitoring | |
|---|---|
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-LA26TS-R1K23AWP1 |
| Dimensions and Weight | |
|---|---|
| Height | 8.89cm (89mm) |
| Width | 43.68cm (437mm) |
| Depth | 64.77cm (648mm) |
| Package | 28.95cm (H) x 67.81cm (W) x 87.63cm (D) |
| Weight | Net Weight: 33 lbs (15 kg) Gross Weight: 59 lbs (26.76 kg) |
| Available Color | Black front & Silver body |

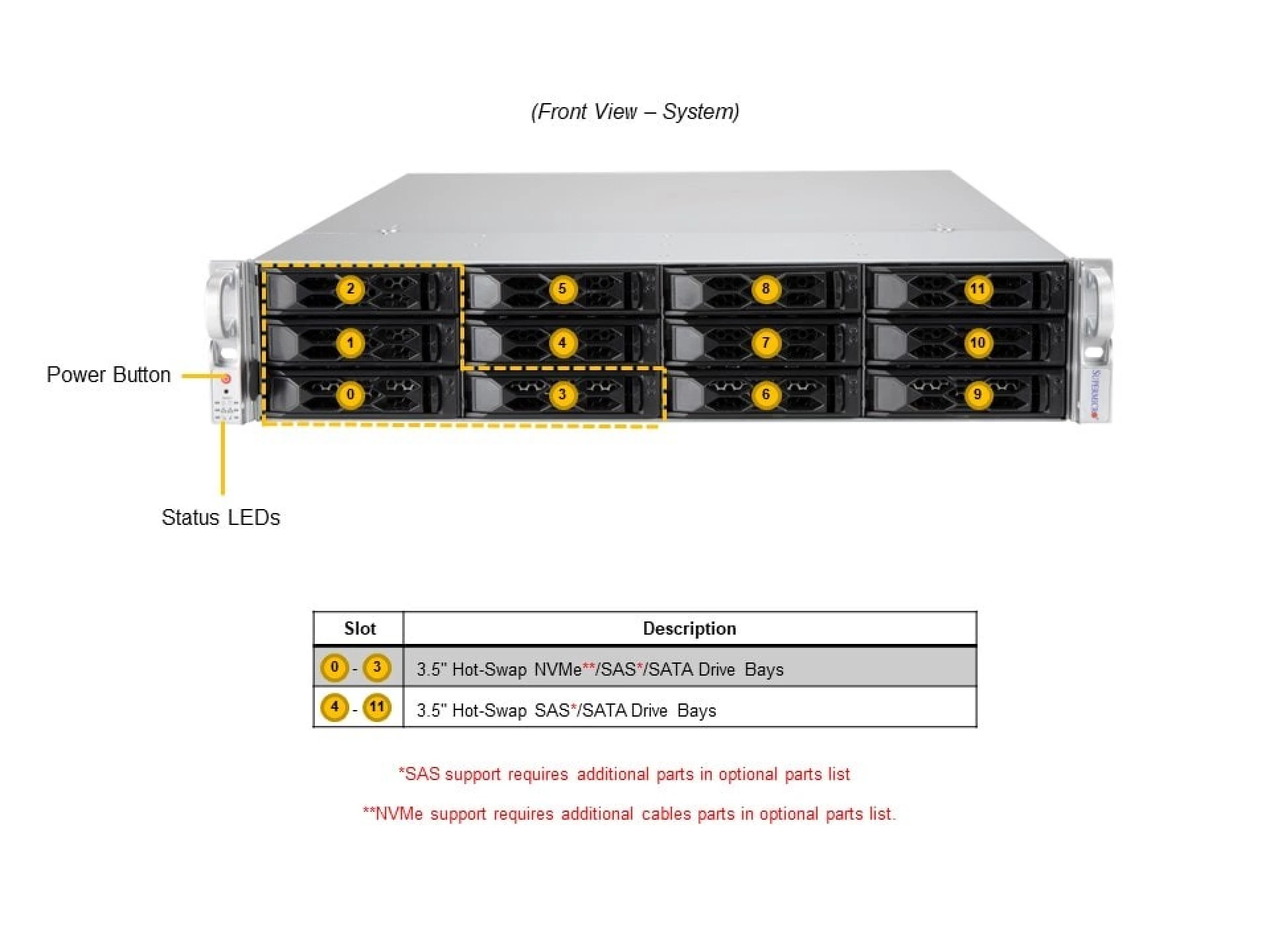

| Front Panel | |
|---|---|
| Buttons | Power On/Off button UID button |
| LEDs | Drive activity Network activity Power status Universal Information (UID) |
| Expansion Slots | |
|---|---|
| PCI-Express | 2 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slot |
| Note | Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length) |
| Storage | |
|---|---|
| Drive Bays | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (12 SATA by default) |
| M.2 | 2x NVMe (PCIe Gen 3x2, Boot drive only) M-Key, 2280/22110 |
| System Cooling | |
|---|---|
| Fans | 3x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
|---|---|
| 2x 1200W/1000W 1U Titanium Power Supplies | |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| AC Input | 1000W: 100-127Vac / 15A-12A / 50-60Hz 1200W: 200-240Vac / 8.5A-7A / 50-60Hz |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | 80 PLUS Titanium Level |
| Operating Environment | |
|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-2015CS-TNR | |
| System Building | AS-2015CS-TNR configured by Supermicro as Complete System | |
Supermicro AS-2015CS-TNR Nitelikleri
| Add-on card form factor: | FH, OCP 3.0 |
|---|---|
| Applications: | Application and data serving, Big Data, Cloud Computing, Compact Server, DNS & Gateway Servers, Data Center Applications, Data Center Optimized, Database, Database Applications, Database Processing and Storage, Edge/Cloud Computing Services, Firewall Application, Value IaaS, Web/Hosting Application, Web Server |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 4 |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Controller: | AIOM |
| Onboard Graphic: | No |
| Onboard LAN: | No |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 1200W |
| Performance Class: | Enterprise-Class, Mid-Range |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Citrix Hypervisor (formerly XenServer), Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Product Model: | 2015CS-TNR |
| Quantity of Cooler: | 3 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Cloud Computing, Database Server, Edge Server, Firewall, Web Hosting |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
