AS-2115HV-TNRT | Supermicro Single Socket Ryzen Threadripper 2U Server
Ürün numarası: TR1B8502-397495
|
Üretici numarası: AS-2115HV-TNRT
Fiyat sor ↓
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-2115HV-TNRT
Supermicro AS-2115HV-TNRT Teknik Özellikleri
| Single AMD Ryzen™ Threadripper™ PRO 7000 WX-Series CPU, 8x 2.5" hot-swap drive bays, 5x PCIe (4x FH, 1x AIOM), 4x GPUs, 2x 2600W redundant PSUs |
| Processor/Cache | |
|---|---|
| CPU | Single processor(s) AMD Ryzen™ Threadripper™ PRO 7000 WX-Series |
| Core Count | Up to 96C/192T; Up to 384MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
|---|---|
| Max GPU Count | Up to 4 double-width GPUs |
| Supported GPU | NVIDIA PCIe: RTX 4000 Ada Generation, RTX A6000, RTX 6000 Ada Generation, L40S AMD PCIe: Instinct MI210 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| Certification | NVIDIA Certified |
| System Memory | |
|---|---|
| Memory Capacity | Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | UEFI 2.8 SMBIOS 3.5 or later UEFI 2.9 Plug and Play (PnP) USB Keyboard support ACPI 6.5 SMBIOS 3.6 or later |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmountable |
| Model | CSE-HS201-R000NFP |
| Dimensions | |
|---|---|
| Height | 8.89cm (88.9 mm) |
| Width | 43.7cm (437 mm) |
| Depth | 80.62cm (806.2 mm) |
| Package | 25.29cm (H) x 67.20cm (W) x 110cm (D) |
| Weight | Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg) |
| Available Colors | Silver |
| Front Panel | |
|---|---|

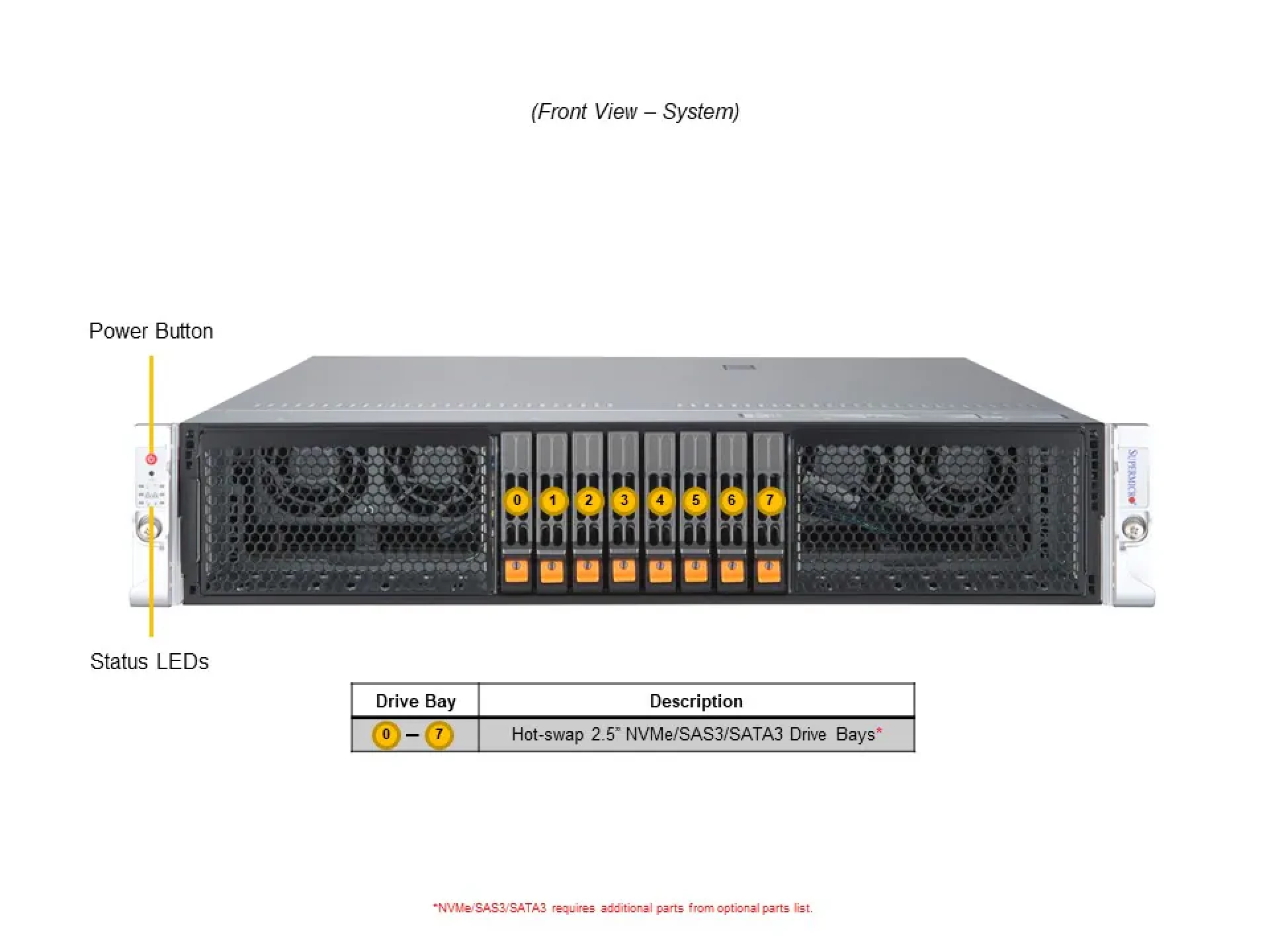

| LED | HDD activity LAN1 activity Power status System information |
| Buttons | Power On/Off UID/ Reset button |
| Storage | |
|---|---|

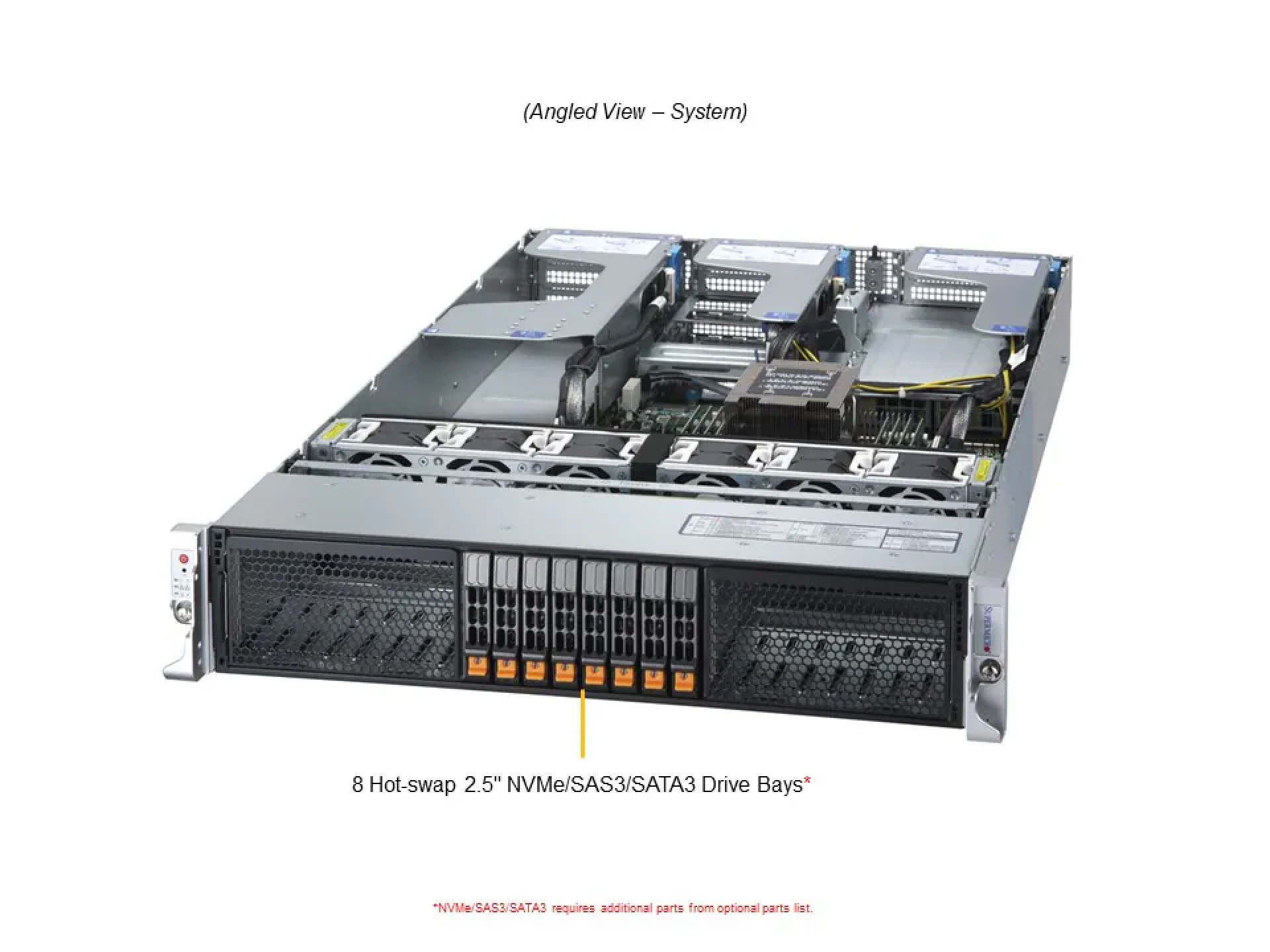

| Drive Bays | Default: Total 10 bays 2 front hot-swap 2.5" SATA drive bays 8 front hot-swap 2.5" NVMe drive bays Option A: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default)) |
| Expansion Slots | |
|---|---|

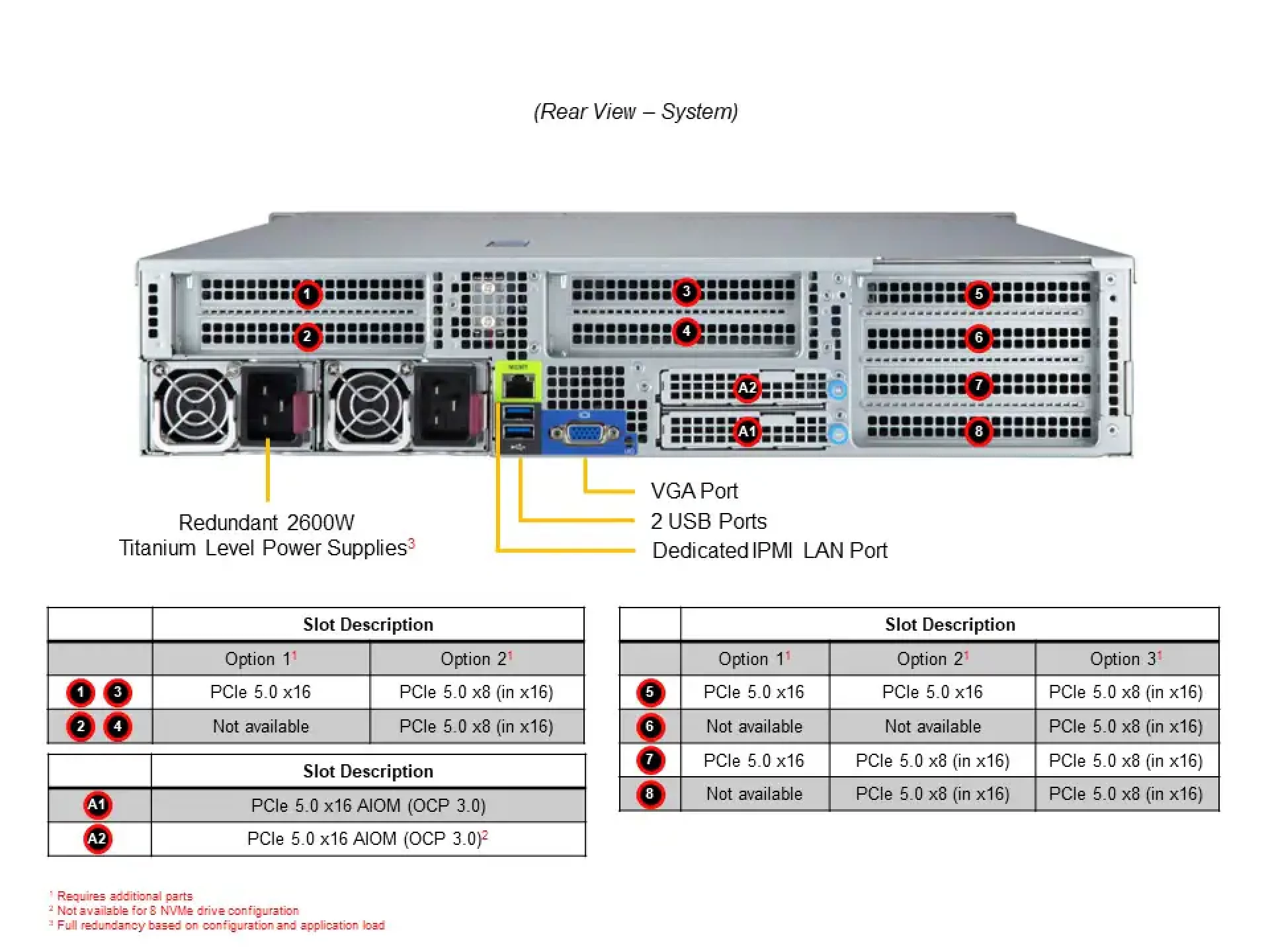

| PCI-Express | Default 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A 8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) |
| System Cooling | |
|---|---|
| Fans | 6x 6cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
|---|---|
| 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | ||
|---|---|---|
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-2115HV-TNRT | |
| System Building | AS-2115HV-TNRT configured by Supermicro as Complete System | |
Supermicro AS-2115HV-TNRT Nitelikleri
| Add-on card form factor: | FH, HH, OCP 3.0 |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Cloud Computing, Enterprise Server, High End Enterprise Server |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Storm Peak |
| CPU Manufacturer: | AMD |
| CPU Socket: | sTR5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 4 |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | No |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 2600W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Ubuntu, Windows 10, Windows 11 |
| Product Model: | 2115HV-TNRT |
| Quantity of Cooler: | 6 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Cloud Computing, Deep Learning - Machine Learning |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
