AS-3015MR-H8TNR | Supermicro Single Socket Epyc 4004 3U Server
Ürün numarası: TR9B9832-160376
|
Üretici numarası: AS-3015MR-H8TNR
Başlayan €8.487,96*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-3015MR-H8TNR
Unleash Superior Performance with the Supermicro AS-3015MR-H8TNR Barebone
Experience unmatched computing power and flexibility with the AS-3015MR-H8TNR, crafted by renowned manufacturer Supermicro. Designed to meet the needs of modern businesses and tech enthusiasts alike, this Barebone system is the ultimate solution for tackling demanding workloads with ease.
Key Features & Benefits:
Supermicro's AS-3015MR-H8TNR is engineered to deliver exceptional performance and reliability. Whether you’re building a server for business applications, data management, or virtualization, this Barebone offers unparalleled scalability and efficiency. With cutting-edge technology and robust components, it ensures your system runs smoothly and consistently.
Discover the quality and craftsmanship that sets the AS-3015MR-H8TNR apart. Elevate your IT infrastructure today with Supermicro’s trusted excellence. Ready to transform your computing experience?
Supermicro AS-3015MR-H8TNR Teknik Özellikleri
| SKU Overview | ||
|---|---|---|
| AS-3015MR-H8TNR | Single AMD EPYC 4004 Series CPU, 2x 3.5" hot-swap drive bays, 2x PCIe (1x LP, 1x MicroLP), 2x 2200W redundant PSUs | |
| Processor (per Node) | ||
| CPU | Single Socket AM5 (LGA-1718) AMD EPYC™ 4004 / Ryzen 7000 Processor | |
| Core Count | Up to 16C/32T; Up to 16MB Cache | |
| Note | Supports 65W - 170W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 120W only supported under specific conditions. | |
| GPU (per Node) | |
|---|---|
| Max GPU Count | Up to 1 single-width GPU |
| Supported GPU | NVIDIA PCIe: T4, L4, A2 |
| System Memory (per node) | |
|---|---|
| Memory | Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 5200MT/s non-ECC DDR5 UDIMM |
| On-Board Devices (per Node) | |
|---|---|
| NVMe | NVMe; (Native) |
| Chipset | AMD Knoll - Integrated I/O Controller Hub |
| Network Connectivity | No NIC option supported |
| Input / Output (per node) | |
|---|---|
| USB | 2 USB 2.0 ports 1 Type-C port (front) |
| Video | 1 port |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI 6.0 Power Management |
| PC Health Monitoring | |
|---|---|
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| Fan | Fan speed control, Dual Cooling Zone |
| Chassis | |
|---|---|
| Form Factor | 3U Rackmount |
| Model | CSE-938NH-R2K20BP2 |
| Dimensions and Weight | |
|---|---|
| Height | 13.23cm (132 mm) |
| Width | 43.84cm (438 mm) |
| Depth | 58.92cm (589 mm) |
| Package | 29.59cm (H) x 66.70cm (W) x 86.36cm (D) |
| Weight | Gross Weight: 88 lbs (39.92 kg) Net Weight: 62.2 lbs (28.21 kg) |
| Color | N/A |

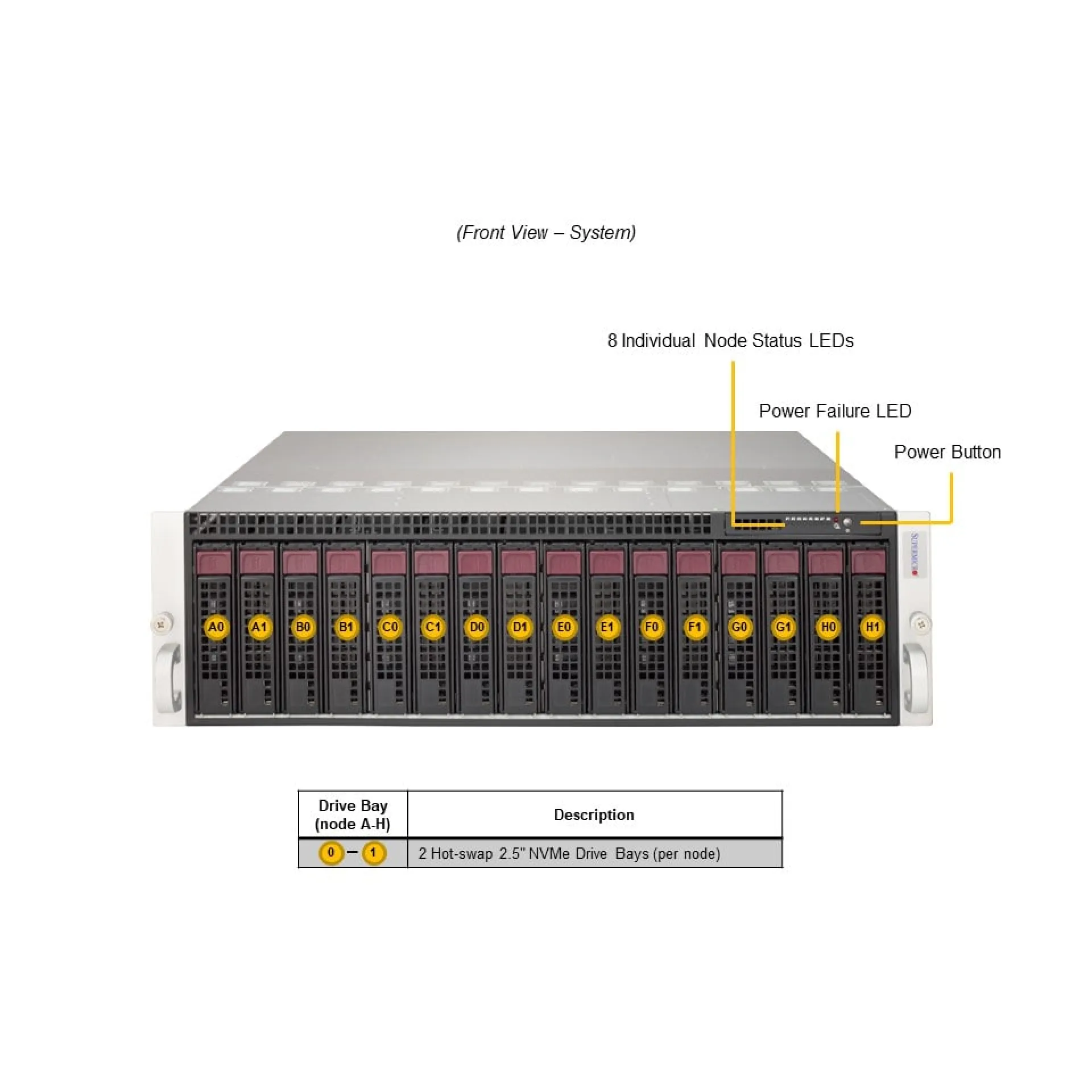

| Front Panel | |
|---|---|
| LED | 8 Individual Node Status Indicators Power Failure |
| Buttons | Power On/Off button |
| Expansion Slots (per Node) | |
|---|---|
| PCI-Express (PCIe) Configuration | Default: 1 PCIe 5.0 x8 (in x16) LP slot 1 PCIe 4.0 x8 MicroLP slot |
| Storage (per node) | |
|---|---|
| Drive Bays Configuration | Default: Total 2 bays 2 front hot-swap 3.5" NVMe/SAS/SATA drive bays |
| M.2 | 1 M.2 NVMe/SATA slot (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 4 Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 2x 2200W Redundant Titanium Level (96%) power supply | |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| AC Input | 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only) |
| +12V | Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) |
| 5V SB | Max: 1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment / Compliance | |
|---|---|
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-3015MR-H8TNR | |
| System Building | AS-3015MR-H8TNR can be configured individually | |
Supermicro AS-3015MR-H8TNR Nitelikleri
| Add-on card form factor: | HH |
|---|---|
| Applications: | CDN, Cloud Computing, DNS & Gateway Servers, Email/Firewall/Print Server, Web/Hosting Application, Web Server |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Siena |
| CPU Manufacturer: | AMD |
| CPU Socket: | AM5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators, USB Type-C |
| GPU quantity per node: | 1 |
| Height units: | 3U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | No |
| Lighting: | LED |
| Motherboard Chipset: | Knoll |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | No |
| Onboard LAN: | No |
| PSU Power Wattage: | 2200W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 3015MR-H8TNR |
| Quantity of Cooler: | 4 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | No |
| RAM DIMM Type: | UDIMM |
| RAM ECC: | Non-ECC |
| RAM registered/unregistered: | Unbuffered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Cloud Computing, Cluster Node, Database Server, GPGPU, Media Streaming, Web Hosting |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
