AS-4125GS-TNRT1 | Supermicro Single Socket Epyc 9004 4U Server
Fiyat sor ↓
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-4125GS-TNRT1
Power Your Innovations with the Supermicro AS-4125GS-TNRT1 Barebone System
Unlock the potential of your data with the Supermicro AS-4125GS-TNRT1, a powerhouse 4U GPU server crafted to meet the exacting demands of AI, deep learning, and advanced data modelling. Supporting up to 10 double-width GPUs in a single-root PCIe configuration, this server delivers unparalleled GPU performance. With AMD EPYC™ 9004/9005 processors, DDR5 memory up to 3TB, and eight hot-swap NVMe drive bays, it’s designed to propel your computational tasks into the future.
Why Choose the Supermicro AS-4125GS-TNRT1?
The AS-4125GS-TNRT1 stands out for its exceptional scalability and innovative design. Its PCIe 5.0 capabilities ensure faster data throughput and reduced bottlenecks, while advanced cooling technology, featuring eight optimally controlled heavy-duty fans, keeps it running efficiently under high loads. Whether handling AI model training or high-performance analytics, this system delivers exceptional reliability and speed.
Supermicro’s reputation for cutting-edge engineering is evident in this model’s single-root PCIe architecture, which ensures minimal latency across its GPUs. Its robust build and energy efficiency align with modern data centre demands, making it a perfect fit for enterprises seeking longevity and performance in their infrastructure. The server also supports flexible GPU configurations, catering to both active and passive GPUs, expanding its versatility across multiple use cases.
Key Applications:
• AI / Deep Learning
• High-performance Computing
Drive your business forward with the Supermicro AS-4125GS-TNRT1. Contact Happyware today to explore how this innovative server can redefine your operations. Call us now or register as a Happyware partner for exclusive benefits and expert support. Don’t wait—elevate your infrastructure with this industry-leading solution!
Supermicro AS-4125GS-TNRT1 Teknik Özellikleri
| Single AMD EPYC 9004 Series CPU, 10x 2.5" hot-swap drive bays, 11x PCIe (FHFL), 2x 10GbE LAN, 10x DW GPUs, 4x 2000W redundant PSUs |
| Processor/Cache | |
|---|---|
| CPU | Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x) |
| Cores | Up to 160C/320T |
| Note | Supports up to 400W TDP CPUs * This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP |
| GPU | |
|---|---|
| Max GPU Count | Up to 10 double-width GPUs |
| Supported GPU | NVIDIA PCIe: H100, L40, RTX 6000 Ada Generation, L40S, A100 AMD PCIe: Instinct MI210 |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | |
|---|---|
| Memory Capacity | Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 4.6TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Memory Type | 1.1V |
| On-Board Devices | |
|---|---|
| SATA | SATA (6Gbps) |
| Chipset | AMD SP5 |
| Network Connectivity | 2 RJ45 10GbE |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 ports (rear) |
| Video | 1 VGA port |
| Serial | 1 COM port (Rear) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32Mb SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SAA(new!) |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmountable |
| Model | CSE-418G2TS |
| Dimensions | |
|---|---|
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Colors | Black Front & Silver Body |
| Front Panel | |
|---|---|
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Drive Bays / Storage | |
|---|---|

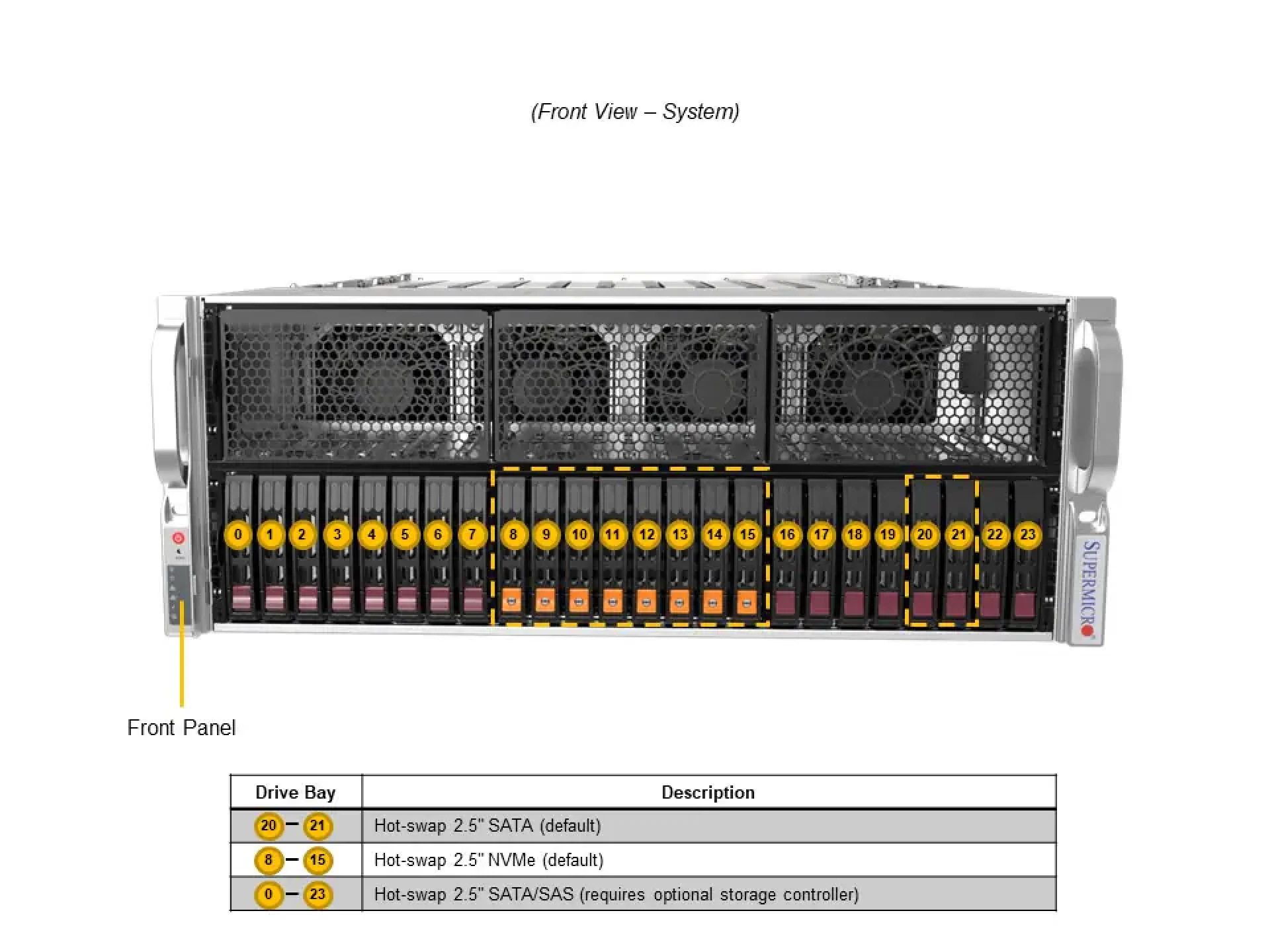

| Drive Bays Configuration | Default: Total 10 bays: 8 front hot-swap 2.5" NVMe drive bays 2 front hot-swap 2.5" SATA drive bays |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key), 2280/22110 |
| Expansion Slots | |
|---|---|

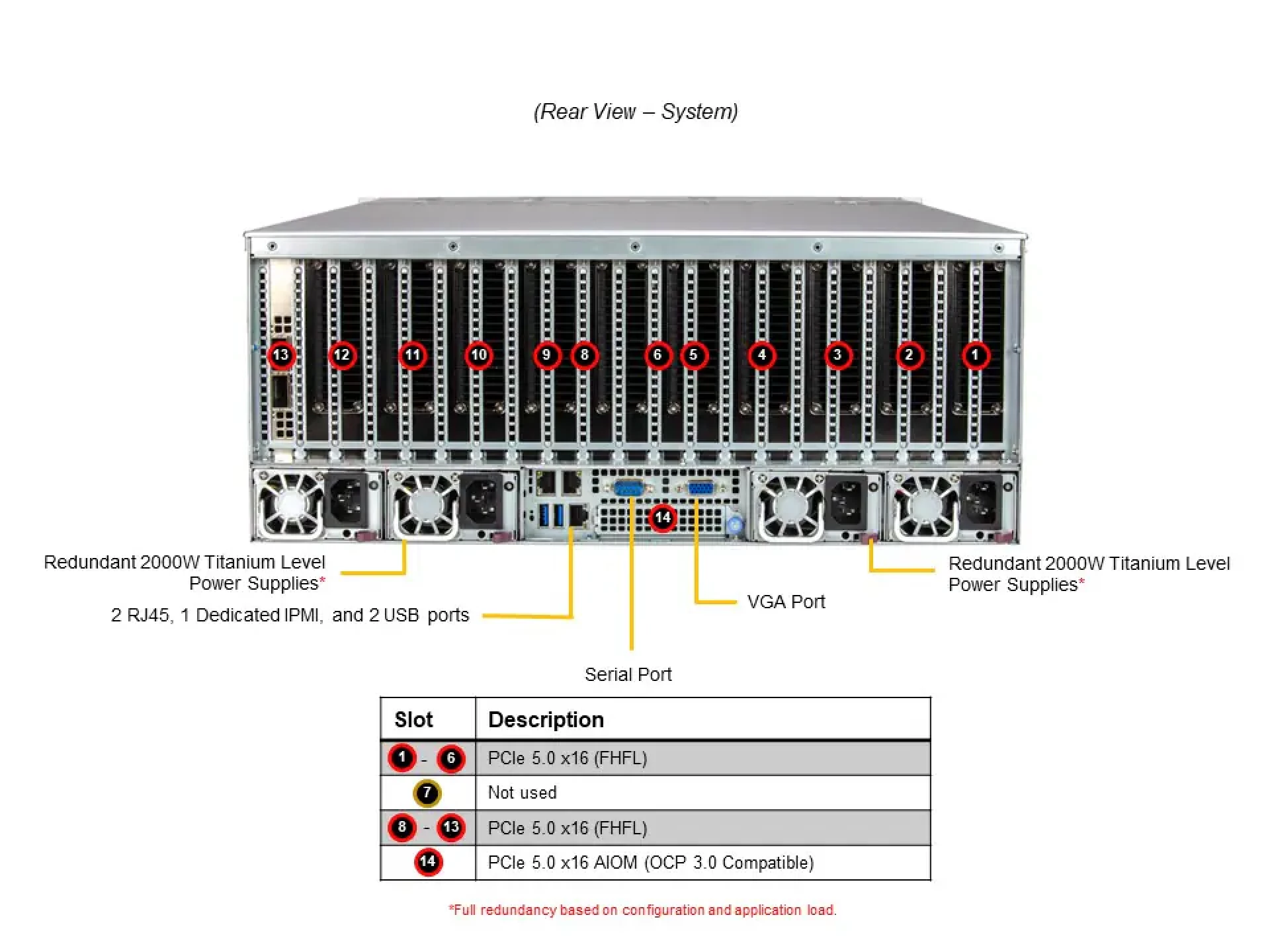

| PCI-Express | 11 PCIe 5.0 x16 FHFL slots |
| System Cooling | |
|---|---|
| Fans | 8 heavy duty fans with optimal fan speed control |
| Power Supply | |
|---|---|
| 4x 2000W Redundant Titanium Level power supply | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A Max: 3.5A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-4125GS-TNRT1 | |
| System Building | AS-4125GS-TNRT1 configured by Supermicro as Complete System | |
Supermicro AS-4125GS-TNRT1 Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | AI / Deep Learning, Application and data serving, Enterprise Server, GPU server, HPC, High End Enterprise Server, High Performance Computing |
| Backplane: | Yes |
| Backplane Interface: | SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 10 |
| Height units: | 4U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | SP5 |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 2000W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 4125GS-TNRT1 |
| Quantity of Cooler: | 8 |
| Quantity of Power Supplies: | 4 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
