AS-4125GS-TNRT2 | Supermicro Dual Socket Epyc 9004 4U Server
Ürün numarası: TR5B9418-922306
|
Üretici numarası: AS-4125GS-TNRT2
Başlayan €11.439,64*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-4125GS-TNRT2
Supermicro AS-4125GS-TNRT2 Teknik Özellikleri
| Dual AMD EPYC 9004 Series CPU, 10x 2.5" hot-swap drive bays, 11x PCIe (FHFL), 2x 10GbE LAN, 10x DW GPUs, 4x 2000W redundant PSUs |
| Processor/Cache | |
|---|---|
| CPU | Dual Socket SP5 AMD EPYC™ 9004 Series Processors |
| Cores | Up to 128C/256T |
| Note | Supports up to 400W TDP CPUs (Air Cooled) |
| GPU | |
|---|---|

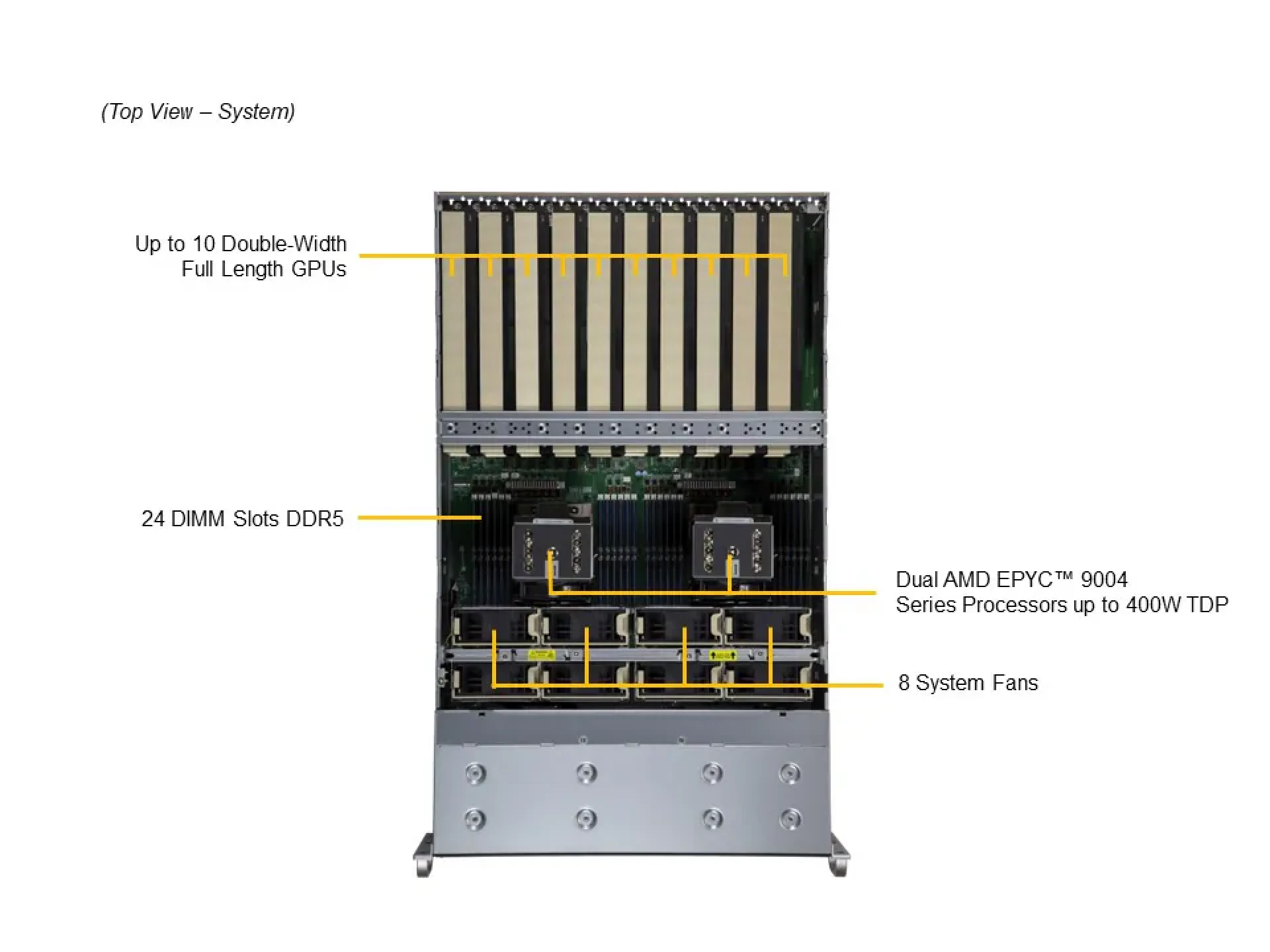

| Max GPU Count | Up to 10 double-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, H100, RTX 4000 ADA, L40, RTX A5500, RTX A4000, RTX 6000, RTX 5000, L40S, A40, A30, A100 AMD PCIe: Instinct MI210 |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | |
|---|---|
| Memory Capacity | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Type | 1.1V |
| On-Board Devices | |
|---|---|
| SATA | SATA (6Gbps) |
| Chipset | AMD SP5 |
| Network Connectivity | 2 RJ45 10GbE |
| NVMe | - |
| Input / Output | |
|---|---|

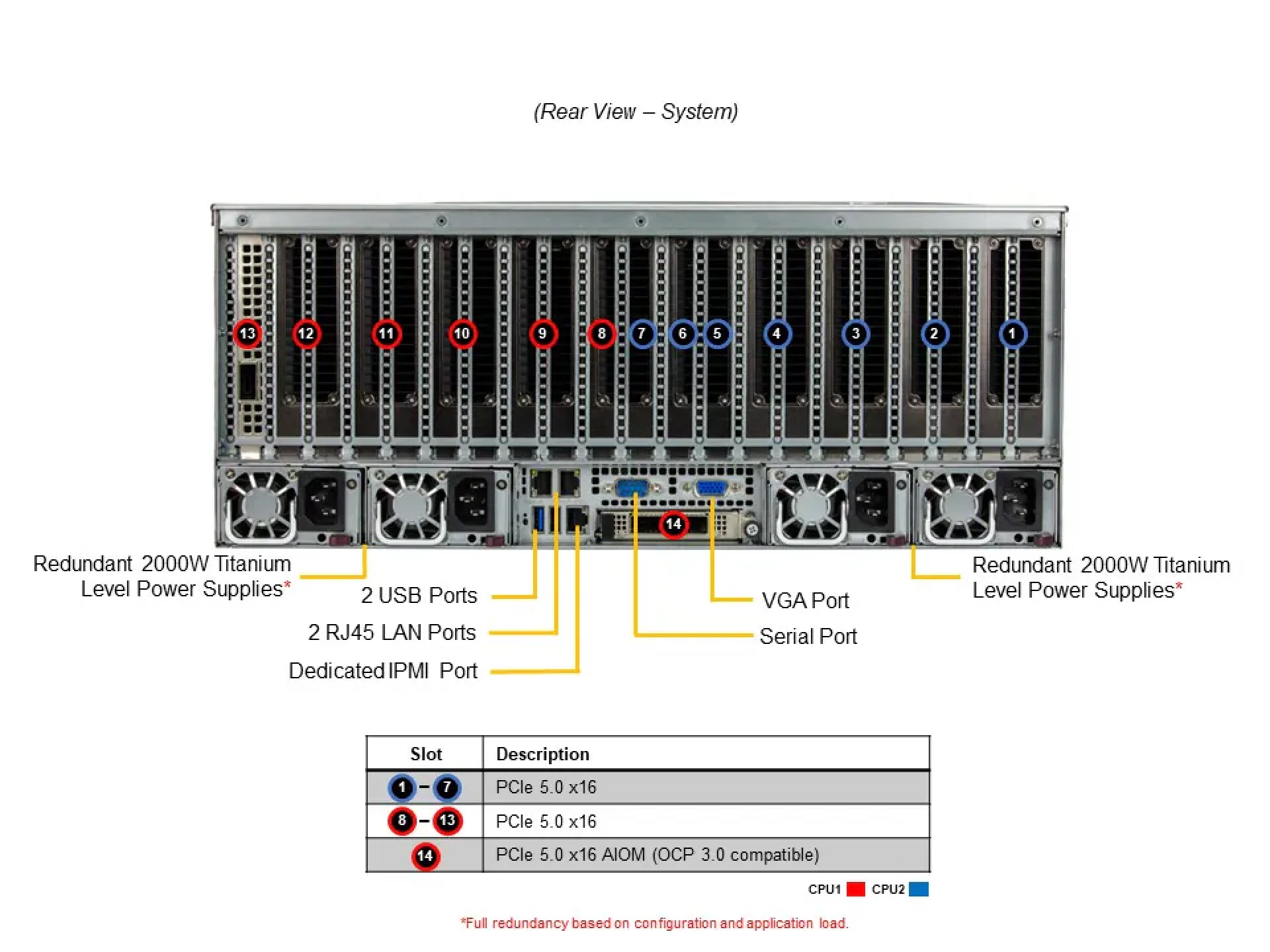

| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 ports (rear) |
| Video | 1 VGA port |
| Serial | 1 COM ports (Rear) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32Mb SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SAA(new!) |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmountable |
| Model | CSE-418G2TS |
| Dimensions | |
|---|---|
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Colors | Black Front & Silver Body |
| Front Panel | |
|---|---|
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Drive Bays / Storage | |
|---|---|

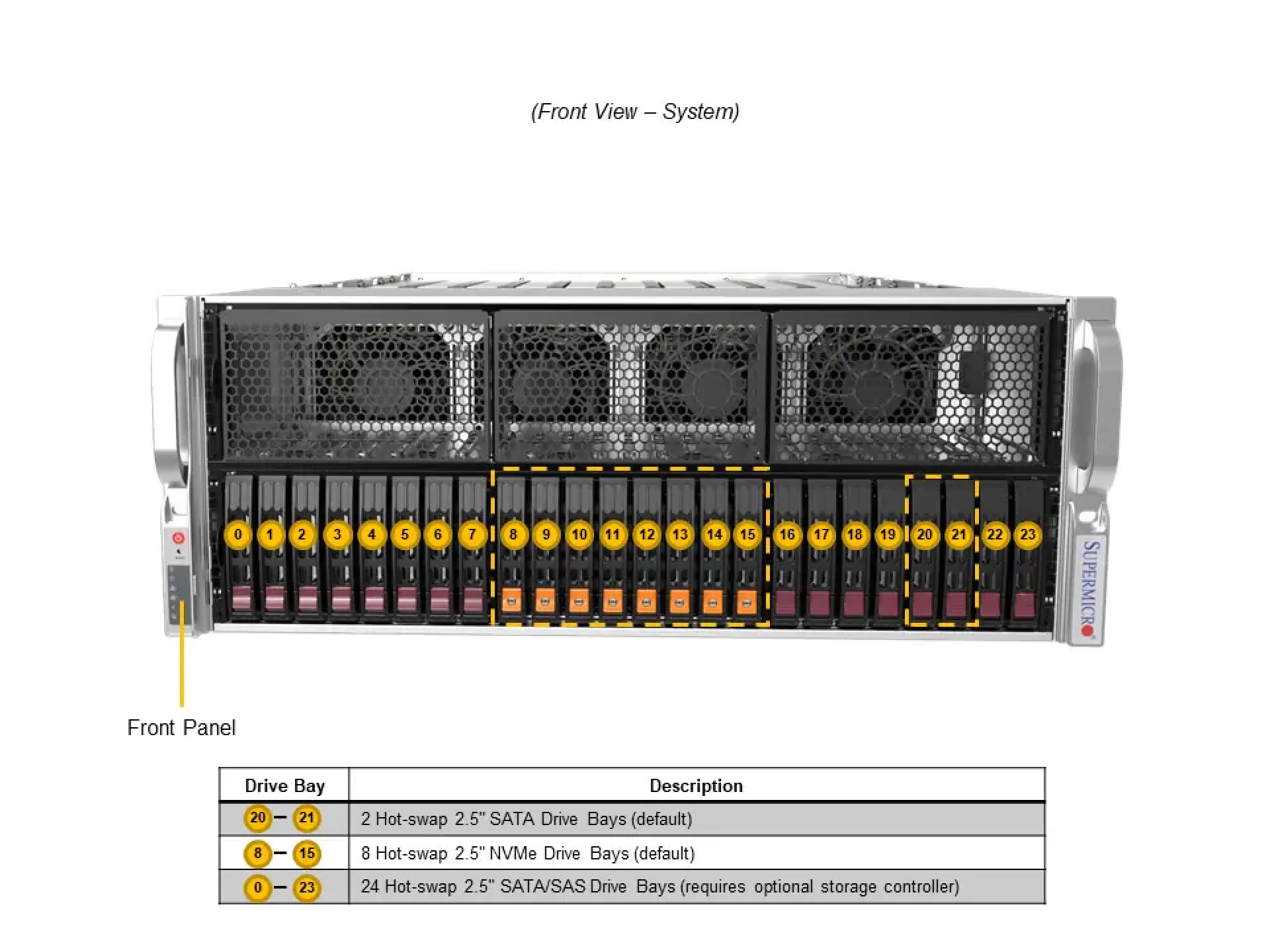

| Drive Bays Configuration | Default: Total 10 bays: 2 front hot-swap 2.5" SATA drive bays 8 front hot-swap 2.5" NVMe drive bays |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key) |
| Expansion Slots | |
|---|---|
| PCI-Express | 11 PCIe 5.0 x16 FHFL slots |
| System Cooling | |
|---|---|
| Fans | 8 heavy duty fans with optimal fan speed control |
| Power Supply | |
|---|---|
| 2+2 2000W Redundant Titanium Level power supply | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| +12V | Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A |
| AC Input | 2000W: 230-240Vdc / 50-60Hz (for China only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-4125GS-TNRT2 | |
| System Building | AS-4125GS-TNRT2 configured by Supermicro as Complete System | |
Supermicro AS-4125GS-TNRT2 Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Big Data, DB Processing & Storage, Data Center Optimized, Database, Enterprise Server, GPU server, HPC, High End Enterprise Server, High Performance Computing |
| Backplane: | Yes |
| Backplane Interface: | SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 10 |
| Height units: | 4U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | SP5 |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 2000W |
| Performance Class: | Datacenter-Class, Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 4125GS-TNRT2 |
| Quantity of Cooler: | 8 |
| Quantity of Power Supplies: | 4 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports |
| Suitability: | Server |
| Use case: | Database Server, Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
