SYS-421GU-TNXR | Supermicro Dual Socket Xeon Scalable 4U Server
Ürün numarası: TR6B9776-980587
|
Üretici numarası: SYS-421GU-TNXR
Başlayan €13.987,66*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro SYS-421GU-TNXR
Supermicro SYS-421GU-TNXR Teknik Özellikleri
| Dual Intel Xeon Scalable 5th Gen CPU, 6x 2.5" hot-swap drive bays, 8x PCIe Gen5 (LP), 2x 10GbE LAN, 4x 3000W redundant PSUs |
| Processor/Chipset | |
|---|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Cores | Up to 56C/112T; Up to 112.5MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled) |
| GPU | |
|---|---|
| Max GPU Count | Up to 4 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX H100 4-GPU (80GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® |
| Certification | NVIDIA Certified |
| System Memory | |
|---|---|

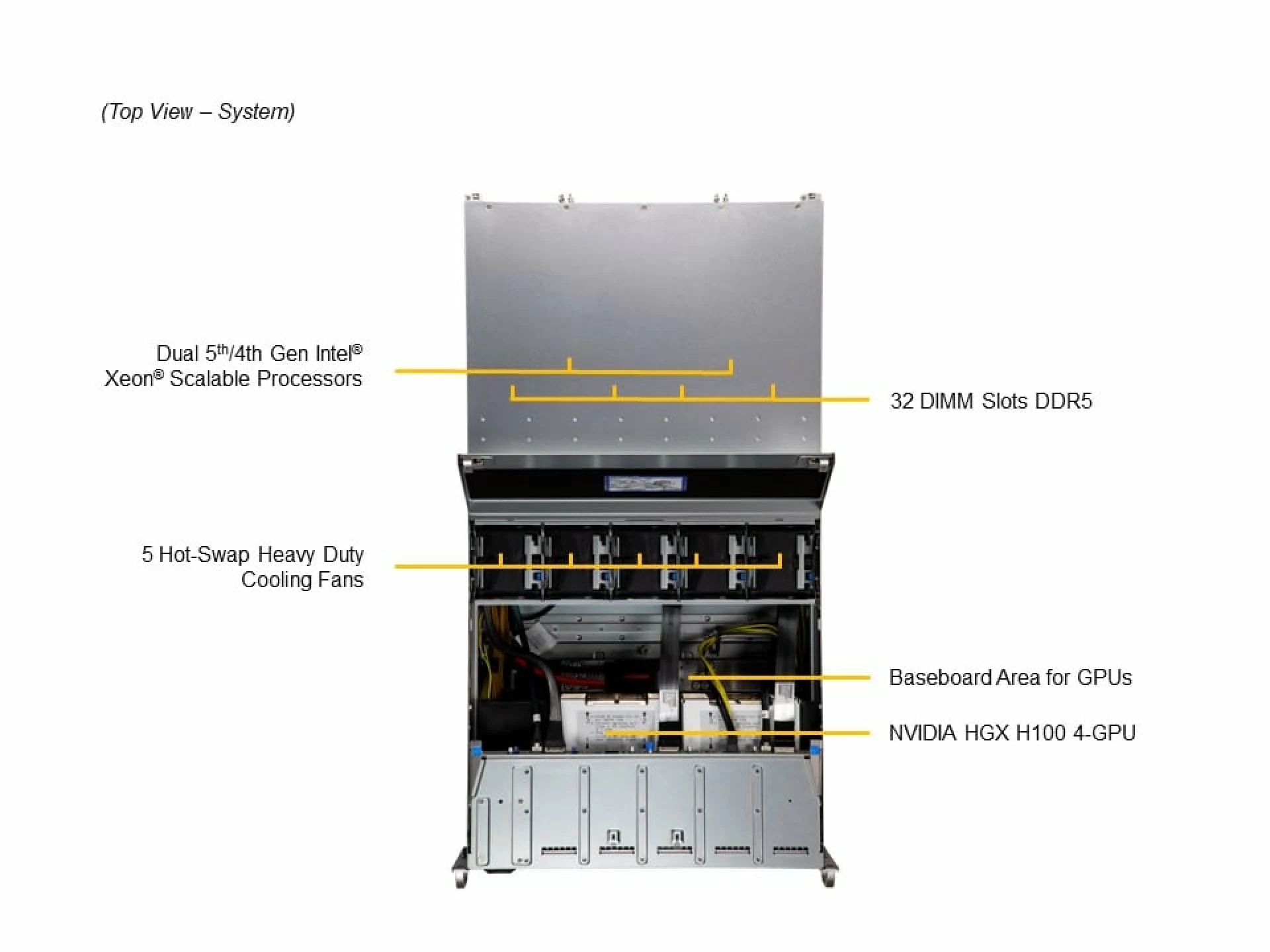

| Memory | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 |
| Memory Voltage | 1.1V |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C741 |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
| NVMe | - |
| Input / Output | |
|---|---|
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmount |
| Model | CSE-458GTS-R3K06P |
| Dimensions and Weight | |
|---|---|
| Height | 17.56cm (175.6 mm) |
| Width | 44.9cm (449 mm) |
| Depth | 83.3cm (833 mm) |
| Package | 37cm (H) x 69.97cm (W) x 125.98cm (D) |
| Weight | Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg) |
| Available Color | Black Front & Silver Body |
| Front Panel | |
|---|---|
| LEDs | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Expansion Slots | |
|---|---|

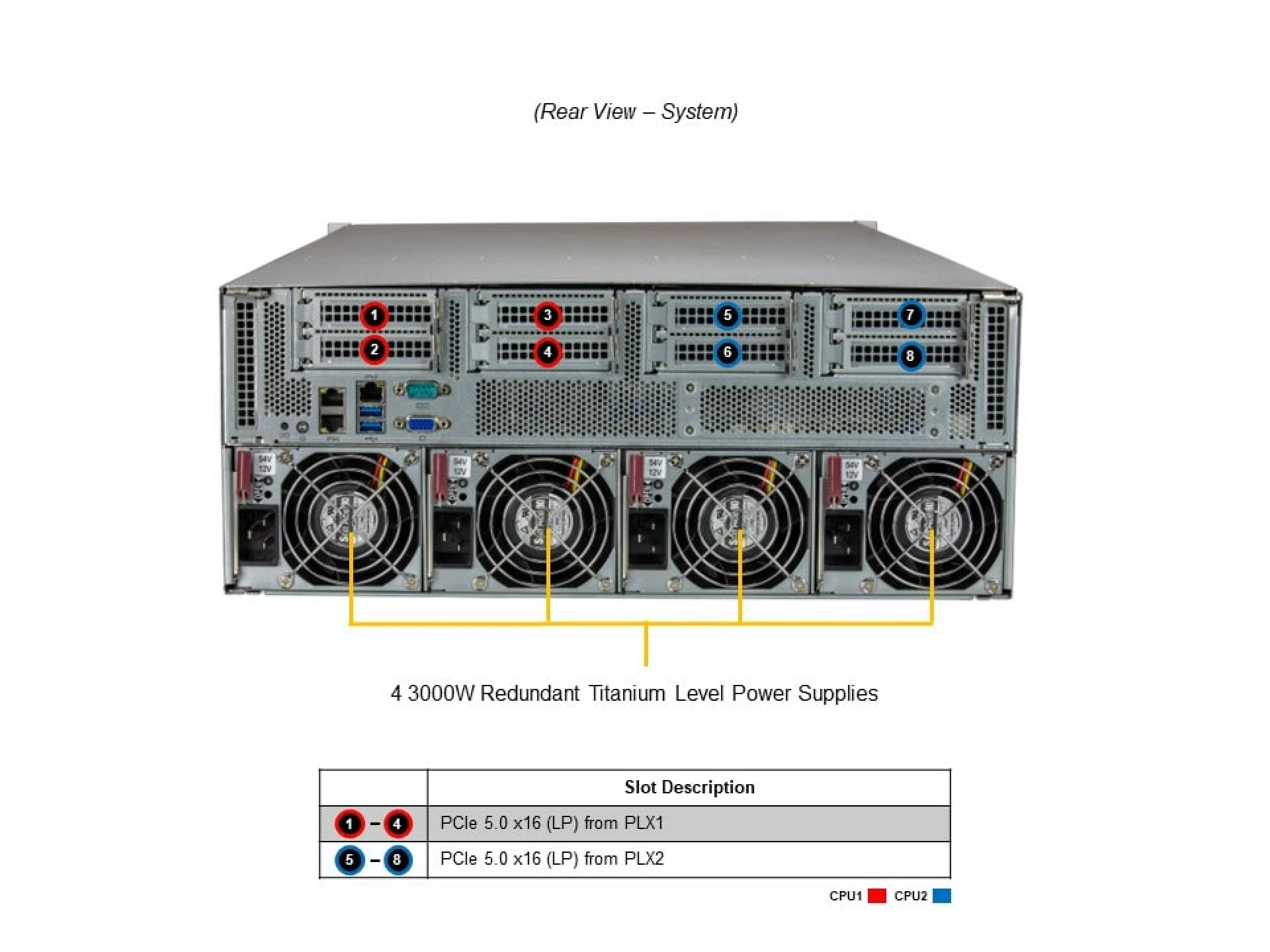

| PCI-Express (PCI-E) Configuration | Default 1 PCIe 5.0 x16 LP slot 7 PCIe 5.0 x16 LP slots |
| Storage | |
|---|---|

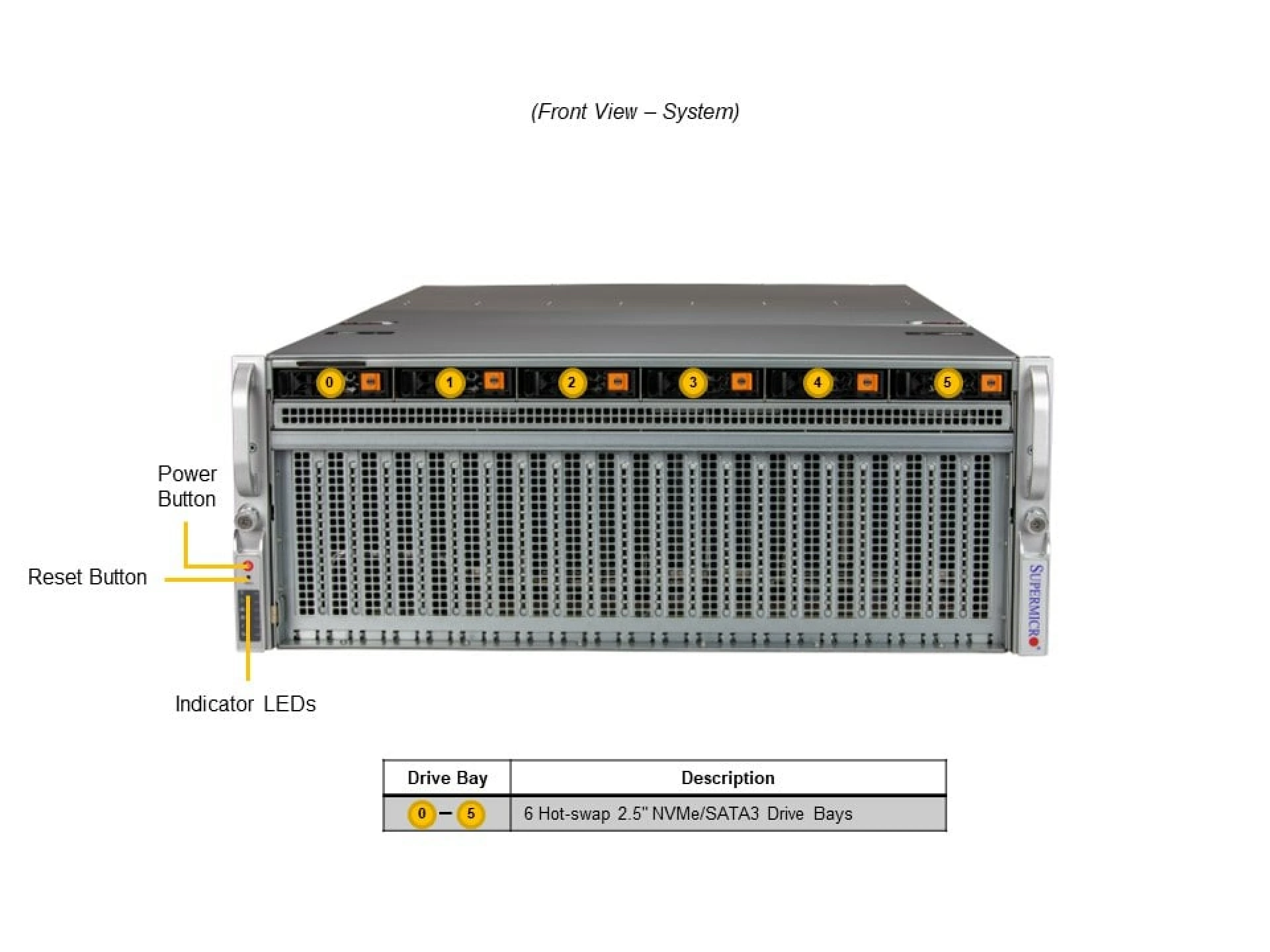

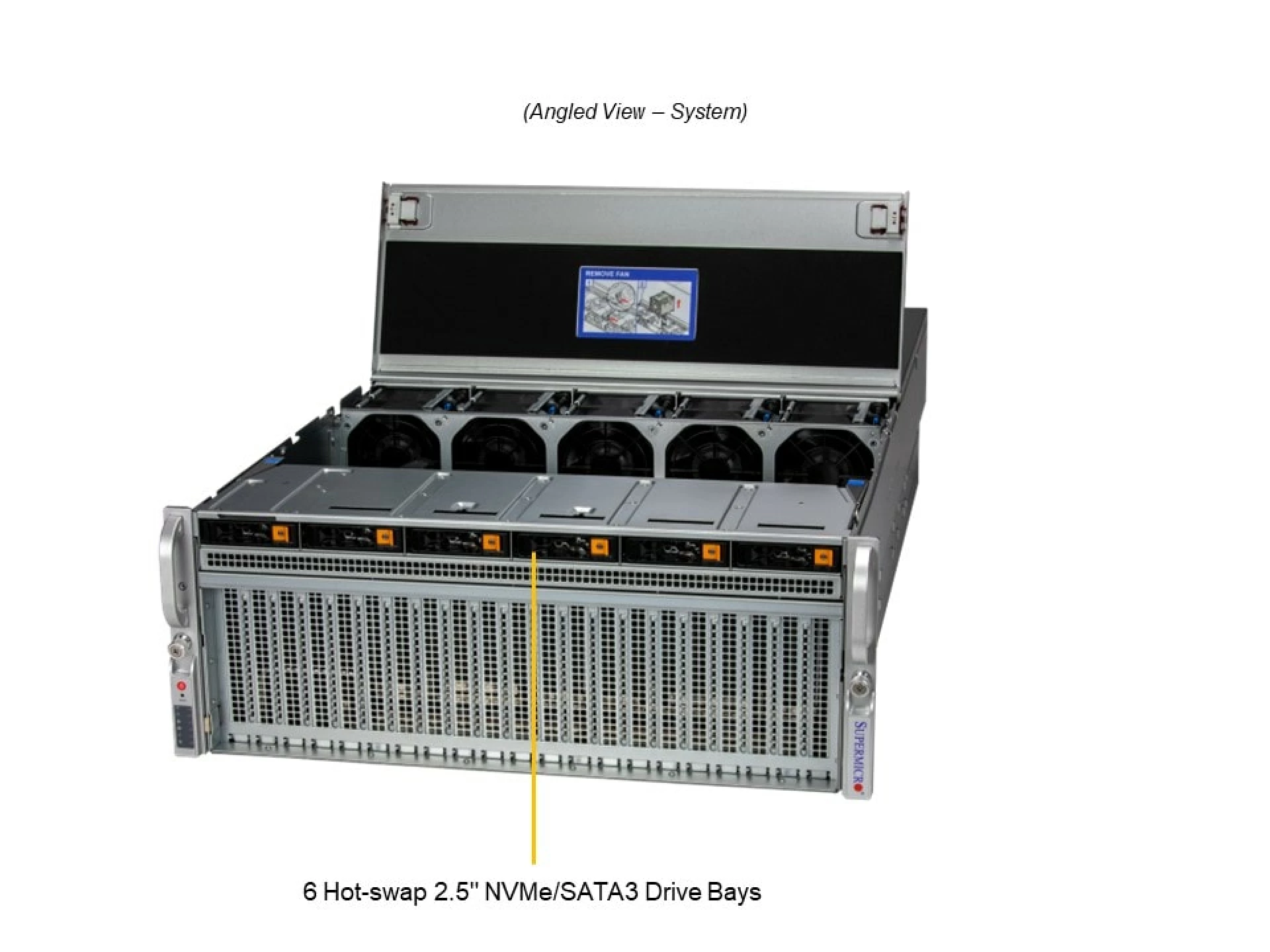

| Drive Bays | Default: Total 6 bays 6 front hot-swap 2.5" NVMe/SATA drive bays |
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
| System Cooling | |
|---|---|
| Fans | 5 heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | |
|---|---|
| 4x 3000W Redundant Titanium Level (96%) power supplies | |
| Dimension (W x H x L) | 106.5 x 82.1 x 245.5 mm |
| AC Input | 3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz |
| +12V | Max: 91.66A / Min: 0A (200Vac-240Vac) |
| 12Vsb | Max: 3A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment / Compliant | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-421GU-TNXR | |
| System Building | SYS-421GU-TNXR configured by Supermicro as Complete System | |
Supermicro SYS-421GU-TNXR Nitelikleri
| Add-on card form factor: | HH |
|---|---|
| Applications: | AI / Deep Learning, GPU server, HPC, High Performance Computing |
| Backplane: | Yes |
| Backplane Interface: | SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Emerald Rapids, Sapphire Rapids |
| CPU Manufacturer: | Intel |
| CPU Socket: | 4677 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 4 |
| Height units: | 4U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C741 |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Controller: | X710-AT2 |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 3000W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 421GU-TNXR |
| Quantity of Cooler: | 5 |
| Quantity of Power Supplies: | 4 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
