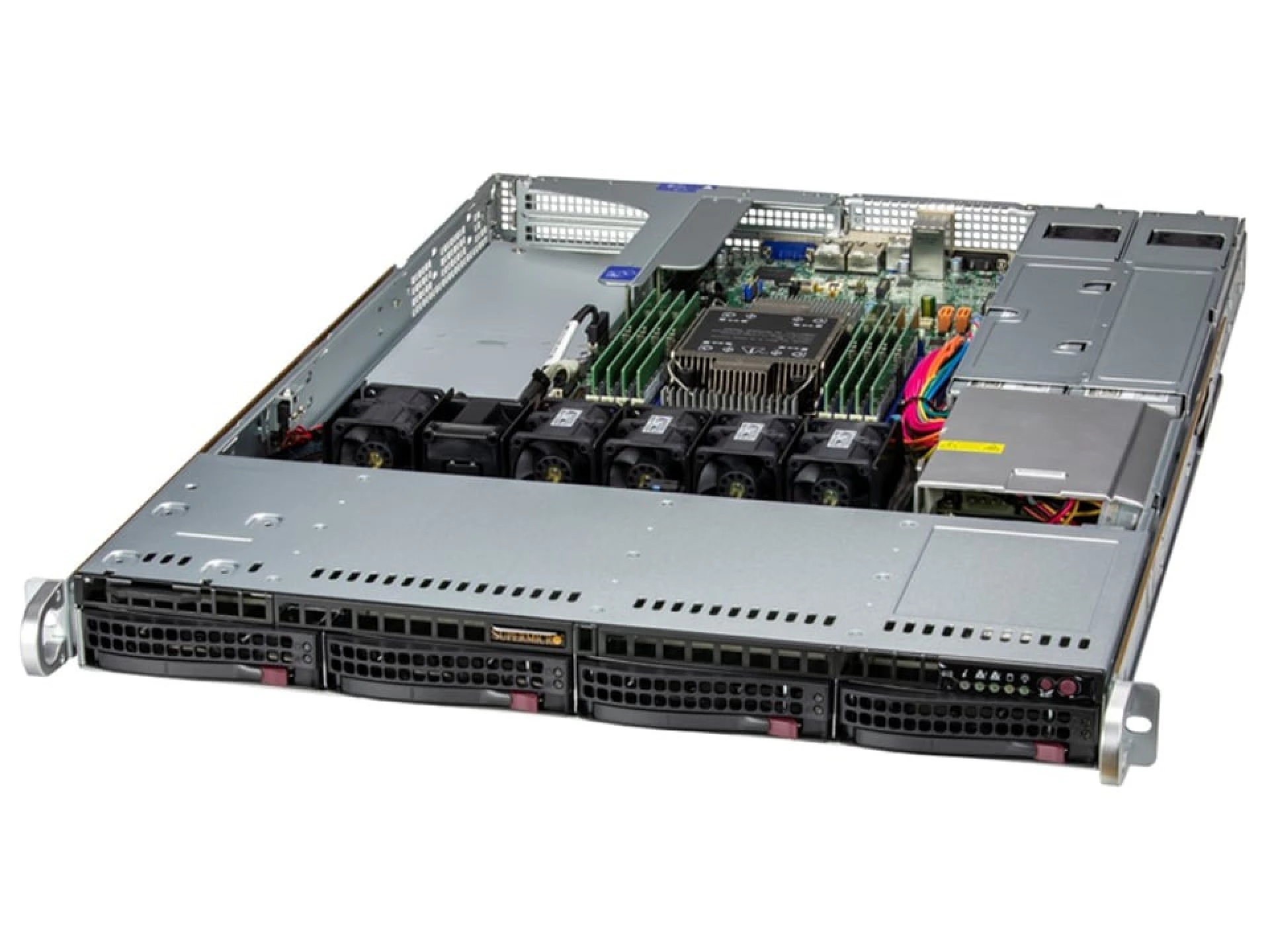

Supermicro SYS-511E-WR
Harness Unrivalled Processing Power with the Supermicro SYS-511E-WR Barebone System
The Supermicro SYS-511E-WR is a state-of-the-art, single-socket 1U server designed for high-performance computing and mission-critical applications. With support for Intel® 4th/5th Gen Xeon® Scalable processors, this server can handle up to 300W TDP, making it ideal for businesses seeking robust performance in compact spaces. With onboard 1G LAN ports and Intel® i210 network interface, the system is designed for seamless connectivity and reliability
Why Choose the Supermicro SYS-511E-WR?
Supermicro is renowned for its reliable and innovative server solutions, and the SYS-511E-WR stands as a testament to that legacy. Equipped with the advanced Intel® C741 chipset and supporting DDR5 RDIMM memory up to 5600 MHz, it offers unmatched performance for high-demand tasks. The system’s 4x front hot-swap 3.5" SATA3 drive bays provide ample and flexible storage options, while ensuring seamless data integrity.
This server is also designed with uptime in mind, featuring redundant Titanium-level 860W power supplies for superior energy efficiency. Whether handling mission-critical applications or everyday workloads, the SYS-511E-WR guarantees reliability and top-tier performance, making it the ideal choice for businesses seeking a high-performance, energy-efficient solution.
Key Applications:
• Virtualization
• Cloud Computing
• Data Center Optimized
• Entry GPU server
• Value IaaS
Partner with Happyware to integrate this cutting-edge solution into your infrastructure. Call us today to elevate your enterprise’s performance with the Supermicro SYS-511E-WR.
Supermicro SYS-511E-WR Teknik Özellikleri
| Single Intel Xeon Scalable 5th/4th Gen CPU, 4x 3.5" hot-swap drive bays, 3x PCIe Gen5 (2x FHFL, 1x LP), 2x 1GbE LAN, 2x 860W redundant PSUs |
| Processor | |
|---|---|
| CPU | Single Socket E (LGA 4677) 5th/4th Gen Intel® Xeon® Scalable processors |
| Cores | Up to 52C/104T; Up to 97.5MB Cache |
| Note | Supports up to 300W TDP CPUs (Air Cooled) |
| System Memory | |
|---|---|
| Memory Capacity | 8 DIMM slots Up to 2TB: 8x 256 GB DRAM |
| Memory Type | 4800/4400MHz ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| Error Detection | Yes |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C741 |
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input/Output | |
|---|---|
| SATA | 10 SATA (6Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port 2 RJ45 1GbE LAN ports |
| USB | 4 USB 3.2 Gen 1 ports (2 headers; 2 rear) 3 USB 2.0 ports (2 rear; 1 Type A) |
| Video | 1 VGA port |
| Serial Port | 2 COM Ports (1 header; 1 rear) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | Supemicro Out of Band (OOB) License (Included per Node) SuperCloud Composer IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring | |
|---|---|
| CPU | 8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 1U Rackmount |
| Model | CSE-815BTS-R860WP |
| Dimensions and Weight | |
|---|---|
| Height | 4.31cm (43mm) |
| Width | 43.68cm (437mm) |
| Depth | 65.02cm (650mm) |
| Package | 21.59cm (H) x 59.69cm (W) x 85.59cm (D) |
| Weight | Net Weight: 22 lbs (9.98 kg) Gross Weight: 46 lbs (20.87 kg) |
| Available Color | Black |
| Front Panel | |
|---|---|
| Buttons | Power On/Off button System Reset UID button |
| LEDs | Device Activity LAN 1 Activity LAN 2 Activity Power status System information |
| Expansion Slots | |
|---|---|
| PCI-Express | 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x8 (in x16) LP slot |
| Note | Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length) |
| Storage | |
|---|---|
| Drive Bays | 4x 3.5" SATA/SAS drive bays |
| M.2 | 1x PCIe 3.0 x 2, M-key, Form factor 2280, 22110 |
| Peripheral Bays | 2x 2.5" drive bays |
| System Cooling | |
|---|---|
| Fans | 1 AOC cooling Fan (optional) 5 middle cooling PWM 40x40x56mm Fans |
| Power Supply | |
|---|---|
| 2x 800W/860W 1U redundant power supplies | |
| Dimension (W x H x L) | 54.5 x 40.25 x 322 mm |
| AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz 860W: 200-240Vac / 6A-4.5A / 50-60Hz |
| +12V | Max: 66.6A / Min: 0A (100Vac-127Vac) Max: 71.6A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | 80 PLUS Platinum Level, 94% |
| Operating Environment | |
|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-511E-WR | |
| System Building | SYS-511E-WR configured by Supermicro as Complete System | |
Supermicro SYS-511E-WR Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | Cloud Computing, Data Center Optimized, Entry GPU server, Value IaaS, Virtualization |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III |
| Bluetooth Support: | None |
| CPU Codename: | Emerald Rapids, Sapphire Rapids |
| CPU Manufacturer: | Intel |
| CPU Socket: | 4677 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 2 |
| Height units: | 1U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C741 |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | No |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 860W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 511E-WR |
| Quantity of Cooler: | 6 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, SAS Ports, SATA Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Cloud Computing, Database Server, GPGPU, Virtualization |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
