AS-5126GS-TNRT | Supermicro Dual Socket Epyc 9004 5U Server
Fiyat sor ↓
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-5126GS-TNRT
Redefine High-Performance Computing with the Supermicro AS-5126GS-TNRT Barebone System
Experience unparalleled computing power with the Supermicro AS-5126GS-TNRT, a cutting-edge 5U dual-socket server designed to handle the most intensive AI, deep learning, and data-driven workloads. Supporting up to 8 double-width GPUs and AMD EPYC™ 9005 Series processors with up to 500W TDP, this system delivers superior performance and scalability. With 9TB DDR5-6000 memory support and direct GPU-to-CPU connections, you’re equipped with the speed and precision needed for the future of computing.
Why Choose the Supermicro AS-5126GS-TNRT?
This server sets itself apart with its direct GPU attachment, ensuring ultra-low latency and efficient data processing between the GPUs and CPUs. The NVIDIA NVLink® Bridge and AMD Infinity Fabric™ Link provide high-bandwidth GPU interconnects, enhancing performance for resource-intensive applications like AI model training and simulation.
Additionally, with nine PCIe 5.0 x16 FHFL slots, this system supports seamless integration of accelerators and networking cards. The air-cooled design optimises thermal management, allowing you to harness the full potential of its 500W processors while maintaining operational efficiency. Supermicro’s commitment to quality and innovation ensures your infrastructure is built for reliability and longevity, making it the ideal solution for enterprises demanding next-level computational power.
Key Applications:
• AI / Deep Learning
• 3D Rendering Farm
• Visualization / Simulation
• High Performance Computing
• Multimedia / Digital Content creation
Transform your business with the power of the Supermicro AS-5126GS-TNRT. Contact Happyware today to explore how this revolutionary server can redefine your computing landscape. Call us now or register your company as a Happyware partner to enjoy exclusive support and benefits. Don’t miss your chance to stay ahead with this state-of-the-art solution!
Supermicro AS-5126GS-TNRT Teknik Özellikleri
| Dual AMD EPYC 9005/9004 CPU, 6x 2.5" hot-swap drive bays, 9x PCIe (FHFL), 6x 2700W redundant PSUs |
| Processor/Chipset | |
|---|---|
| CPU | Dual processor AMD EPYC™ 9005/9004 Series Processors |
| Cores | Up to 192C/384T |
| Note | Supports up to 500W TDP CPUs |
| GPU | |
|---|---|
| Max GPU Count | Up to 8 double-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S |
| CPU-GPU Interconnect | Direct Attached |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | |
|---|---|
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM |
| On-Board Devices | |
|---|---|
| SATA | SATA (6Gbps) |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE |
| Input / Output | |
|---|---|

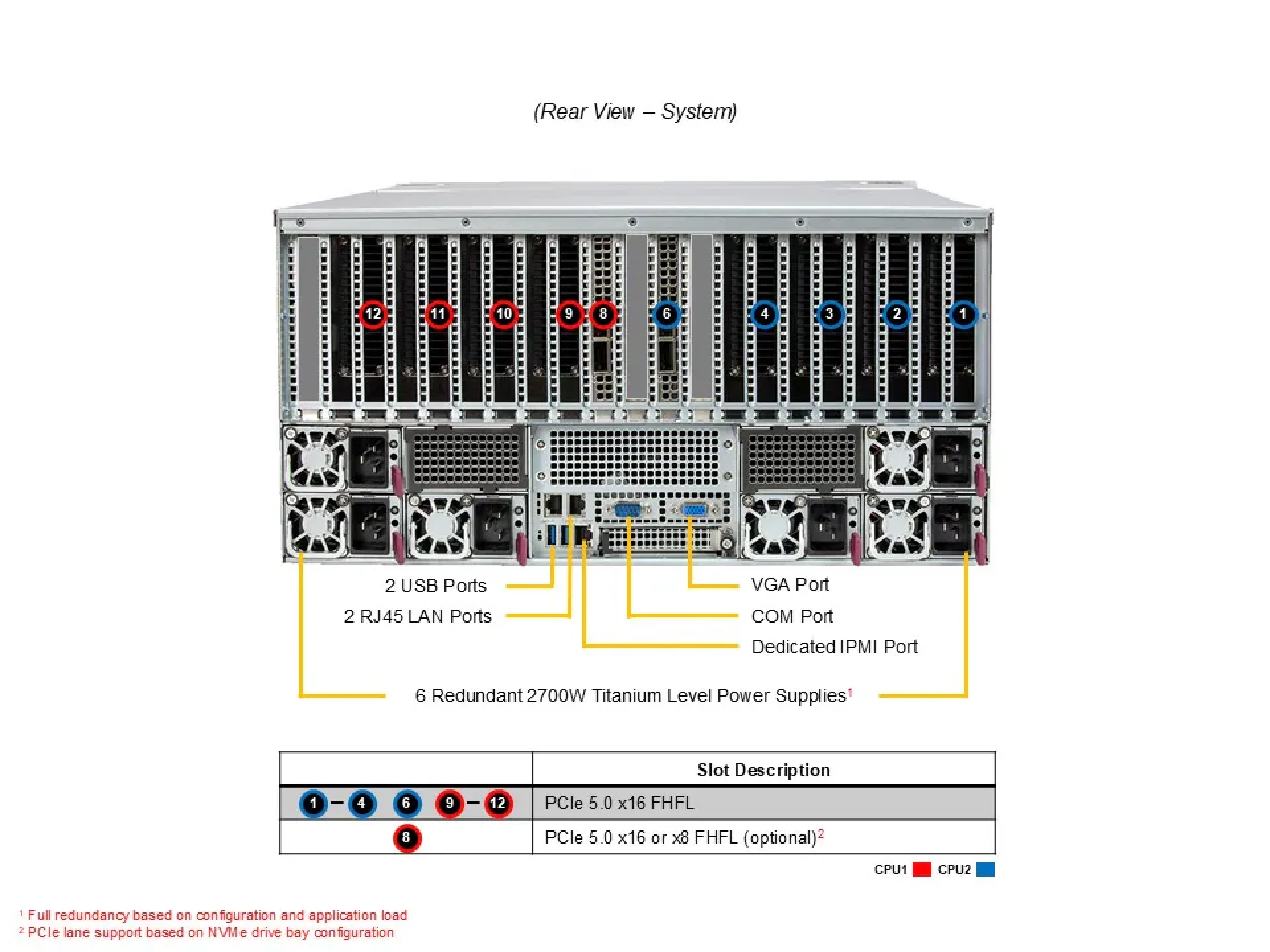

| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 ports(rear) |
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 5U Rackmount |
| Model | CSE-528G2TS-R000NDP |
| Dimensions and Weight | |
|---|---|
| Height | 22.25cm (222.5 mm) |
| Width | 43.07cm (437 mm) |
| Depth | 73.7cm (737 mm) |
| Package | 43.99cm (H) x 71.98cm (W) x 107.97cm (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black Front & Silver Body |
| Expansion Slots | |
|---|---|
| PCI-Express (PCI-E) Configuration | Default 9 PCIe 5.0 x16 FHFL slots |
| Storage | |
|---|---|

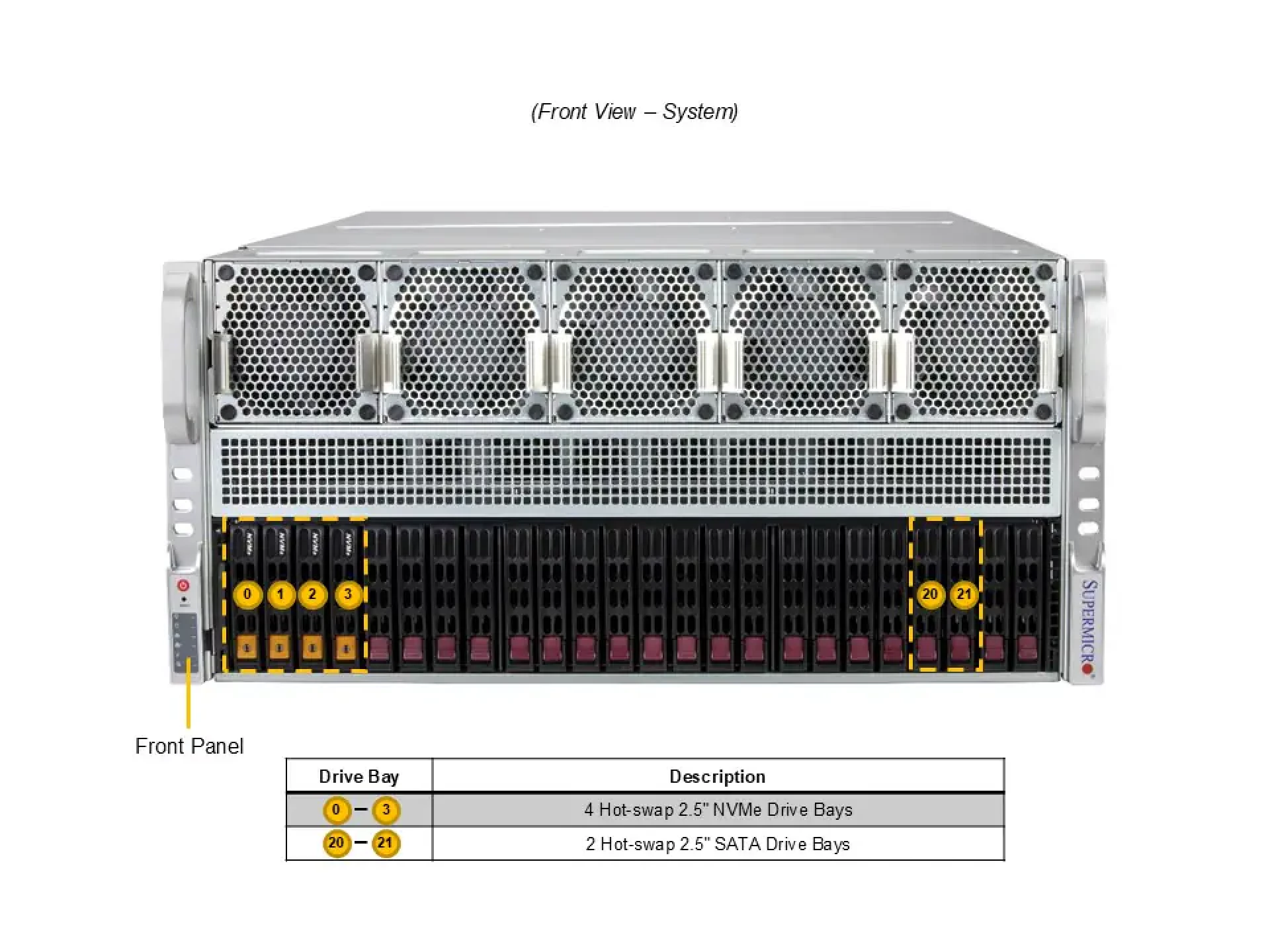

| Drive Bays | Default: Total 6 bays 2 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe drive bays |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key) |
| System Cooling | |
|---|---|
| Fans | 10 heavy duty fans with optimal fan speed control |
| Power Supply | |
|---|---|
| 6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12Vsb | Max: 3.5A / Min: 0A Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment / Compliant | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-5126GS-TNRT | |
| System Building | AS-5126GS-TNRT configured by Supermicro as Complete System | |
Supermicro AS-5126GS-TNRT Nitelikleri
| Add-on card form factor: | FH |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Enterprise Server, GPU server, HPC, High End Enterprise Server, High Performance Computing, Visual Computing |
| Backplane: | Yes |
| Backplane Interface: | SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Gold |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| GPU quantity per node: | 8 |
| Height units: | 5U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | None |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 2700W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 5126GS-TNRT |
| Quantity of Cooler: | 10 |
| Quantity of Power Supplies: | 6 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC), Multimedia, Visual Computing |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
