SYS-521C-NR | Supermicro Single Socket Xeon Scalable 2U Server
Ürün numarası: TR0B5089-205592
|
Üretici numarası: SYS-521C-NR
Başlayan €3.593,73*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro SYS-521C-NR
Supermicro SYS-521C-NR Teknik Özellikleri
| SKU Overview | ||
|---|---|---|
| SYS-521C-NR | Single Intel Xeon Scalable 5th/4th Gen CPU, 12x 3.5" hot-swap drive bays, 6x PCIe Gen5 (4x FHFL, 2x FHHL), via AIOM & AOC for networking, 2x 1200W redundant PSUs | |
| Processor | ||
| CPU | Single Socket E (LGA 4677) 5th/4th Gen Intel® Xeon® Scalable processors | |
| Cores | 60C/120T; 112.5MB Cache | |
| Note | 350W TDP CPUs (Air Cooled) | |
| System Memory | |
|---|---|
| Memory Capacity | 16 DIMM slots Up to 4TB: 16x 256 GB DRAM |
| Memory Type | 4800/4400MHz ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| Error Detection | Yes |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C741 |
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| NVMe | NVMe |
| Network Connectivity | Via AIOM & AOC |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input/Output | |
|---|---|
| SATA | 12 SATA (6Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 2.0 ports (2 headers) 2 USB 3.2 Gen 1 ports (2 rear) |
| Video | 1 VGA port |
| Serial Port | 1 COM Port (1 rear) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | Supemicro Out of Band (OOB) License (Included per Node) SuperCloud Composer IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring | |
|---|---|
| CPU | 8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-LA26TS-R1K23AWP1 |
| Dimensions and Weight | |
|---|---|
| Height | 8.89cm (89mm) |
| Width | 43.68cm (437mm) |
| Depth | 64.77cm (648mm) |
| Package | 28.95cm (H) x 67.81cm (W) x 87.63cm (D) |
| Weight | Net Weight: 33 lbs (15 kg) Gross Weight: 59 lbs (26.76 kg) |
| Available Color | Black front & Silver body |

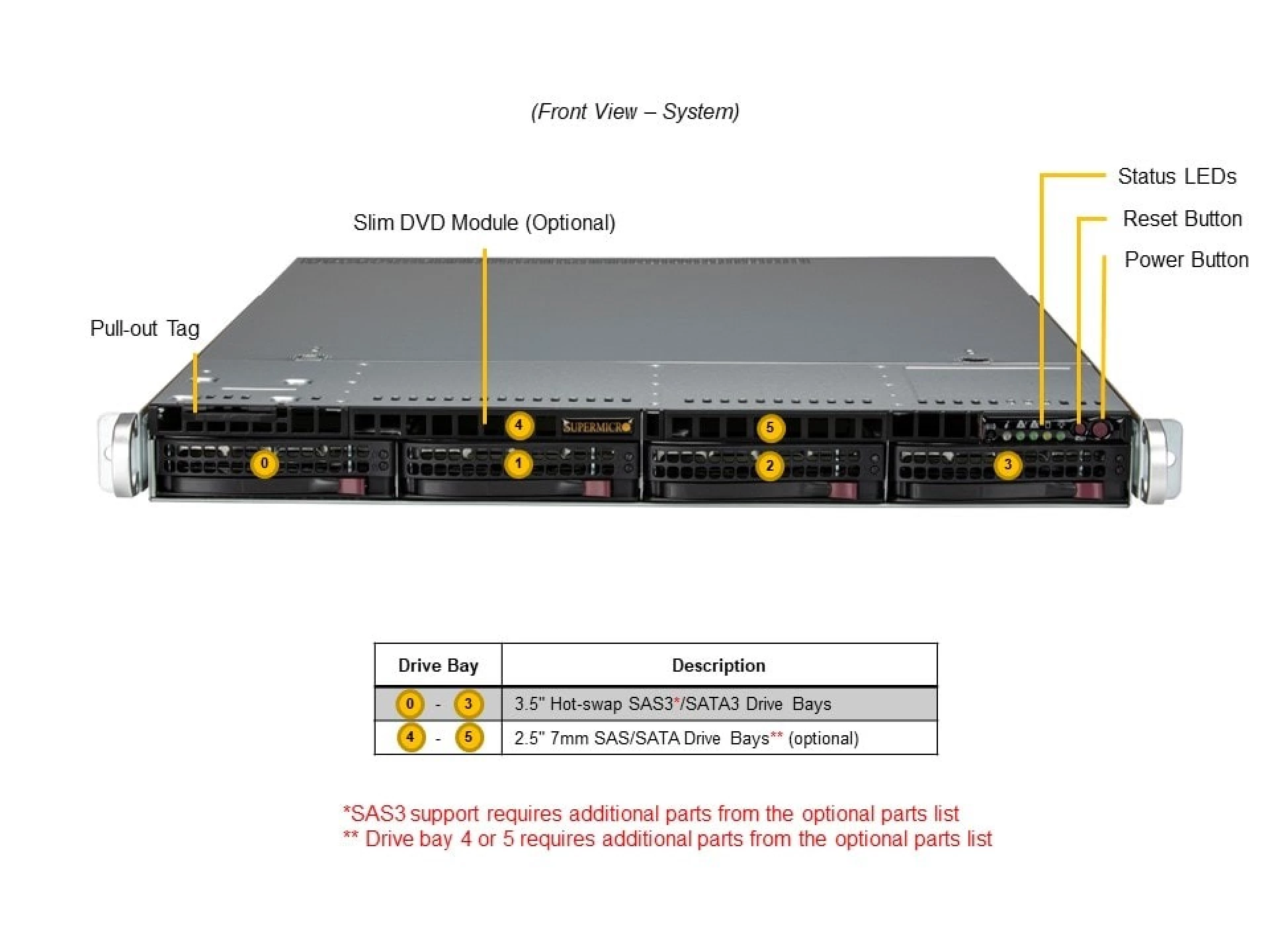

| Front Panel | |
|---|---|
| Buttons | Power On/Off button UID button |
| LEDs | Device Activity Network Activity Power status Universal Information (UID) |
| Expansion Slots | |
|---|---|
| PCI-Express | 4 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x16 FHHL slots |
| Note | AIOM slot shares PCIe lanes with NVMe drives. Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length) |
| Storage | |
|---|---|
| Drive Bays | 12x 3.5" NVMe/SATA/SAS drive bays (2x 3.5" NVMe hybrid) |
| M.2 | 2x PCIe 3.0 x 2 M-key, 2280, 22110 |
| System Cooling | |
|---|---|
| Fans | 3 heavy duty PWM 80x80x38mm Fans |
| Power Supply | |
|---|---|
| 2x 1200W/1000W 1U Titanium Power Supply W/PMbus | |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| AC Input | 1000W: 100-127Vac / 15A-12A / 50-60Hz 1200W: 200-240Vac / 8.5A-7A / 50-60Hz |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | 80 PLUS Titanium Level |
| Operating Environment | |
|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-521C-NR | |
| System Building | SYS-521C-NR configured by Supermicro as Complete System | |
Supermicro SYS-521C-NR Nitelikleri
| Add-on card form factor: | FH, HH, OCP 3.0 |
|---|---|
| Applications: | AI Inference and Machine Learning, AI inferencing, Cloud Computing, Data Center Applications, Data Center Optimized, Database, Networking, Networking Appliance |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Emerald Rapids, Sapphire Rapids |
| CPU Manufacturer: | Intel |
| CPU Socket: | 4677 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 4 |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C741 |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Controller: | AIOM |
| Onboard Graphic: | No |
| Onboard LAN: | No |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 1200W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 521C-NR |
| Quantity of Cooler: | 3 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Cloud Computing, Database Server, Deep Learning - Machine Learning, File Storage and Sharing, Networking |
| Wi-Fi Support: | None |
