SSG-521E-E1CR24H | Supermicro Single Socket Xeon Scalable 2U Server
Başlayan €7.516,68*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro SSG-521E-E1CR24H
Unleash the Power of High-Volume Storage with the Supermicro Barebone Storage SuperServer

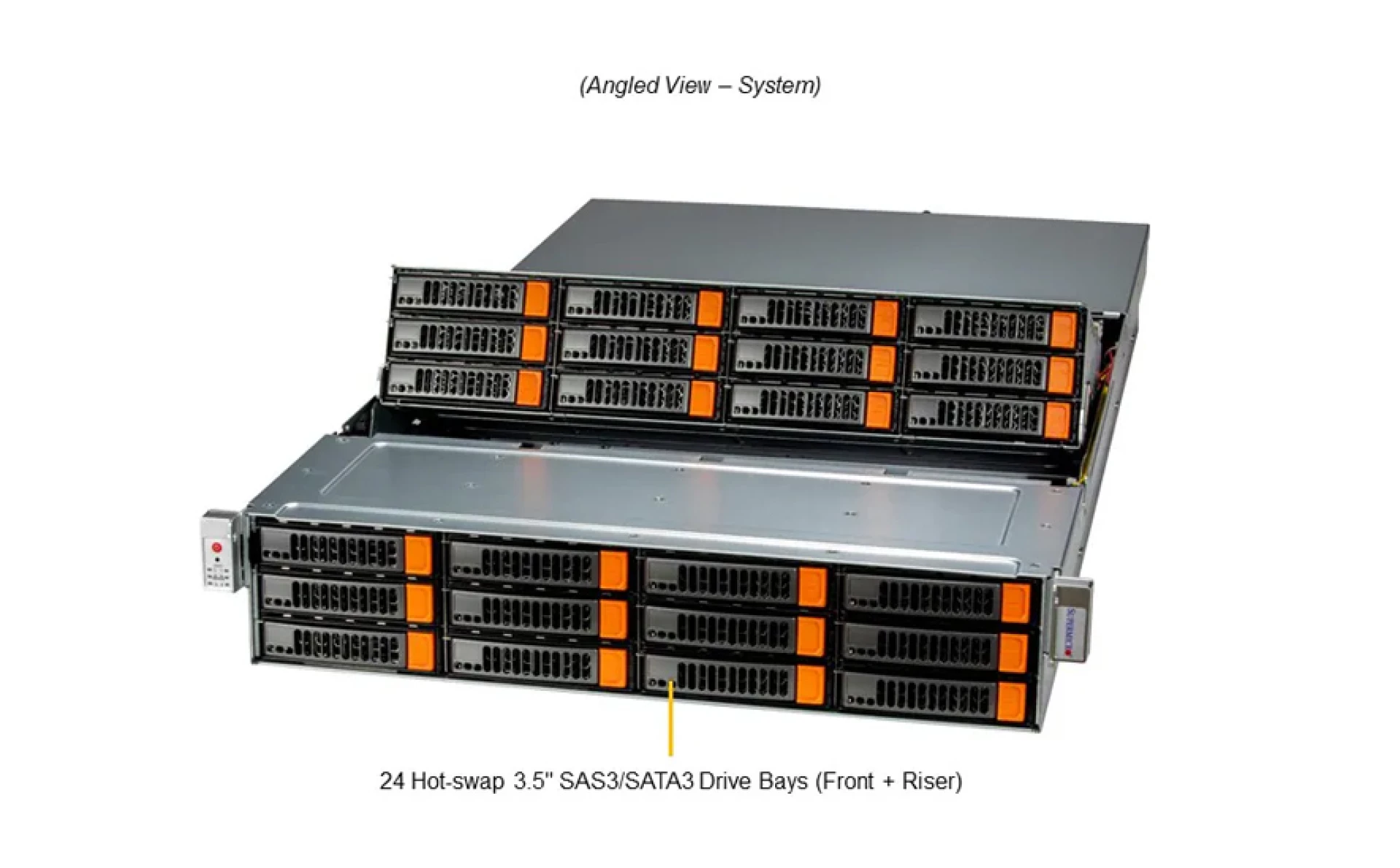

Introducing the Supermicro Barebone Storage SuperServer Black 2U Single Socket 4677 – a pinnacle of performance engineering designed to elevate your data management. The SSG-521E-E1CR24H is a 2U front/top-loading storage server featuring 24 hot-swap 3.5" SAS/SATA bays and support for 5th/4th Gen Intel® Xeon® Scalable processors. PCIe 5.0 compatibility and up to 6 PCIe slots offer exceptional scalability, while the Broadcom® 3908 RAID controller ensures enterprise-class data protection for a highly adaptable and reliable storage solution.
Why Choose the Supermicro SSG-521E-E1CR24H?
The Supermicro SSG-521E-E1CR24H stands at the forefront of storage server innovation, offering exceptional scalability and reliability for enterprises. By integrating Intel® Xeon® Scalable processors and PCIe 5.0, it ensures high throughput and future-proofing for evolving workloads. Coupled with robust RAID support and 1600W redundant power supplies, the server delivers resilient performance under heavy data loads, making it the ideal choice for mission-critical applications.
Built by Supermicro, a leader in server technology, the SSG-521E-E1CR24H combines innovation with exceptional performance, reliability, and flexibility, making it the ideal choice for businesses looking to streamline their storage capabilities. Supermicro's dedication to precision engineering and cutting-edge technology ensures top-tier reliability, efficiency, and scalability. With features like hot-swap capabilities, advanced cooling systems, and remote management, the SSG-521E-E1CR24H is designed to optimize both performance and ease of use, reinforcing Supermicro’s standing as the industry leader in enterprise storage solutions. Whether you're upgrading your existing infrastructure or embarking on new projects, the Supermicro Barebone Storage SuperServer is equipped to handle it all with ease and precision. Invest in a server solution that understands the intricate balance between speed and storage. Empower your business with the reliable, high-performance capabilities of the Supermicro Barebone Storage SuperServer.
Key Applications:
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Discover the full potential of what Supermicro Barebone Storage SuperServer can bring to your enterprise. Contact Happyware today to explore how the Supermicro SSG-521E-E1CR24H can help your business scale efficiently.
Supermicro SSG-521E-E1CR24H Teknik Özellikleri

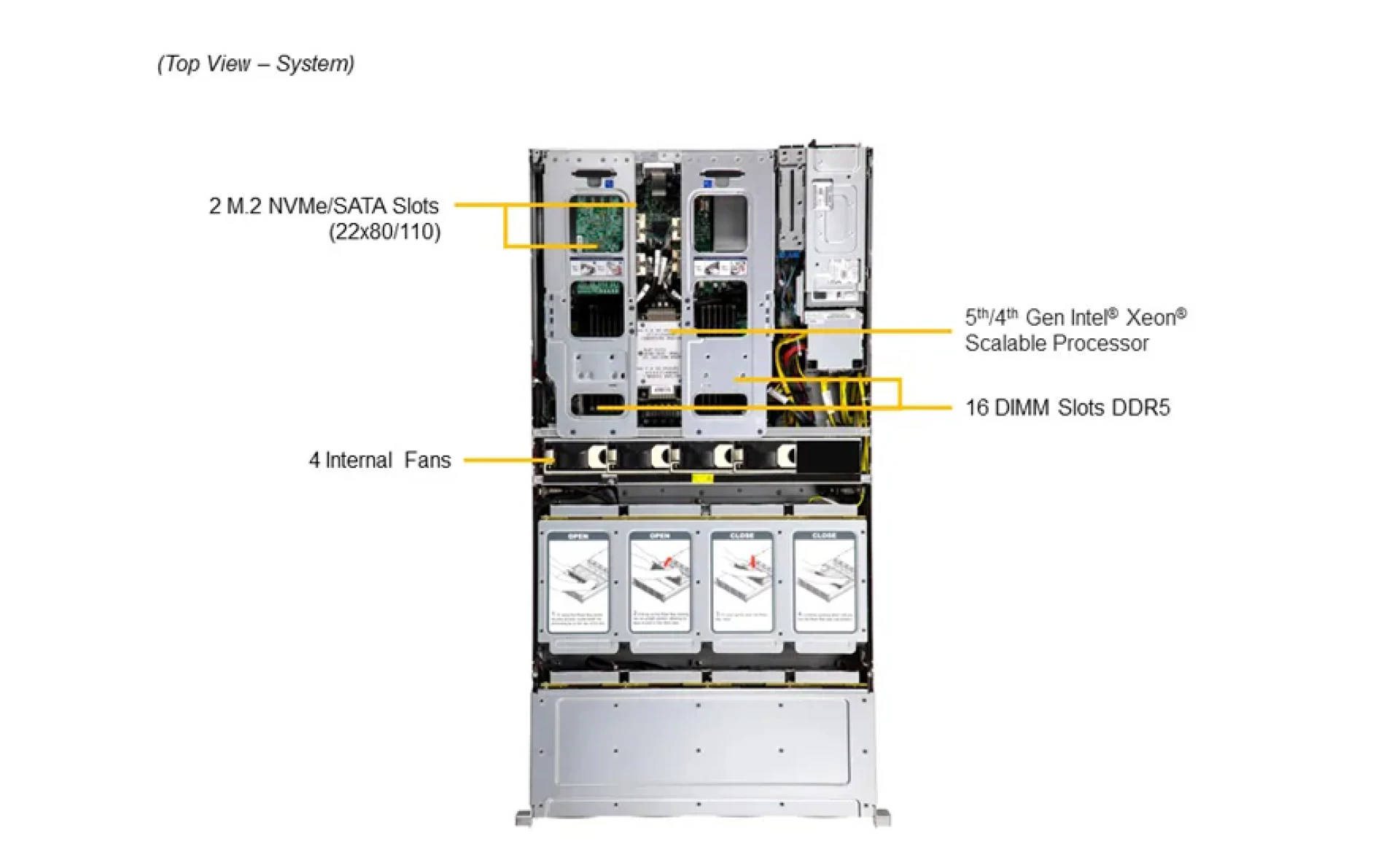

| Single Intel Xeon Scalable 5th Gen CPU, 24x 3.5" + 2x 2.5" hot-swap drive bays, 7x PCIe (6x FHHL, 1x AIOM), 2x 1600W redundant PSUs |
| Processor | |
|---|---|
| CPU | Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 36C/72T; Up to 180MB Cache |
| Note | Supports 120W - 300W TDP CPUs (Air Cooled) |
| System Memory | |
|---|---|
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C741 |
| Network Connectivity | Via AIOM |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port (rear) |
| DOM | 2 SuperDOM (Disk on Module) ports |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-826S3TS-R1K62P1 |
| Dimensions and Weight | |
|---|---|
| Height | 8.89cm |
| Width | 43.68cm |
| Depth | 86.36cm |
| Package | 30.48cm (H) x 73.66cm (W) x 132.08cm (D) |
| Weight | Gross Weight: 74.5 lbs (33.79 kg) Net Weight: 52 lbs (23.59 kg) |
| Available Colors | Silver |
| Front Panel | |
|---|---|
| Buttons | Power On/Off |
| LEDs | Network activity Power status SSD activity System information (overheat/UID) |
| Expansion Slots | |
|---|---|

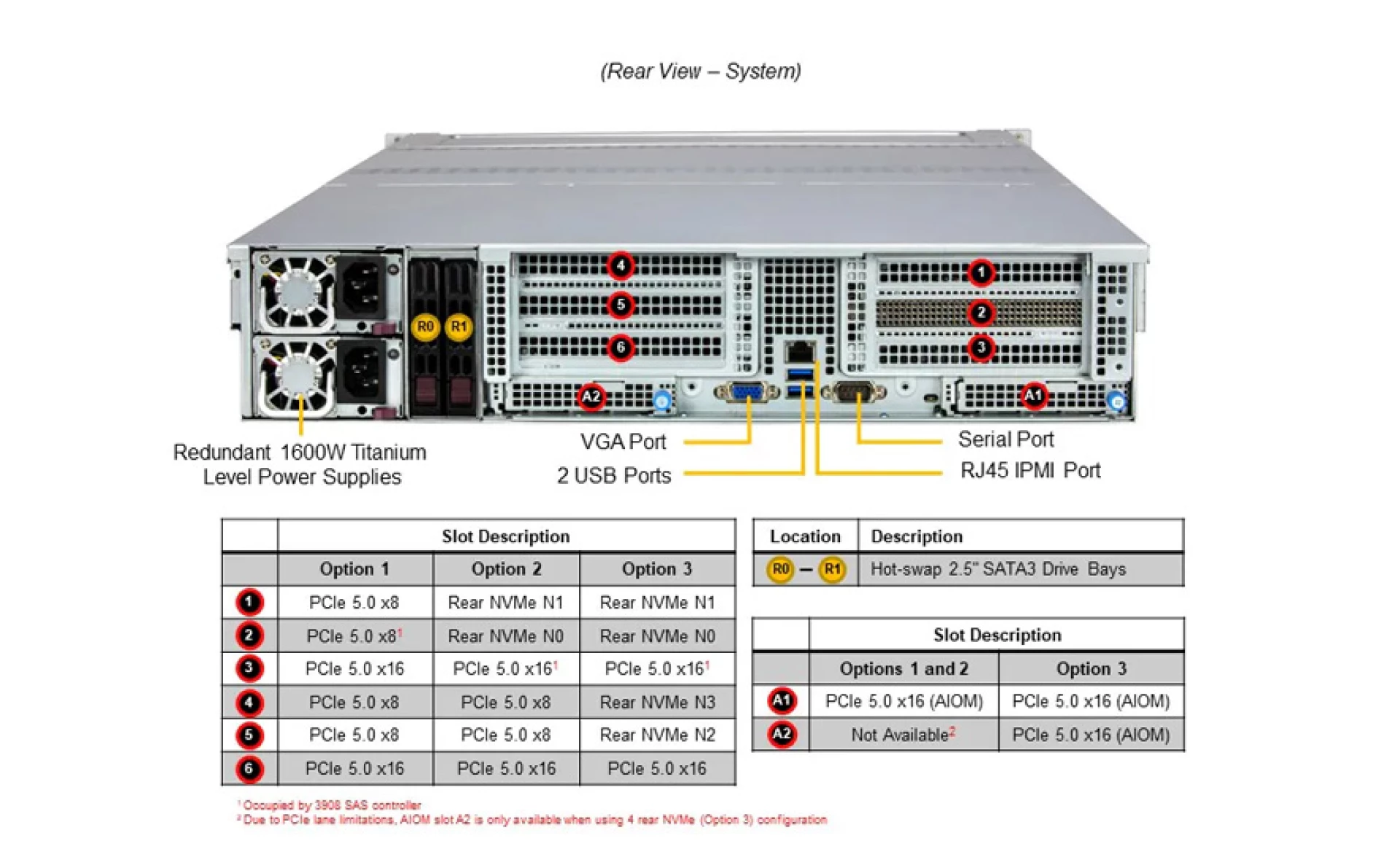

| PCI-Express (PCI-E) | Default 4 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A 2 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Storage | |
|---|---|

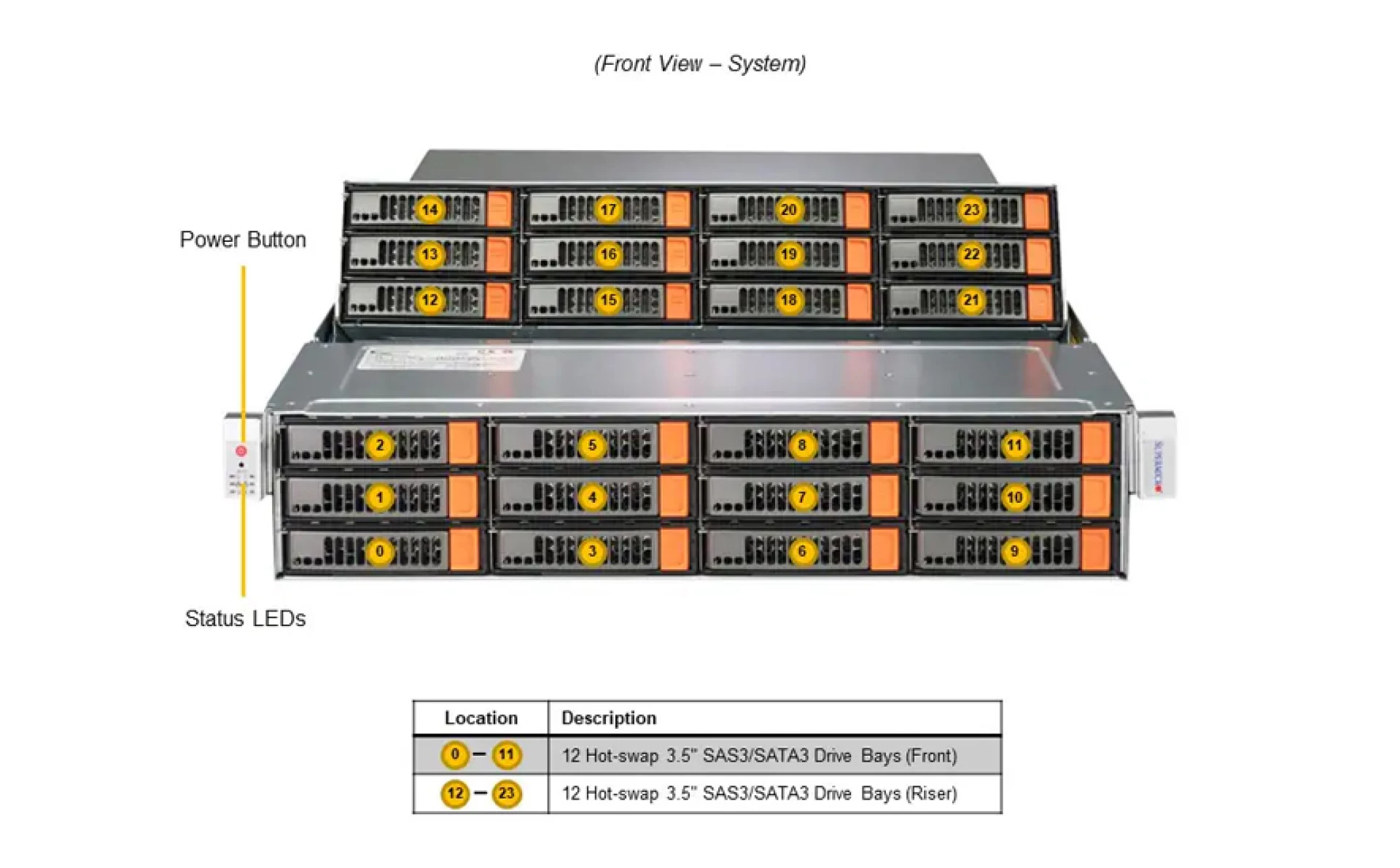

| Drive Bays | Default: Total 26 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays Option A: Total 28 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays 2 rear hot-swap 2.5" NVMe drive bays Option B: Total 30 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 4 rear hot-swap 2.5" NVMe drive bays 2 rear hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 4 Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | Backplanes (Gold Finger) |
| Certification | 80 PLUS, Titanium Level |
| Operating Environment | ||
|---|---|---|
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SSG-521E-E1CR24H | |
| System Building | SSG-521E-E1CR24H configured by Supermicro as Complete System | |
Supermicro SSG-521E-E1CR24H Nitelikleri
| Add-on card form factor: | FH, HH, OCP 3.0 |
|---|---|
| Applications: | Database Processing and Storage, Storage Headnode |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III |
| Bluetooth Support: | None |
| CPU Codename: | Emerald Rapids, Sapphire Rapids |
| CPU Manufacturer: | Intel |
| CPU Socket: | 4677 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C741 |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | No |
| Onboard LAN: | No |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 1600W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 521E-E1CR24H |
| Quantity of Cooler: | 4 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, SAS Ports, SATA Ports |
| Suitability: | Server |
| Use case: | Backup and Disaster Recovery, Database Server, File Storage and Sharing, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
