SYS-531MC-H8TNR | Supermicro Single Socket Xeon E-2400 3U Server
Ürün numarası: TR2B2340-630777
|
Üretici numarası: SYS-531MC-H8TNR
Başlayan €8.664,56*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro SYS-531MC-H8TNR
Discover the Power of SYS-531MC-H8TNR
Introducing the SYS-531MC-H8TNR from the industry-leading manufacturer, Supermicro. This cutting-edge Barebone system is engineered to meet the demanding needs of modern businesses and tech enthusiasts alike. Whether you're looking to enhance your server infrastructure or create a powerful workstation, this system offers unparalleled performance and flexibility.
Why Choose SYS-531MC-H8TNR?
The SYS-531MC-H8TNR is designed by Supermicro, a name synonymous with reliability and innovation. With this powerful system as your backbone, you're not just adopting a product; you're investing in a solution that grows with your demands. Ideal for data centers, cloud computing, and AI applications, this system ensures that you're always ahead of the curve.
Want to learn more about how the SYS-531MC-H8TNR can transform your operations? Visit the Supermicro product page for detailed specifications and insights.
Supermicro SYS-531MC-H8TNR Teknik Özellikleri
| SKU Overview | ||
|---|---|---|
| SYS-531MC-H8TNR | Single Intel Xeon E-2400 CPU, 2x 3.5" hot-swap drive bays, 2x PCIe (1x LP, 1x MicroLP), 2x 2200W redundant PSUs | |
| Processor (per Node) | ||
| CPU | Single LGA-1700 Intel® Xeon® E-2400/Pentium® G7400 and G6400T Processors | |
| Note | Supports up to 95W TDP CPUs (Air Cooled) | |
| GPU (per Node) | |
|---|---|
| Max GPU Count | Up to 1 single-width GPU |
| System Memory (per node) | |
|---|---|
| Memory | Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM |
| On-Board Devices (per Node) | |
|---|---|
| SATA | SATA (6Gbps) ; RAID 0/1 support |
| Chipset | Intel® C266 |
| Network Connectivity | No NIC option supported |
| Input / Output (per node) | |
|---|---|
| USB | 1 Type-C ports (front) 2 USB 2.0 Type-A ports |
| Video | 1 port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI 6.0 Power Management |
| PC Health Monitoring | |
|---|---|
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| Fan | Fan speed control, Dual Cooling Zone |
| Chassis | |
|---|---|
| Form Factor | 3U Rackmount |
| Model | CSE-938NH-R2K20BP2 |
| Dimensions and Weight | |
|---|---|
| Height | 13.23cm (132 mm) |
| Width | 43.84cm (438 mm) |
| Depth | 58.92cm (589 mm) |
| Package | 29.59cm (H) x 66.70cm (W) x 86.36cm (D) |
| Weight | Gross Weight: 88 lbs (39.92 kg) Net Weight: 62.2 lbs (28.21 kg) |
| Color | N/A |

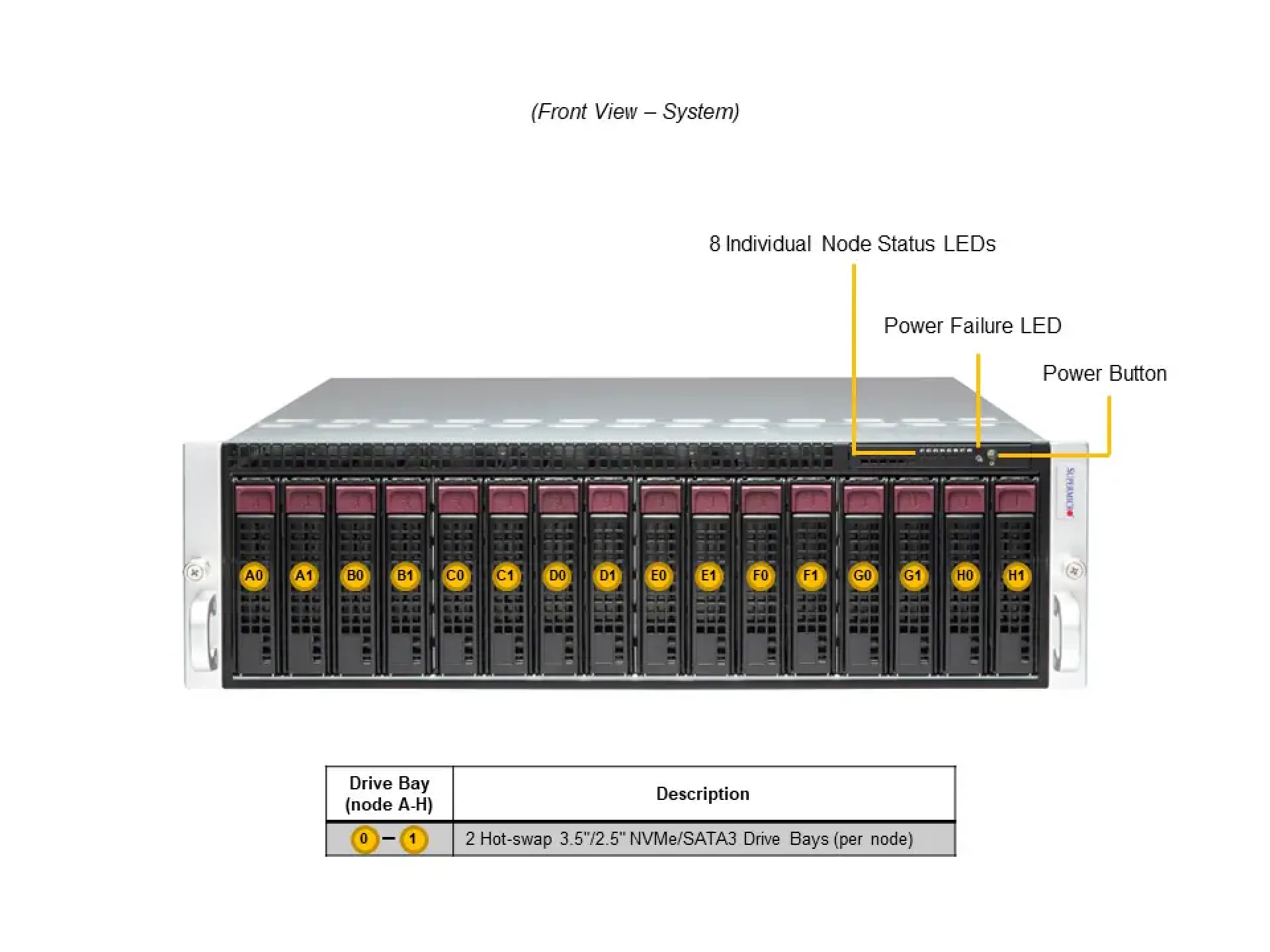

| Front Panel | |
|---|---|
| LED | 8 Individual Node Status Indicators Power Failure |
| Buttons | Power On/Off button |

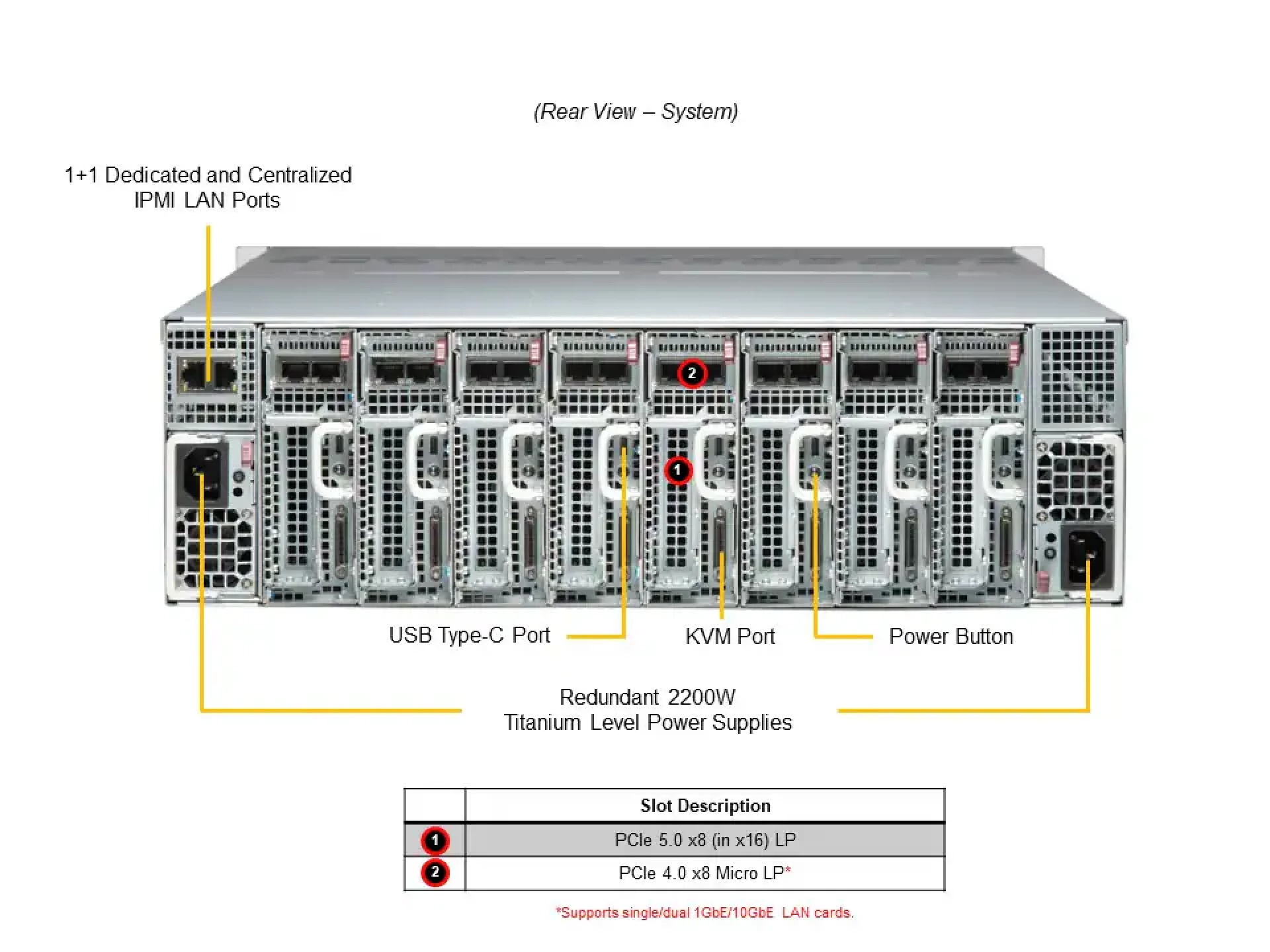

| Expansion Slots (per Node) | |
|---|---|
| PCI-Express (PCIe) Configuration | Default: 1 PCIe 5.0 x8 (in x16) LP slot 1 PCIe 4.0 x8 MicroLP slot |
| Storage (per node) | |
|---|---|

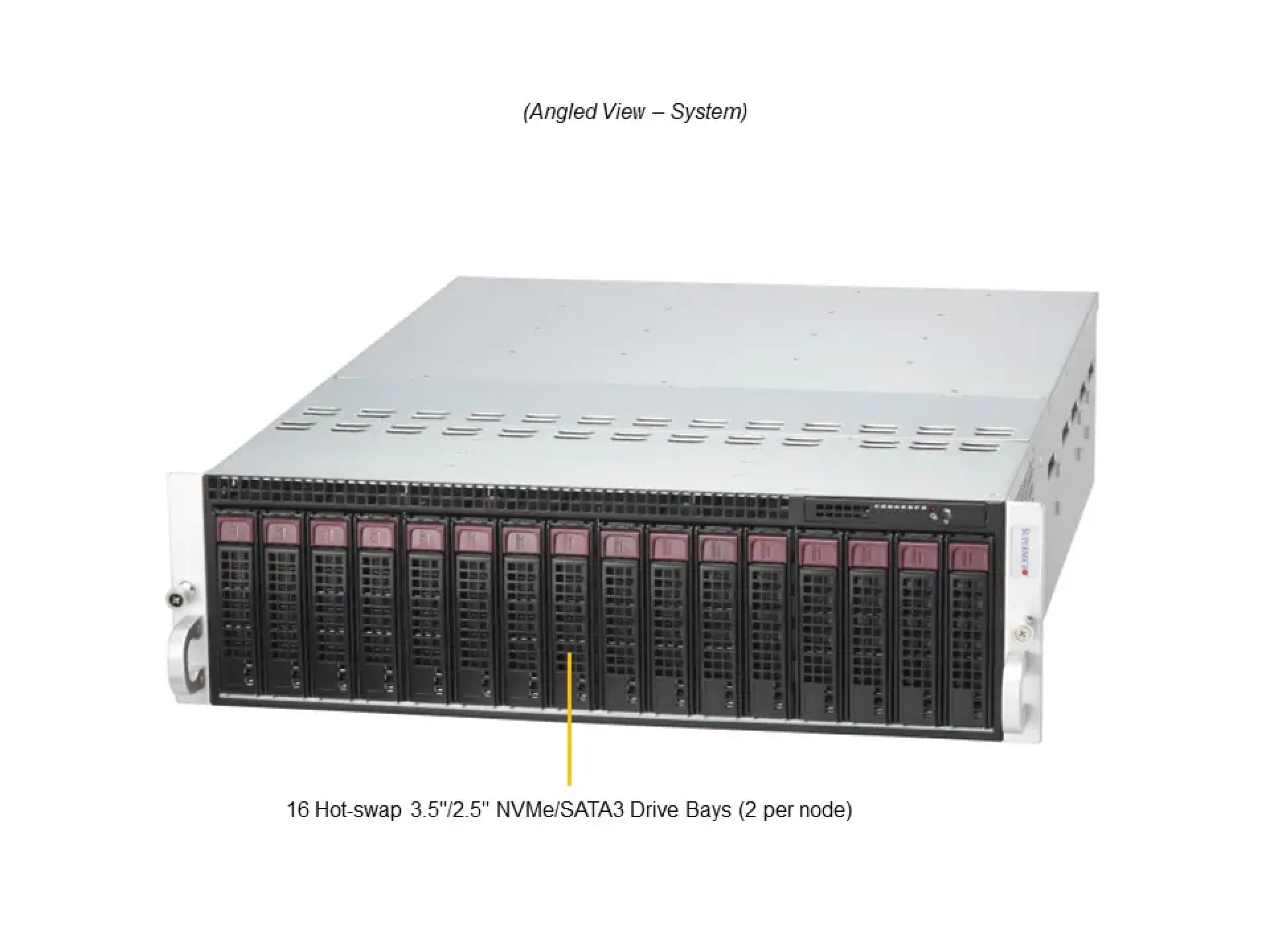

| Drive Bays Configuration | Default: Total 2 bays 2 front hot-swap 3.5" NVMe/SAS/SATA drive bays |
| M.2 | 1 M.2 NVMe/SATA slot (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 4 Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 2x 2200W Redundant Titanium Level (96%) power supply | |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| AC Input | 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only) |
| +12V | Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) |
| 5V SB | Max: 1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment / Compliance | |
|---|---|
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 8% to 95% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-531MC-H8TNR | |
| System Building | SYS-531MC-H8TNR can be configured individually | |
Supermicro SYS-531MC-H8TNR Nitelikleri
| Add-on card form factor: | HH |
|---|---|
| Applications: | Cloud Computing, Social Networking, Virtualization, Web/Hosting Application, Web Server |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Alder Lake |
| CPU Manufacturer: | Intel |
| CPU Socket: | 1700 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators, USB Type-C |
| GPU quantity per node: | 1 |
| Height units: | 3U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | No |
| Lighting: | LED |
| Motherboard Chipset: | C266 |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | No |
| Onboard LAN: | No |
| PSU Power Wattage: | 2200W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 531MC-H8TNR |
| Quantity of Cooler: | 4 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | UDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Unbuffered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Cloud Computing, Database Server, Game Server, IT Infrastructure, Virtualization, Web Hosting |
| Wi-Fi Support: | None |
