SSG-641E-E1CR24H | Supermicro Dual Socket Xeon Scalable 4U Server
Başlayan €5.977,77*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro SSG-641E-E1CR24H
Unrivalled Storage Performance with the Supermicro SSG-641E-E1CR24H Barebone System

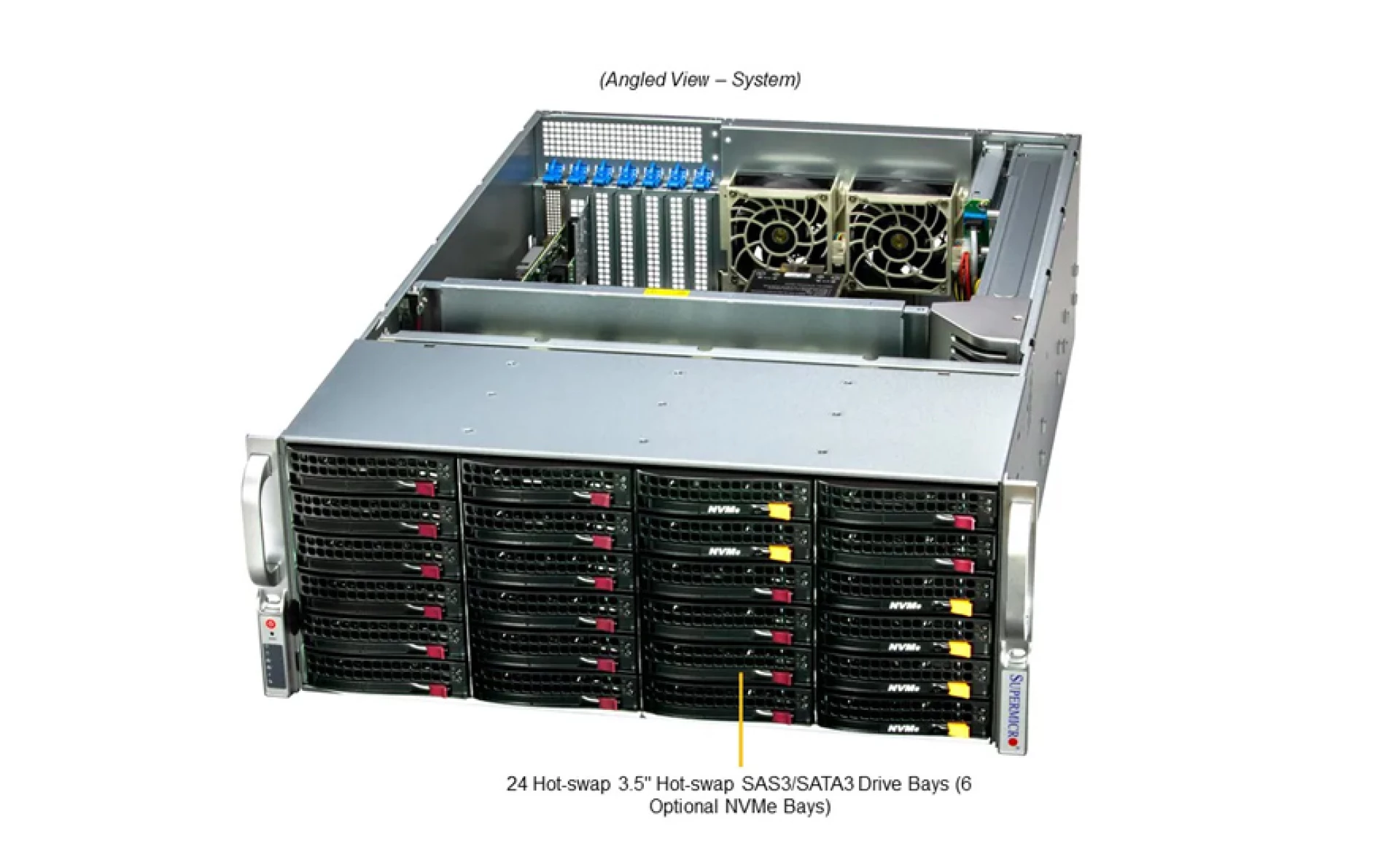

The Supermicro SSG-641E-E1CR24H Storage SuperServer delivers exceptional performance in a 4U front/top-loading format, featuring 26 hot-swap 3.5"/2.5" SAS/SATA bays and the power of Intel® Xeon® Scalable processors (5th/4th Gen). With PCIe 5.0 slots for future expansion and dedicated AIOM slots, this system is built for high-demand enterprise environments. Its 1200W redundant power supplies ensure high efficiency, while Broadcom® RAID support provides enterprise-class data protection. Optimised for remote management, this server is designed for reliability, scalability, and robust data security, making it ideal for demanding workloads.
Why Choose the Supermicro SSG-641E-E1CR24H?
The Supermicro SSG-641E-E1CR24H stands out as a top-tier solution for high-performance storage applications. Built with a robust 4U front-loading design, it combines scalability, reliability, and power efficiency, offering enterprises the flexibility to manage demanding workloads with ease. The combination of Intel® Xeon® processors and PCIe 5.0 technology ensures peak performance, while the system’s integrated RAID support secures data integrity, providing peace of mind for mission-critical environments.
Engineered for efficiency, the Supermicro SSG-641E-E1CR24H includes cutting-edge features such as 1200W redundant power supplies for optimal energy usage and a cooling system that guarantees stable operation even in intensive settings. The addition of advanced management tools like IPMI 2.0 and KVM over LAN ensures remote monitoring and control, enhancing operational flexibility. With its focus on durability and protection, this SuperServer remains a powerful contender in the enterprise storage market.
Key Applications:
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Ready to elevate your enterprise storage solutions? Discover the power, flexibility, and efficiency of the Supermicro SSG-641E-E1CR24H today. Reach out to us at Happyware to learn more and make this cutting-edge solution a part of your infrastructure.
Supermicro SSG-641E-E1CR24H Teknik Özellikleri
| Dual Intel Xeon Scalable 5th Gen CPU, 24x 3.5" + 2x 2.5" hot-swap drive bays, 6x PCIe (4x FHHL, 2x FH,L), 2x 10GbE LAN, 2x 1200W redundant PSUs |
| Processor | |
|---|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| System Memory | |
|---|---|
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C741 |
| Network Connectivity | 2 RJ45 10GbE with Broadcom® BCM57416 |
| NVMe | |
| Input / Output | |
|---|---|

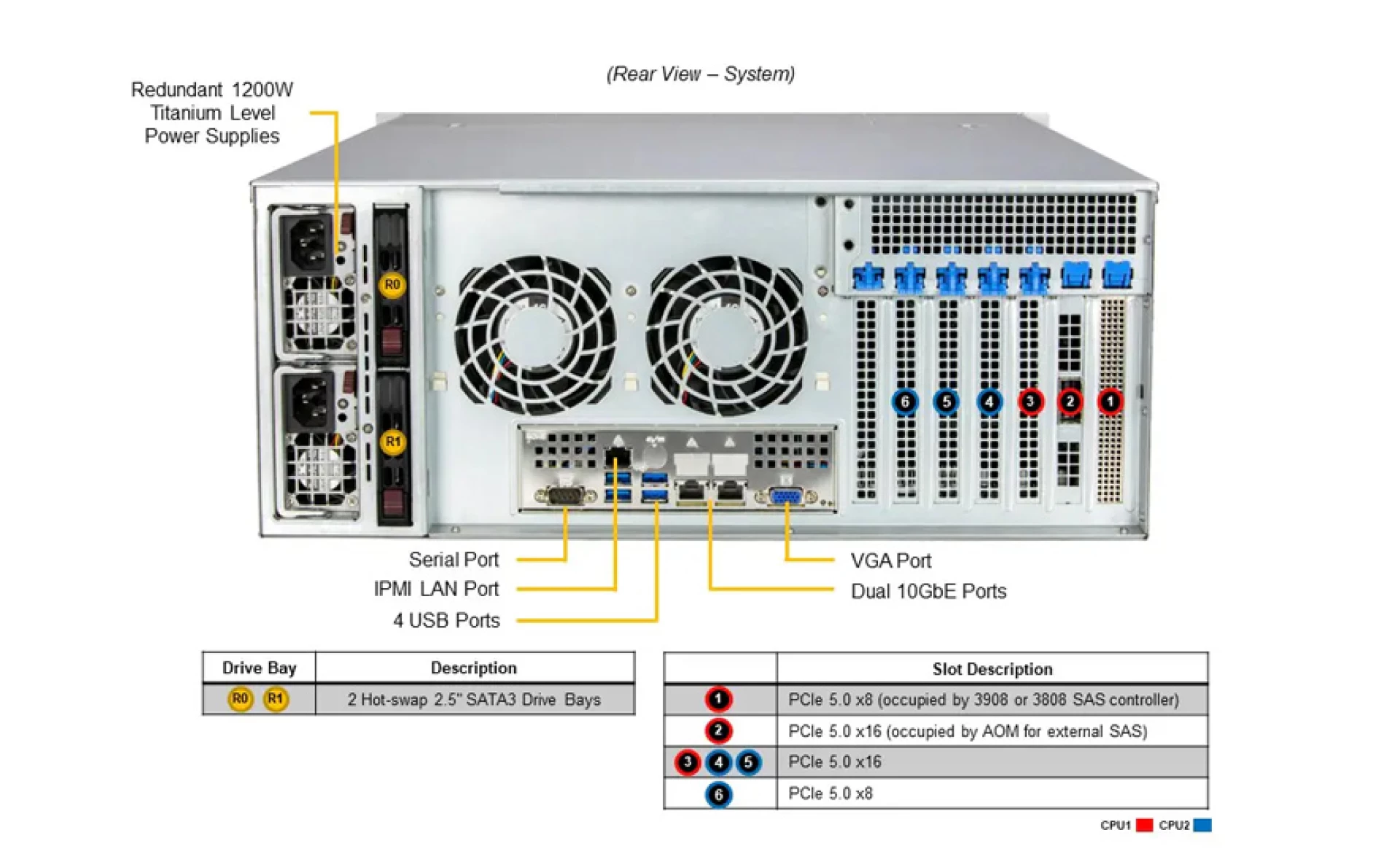

| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1) |
| USB | 4 USB 3.0 ports (rear) |
| Video | 1 VGA port (rear) |
| Serial | 1 COM port (rear) |
| TPM | 1 TPM header |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmount |
| Model | CSE-846BTS-R1K23BP5 |
| Dimensions and Weight | |
|---|---|
| Height | 17.78cm (177.8 mm) |
| Width | 43.68cm (436.8 mm) |
| Depth | 66.04cm (660.4 mm) |
| Package | 38.1cm (H) x 68.58cm (W) x 99.06cm (D) |
| Weight | Gross Weight: 92 lbs (41.7 kg) Net Weight: 55 lbs (24.9 kg) |
| Available Colors | Silver |
| Front Panel | |
|---|---|
| Buttons | Power On/Off |
| LEDs | HDD Fail LED Network Activity LEDs Power status LED System Information (overheat/UID) |
| Expansion Slots | |
|---|---|
| PCI-Express (PCI-E) | Default 4 PCIe 5.0 x16 (in x16) FHHL slots 2 PCIe 5.0 x8 (in x8) FH/10.5"L slots |
| Storage | |
|---|---|

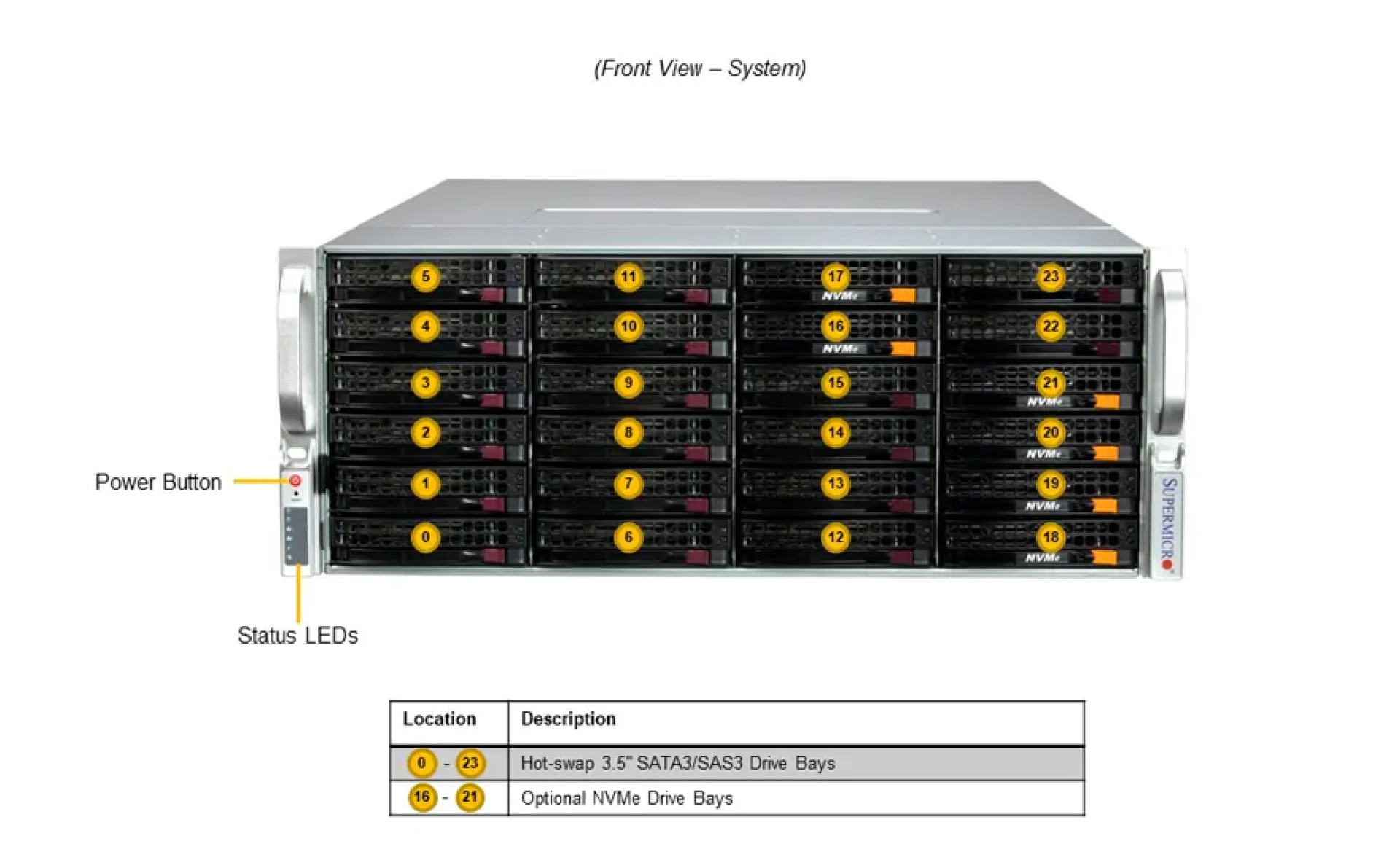

| Drive Bays | Default: Total 26 bays 24 front hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays Option A: Total 6 bays 6 front hot-swap 3.5" NVMe* drive bays |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
|---|---|

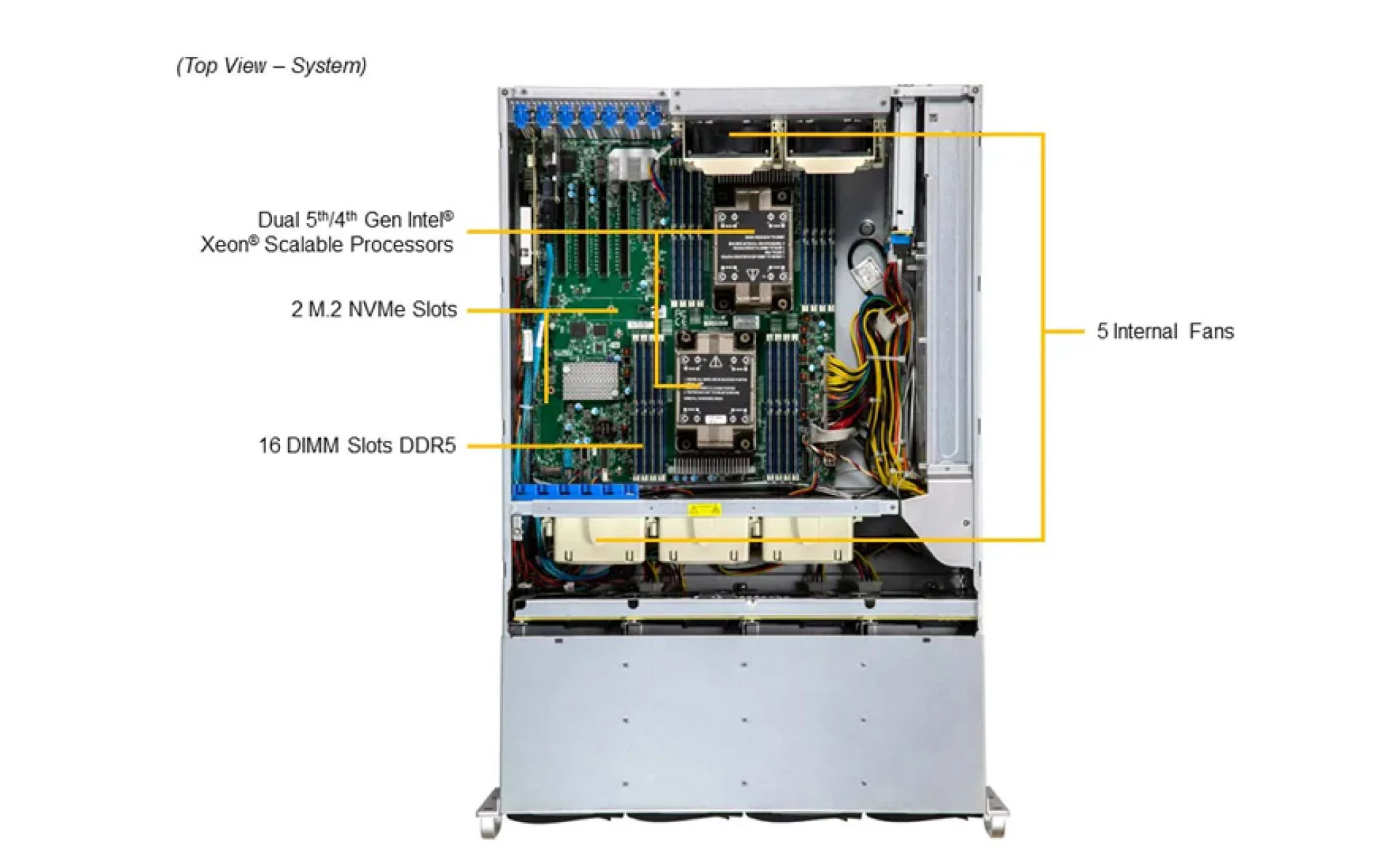

| Fans | 5 Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies | |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | 80 PLUS, Titanium Level |
| Operating Environment | ||
|---|---|---|
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SSG-641E-E1CR24H | |
| System Building | SSG-641E-E1CR24H can be configured individually | |
Supermicro SSG-641E-E1CR24H Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | Big Data, DB Processing & Storage, Data Center Applications, Data Center Optimized, Database, Database/Storage, Database Processing and High Density Storage, Database Processing and Storage, Enterprise Server, HPC |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III |
| Bluetooth Support: | None |
| CPU Codename: | Emerald Rapids, Sapphire Rapids |
| CPU Manufacturer: | Intel |
| CPU Socket: | 4677 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| Height units: | 4U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C741 |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Controller: | Broadcom BCM57416 |
| Onboard Graphic: | No |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 1200W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 641E-E1CR24H |
| Quantity of Cooler: | 5 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, SAS Ports, SATA Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Database Server, File Storage and Sharing, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
