SSG-641E-E1CR36H | Supermicro Dual Socket Xeon Scalable 4U Server
Ürün numarası: TR0B2669-336124
|
Üretici numarası: SSG-641E-E1CR36H
Başlayan €6.986,89*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro SSG-641E-E1CR36H
Unleash Unparalleled Performance with the Supermicro SSG-641E-E1CR36H
Dive into the future of data management and computing power with the SSG-641E-E1CR36H from the renowned manufacturer, Supermicro. Designed to cater to the most demanding business and enterprise needs, this barebone product delivers exceptional scalability and reliability.
Why Choose Supermicro's SSG-641E-E1CR36H?
With performance at its core, the SSG-641E-E1CR36H provides unmatched efficiency, ensuring your systems operate seamlessly. It's engineered to handle substantial workloads, making it the ideal choice for businesses aiming for growth and innovation.
Invest in this cutting-edge technology to elevate your infrastructure.
Supermicro SSG-641E-E1CR36H Teknik Özellikleri
| SKU Overview | ||
|---|---|---|
| SSG-641E-E1CR36H | Dual Intel Xeon Scalable 5th Gen CPU, 36x 3.5" + 2x 2.5" hot-swap drive bays, 6x PCIe (LP), 2x 10GbE LAN, 2x 1600W redundant PSUs | |
| Processor | ||

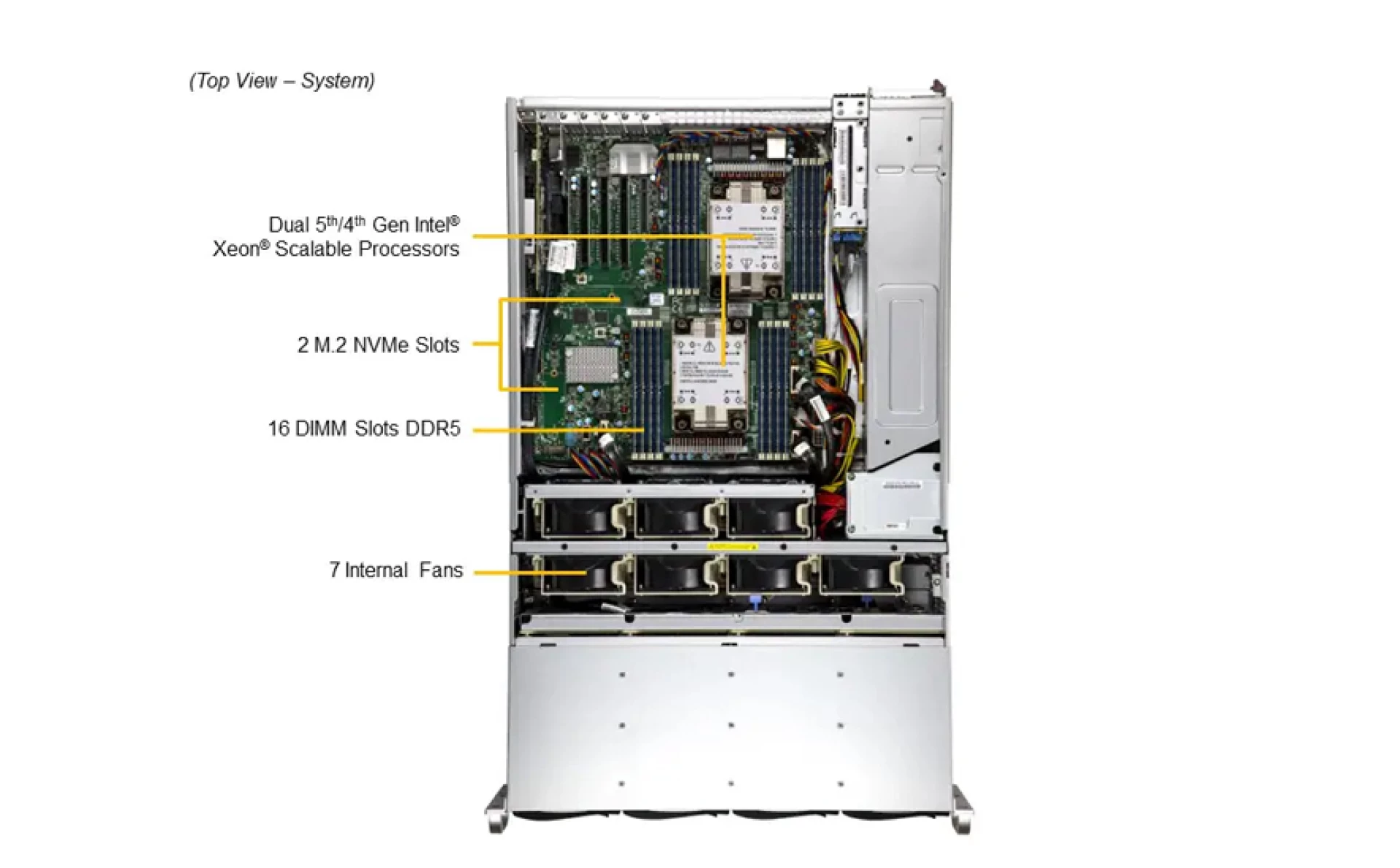

| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | |
| Note | Supports up to 270W TDP CPUs (Air Cooled) | |
| System Memory | |
|---|---|
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C741 |
| Network Connectivity | 2 RJ45 10GbE with Broadcom® BCM57416 |
| NVMe | |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1) |
| USB | 4 USB 3.0 ports (rear) |
| Video | 1 VGA port (rear) |
| Serial | 1 COM port (rear) |
| TPM | 1 TPM header |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmount |
| Model | CSE-847BTS-R1K68LPBP5 |
| Dimensions and Weight | |
|---|---|
| Height | 70cm (177.8 mm) |
| Width | 43.68cm (436.8 mm) |
| Depth | 69.8cm (698.5 mm) |
| Package | 38.1cm (H) x 68.58cm (W) x 99.06cm (D) |
| Weight | Gross Weight: 102.5 lbs (46.4 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Colors | Silver |
| Front Panel | |
|---|---|
| Buttons | Power On/Off |
| LEDs | HDD Fail LED Network Activity LEDs Power status LED System Information (overheat/UID) |
| Expansion Slots | |
|---|---|

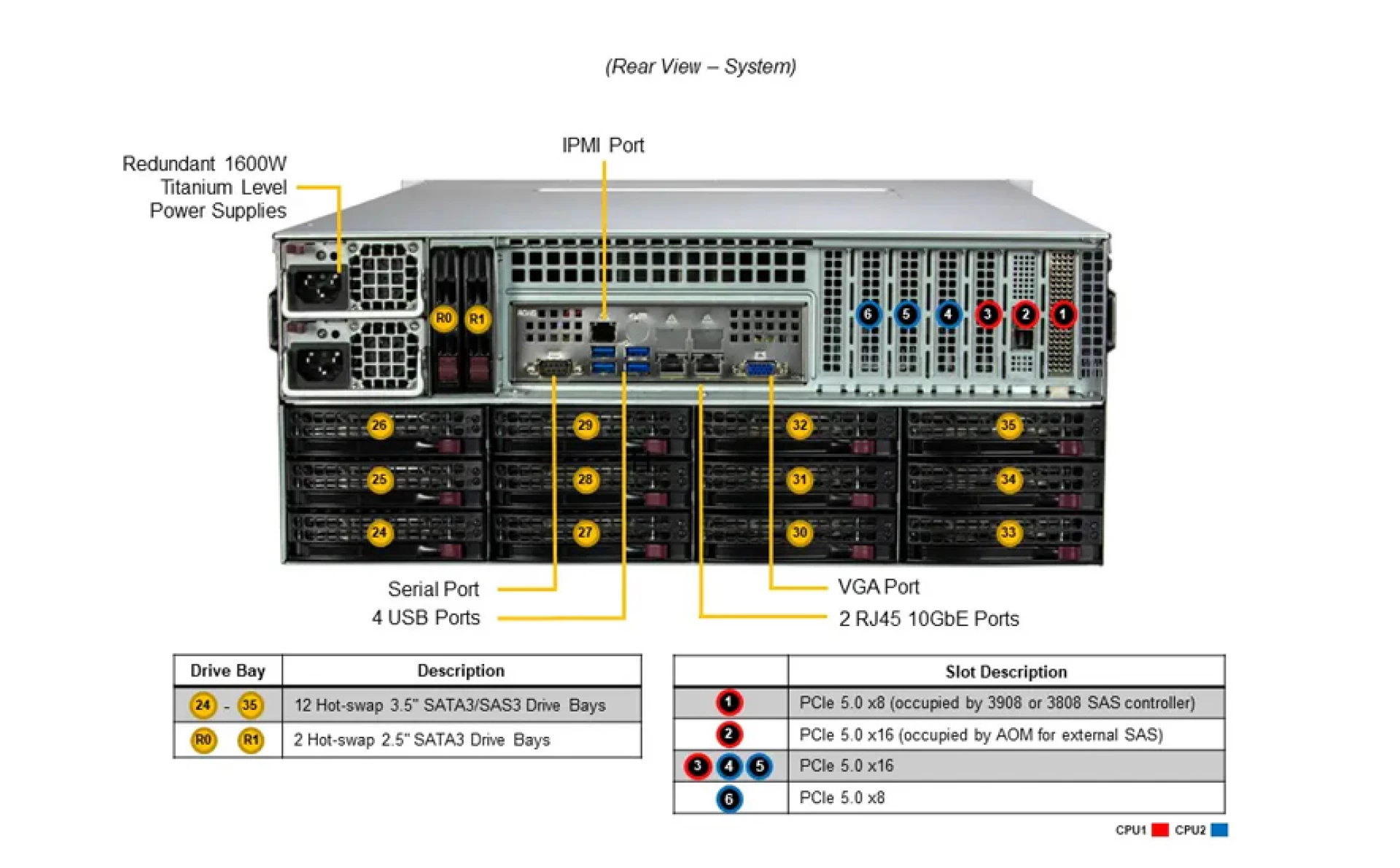

| PCI-Express (PCI-E) | Default 4 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x8 (in x8) LP slots |
| Storage | |
|---|---|

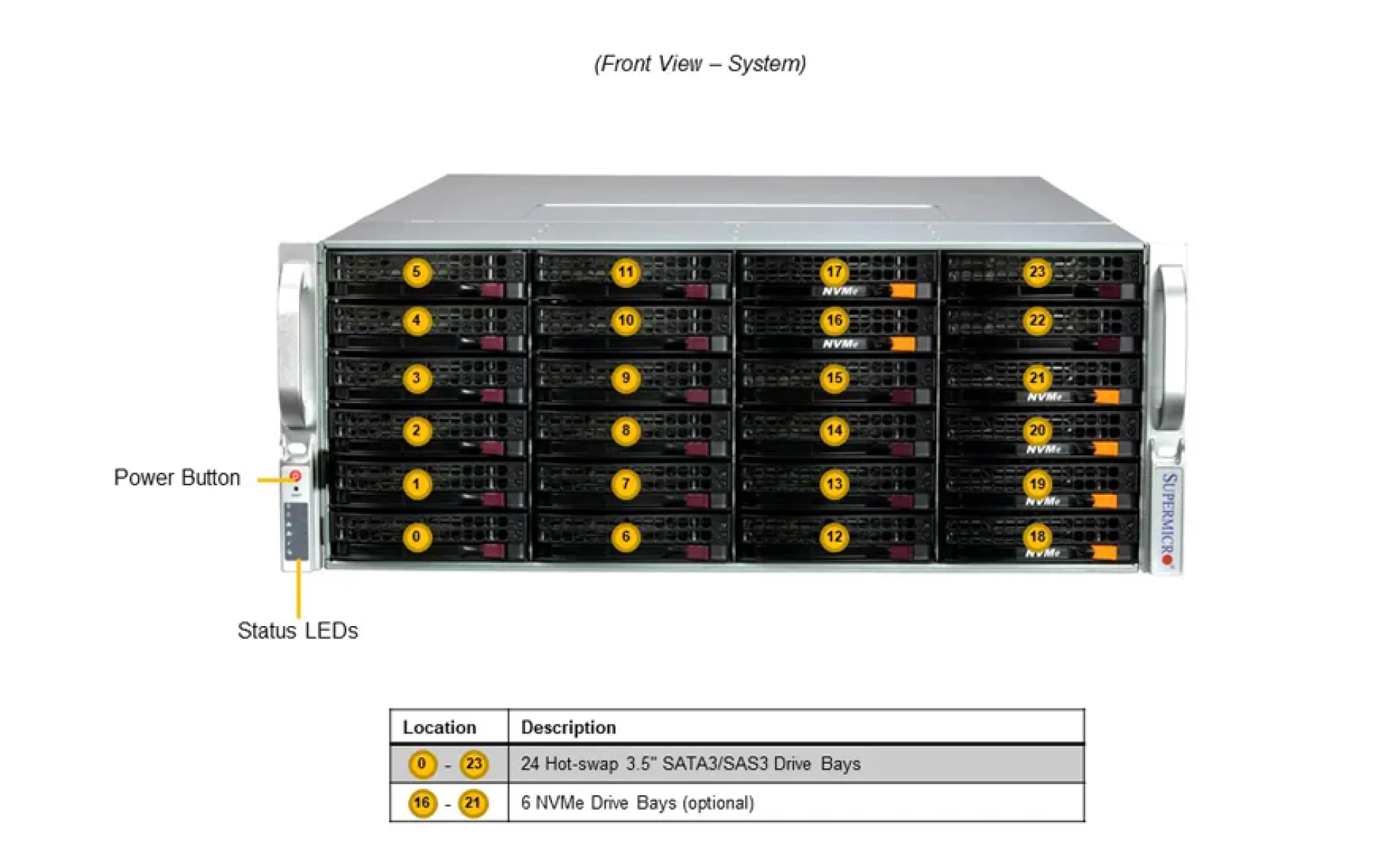

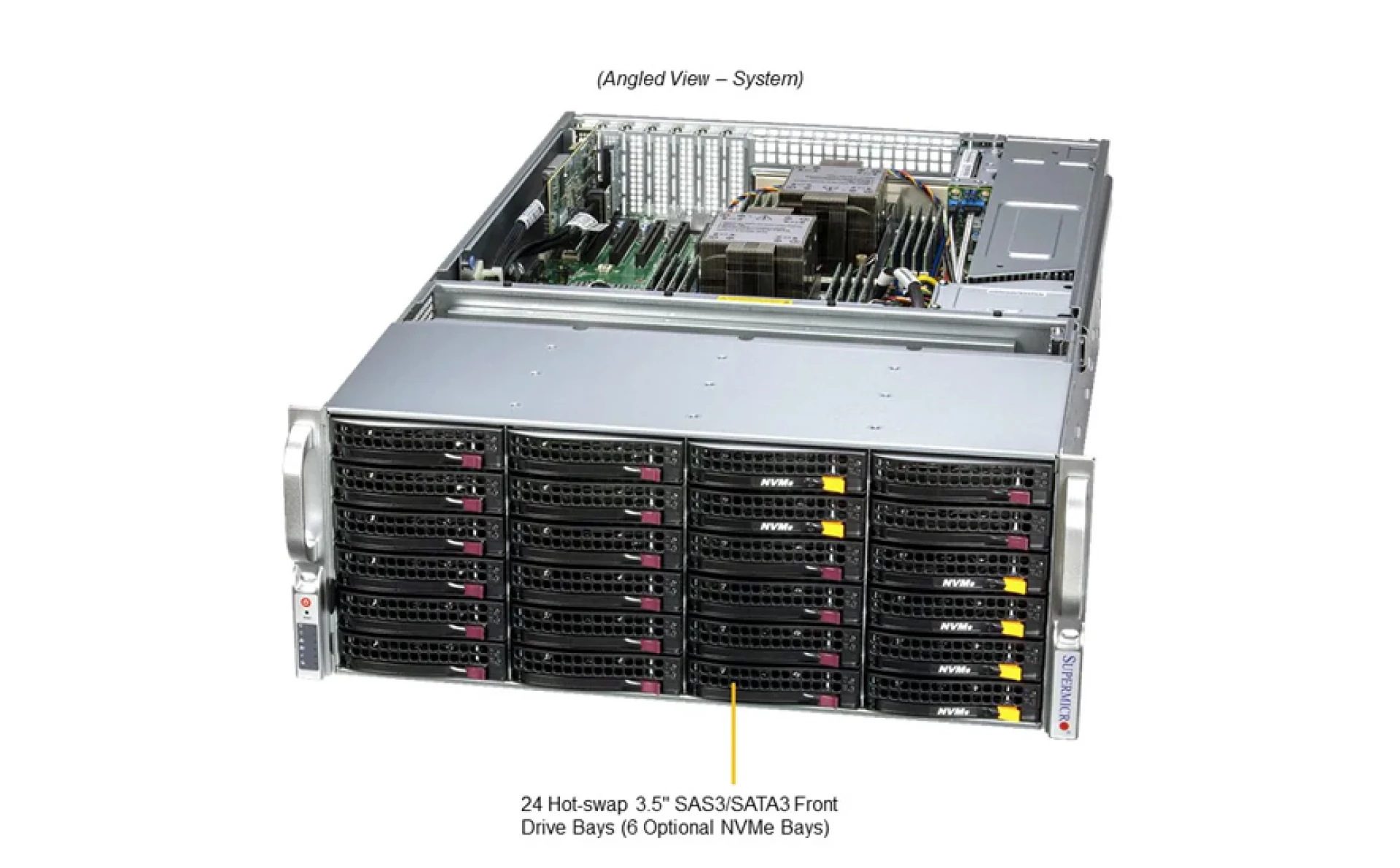

| Drive Bays | Default: Total 38 bays 12 rear hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays 24 front hot-swap 3.5" SAS/SATA drive bays Option A: Total 6 bays 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bays |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 7 Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies | |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| AC Input | 800W: 100-140Vac / 50-60Hz 1600W: 180-240Vac / 50-60Hz |
| +12V | Max: 66A / Min: 0A (100Vac-140Vac) Max: 133A / Min: 0A (180Vac-240Vac) |
| 5V SB | Max: 1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | 80 PLUS, Titanium Level |
| Operating Environment | ||
|---|---|---|
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SSG-641E-E1CR36H | |
| System Building | SSG-641E-E1CR36H can be configured individually | |
Supermicro SSG-641E-E1CR36H Nitelikleri
| Add-on card form factor: | HH |
|---|---|
| Applications: | Big Data, DB Processing & Storage, Data Center Applications, Data Center Optimized, Database, Database/Storage, Database Processing and High Density Storage, Database Processing and Storage, Enterprise Server, HPC |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III |
| Bluetooth Support: | None |
| CPU Codename: | Emerald Rapids, Sapphire Rapids |
| CPU Manufacturer: | Intel |
| CPU Socket: | 4677 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| Height units: | 4U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C741 |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Controller: | Broadcom BCM57416 |
| Onboard Graphic: | No |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 1600W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 641E-E1CR36H |
| Quantity of Cooler: | 7 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, SAS Ports, SATA Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Database Server, File Storage and Sharing, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
