SYS-751GE-TNRT | Supermicro Dual Socket Xeon Scalable 5U Server
Ürün numarası: TR1B7656-173052
|
Üretici numarası: SYS-751GE-TNRT
Başlayan €30.852,58*
KDV artı nakliye masrafları dahil fiyatlar

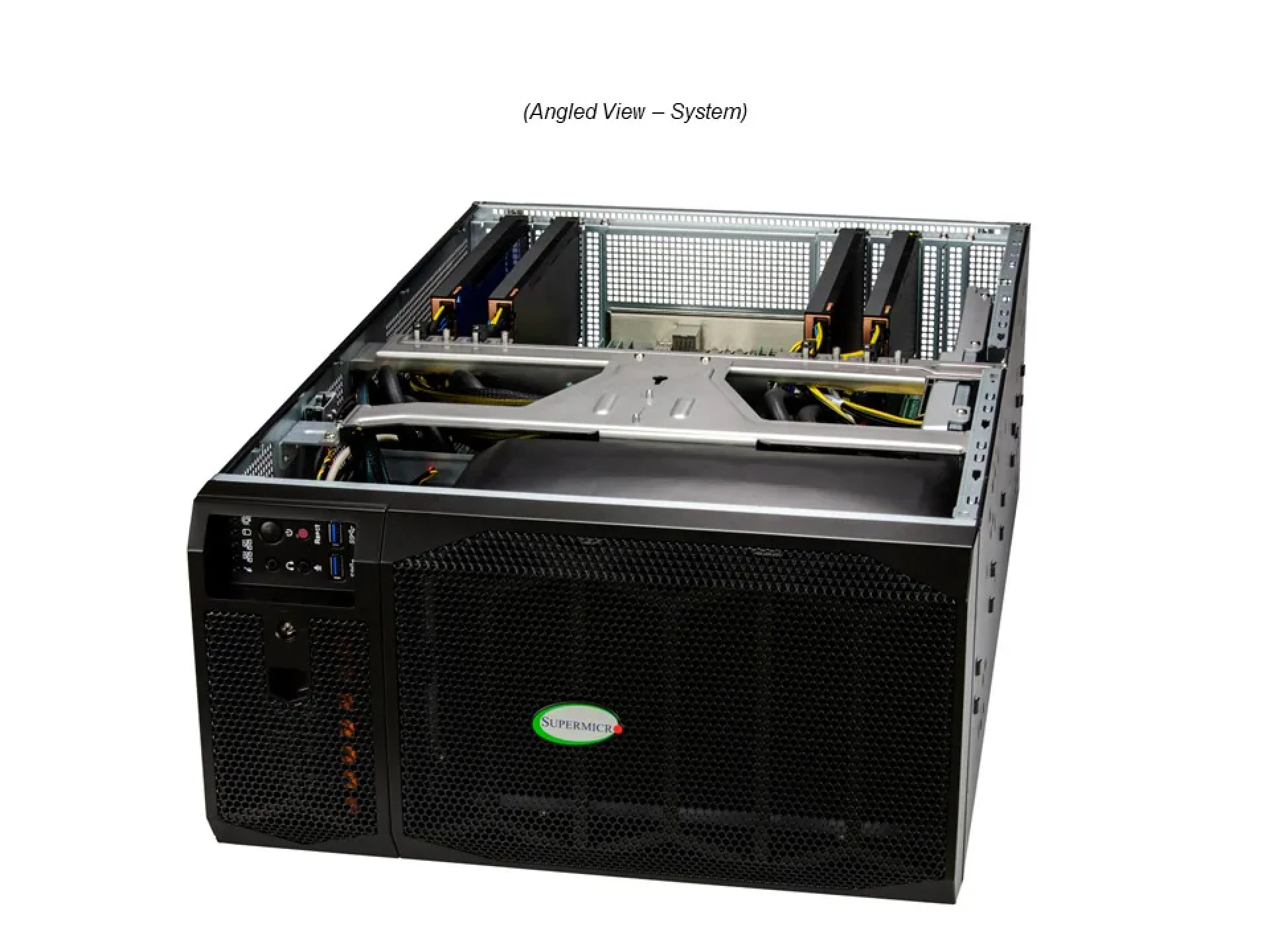

Supermicro SYS-751GE-TNRT
Supermicro SYS-751GE-TNRT Teknik Özellikleri
| SYS-751GE-TNRT | Dual Intel Xeon Scalable 5th/4th Gen CPU, 8x 2.5" hot-swap drive bays, 6x PCIe (FHFL), 2x 10GbE LAN, 2x 2200W redundant PSUs |
Datasheet for Supermicro SYS-751GE-TNRT
| Processor/Cache | |
|---|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
| GPU | |
|---|---|
| Max GPU Count | Up to 4 double-width GPUs |
| Supported GPU | NVIDIA PCIe: A100 |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| System Memory | |
|---|---|
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
|---|---|
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| Chipset | Intel® C741 |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550-AT2 1 RJ45 1GbE with ASPEED AST2600 1 SFP28 25GbE (optional) |
| NVMe | - |

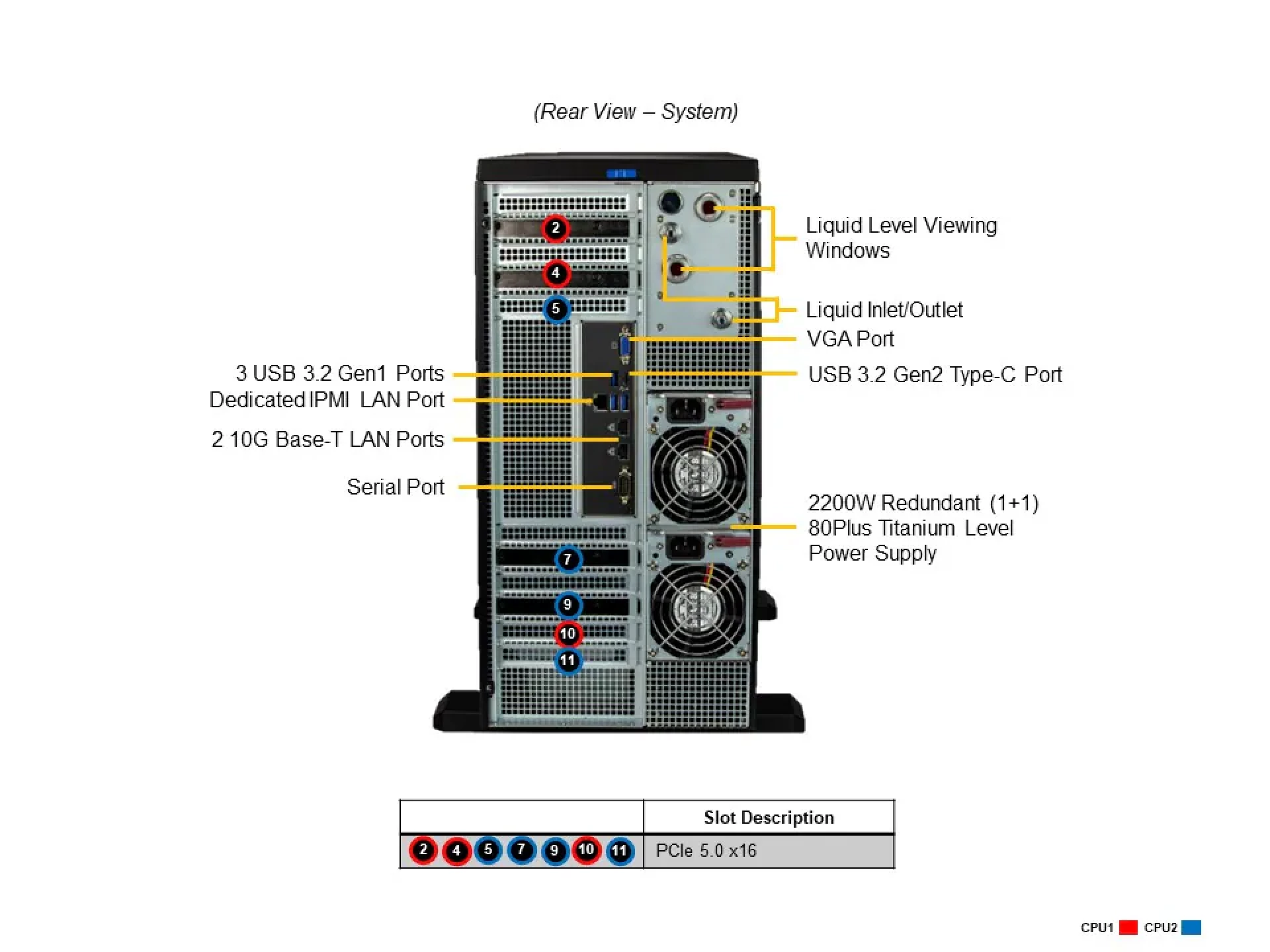

| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port 2 RJ45 10 GbE LAN ports |
| USB | 2 USB 3.2 Gen1 ports (front) 3 USB 3.2 Gen1 ports (rear) 1 USB 3.2 Gen2 port (rear) |
| Video | 1 VGA port |
| DOM | 2 SATA DOM (Disk on Module) ports |
| Audio | 7.1 HD Audio Line Out Mic in |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | ACPI/APM Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | Tower or 5U Rackmount |
| Model | CSE-759TS-R2K21BP |

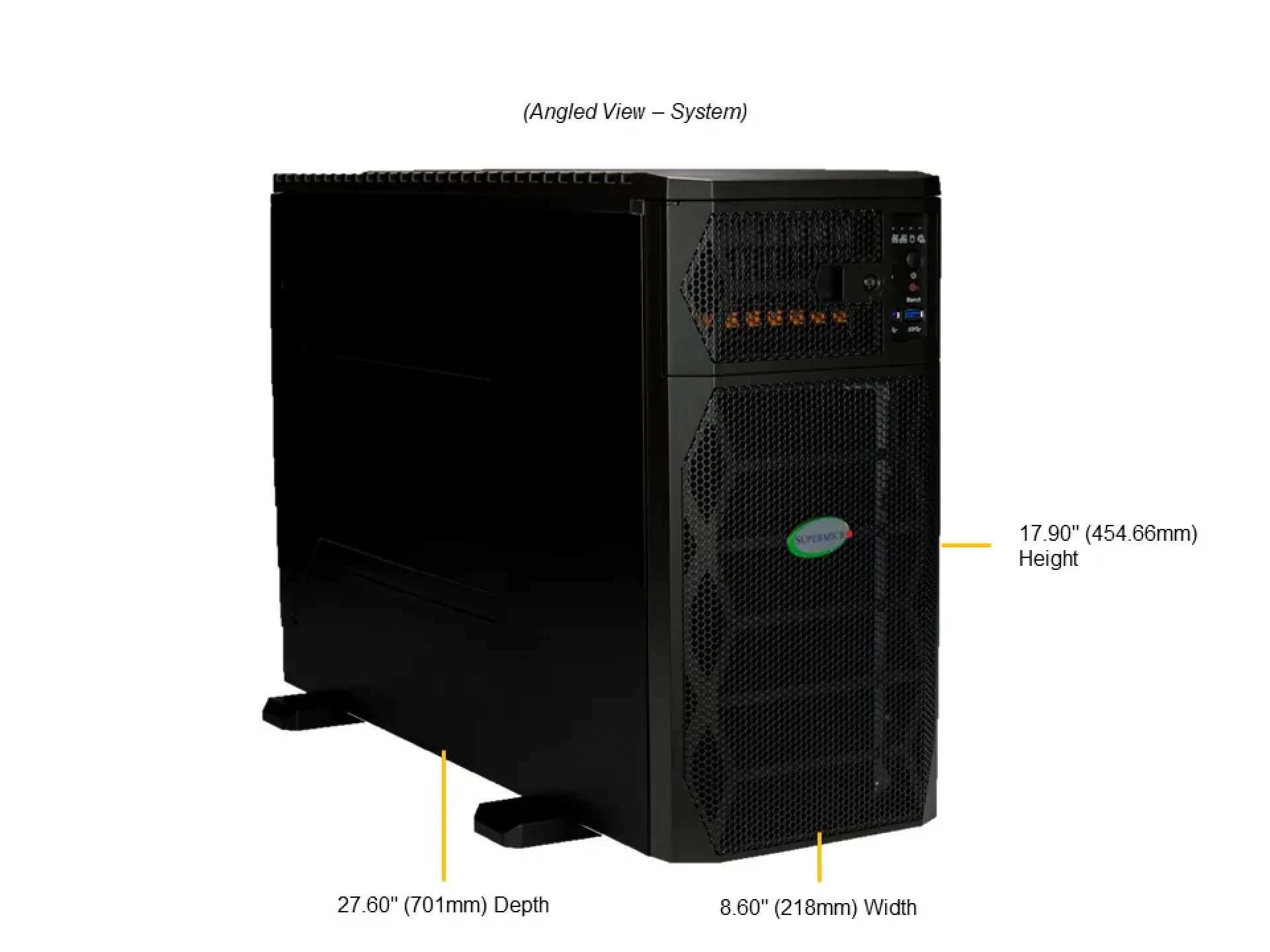

| Dimensions and Weight | |
|---|---|
| Height | 21.84cm (218.4 mm) |
| Width | 45.46cm (454.7 mm) |
| Depth | 70.10cm (701 mm) |
| Package | 65.53cm (H) x 38.86cm (W) x 95.50cm" (D) |
| Weight | Gross Weight: 121 lbs (55 kg) Net Weight: 88 lbs (44 kg) |
| Available Color | Black Front & Black Body |

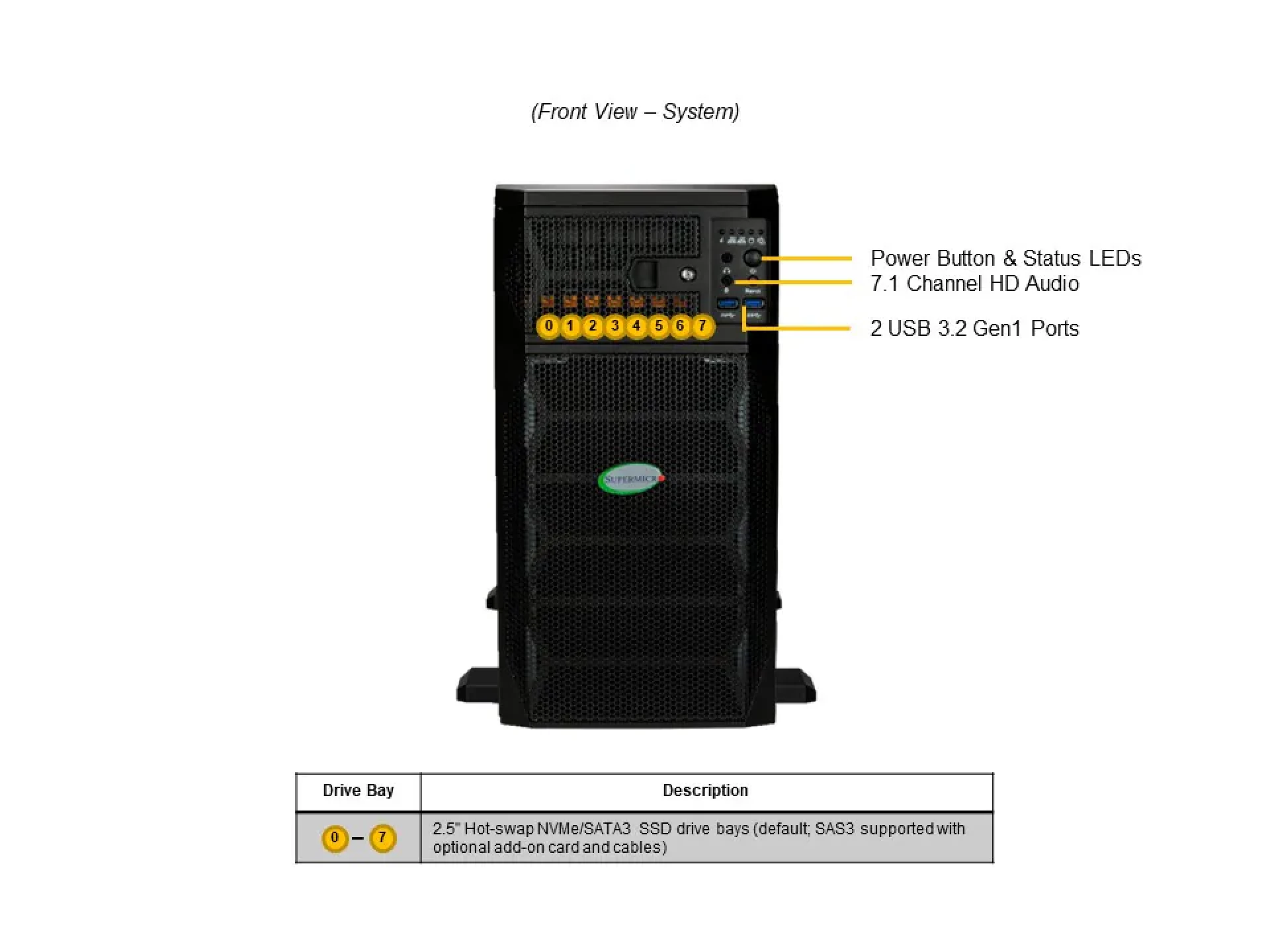

| Front Panel | |
|---|---|
| LEDs | HDD activity LED Information LED Network 1 activity LED Network 2 activity LED Power status LED |
| Buttons | Power On/Off button Reset button |
| Expansion Slots | |
|---|---|
| PCI-Express | Default 6 PCIe 5.0 x16 FHFL slots |
| Storage | |
|---|---|
| Drive Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS*/SATA drive bays |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 1 fan 8cm Fan 1 liquid cooling Fan 2 fan 12cm Fans |
| Power Supply | |
|---|---|
| 2x 2200W Redundant Titanium Level (96%) power supplies | |
| Dimension (W x H x L) | 106.5 x 82.1 x 203.5 mm |
| AC Input | 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) |
| 5V SB | Max: 3A / Min: 0A |
| Output Type | Backplanes (Gold Finger) |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 25°C (50°F ~ 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-751GE-TNRT | |
| System Building | SYS-751GE-TNRT configured by Supermicro as Complete System | |
Supermicro SYS-751GE-TNRT Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Enterprise Applications, Enterprise Server, GPU server, HPC, High End Enterprise Server, High Performance Computing |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Emerald Rapids, Sapphire Rapids |
| CPU Manufacturer: | Intel |
| CPU Socket: | 4677 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount/Tower |
| Front I/O: | LED Indicators, USB Type-A |
| GPU quantity per node: | 4 |
| Height units: | 5U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C741 |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Controller: | X550-AT2 |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 2200W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows 10, Windows 11, Windows Server |
| Product Model: | 751GE-TNRT |
| Quantity of Cooler: | 4 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
