AS-8125GS-TNHR | Supermicro Dual Socket Epyc 9004 8U Server
Başlayan €32.378,88*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-8125GS-TNHR
Unleash the Power of GPU Acceleration with the Supermicro AS-8125GS-TNHR
Step into the future of high-performance computing with the Supermicro AS-8125GS-TNHR, an 8U NVIDIA-certified powerhouse designed for the most demanding AI and HPC applications. Featuring NVIDIA HGX H100/H200 8-GPU architecture, NVLink® with NVSwitch™, and PCIe 5.0 x16 interconnects, this system ensures unparalleled GPU communication and scalability. The inclusion of 24 DIMM slots supporting up to 6TB of DDR5 memory and Titanium-level power supplies guarantees exceptional reliability and performance for data-intensive workloads.
Why Choose the Supermicro AS-8125GS-TNHR?
This server leads the industry with its onboard NVIDIA HGX GPUs, offering unmatched speed and performance for AI, deep learning, and data analytics. The integration of NVLink® and NVSwitch™ provides the highest GPU-to-GPU communication bandwidth, while 8 NICs with GPU direct RDMA ensure optimal data flow for high-density environments.
Additionally, the 12+2 NVMe hot-swap drive bays, M.2 boot drive, and flexible networking options enable seamless storage and connectivity. Designed with redundant 3000W Titanium-level power supplies and advanced cooling, it offers efficiency and reliability that outperforms competitors in the market.
Key Applications:
• High Performance Computing
• AI/Deep Learning Training
• Industrial Automation, Retail
• Climate and Weather Modeling
Maximise your infrastructure’s potential with the Supermicro AS-8125GS-TNHR. Contact Happyware today to discover how this advanced system can redefine your business operations. Call us now or register your company as a partner of Happyware to access exclusive benefits and tailored support. Don’t miss the chance to lead in the world of AI and HPC with this exceptional solution!
Supermicro AS-8125GS-TNHR Teknik Özellikleri
| Dual AMD EPYC 9004 Series CPU, 18x 2.5" hot-swap drive bays, 10x PCIe (8x LP, 2x FHFL), 8x GPUs, 6x 3000W redundant PSUs |
| Processor/Cache | |
|---|---|
| CPU | Dual Socket SP5 AMD EPYC™ 9004 Series Processors |
| Cores | Up to 128C/256T |
| Note | Supports up to 400W TDP CPUs (Air Cooled) |
| GPU | |
|---|---|
| Max GPU Count | Up to 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX H100 8-GPU (80GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
|---|---|
| Memory Capacity | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Type | 1.1V |
| On-Board Devices | |
|---|---|
| Chipset | AMD SP5 |
| NVMe | |
| Network Connectivity | |
| Input / Output | |
|---|---|
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 8U Rackmountable |
| Model | CSE-GP801TS |
| Dimensions | |
|---|---|
| Height | 35.56cm (355.6 mm) |
| Width | 43.7cm (437 mm) |
| Depth | 84.32cm (843.28 mm) |
| Package | 74.93cm (H) x 69.85cm (W) x 130.04cm (D) |
| Weight | Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) |
| Available Colors | Black Front & Silver Body |
| Front Panel | |
|---|---|
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Storage | |
|---|---|

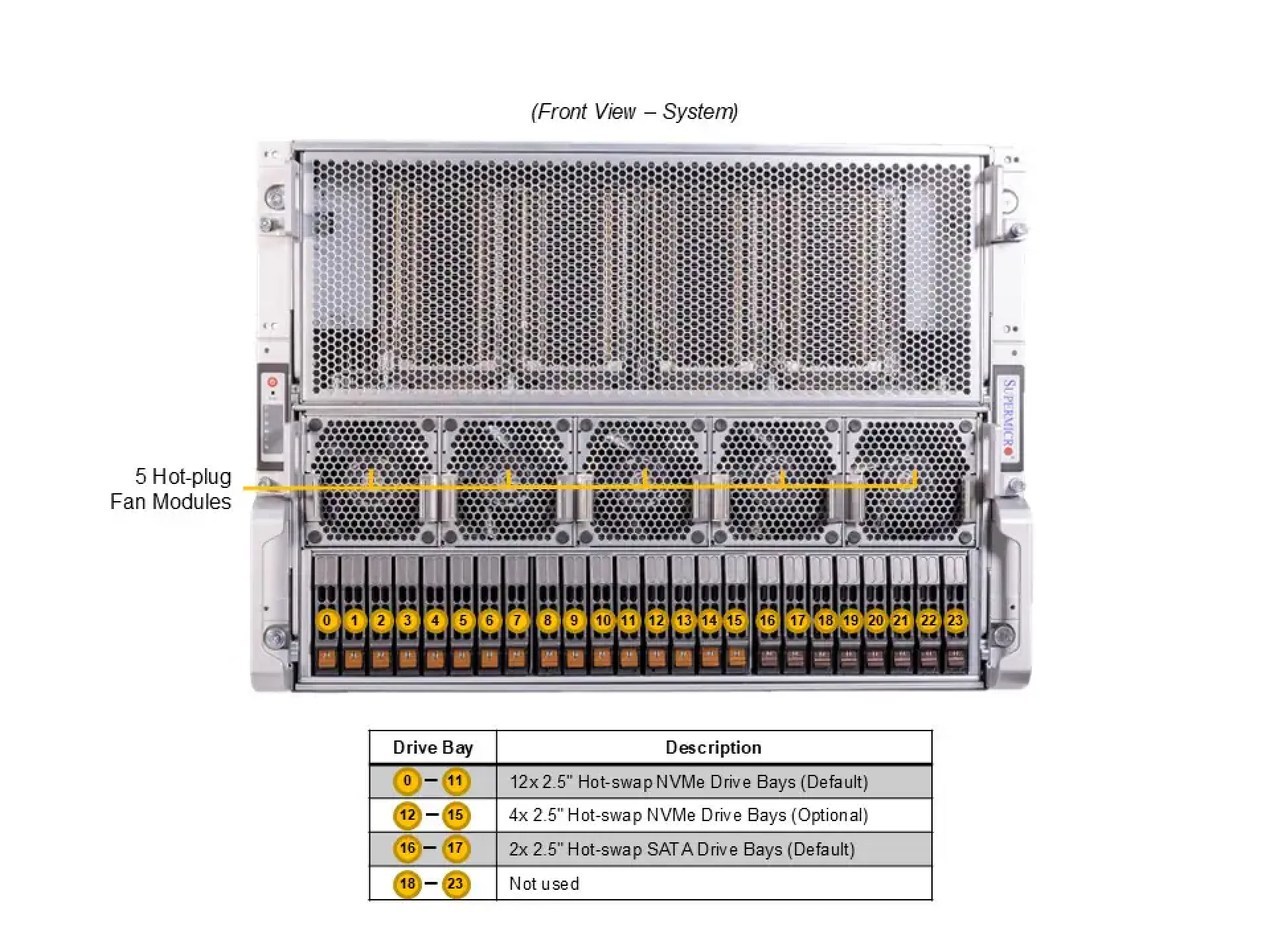

| Drive Bays | Default: Total 18 bays 2 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe* drive bays 12 front hot-swap 2.5" NVMe drive bays |
| M.2 | 1 M.2 NVMe slot (M-key) |
| Expansion Slots | |
|---|---|
| PCI-Express | Default: 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHFL slots |
| System Cooling | |
|---|---|
| Fans | 10 heavy duty fans with optimal fan speed control |
| Power Supply | |
|---|---|
| 6x 3000W Redundant Titanium Level (96%) power supplies | |
| Dimension (W x H x L) | 106.5 x 82.1 x 245.5 mm |
| AC Input | 3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz |
| +12V | Max: 91.66A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-8125GS-TNHR | |
| System Building | AS-8125GS-TNHR configured by Supermicro as Complete System | |
Supermicro AS-8125GS-TNHR Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Application and data serving, Big Data, DB Processing & Storage, Enterprise Server, GPU server, HPC, High End Enterprise Server, High Performance Computing |
| Backplane: | Yes |
| Backplane Interface: | SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 8 |
| Height units: | 8U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | SP5 |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | No |
| PSU Power Wattage: | 3000W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 8125GS-TNHR |
| Quantity of Cooler: | 10 |
| Quantity of Power Supplies: | 6 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Application Hosting, Database Server, Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
