AS-8126GS-TNMR | Supermicro Dual Socket Epyc 9004 8U Server
Ürün numarası: TR7B6689-827006
|
Üretici numarası: AS-8126GS-TNMR
Fiyat sor ↓
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-8126GS-TNMR
Supermicro AS-8126GS-TNMR Teknik Özellikleri
| Dual AMD EPYC 9005/9004 Series CPU, 10x 2.5" hot-swap drive bays, 10x PCIe (8x LP, 2x FHHL), 8x GPUs, 6x 5250W redundant PSUs |
| Processor/Cache | |
|---|---|
| CPU | Dual Socket SP5 AMD EPYC™ 9005/9004 Series Processors |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| GPU | |
|---|---|
| Max GPU Count | Up to 8 onboard GPUs |
| Supported GPU | AMD: Instinct MI300X Accelerators |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
| System Memory | |
|---|---|
| Memory Capacity | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip |
| Input / Output | |
|---|---|
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 8U Rackmountable |
| Model | CSE-GP805TS-R000NPF |
| Dimensions | |
|---|---|
| Height | 35.6cm (356 mm) |
| Width | 44.7cm (447 mm) |
| Depth | 84.3cm (843 mm) |
| Package | 70.104cm (H) x 129.54cm (W) x 74.93cm (D) |
| Weight | Gross Weight: 158.73 lbs (72 kg) Net Weight: 105.82 lbs (48 kg) |
| Available Colors | Silver |
| Front Panel | |
|---|---|

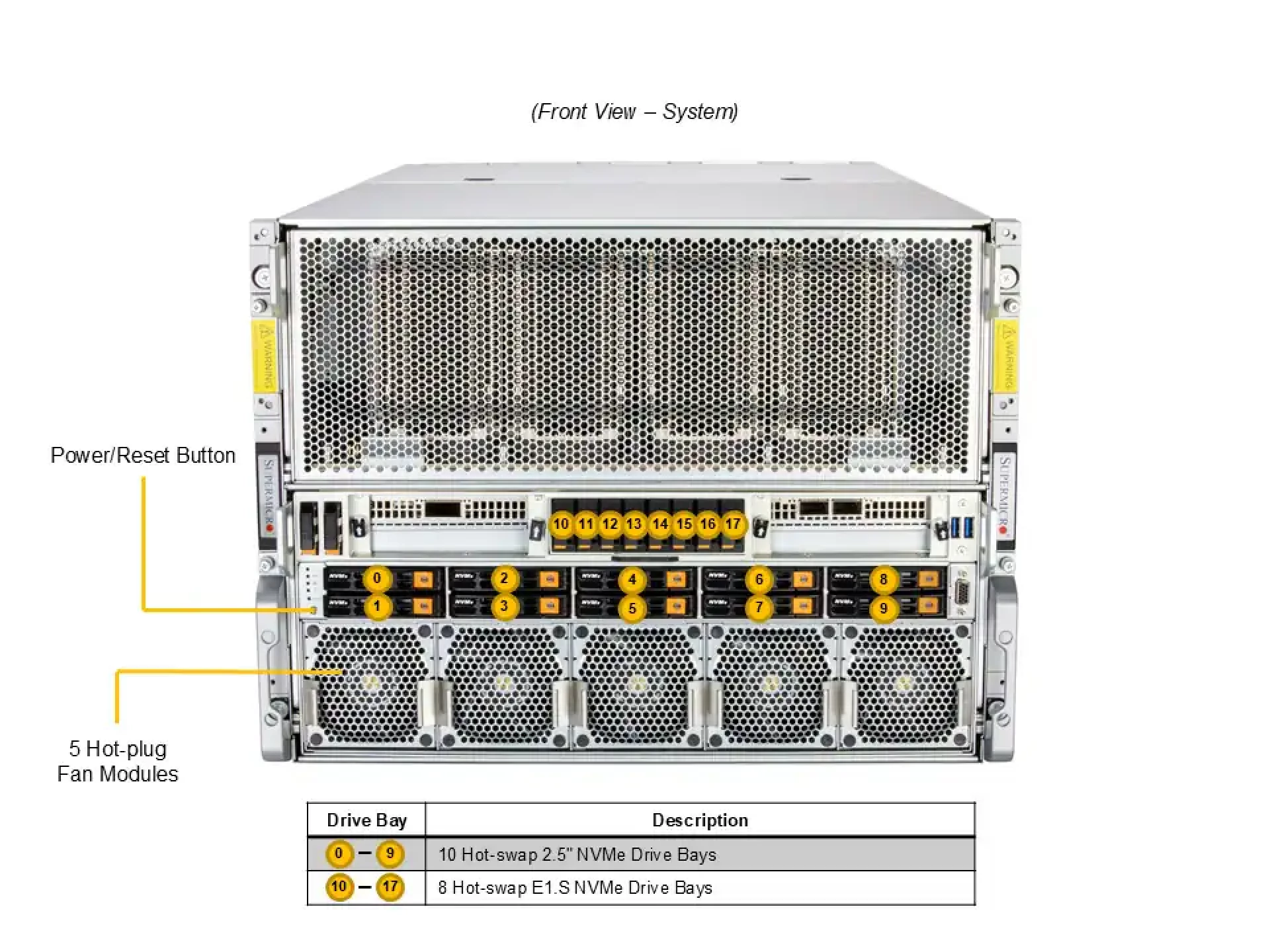

| LED | Hard drive activity LED Network activity LEDs System information (overheat/UID) UID |
| Buttons | Power On/Off UID/ Reset button |
| Storage | |
|---|---|
| Drive Bays | Default: Total 10 bays 2 front hot-swap 2.5" SATA drive bays 8 front hot-swap 2.5" NVMe drive bays Option A: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default)) |
| Expansion Slots | |
|---|---|

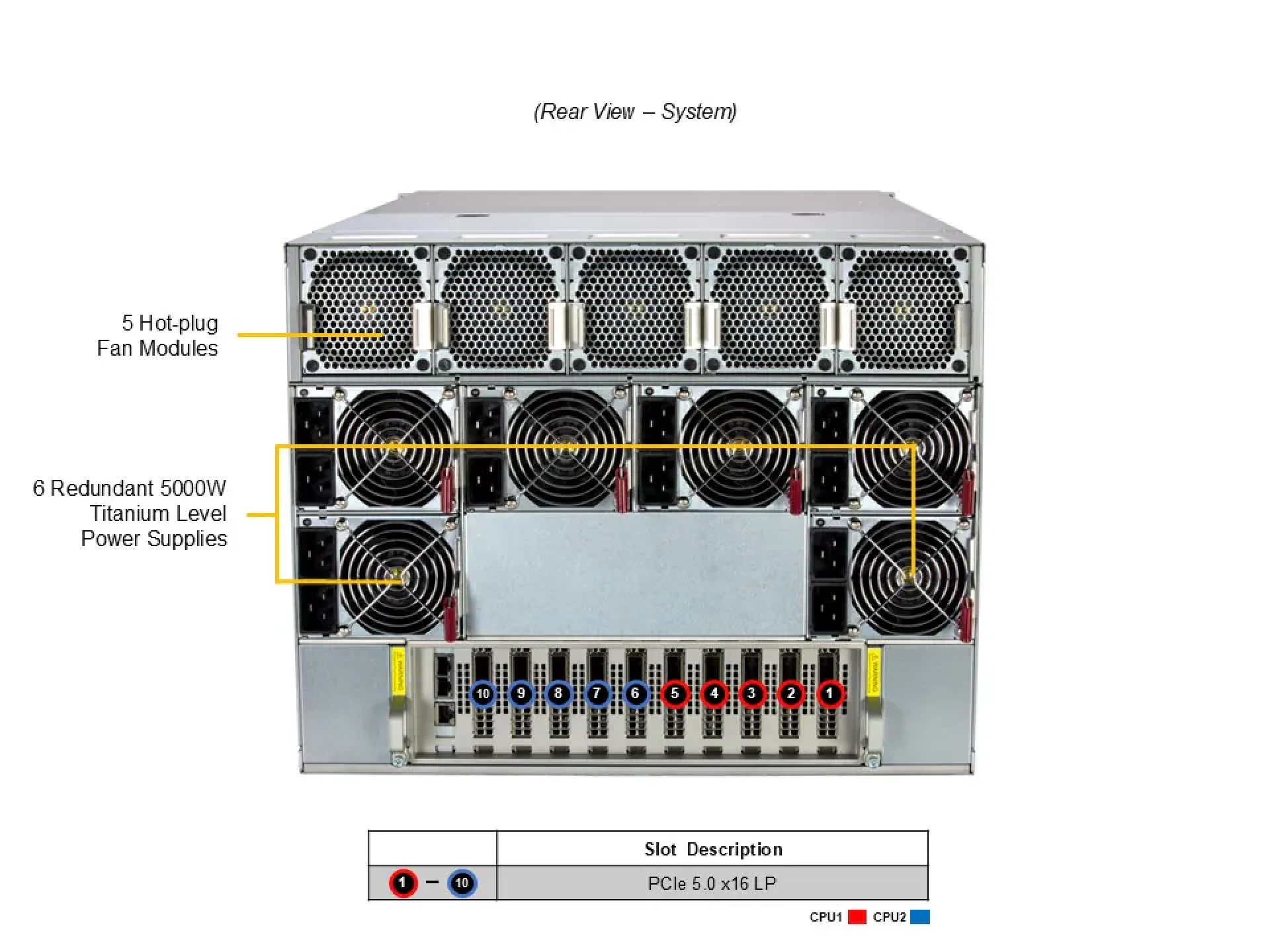

| PCI-Express | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| System Cooling | |
|---|---|
| Fans | 5 Hot-plug Fans |
| Power Supply | |
|---|---|
| 6x 5250W Redundant Titanium (certification pending) Level (96%) power supplies | |
| Dimension (W x H x L) | 106.5 x 82.1 x 245.3 mm |
| AC Input | 5250W: 200-240Vac / 50-60Hz |
| +12V | Max: 125A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium (certification pending) Level |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-8126GS-TNMR | |
| System Building | AS-8126GS-TNMR configured by Supermicro as Complete System | |
Supermicro AS-8126GS-TNMR Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Enterprise Applications, Enterprise Server, GPU server, HPC, High End Enterprise Server, High Performance Computing |
| Backplane: | Yes |
| Backplane Interface: | SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators, USB Type-A |
| GPU quantity per node: | 8 |
| Height units: | 8U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | No |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 5250W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Product Model: | 8126GS-TNMR |
| Quantity of Cooler: | 5 |
| Quantity of Power Supplies: | 6 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | AMD |
