Supermicro SYS-821GE-TNHR

Supermicro SYS-821GE-TNHR Teknik Özellikleri

Dual Intel Xeon 5th Gen CPU, 15x 2.5" hot-swap drive bays, 8x GPUs, 10x PCIe Gen5 (8x LP, 2x FHHL), 6x 3000W redundant Power Supplies
Processor
CPUDual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
CoresUp to 64C/128T; Up to 320MB Cache per CPU
NoteSupports up to 350W TDP CPUs (Air Cooled)
Supports up to 385W TDP CPUs (Liquid Cooled)​
GPU
Max GPU CountUp to 8 onboard GPU

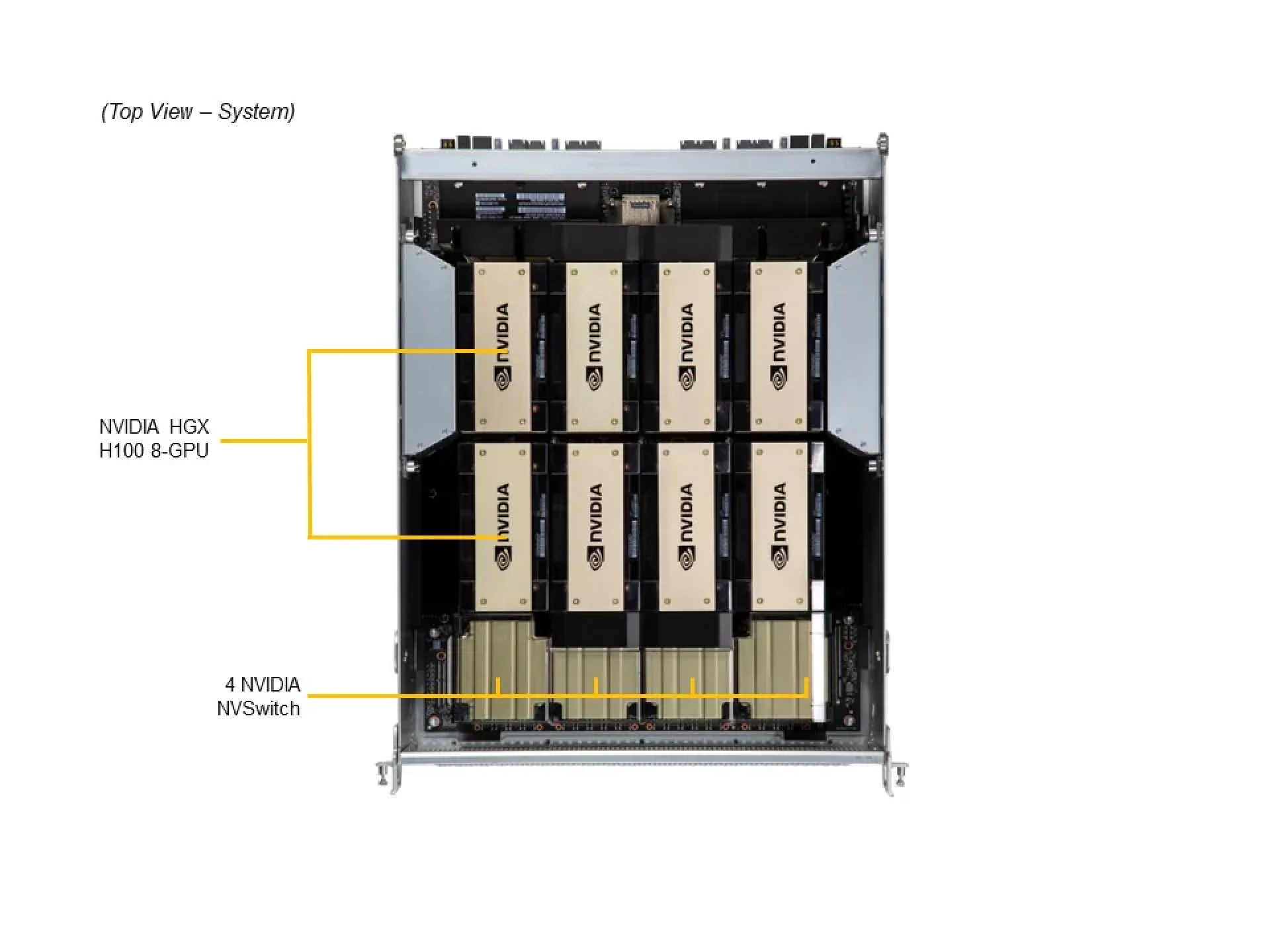

Supported GPUNVIDIA SXM: HGX H100 8-GPU (80GB)
CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU InterconnectNVIDIA® NVLink® with NVSwitch™
CertificationNVIDIA Certified
System Memory

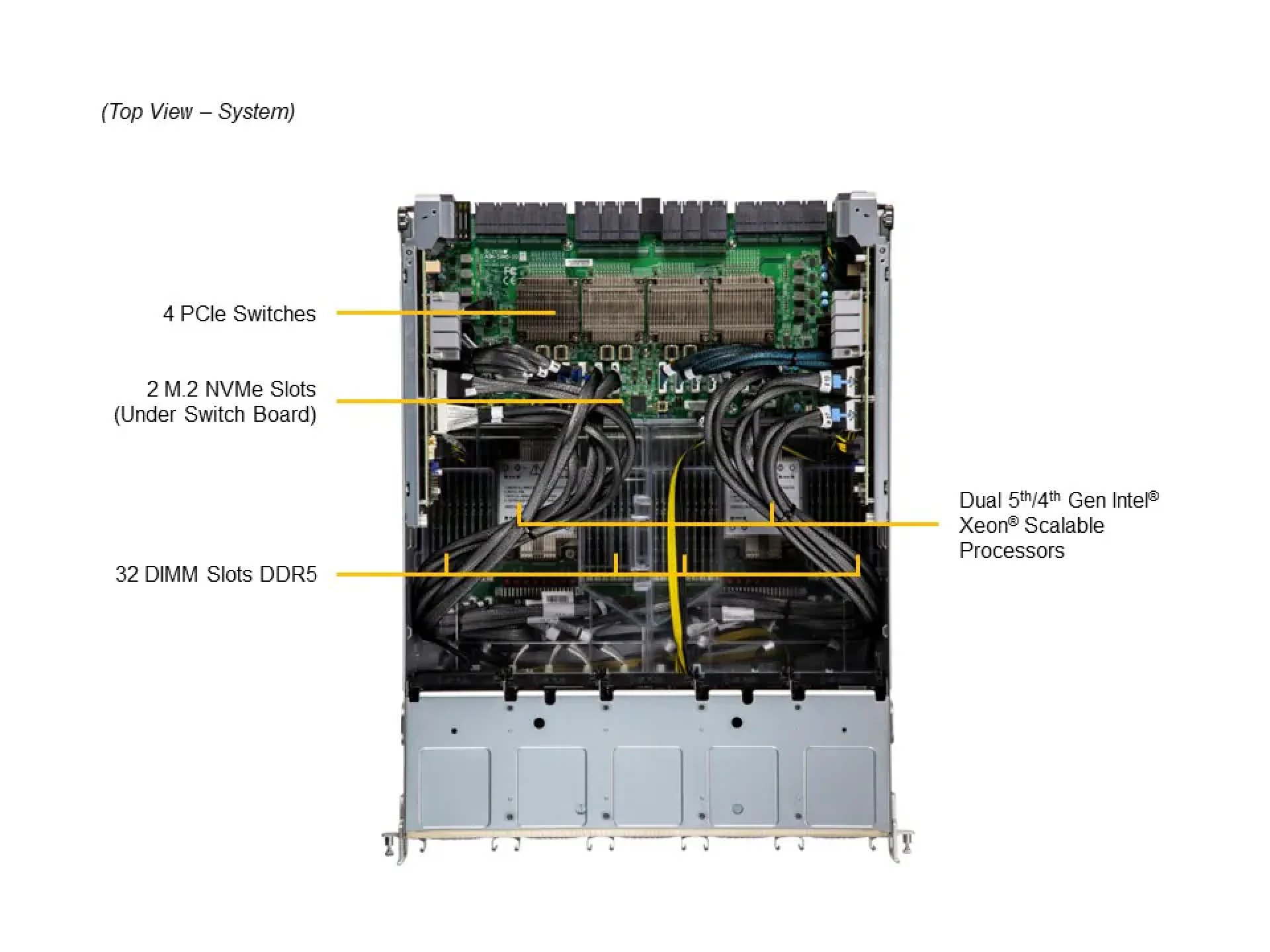

MemorySlot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage1.1V
On-Board Devices
ChipsetIntel® C741
Network Connectivity2 RJ45 10GbE with Intel® X550-AT2 (optional)
2 SFP28 25GbE with Broadcom® BCM57414 (optional)
2 RJ45 10GbE with Intel® X710-AT2 (optional)
NVMe-
Input / Output
Video1 VGA port
System BIOS
BIOS TypeAMI 32MB SPI Flash EEPROM
Management
SoftwareSuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power ConfigurationsPower-on mode for AC power recovery
ACPI Power Management
Security
HardwareTrusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
FeaturesCryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
CPUMonitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
FanFans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
TemperatureMonitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor8U Rackmount
ModelCSE-GP801TS
Dimensions and Weight
Height35.56cm (355.6 mm)
Width43.68cm (437 mm)
Depth84.32cm (843.28 mm)
Package74.93cm (H) x 69.85cm (W) x 130.04cm (D)
WeightGross Weight: 225 lbs (102.1 kg)
Net Weight: 166 lbs (75.3 kg)
Available ColorBlack front & Silver body
Front Panel
LEDHard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
ButtonsPower On/Off button
System Reset button
Expansion Slots

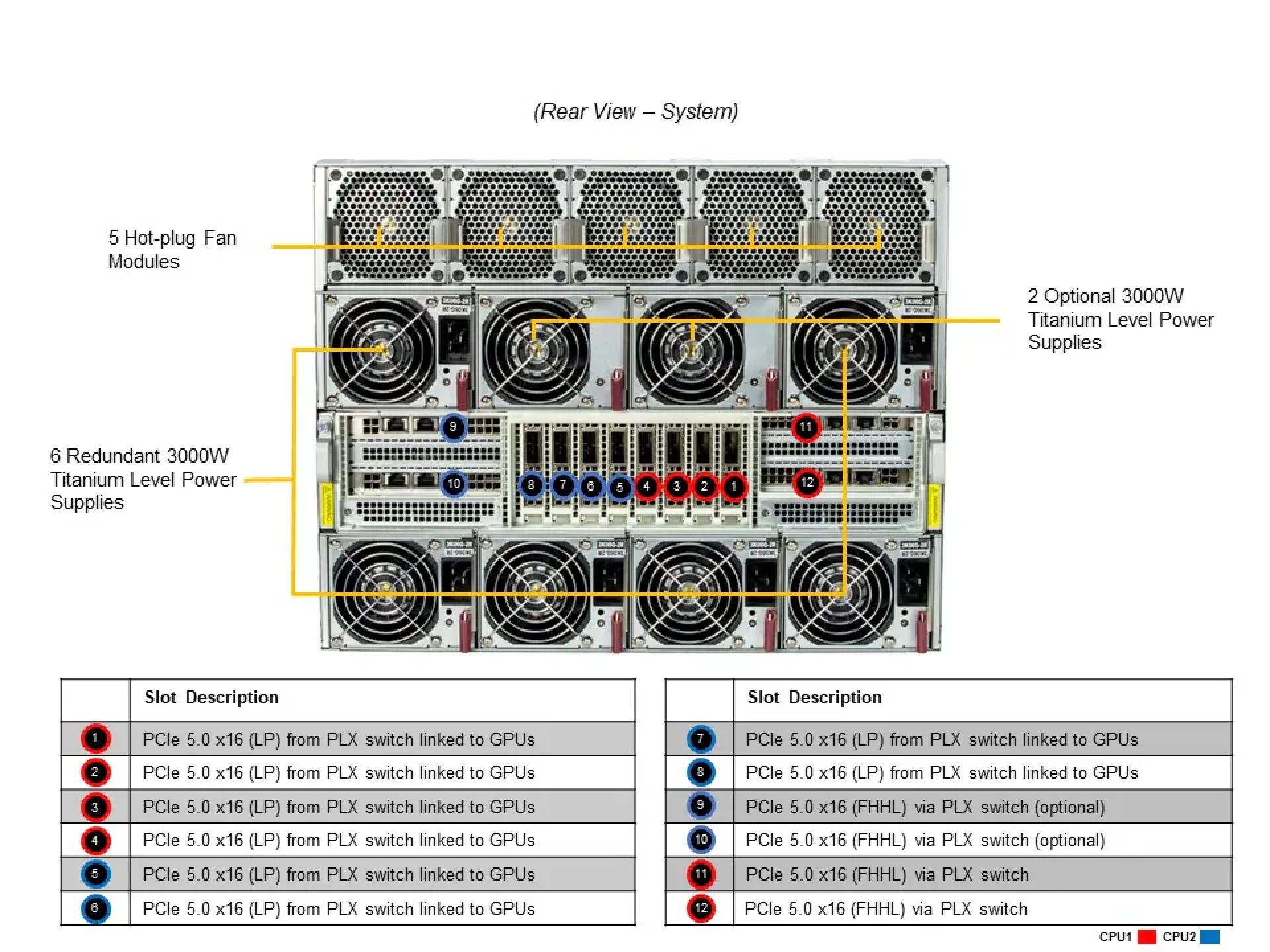

PCI-Express (PCIe) ConfigurationDefault
8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots
Storage

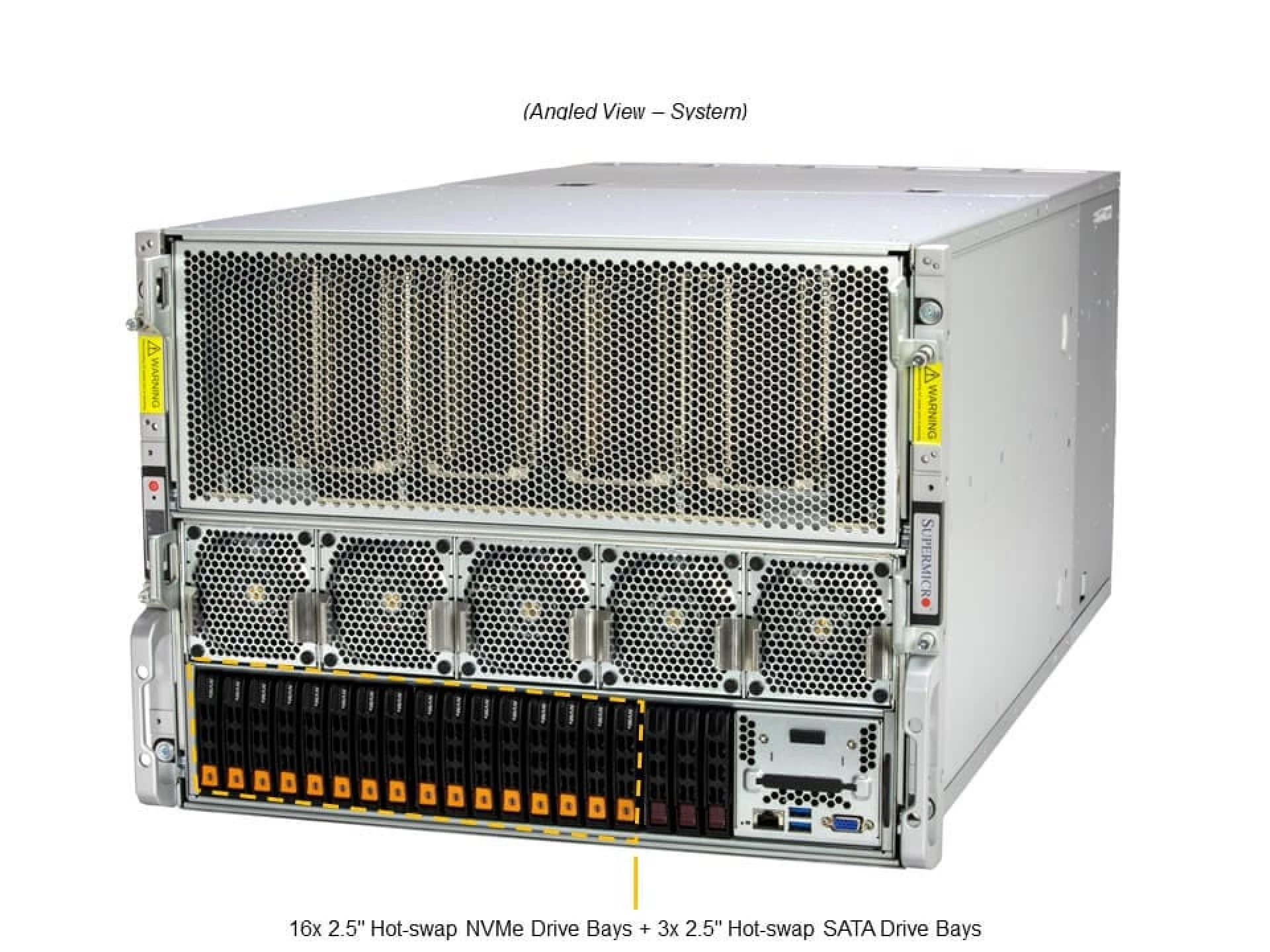

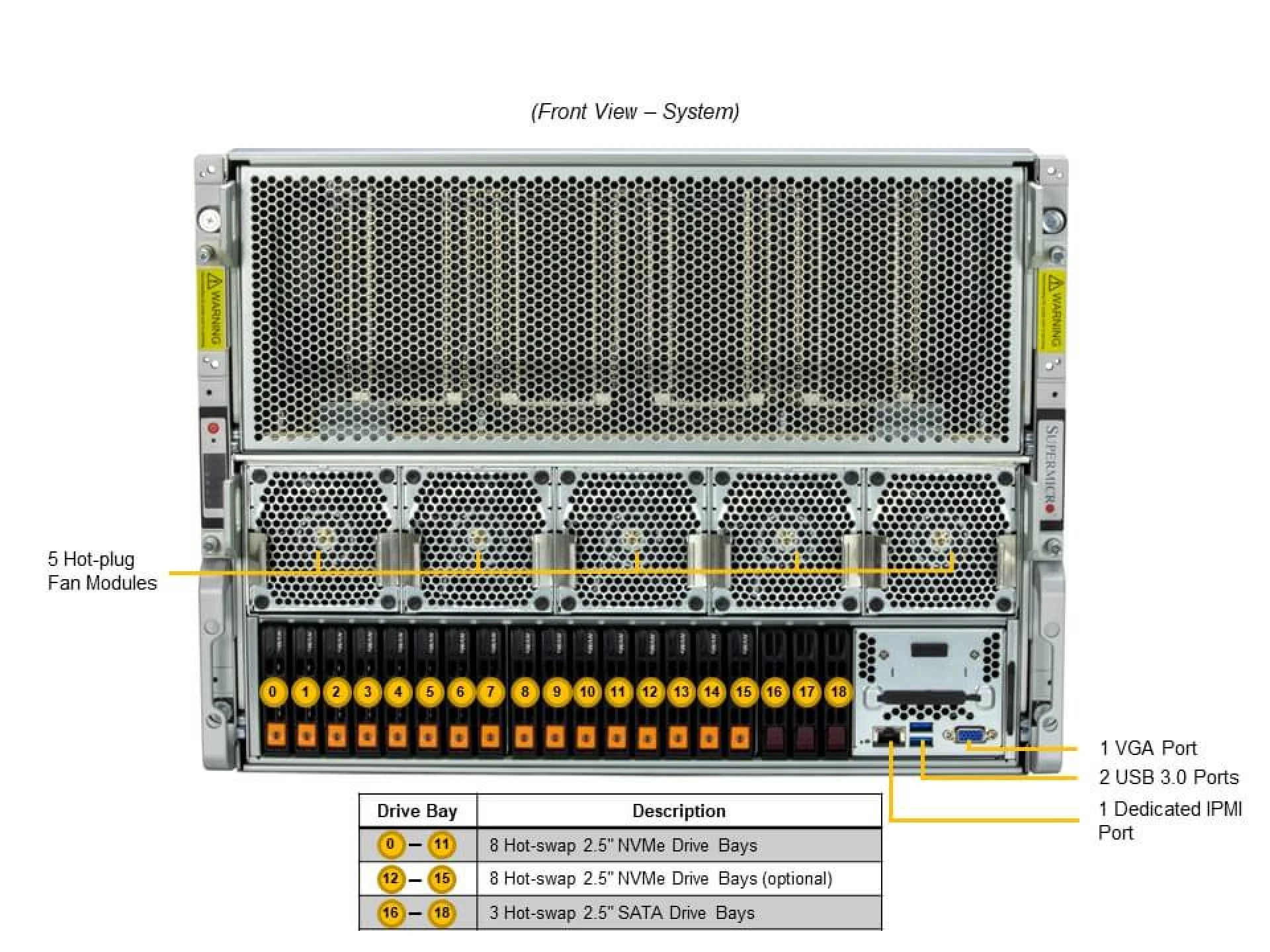

Drive Bays ConfigurationDefault: Total 15 bays
12 front hot-swap 2.5" NVMe drive bays
3 front hot-swap 2.5" SATA drive bays
Option A: Total 19 bays
12 front hot-swap 2.5" NVMe drive bays
4 front hot-swap 2.5" NVMe* drive bays
3 front hot-swap 2.5" SATA drive bays
M.22 M.2 NVMe/SATA slots (M-key)
System Cooling
Fans10 heavy duty fans with optimal fan speed control
Liquid CoolingDirect to Chip (D2C) Cold Plate (optional)
Power Supply
6x 3000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.1 x 245.5 mm
AC Input3000W: 0240Vdc / 50-60Hz (for CQC only)
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
+12VMax: 91.66A / Min: 0A (200Vac-240Vac)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

Order Information
Manufacturer SKUSYS-821GE-TNHR
System BuildingSYS-821GE-TNHR configured by Supermicro as Complete System

Supermicro SYS-821GE-TNHR Nitelikleri

Add-on card form factor: FH, HH
Applications: AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Big Data, DB Processing & Storage, Data Center Applications, Database, Database Applications, Enterprise Applications, Enterprise Server, Financial, GPU server, HPC, High End Enterprise Server, High Performance Computing, Hosting & Application Delivery
Backplane: Yes
Backplane Interface: SATA I, SATA II, SATA III, U.2 NVMe
Bluetooth Support: None
CPU Codename: Emerald Rapids, Sapphire Rapids
CPU Manufacturer: Intel
CPU Socket: 4677
Card Reader Support: No
Certification: 80 Plus Titanium
Chassis Intrusion: No
Computer group: Server
Design: Rackmount
Front I/O: LED Indicators
GPU quantity per node: 8
Height units: 8U
HotSwap/Fixed Drives: Yes
HotSwap/Fixed Power Supply: Hot-Swap Power Supply
IPMI / BMC: Yes
Lighting: LED
Motherboard Chipset: C741
Number of CPU sockets: No
Number of RAM Slots: N/A
Onboard Controller: Broadcom BCM57414, X550-AT2, X710-AT2
Onboard Graphic: Yes
Onboard LAN: No
Onboard Network Speed: 10 Gb/s, 25 Gb/s
PSU Power Wattage: 3000W
Performance Class: Datacenter-Class, Enterprise-Class, High-End
Power Supply Cooler: No
Pre-installed Components: None
Pre-installed Software: Windows 10, Windows 11, Windows Server
Product Model: 821GE-TNHR
Quantity of Cooler: 10
Quantity of Power Supplies: 6
RAID Support: No
RAM DIMM Type: RDIMM
RAM ECC: ECC
RAM registered/unregistered: Registered
Redundant power: Yes
Server Fanless: No
Special Features: LEDs
Specific Ports: M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports, VGA Ports
Suitability: Server
Use case: Application Hosting, Data Analytics, Database Server, Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC)
Wi-Fi Support: None
iGPU Manufacturer: Nvidia
