G493-ZB0-AAP1 | Gigabyte Dual EPYC 9004 EPYC 9005 4U Rack Server
Fiyat sor ↓
Fiyatlar hariç. KDV artı nakliye masrafları

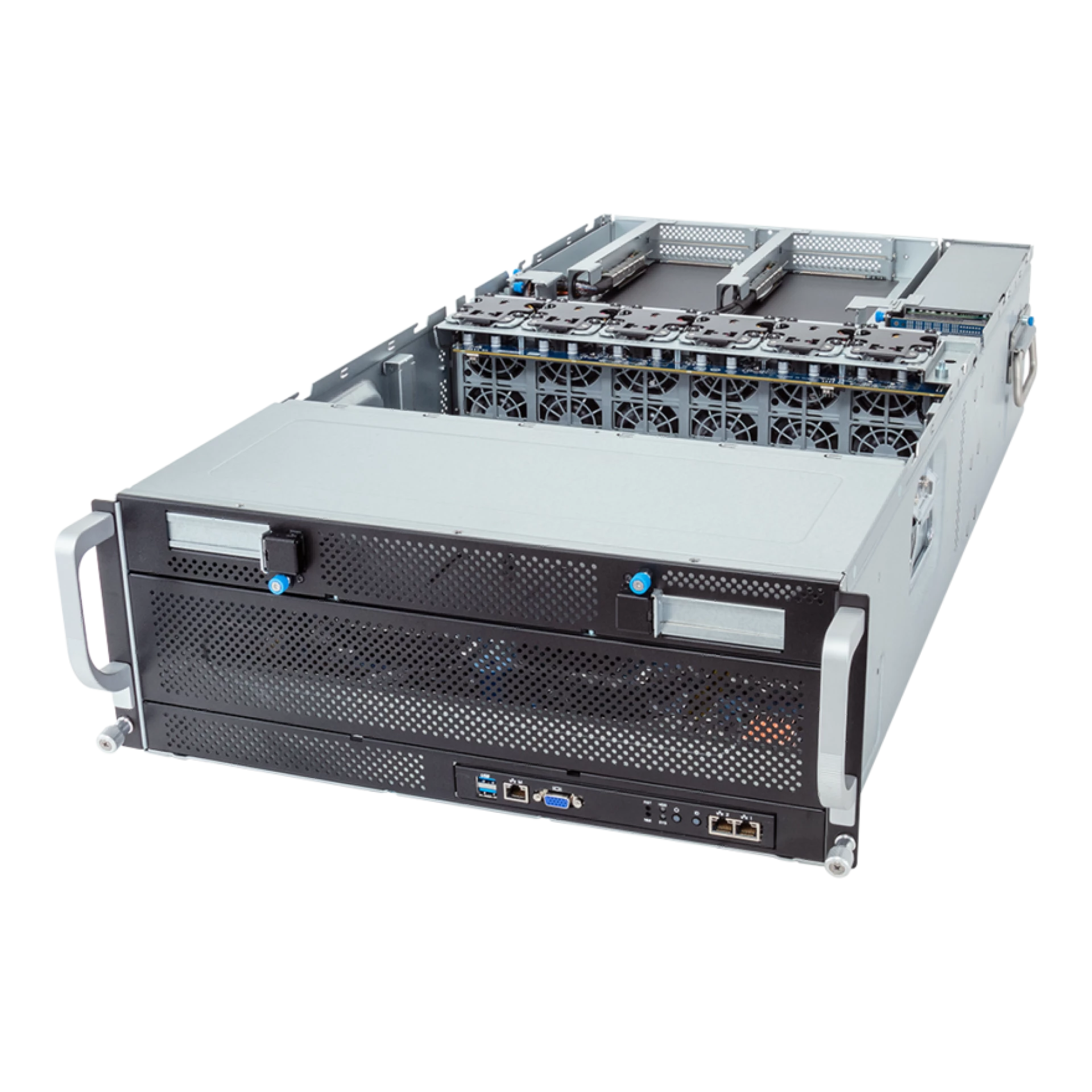

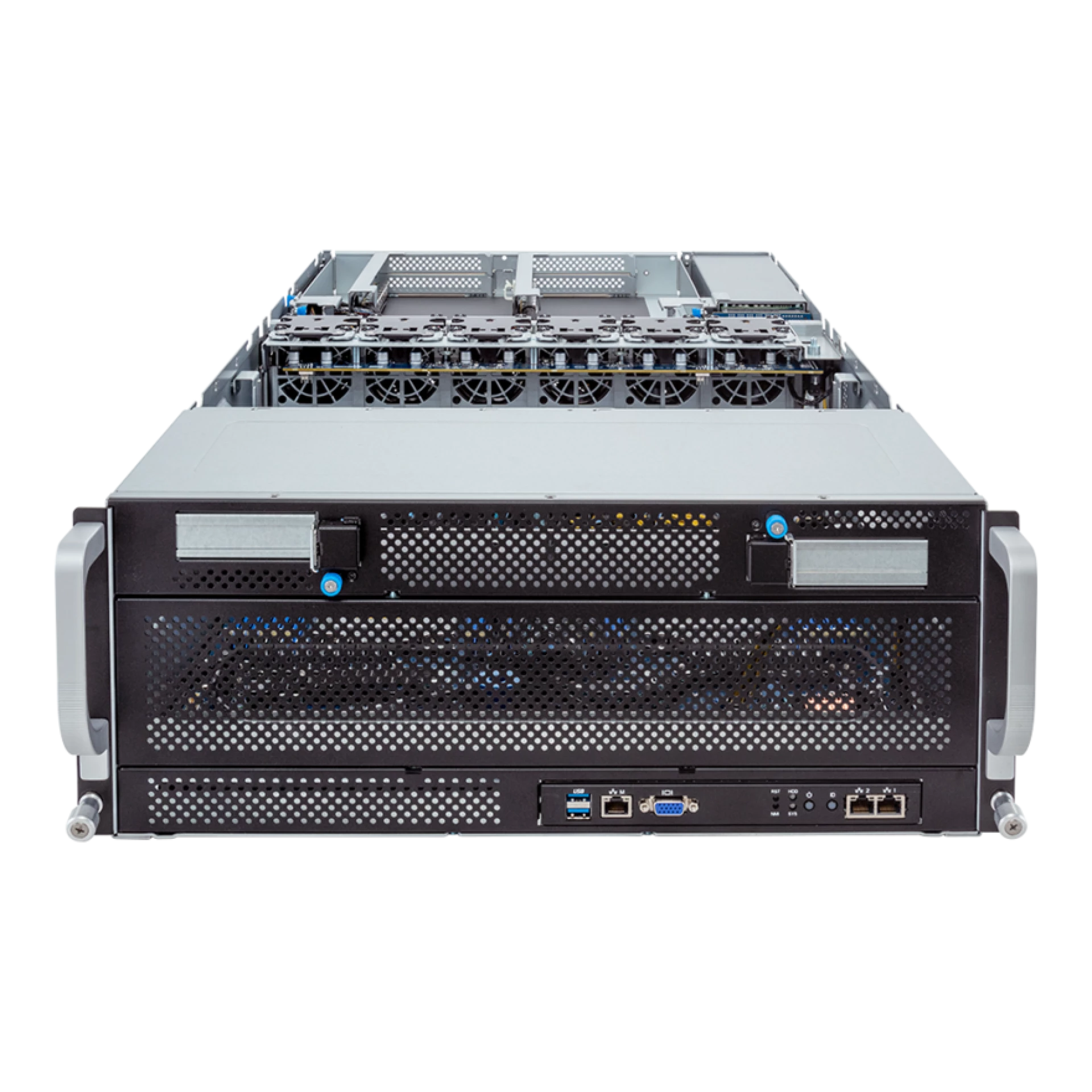

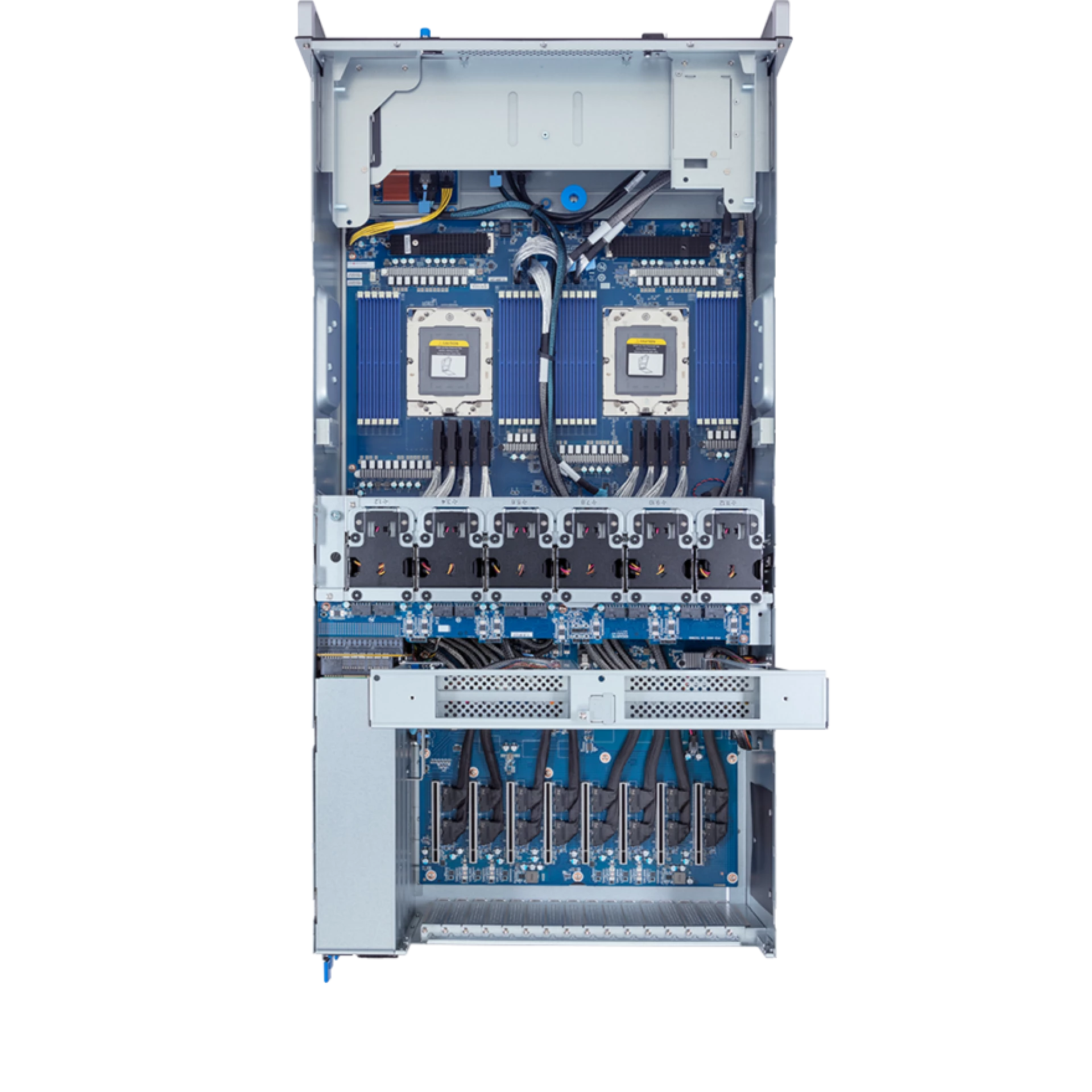

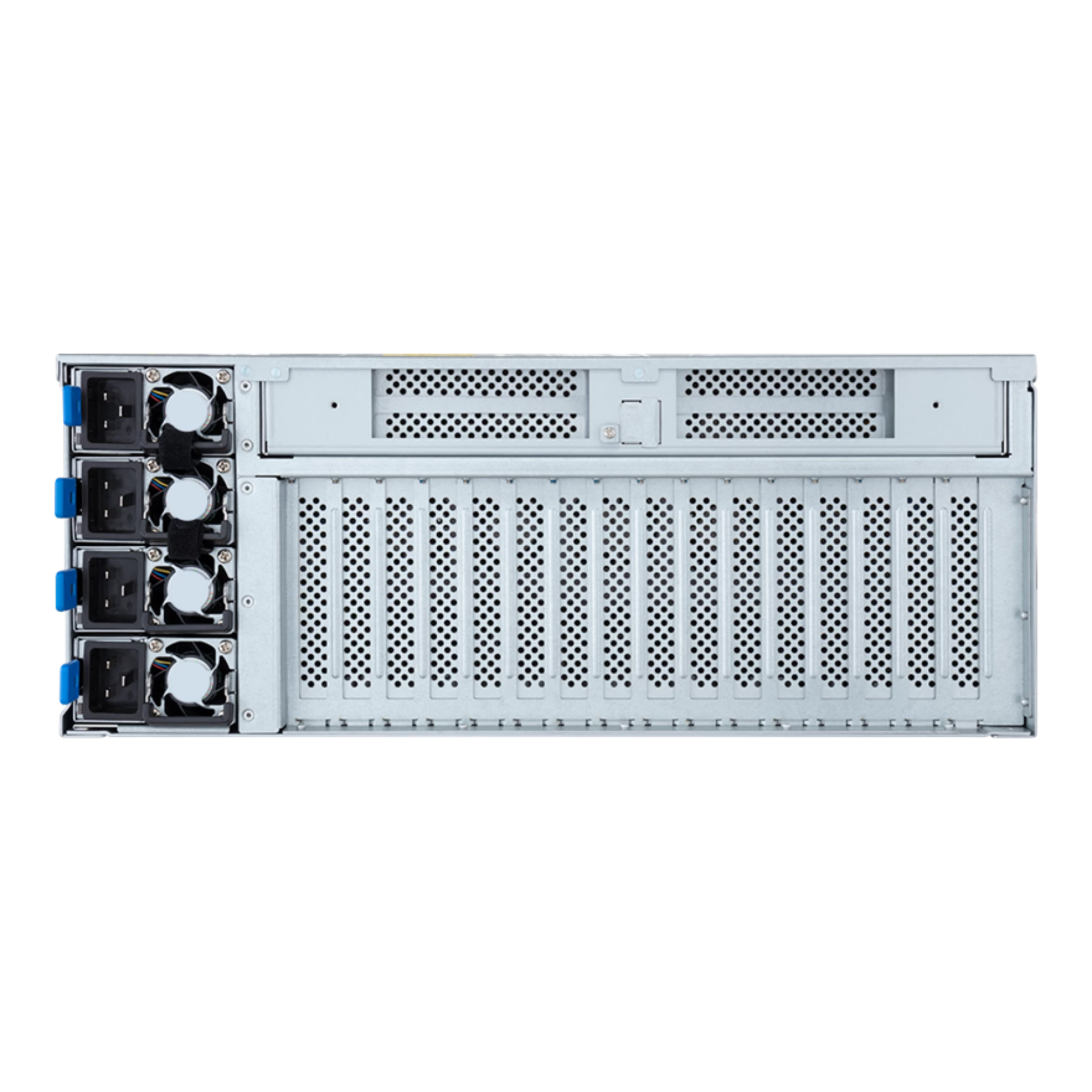

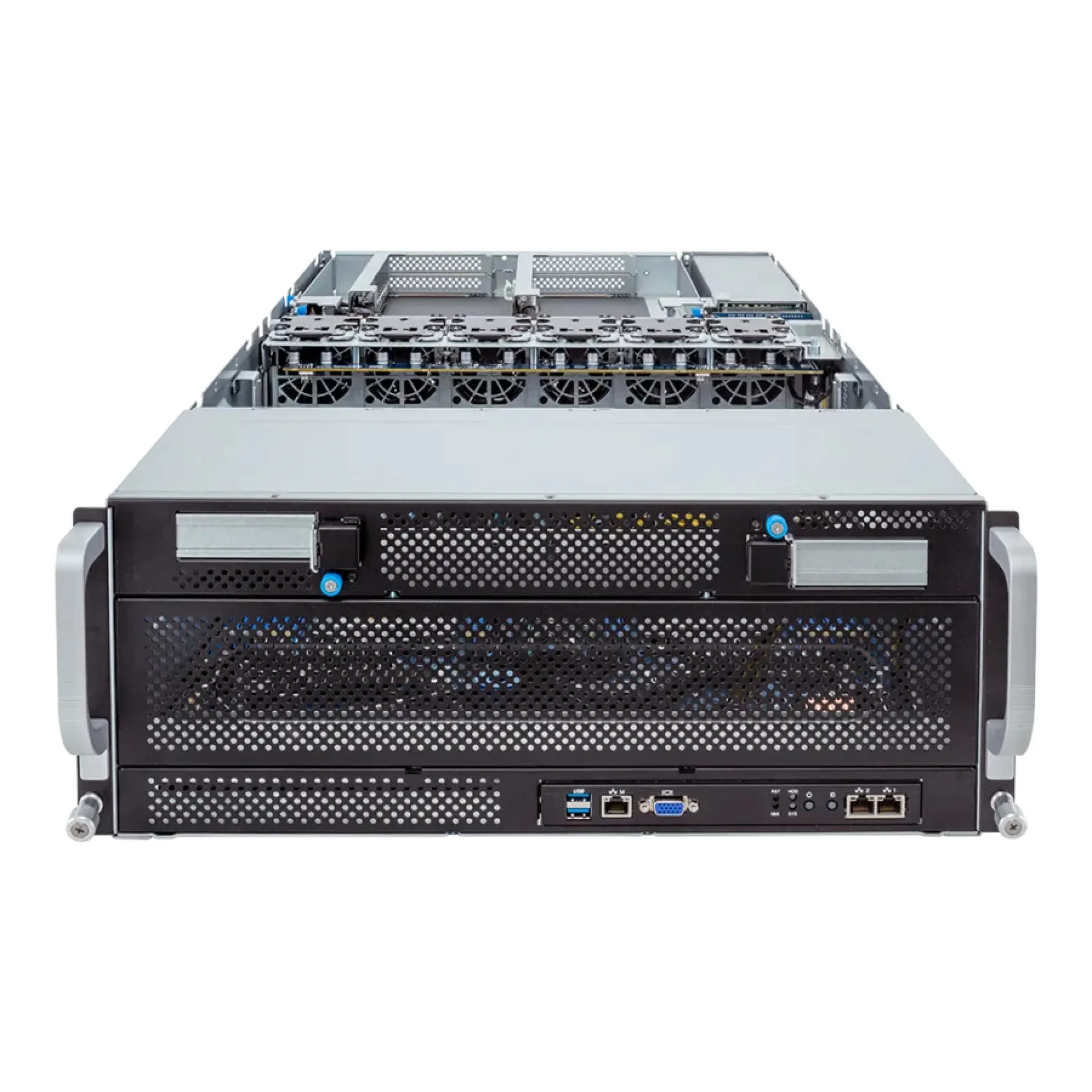

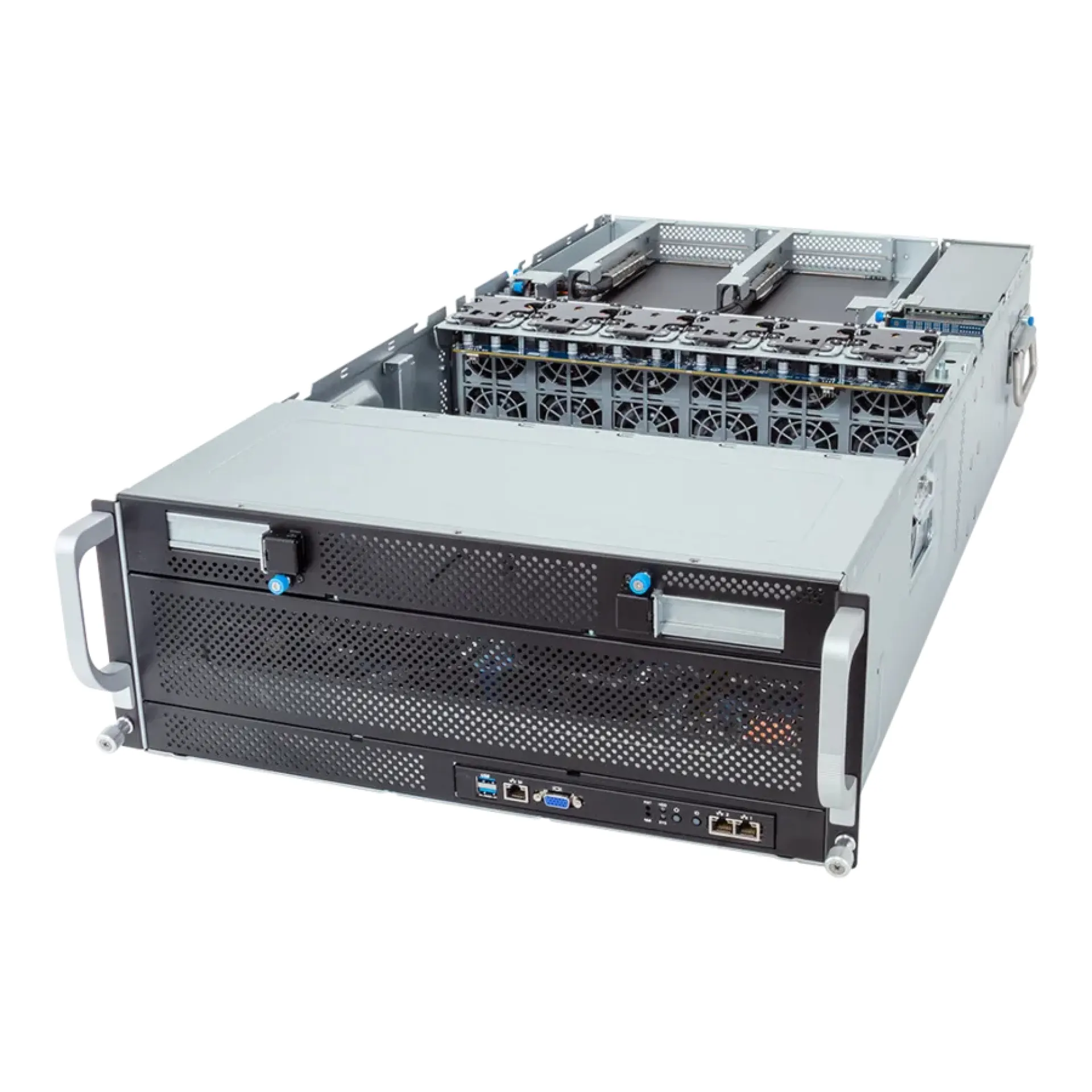

Gigabyte G493-ZB0-AAP1
PCIe Gen5 Hızlandırma için 6NG493ZB0DR000AAP1 Gigabyte İle Yüksek Yoğunluklu 4U Çift Soket SP5 GPU Sunucu Barebone
6NG493ZB0DR000AAP1 Gigabyte barebone, çift AMD EPYC 9004/9005 (SP5) işlemci üzerinde GPU yoğun yapay zeka ve HPC uygulamaları için tasarlanmış 4U raf platformudur ve 400W TDP’ye kadar doğrulanmıştır. Bu tasarım, yüksek çekirdek sayılı CPU performansını, çoklu hızlandırıcı eğitim, çıkarım ve simülasyon süreçlerinde tıkanıklık yaşanmadan sürdürülebilecek zengin veri yolu sayısına sahip I/O topolojisiyle eşleştirir.
12 kanallı bellek mimarisi üzerinde 24 DDR5 ECC RDIMM yuvası ile 6NG493ZB0DR000AAP1 Gigabyte, büyük bellek içi veri kümelerini ve NUMA uyumlu ölçeklenebilirliği destekler; 3DS RDIMM kullanılarak 6TB’a kadar yapılandırılabilir. PCIe Gen5 genişletme bant genişliği, 10 x16 FHFL yuvası sunar ve 8 GPU konumu ile yüksek hızlı NIC veya depolama adaptörleri için ek yuvalara olanak tanır. Depolama ise 2 x M.2 NVMe (PCIe Gen3) ile kontrollü önyükleme ve yerel önbellek için optimize edilmiştir, platformu ayrıştırılmış depolama stratejileri ve küme yönetimli veri yollarıyla uyumlu hale getirir.
6NG493ZB0DR000AAP1 Gigabyte’ı Neden Tercih Etmelisiniz?
6NG493ZB0DR000AAP1 Gigabyte, çift soketli SP5 işlemci, PCIe Gen5 bant genişliği ve servis edilebilir 4U mekanikleriyle hızlandırıcı yoğun raflar için pratik bir yoğunluk-performans oranı sunar. Önceden tahmin edilebilir GPU tahsisi, merkezi depolama ve uzaktan yönetim gerektiren ölçeklenebilir kümeler için ideal çözümdür; bu, tekrar edilebilir dağıtımlar ve kararlı operasyonlar sağlar.
Gigabyte bu barebone’u kurumsal güvenilirlik, doğrulanmış platform ısıl performansı ve standartlara uygun yönetim etrafında yapılandırmıştır. ASPEED AST2600 tabanlı IPMI/BMC entegrasyonu ve AMI MegaRAC SP-X uzaktan KVM ve yaşam döngüsü kontrolü desteklerken, 3+1 yedekli 3000W 80 PLUS Titanium güç kaynağı GPU iş yüklerinin sürekli sürdürülmesini sağlar.
Ana Uygulamalar:
- Yapay zeka eğitim ve çıkarım kümeleri
- HPC simülasyon ve modelleme
- GPU hızlandırmalı veri analitiği
- Görsel hesaplama ve render
- GPU geçiş özellikli sanallaştırma
Happyware Türkiye olarak, 6NG493ZB0DR000AAP1 Gigabyte ürününü raf ve ağ tasarımınıza entegre etmeniz için çözüm odaklı B2B rehberliği, AMD EPYC SP5 ve PCIe Gen5 hızlandırıcı planlarına uygun net yapılandırma, güvenilir tedarik ve profesyonel destek sunmaktayız; dağıtım ve işletme devri süreçlerinde yanınızdayız.
Gigabyte G493-ZB0-AAP1 Teknik Özellikleri
| Dual AMD EPYC 9004 Series CPU, 8x PCIe (FHFL) for GPUs + 2x PCIe (FHFL), 4x 3000W redundant PSUs |
| Dimensions (WxHxD, mm) | 4U 448 x 176 x 880 |
|
| Motherboard | MZB3-G43 | |
| CPU | AMD EPYC™ 9004 Series processors AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology Dual processor, 5nm technology *Up to 128-core, 256 threads per processor cTDP up to 300W at ambient 35°C *cTDP supported up to 400W under limited thermal conditions. Note: If only 1 CPU is installed, some PCI-E or memory functions might be unavailable |
|
| Socket | 2 x LGA 6096 Socket SP5 |
|
| Chipset | System on Chip | |
| Memory | 24 x DIMM slots DDR5 memory supported only 12-Channel memory architecture RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz |
|
| LAN | Front side: 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2) NCSI function supported 1 x 10/100/1000 management LAN |
|
| Video | Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
|
| Storage | N/A | |
| SAS | N/A | |
| RAID | N/A | |
| Expansion Slots | 4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs 4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs 1 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0 1 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1 - System is validated for population with a uniform GPU model - Support is not provided for mixed GPU populations 1 x M.2 slot: - M-key - PCIe Gen3 x1, from CPU_0 - Supports 2280/22110 cards 1 x M.2 slot: - M-key - PCIe Gen3 x4, from CPU_1 - Supports 2280/22110 cards |
|
| Internal I/O | 2 x M.2 slots 1 x TPM header |
|
| Front I/O | 2 x USB 3.2 Gen1 1 x VGA 2 x RJ45 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED 1 x HDD access LED |
|
| Rear I/O | N/A | |
| Backplane I/O | N/A | |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
|
| Power Supply | 3+1 3000W (240V) 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 14.5A, 50-60Hz - 200-220V~/ 16A, 50-60Hz - 220-240V~/ 16A, 50-60Hz DC Input: - 240Vdc/ 16A DC Output: - Max 1097W/ 100-127V~ + 12.2V/ 87A + 12Vsb/ 3A - Max 2598W/ 200-220V~ + 12.2V/ 210A + 12Vsb/ 3A - Max 3037.2W/ 220-240V~ + 12.2V/ 246A + 12Vsb/ 3A Note: The system power supply requires C19 type power cord |
|
| System Management | Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
|
| OS Compatibility | Windows Server 2019 or later Windows Server 2022 or later Red Hat Enterprise Linux 8.6 (x64) or later Red Hat Enterprise Linux 8.7 (x64) or later Red Hat Enterprise Linux 8.8 (x64) or later Red Hat Enterprise Linux 9.0 (x64) or later Red Hat Enterprise Linux 9.1 (x64) or later Red Hat Enterprise Linux 9.2 (x64) or later SUSE Linux Enterprise Server 15 SP4 (x64) or later SUSE Linux Enterprise Server 15 SP5 (x64) or later Ubuntu 20.04.5 LTS (x64) or later Ubuntu 20.04.6 LTS (x64) or later Ubuntu 22.04 LTS (x64) or later Ubuntu 22.04.1 LTS (x64) or later Ubuntu 22.04.2 LTS (x64) or later Ubuntu 22.04.3 LTS (x64) or later VMware ESXi 7.0 Update 3i or later VMware ESXi 8.0 or later VMware ESXi 8.0 Update 1 or later Citrix Hypervisor 8.2 LTSR CU1 or later |
|
| System Fans | 12 x 60x60x38mm (23,000rpm) | |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
|
| Packaging Dimensions | 1200 x 800 x 444 mm w/ pallet | |
| Packaging Content | 1 x G493-ZB0 2 x CPU fansinks 1 x L-shape Rail kit |
|
| Part Numbers | - Barebone package: 6NG493ZB0DR000AAP1* - Motherboard: 9MZB3G43UR-000 - L-shape Rail kit: 25HB2-A96100-K0R - CPU fansink: 25ST0-0Z6023-C1R - Front panel board - CFPG540: 9CFPG540NR-00 - Fan module: 25ST2-663823-F1R - PCIe bridge board - CPBGCA0: 9CPBGCA0NR-00 - Power supply: 25EP0-23000C-D0S |
|
| Optional parts | - C19 power cord 125V/15A (US): 25CP1-018000-Q0R - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R - RMA packaging: 6NG493ZB0SR-RMA-A100 |
|
| Order Information | ||
| Manufacturer SKU | G493-ZB0 rev. AAP1 (6NG493ZB0DR000AAP1) | |
| System Building | G493-ZB0 rev. AAP1 (6NG493ZB0DR000AAP1) can be configured individually | |
Gigabyte G493-ZB0-AAP1 Nitelikleri
| Anakart Yonga Seti: | System-on-Chip (SoC) |
|---|---|
| Arka panel: | No |
| Belgelendirme: | 80 Plus Titanium |
| Belirli Bağlantı Noktaları: | USB 3.2 Type-A |
| Bellek ECC Desteği: | ECC |
| Bellek kayıtlı/kayıtsız: | Registered |
| Bluetooth Desteği: | None |
| Dahili Ağ Hızı: | 10 Gbps |
| Dahili Grafik: | Yes |
| Dahili LAN: | 2 |
| Dahili M.2: | x2 M-Key (M.2 22110, M.2 2280) (NVME, PCIe Gen 3) 0 |
| Düğüm başına GPU sayısı: | 0 |
| Düğüm sayısı: | 1 |
| Eklenti kartı form faktörü: | Full-Height Full-Length (Standard) |
| Eklenti kartı sayısı: | 10 |
| Entegre GPU Üreticisi: | ASpeed |
| Fansız Sunucu: | Yes |
| Güç Kaynağı Sayısı: | 4 |
| Güç Kaynağı Soğutucu: | No |
| Güç kaynağı Watt Değeri: | 3000W |
| HotSwap/Sabit Güç Kaynağı: | Hot-Swap |
| IPMI / BMC Yönetimi: | Yes |
| Kart Okuyucu Desteği: | No |
| Maksimum Bellek: | 6TB |
| Performans Sınıfı: | Yüksek Kalite |
| RAID Desteği: | No |
| RAM DIMM Türü: | RDIMM |
| Soğutucu Sayısı: | 12 |
| Tasarım: | Rack |
| Uygulamalar: | AI/Deep Learning, AI Inference, Application and data serving, Data Analytics, Data Center Applications, Data Center Optimized, Database, GPU Server, High-Performance Computing (HPC), High End Enterprise Server, Virtualization |
| Uygunluk: | Server |
| Wi-Fi Desteği: | None |
| Yedekli güç kaynağı: | Yes |
| Yükseklik birimleri: | 4U |
| Ön Giriş/Çıkış: | LED Indicators, USB |
| Önceden Kurulmuş Bileşenler: | None |
| Önceden Yüklenmiş Yazılım: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, VMware vCenter, Windows Server |
| Ürün Modeli: | G493-ZB0-AAP1 |
| Ürün Versiyonu: | Rev-1.x |
| İşlemci Kod Adı: | Genoa, Turin |
| İşlemci Soketi: | SP5 (LGA 6096) |
| İşlemci Türü: | EPYC 9004, EPYC 9005 |
| İşlemci soket sayısı: | No |
| İşlemci Üreticisi: | AMD |
| Şasi Girişi Algılama: | No |
