H253-Z10-AAP1 | Gigabyte Single Socket Epyc 9004 2U Server
Ürün numarası: TR8B6646-164571
|
Üretici numarası: 6NH253Z10DR000AAP1
Fiyat sor ↓
KDV artı nakliye masrafları dahil fiyatlar
Gigabyte H253-Z10-AAP1
Experience Unmatched Efficiency and Performance with the Gigabyte H253-Z10-AAP1 High-Density Server
Introducing the Gigabyte H253-Z10-AAP1, a high-density server engineered for demanding applications. Designed for maximum efficiency, it supports high-performance workloads, making it ideal for businesses looking to scale infrastructure without compromising reliability or speed.
Why Choose the Gigabyte H253-Z10-AAP1?
The Gigabyte H253-Z10-AAP1 offers a high-density solution with dual Intel Xeon Scalable processors, ensuring top-tier performance and optimised resource utilisation. Its modular design supports up to 24 DDR4 DIMM slots for memory expansion, ideal for memory-intensive applications.
With remarkable energy efficiency and advanced thermal management, the H253-Z10-AAP1 stays cool and reliable during high-demand operations. Its expansive storage options, including support for multiple U.2 NVMe drives, provide the speed and scalability needed for data-heavy applications.
Key Applications:
• High performance Computing
• Hyperconverged Infrastructure
Ready to elevate your infrastructure? Maximise performance and efficiency with the Gigabyte H253-Z10-AAP1. Call us today or register as a Happyware partner for exclusive benefits and support!
Gigabyte H253-Z10-AAP1 Teknik Özellikleri
| Single AMD EPYC 9005/9004 CPU, 2x 9.5mm E1.S hot-swap drive bays, 2x PCIe (1x LP, 1x OCP 3.0), 2x 1GbE LAN, 4 Nodes, 2x 3000W redundant PSUs |
| Dimensions (WxHxD, mm) | 2U 4 Nodes - Rear access 447 x 86.8 x 902 | |
| Motherboard | MZ13-SH0 | |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor per node, cTDP up to 300W - At ambient 30°C, cTDP up to 400W | |
| Socket | 4 x LGA 6096 Socket SP5 | |
| Chipset | System on Chip | |
| Memory | 96 x DIMM slots DDR5 memory supported 12-Channel memory architecture AMD EPYC™ 9005: RDIMM: Up to 4800 MT/s (1DPC) RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC) AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC) | |
| LAN | Front: 8 x 1Gb/s LAN (4 x Intel® I350-AM2) - Support NCSI function 4 x 10/100/1000 Mbps Management LAN Rear: 2 x CMC ports | |
| Video | Integrated in Aspeed® AST2600 x 4 - 4 x Mini-DP | |
| Audio | N/A | |
| Storage | Front hot-swap: 8 x 9.5mm E1.S Gen4 NVMe Internal M.2: 4 x M.2 (2280/22110), PCIe Gen5 x4 8 x M.2 (2280), SATA via ASM1062R - Support SATA Hardware RAID 0/1 | |
| SAS | N/A | |
| RAID | N/A | |
| Peripheral Drives | N/A | |
| PCIe Expansion Slots | Riser Card CRSH01Q x 4: - 4 x LP x16 (Gen5 x16) 4 x OCP NIC 3.0 (Gen5 x16) - Support NCSI function | |

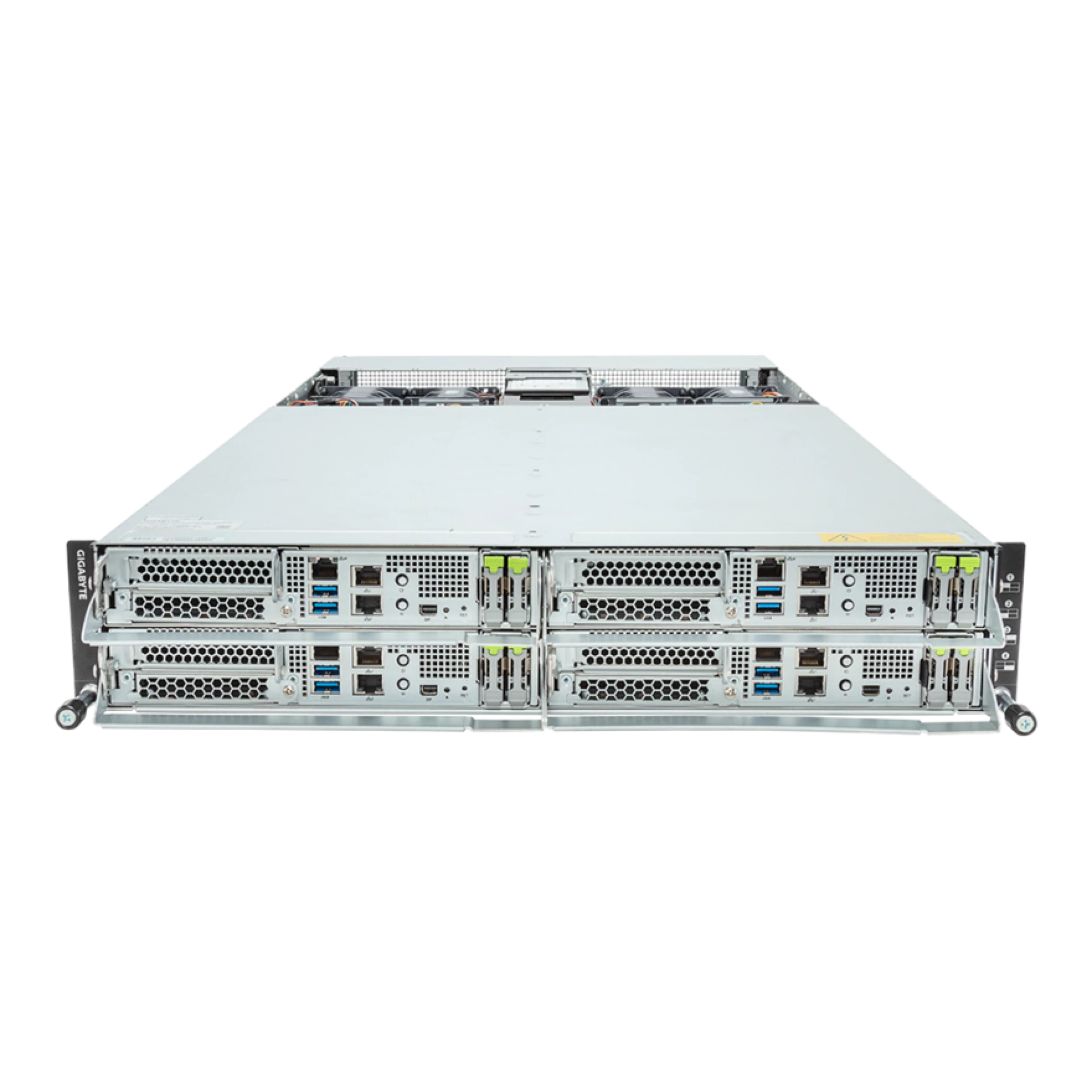

| Front I/O | 8 x USB 3.2 Gen1 ports (Type-A) 4 x Mini-DP 8 x RJ45 ports 4 x MLAN ports 4 x Power buttons with LED 4 x ID buttons with LED 4 x Reset buttons 4 x System status LEDs | |

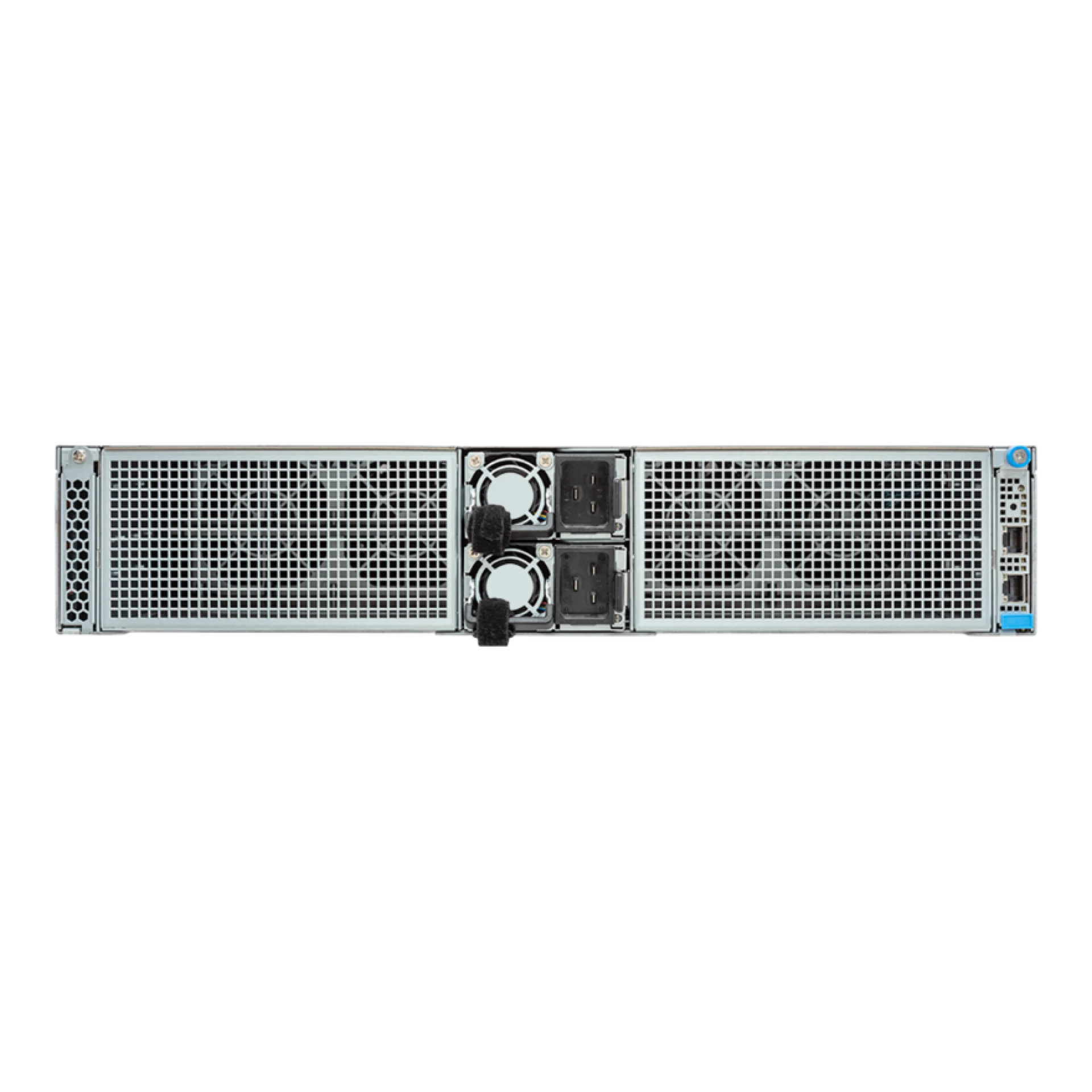

| Rear I/O | 2 x CMC ports | |
| Backplane I/O | N/A | |
| TPM | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 | |
| Power Supply | Dual 3000W 80 PLUS Titanium redundant power supply AC Input: - 100-127V~/ 15.5A, 50-60Hz - 200-220V~/ 15.5A, 50-60Hz - 220-240V~/ 15.5A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 15.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A - Max 2600W/ 200-220V~ +12.2V/ 213A +12Vsb/ 3A - Max 3000W/ 220-240V~ or 240Vdc Input +12.2V/ 245A +12Vsb/ 3A | |
| System Management | Aspeed® AST2600 Baseboard Management Controller Aspeed® AST2520 Chassis Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings | |
| OS Compatibility | Windows Server 2016 (X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 (x64) or later SUSE Linux Enterprise Server 12 SP5 (x64) or later SUSE Linux Enterprise Server 15 SP2 (x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later | |
| System Fans | 4 x 80x80x80mm (16,500rpm) | |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) | |
| Weight | Net Weight: 29.4 kg Gross Weight: 46.8 kg | |
| Packaging Dimensions | 1180 x 779 x 300 mm | |
| Packaging Content | 1 x H253-Z10-AAP1 4 x CPU heatsinks 1 x L-shape Rail kit | |
| Part Numbers | - Barebone package (EPYC 9005/9004): 6NH253Z10DR000ABP1* - Barebone package (EPYC 9004): 6NH253Z10DR000AAP1* - Motherboard: 9MZ13SH0UR-000* - L-shape Rail kit: 25HB2-A86104-K0R - CPU heatsink: 25ST1-553202-A0R - Fan module: 25ST2-888020-S1R - Riser card - CRSH01Q: 9CRSH01QNR-00* - EDSFF riser card - CRSH01X: 9CRSH01XNR-00* - CMC module - CMBH42: 9CMBH42NR-00* - Power supply: 25EP0-23000H-G1S | |
| Optional parts: | - E1.S Latch with dummy tray (24 in 1): 6NH253Z10S1000AAP11 - C19 power cord 125V/15A (US): 25CP1-018000-Q0R - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R - C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R - RMA packaging: 6NH253Z10SR-RMA-A100 | |
| Order Information | ||
| Manufacturer SKU | 6NH253Z10DR000AAP1 (H253-Z10-AAP1) | |
| System Building | 6NH253Z10DR000AAP1 (H253-Z10-AAP1) can be configured individually | |
Gigabyte H253-Z10-AAP1 Nitelikleri
| Add-on card form factor: | HH, OCP 3.0 |
|---|---|
| Applications: | Application-Optimized Solutions, Enterprise Applications, Enterprise Server, HPC, High End Enterprise Server, High Performance Computing, Hyperconverged Storage, Hyperscale / Hyperconverged, Virtualization |
| Backplane: | No |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | LGA 6096 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators, USB Type-A |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Controller: | Intel I350-AM2 |
| Onboard Graphic: | No |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 3000W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, VMware vCenter, Windows Server |
| Product Model: | H253-Z10-AAP1 |
| Product Version: | Rev-1.x |
| Quantity of Cooler: | 1 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | Display Ports, M.2 Ports, NVMe Ports, U.2 Ports, USB Ports |
| Suitability: | Server |
| Use case: | Cluster Node, High-Performance Computing (HPC), Virtualization |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
