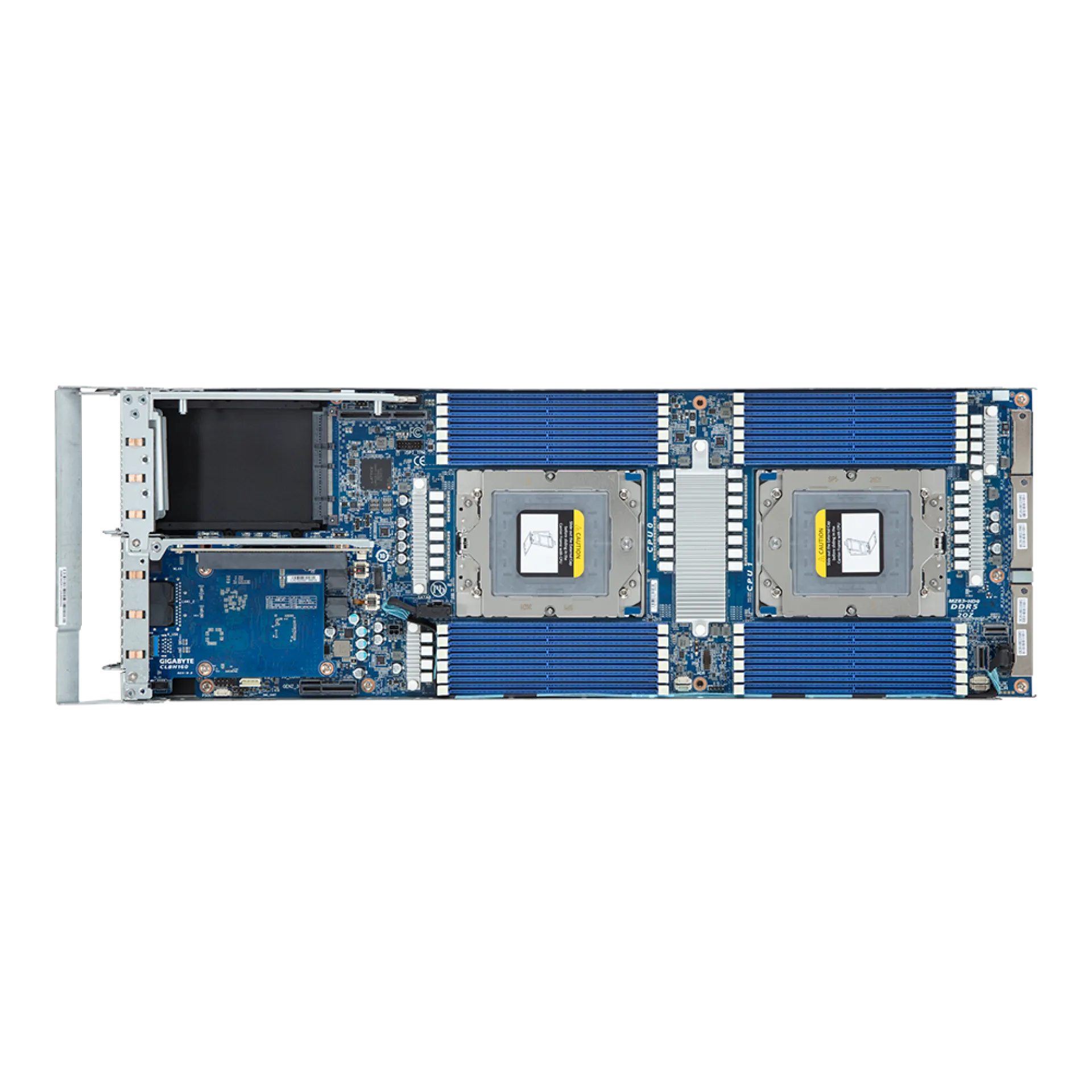

H273-Z82- IAW1 | Gigabyte Dual Socket Epyc 9004 2U Server
Ürün numarası: TR8B9166-903005
|
Üretici numarası: 6NH273Z82DR000IAW1
Fiyat sor ↓
KDV artı nakliye masrafları dahil fiyatlar
Gigabyte H273-Z82- IAW1
Gigabyte H273-Z82- IAW1 Teknik Özellikleri
| Dual AMD EPYC 9005/9004 CPU, 2x 2.5" hot-swap drive bays, 2x PCIe (1x LP, 1x LP, 1x OCP 3.0), 2x 1GbE LAN, 4 Nodes, 2x 3000W redundant PSUs |
| Dimensions (WxHxD, mm) | 2U 4-Node - Front access 440 x 87.5 x 877 | |
| Motherboard | MZ83-HD0 | |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Dual processor per node, cTDP up to 400W NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable | |
| Socket | 8 x LGA 6096 Socket SP5 | |
| Chipset | System on Chip | |
| Memory | 96 x DIMM slots DDR5 memory supported 12-Channel memory architecture RDIMM: Up to 4800 MT/s | |
| LAN | Top: 8 x 1Gb/s LAN (4 x Intel® I350-AM2) - Support NCSI function 4 x 10/100/1000 Mbps Management LAN | |
| Video | Integrated in Aspeed® AST2600 x 4 - 4 x Mini-DP | |
| Storage | Bottom hot-swap: 8 x 2.5" Gen4 NVMe/SATA/SAS [1] - (NVMe from CPU_1) - (SATA from CPU_0) Optional internal M.2 (CMTP192): 4 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0 | |
| SAS | Require SAS add-in cards | |
| RAID | Require RAID add-in cards | |
| Expansion Slots | Riser Card CRSH01R x 4: | |
| Top I/O | 8 x USB 3.2 Gen1 ports (Type-A) 4 x Mini-DP 8 x RJ45 ports 4 x MLAN ports 4 x Power buttons with LED 4 x ID buttons with LED 4 x Reset buttons 4 x System status LEDs 1 x CMC status LED 1 x CMC reset button | |
| Backplane Board | Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s | |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 | |
| Power Supply | Dual 3000W 80 PLUS Titanium redundant power supply AC Input: - 100-127V~/ 16A, 50/60Hz - 200-207V~/ 16A, 50/60Hz - 208-240V~/ 16A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1200W/ 100-127V~ +12.2V/ 98.36A +12.2Vsb/ 3A - Max 2600W/ 200-207V~ +12.2V/ 213A +12.2Vsb/ 3A - Max 3000W/ 208-240V~ or 240Vdc Input +12.2V/ 245.9A +12.2Vsb/ 3A | |
| System Management | Aspeed® AST2600 Baseboard Management Controller Aspeed® AST2520 Chassis Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings | |
| OS Compatibility | Windows Server 2022 Windows Server 2019 Windows Server 2016 64bit Windows Server 2012 R2 64bit Windows Server 2012 64bit Windows Server 10 64bit VMware Ubuntu Linux CentOs | |
| Operating Properties | Operating coolant temperature: 25°C to 35°C Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) | |
| Weight | Net Weight: 51.4 kg Gross Weight: 53.4 kg | |
| Packaging Dimensions | 1179 x 700 x 380 mm | |
| Packaging Content | 1 x H273-Z82-IAW1 8 x CPU heatsinks 1 x Mini-DP to D-Sub cable | |
| Part Numbers | - Barebone package (EPYC 9005/9004): 6NH273Z82DR000IBW1* - Barebone package (EPYC 9004): 6NH273Z82DR000IAW1* - Motherboard: 9MZ83HD0UR-000* - CPU heatsink: 25ST1-553203-A0R/25ST1-553204-A0R - Front panel board - CFPH004: 9CFPH004NR-00* - Backplane board - CBPH081: 9CBPH081NR-00* - Riser card - CRSH01R: 9CRSH01RNR-00* - I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-23000K-L0S | |
| Optional parts: | - C19 power cord 125V/15A (US): 25CP1-018000-Q0R - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R - C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R - M.2 expansion card - CMTP192: 6NH273Z82S1000IAW11 (12-in-1) - RMA packaging: 6NH273Z82SR-RMA-I100 | |
| Order Information | ||
| Manufacturer SKU | H273-Z82-IAW1 (6NH273Z82DR000IAW1) | |
| System Building | H273-Z82-IAW1 (6NH273Z82DR000IAW1) can be configured individually | |
Gigabyte H273-Z82- IAW1 Nitelikleri
| Add-on card form factor: | HH, OCP 3.0 |
|---|---|
| Applications: | Cloud Computing, Enterprise Server, HPC, High End Enterprise Server, High Performance Computing, Hyperconverged Storage, Hyperscale / Hyperconverged, Virtualization |
| Backplane: | Yes |
| Backplane Interface: | PCIe Gen 4, SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | LGA 6096 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Controller: | Intel I350-AM2 |
| Onboard Graphic: | No |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 3000W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, VMware vCenter, Windows Server |
| Product Model: | H273-Z82- IAW1 |
| Product Version: | Rev-1.x |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | Display Ports, M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports |
| Suitability: | Server |
| Use case: | Cloud Computing, Cluster Node, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
