Gigabyte R283-S93-AAL1
PCIe Gen5 genişlemesi için optimize edilmiş Yüksek Yoğunluklu 2U GPU Sunucu Barebone, 6NR283S93DR000AAL1 Gigabyte
6NR283S93DR000AAL1 Gigabyte R283-S93-AAL1, 2 yuvalı Intel Xeon Scalable 4. ve 5. nesil platformları ve Intel Xeon CPU Max Serisi üzerinde standartlaşan kurumlar için tasarlanmış 2U raf tipi GPU sunucu barebonedir. AI çıkarımı/eğitimi ve HPC düğümleri için yüksek çekirdek yoğunluğu ve bellek bant genişliği sağlar. Intel C741 çipseti ve LGA4677 temeli, 350W’a kadar CPU’ları destekleyerek, CPU-PCIe dengesi kritik olan hızlandırıcı ağırlıklı konfigürasyonlar için kasayı ideal hale getirir.
Bellek yoğun analiz ve sanallaştırma için 6NR283S93DR000AAL1 Gigabyte, CPU başına 8 kanal ile toplam 32 DIMM yuvasında DDR5 ECC RDIMM uygulaması sunar ve büyük bellek ayak izlerine ölçeklenirken kurumsal hata düzeltmeyi korur. G/Ç mimarisi PCIe Gen5 etrafında inşa edilmiştir; GPU sınıfı hızlandırıcılar için birden fazla tam yükseklikte x16 yuvası ve depolama, ağ ile fabric adaptörleri için ek x16 ve x8 genişleme seçenekleri sunar. Depolama mimarisi, NVMe Gen4 yeteneğini SATA/SAS esnekliğiyle HBA üzerinden birleştiren, ön tarafta 12 adet hot-swap yuvası içerir; bu sayede yüksek IOPS veri kümeleri ve kapasite havuzlarını katmanlı olarak ayıran tasarımlar mümkündür.
Neden 6NR283S93DR000AAL1 Gigabyte Tercih Edilmeli?
6NR283S93DR000AAL1 Gigabyte, çift soketli işlemcileri PCIe Gen5 hat genişliği ve modüler OCP NIC 3.0 ağ çözümleri ile eşleştirerek pratik bir yoğunluk-performans dengesi sunar; servis kolaylığından ödün vermeden ölçeklenebilir düğüm tasarımlarına imkan tanır. Yedekli 1+1 hot-swap güç kaynağı, harici yönetim ve dengeli genişleme düzeni AI kümeleri, HPC sıraları veya yoğun G/Ç özel bulut raflarında öngörülebilir dağıtımı destekler.
Gigabyte, bu platformu veri merkezi tutarlılığı için tasarlamış, doğrulanmış bileşenlerin birlikte çalışabilirliği, ASPEED AST2600 BMC üzerinden uzaktan yaşam döngüsü kontrolü ve TPM 2.0 uyumluluğu, kurumsal RAID/VROC entegrasyon yolları gibi modern güvenlik ile güvenilirlik gereksinimlerine odaklanmıştır.
Ana Uygulamalar:
- PCIe GPU AI çıkarımı ve eğitimi
- HPC hesaplama ve simülasyon düğümleri
- Yüksek G/Ç sanallaştırma ve özel bulut
- Veri yoğun analitik platformlar
- Görsel hesaplama toplama
Happyware Türkiye’de, 6NR283S93DR000AAL1 Gigabyte’ı hızlandırıcı, depolama ve ağ hedeflerinize göre yapılandırmanız için çözüm odaklı danışmanlık, güvenilir kurumsal satın alma desteği ve raf ölçeğinde dağıtımlar için net entegrasyon uyumluluğundan faydalanırsınız.
Gigabyte R283-S93-AAL1 Teknik Özellikleri
| Dual Intel Xeon Scalable 4th Gen CPU, 12x 3.5"/2.5" hot-swap drive bays, 8x PCIe (2x FHFL, 2x FHHL, 4x LP), 2x OCP 3.0, 2x 1GbE LAN, 2x 2700W redundant PSUs |
| Dimensions (WxHxD, mm) | 2U 438 x 87.5 x 815 |
|
| Motherboard | MS93-FS0 | |
| CPU | 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor Dual processor, CPU TDP 350W at ambient 25°C Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
|
| Socket | 2 x LGA 4677 Socket E |
|
| Chipset | Intel® C741 Chipset | |
| Memory | 32 x DIMM slots DDR5 memory supported only 8-Channel memory per processor architecture RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC) |
|
| LAN | Rear side: 2 x 1Gb/s LAN ports (1 x Intel® I350-AM2) Support NCSI function 1 x 10/100/1000 management LAN |
|
| Video | Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
|

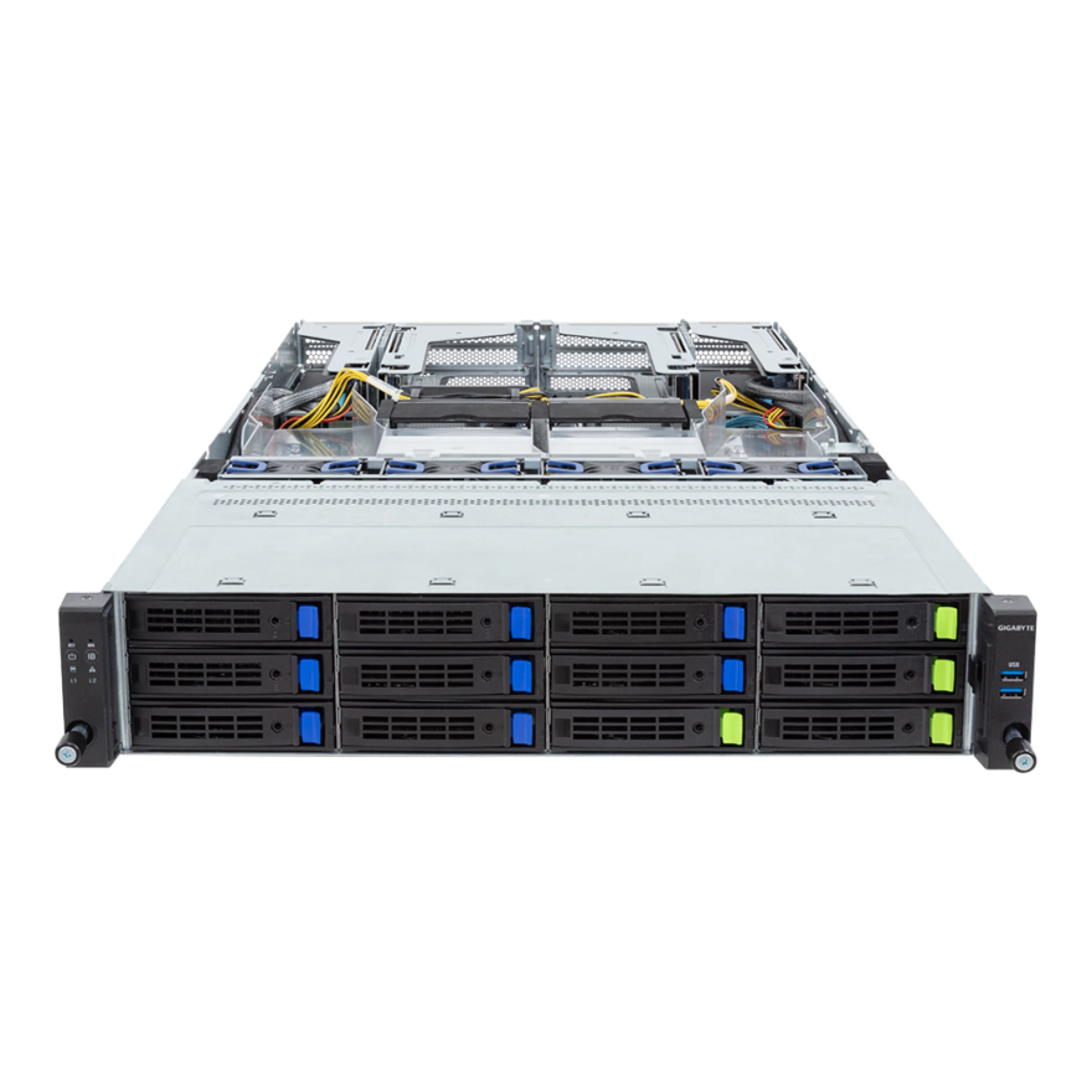

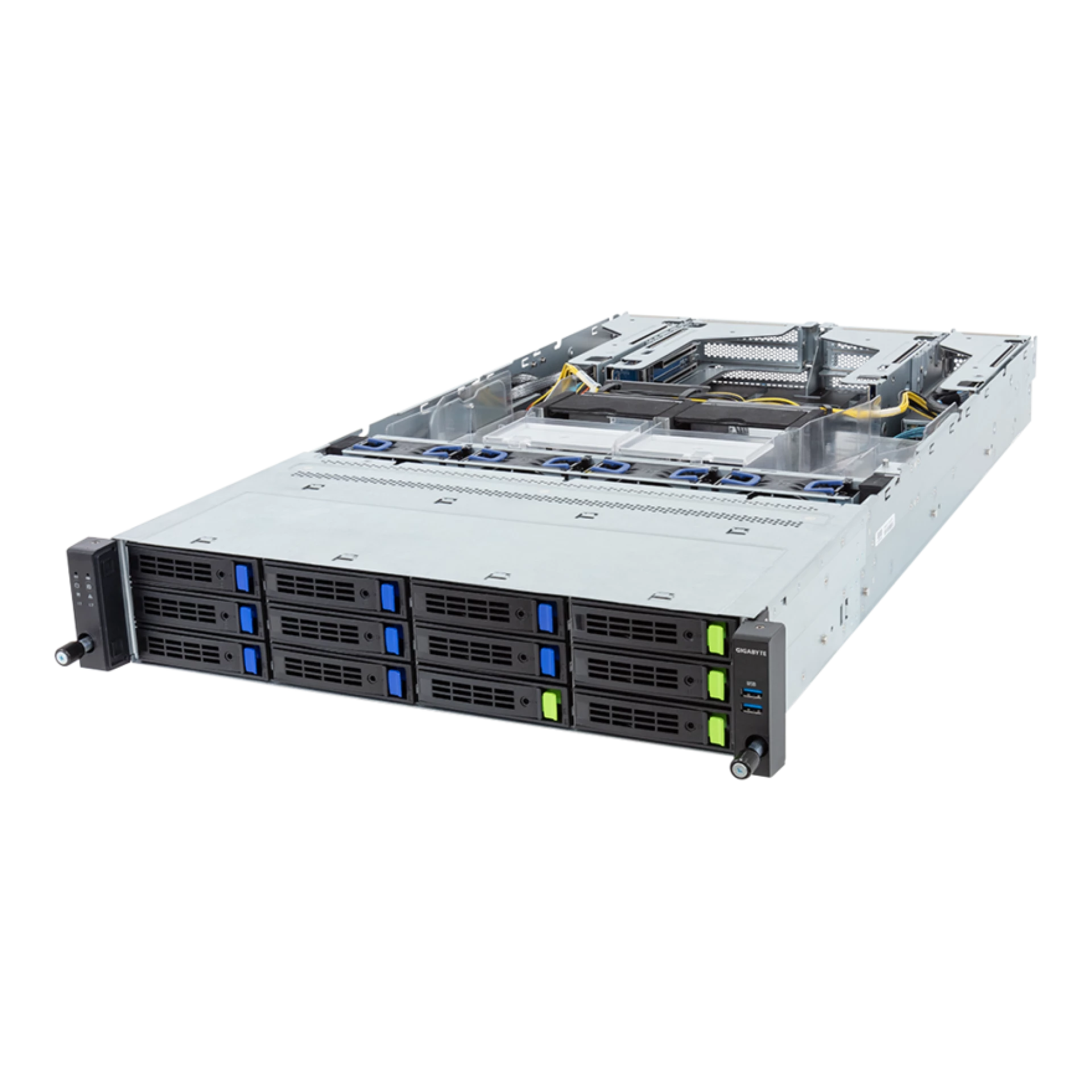

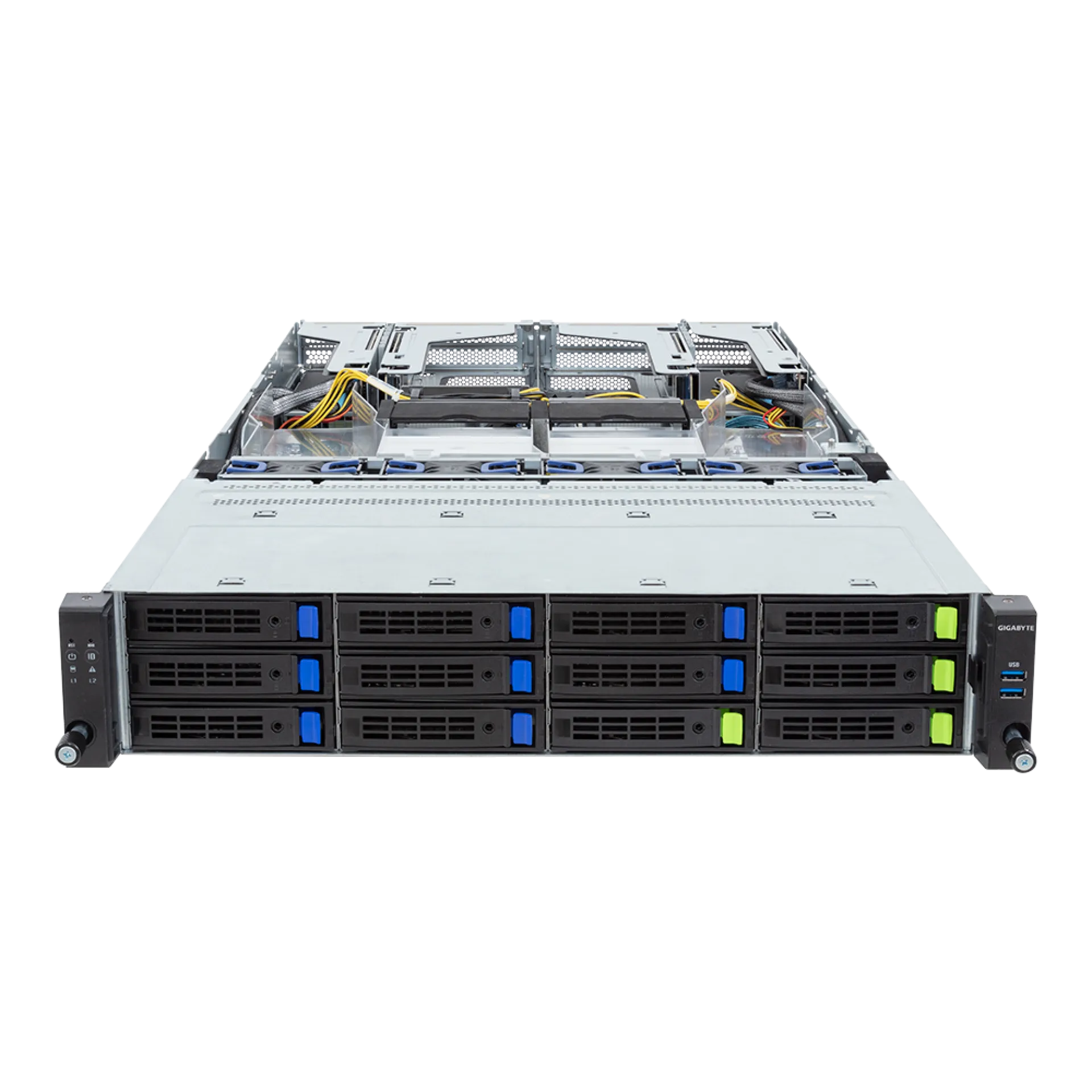

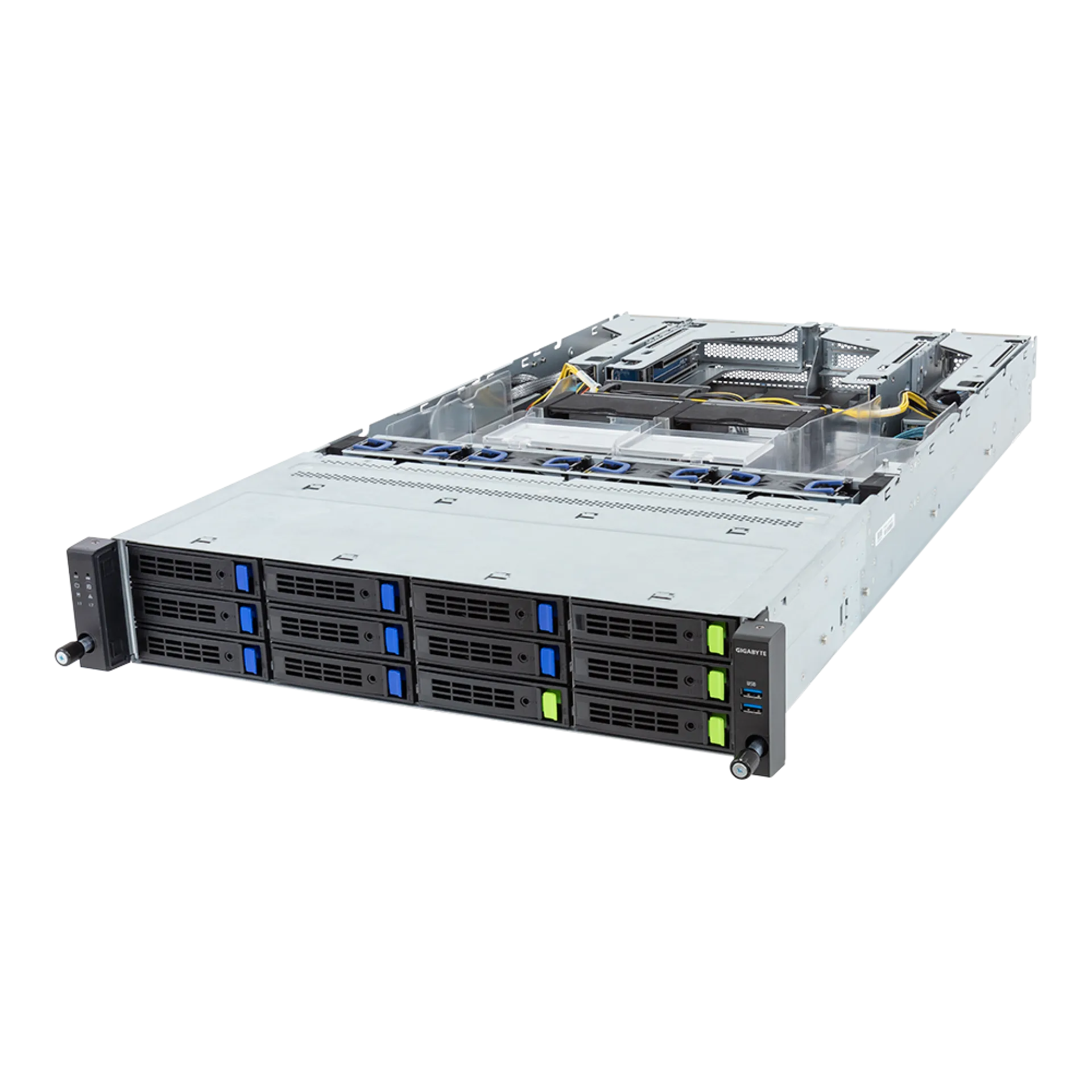

| Storage | Front side: 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1 8 x 3.5"/2.5" SATA/SAS hot-swappable bays SAS card is required for SAS devices support |
|
| SAS | Depends on SAS Add-on card | |
| RAID | Intel® SATA RAID 0/1/10/5 | |

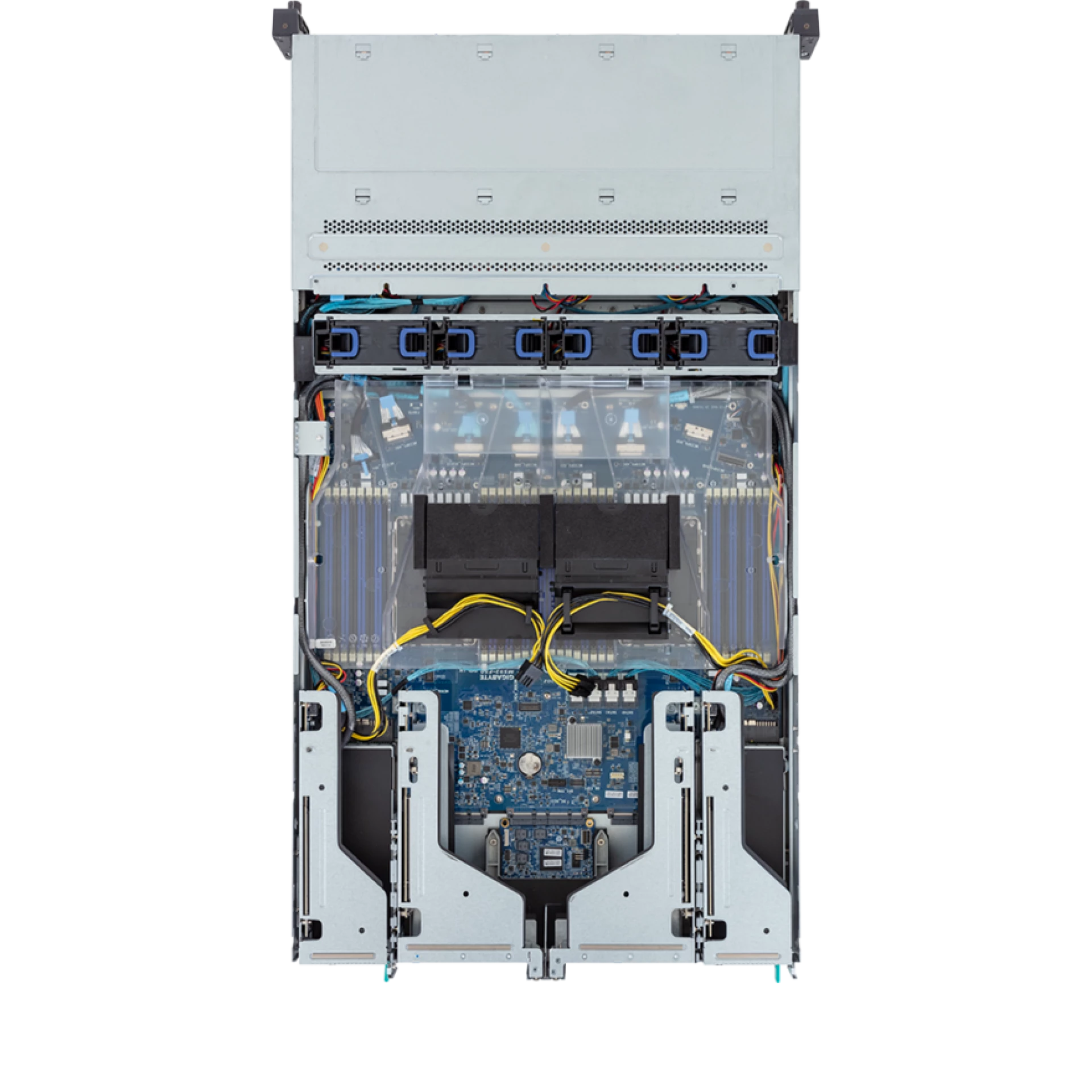

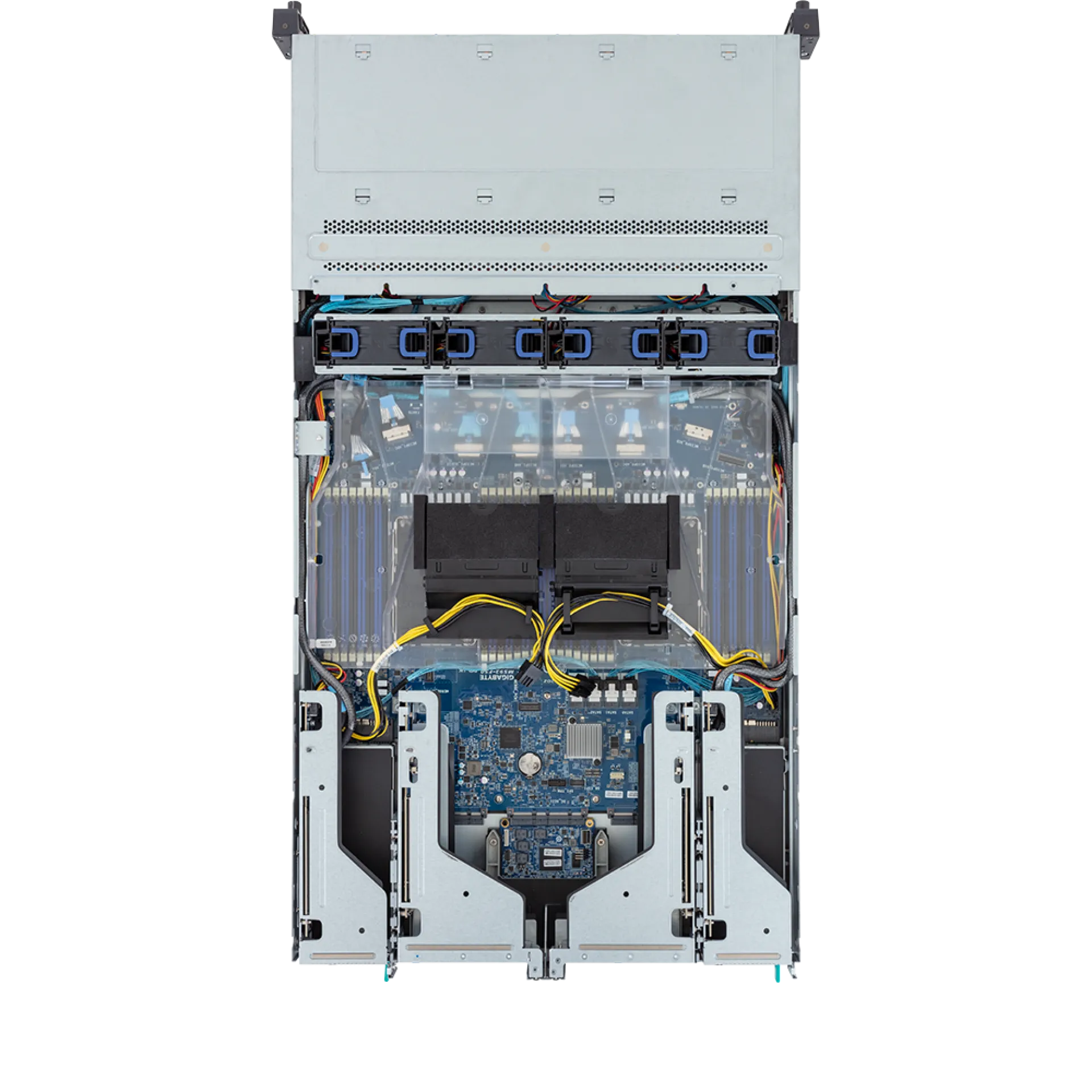

| Expansion Slots | Riser Card CRS101J: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 Riser Card CRS101K: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 Riser Card CRS202E x 2: - 2 x PCIe x16 (Gen5 x8) low-profile slots, from CPU_0 - 2 x PCIe x16 (Gen5 x8) low-profile slots, from CPU_1 Riser Card CRS202G: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs Riser Card CRS202H: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0 Supports NCSI function 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1 Supports NCSI function |
|
| Internal I/O | 1 x TPM header 1 x VROC connector 2 x OCP 3.0 slots |
|
| Front I/O | 2 x USB 3.2 Gen1 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED |
|

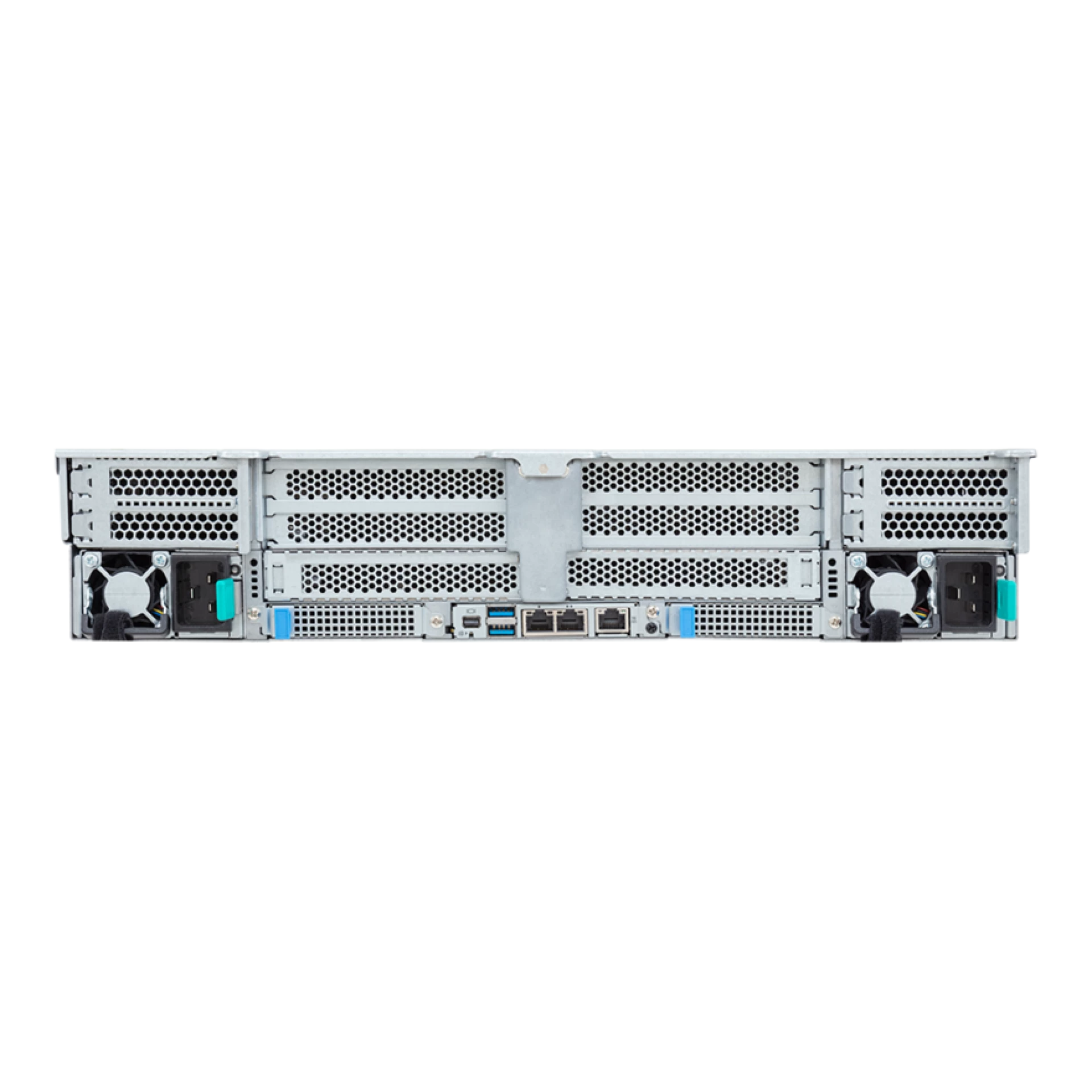

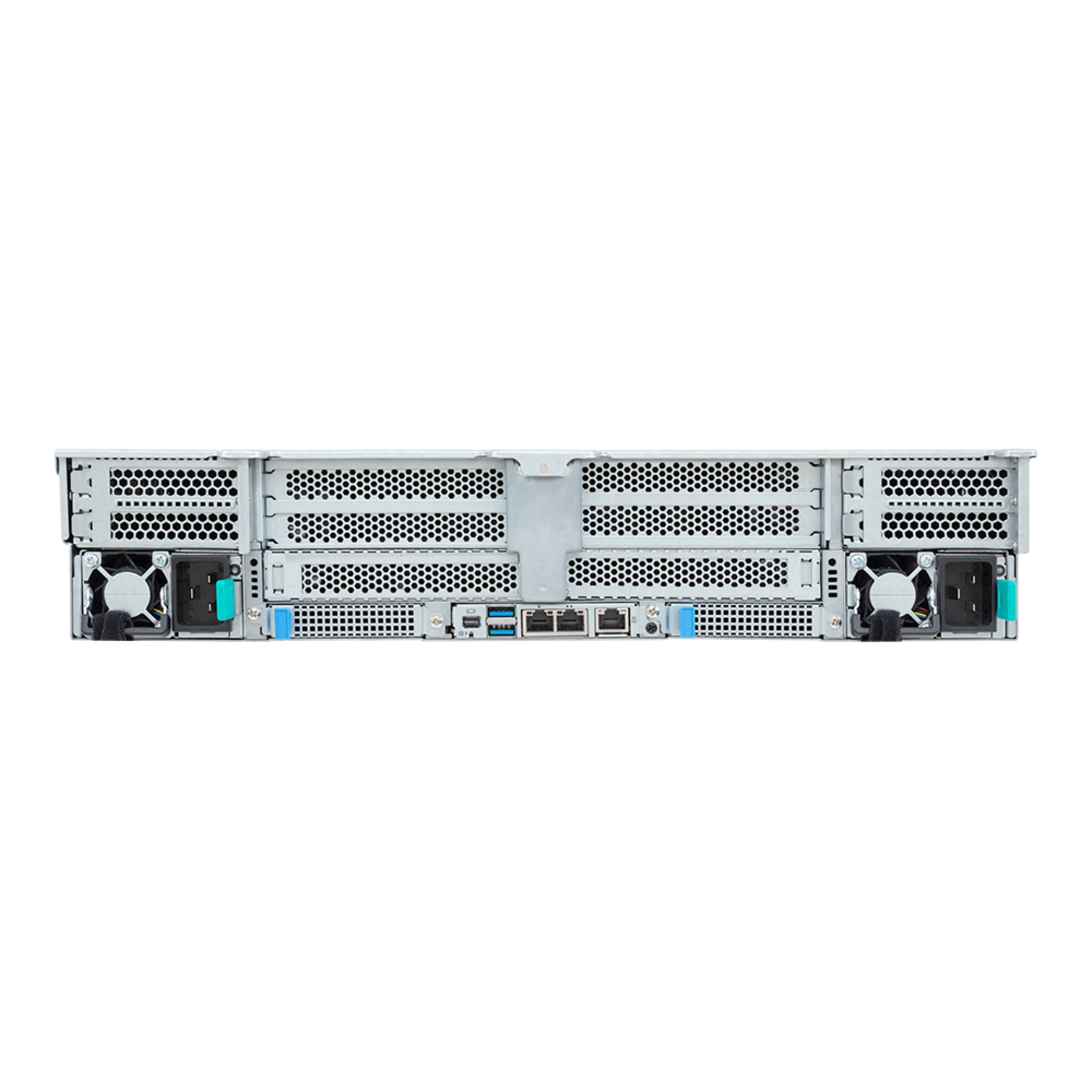

| Rear I/O | 2 x USB 3.2 Gen1 1 x Mini-DP 2 x RJ45 1 x MLAN 1 x ID LED |
|
| Backplane I/O | Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s |
|
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
|
| Power Supply | 1+1 2700W (240V) 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 16A, 50-60Hz DC Input: - 240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ + 12V/ 84A + 12Vsb/ 3A - Max 2700W/ 200-240V~ + 12V/ 225A + 12Vsb/ 3A Note: The system power supply requires C19 power cord |
|
| System Management | Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
|
| OS Compatibility |
Windows Server 2019 |
|
| System Fans | 4 x 80x80x38mm (18,300rpm) | |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
|
| Packaging Dimensions | 1077 x 679 x 300 mm | |
| Packaging Content | 1 x R283-S93 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carrier clips 1 x 2-Section Rail kit |
|
| Part Numbers | - Barebone package: 6NR283S93DR000AAL1* - Motherboard: 9AS93FS0UR-000 - 2-Section Rail kit: 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20C5: 9CBP20C5NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101J: 9CRS101JNR-00 - Riser card - CRS101K: 9CRS101KNR-00 - Riser card - CRS202E: 9CRS202ENR-00 - Riser card - CRS202G: 9CRS202GNR-00 - Riser card - CRS202H: 9CRS202HNR-00 - G-SC Module - CDCR112: 9CDCR112NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (8P) 350mm: 25CRI-350100-Y4R - Power supply: 25EP0-227000-D0S |
|
| Optional parts: | - 3-Section Rail kit: 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R |
|
| Order Information | ||
| Manufacturer SKU | R283-S93 (6NR283S93DR000AAL1) | |
| System Building | R283-S93 (6NR283S93DR000AAL1) can be configured individually | |
Gigabyte R283-S93-AAL1 Nitelikleri
| Anakart Yonga Seti: | Intel C741 |
|---|---|
| Arka panel: | Yes |
| Belirli Bağlantı Noktaları: | USB 3.2 Gen 1 Type-A |
| Bellek ECC Desteği: | ECC |
| Bellek kayıtlı/kayıtsız: | Registered |
| Bluetooth Desteği: | None |
| Dahili Ağ Hızı: | 1 Gbps |
| Dahili Grafik: | Yes |
| Dahili LAN: | 2 |
| Düğüm başına GPU sayısı: | 0 |
| Düğüm sayısı: | 1 |
| Eklenti kartı form faktörü: | Full-Height Full-Length (Standard), Full-Height Half-Length, Low-Profile |
| Eklenti kartı sayısı: | 8 |
| Entegre GPU Üreticisi: | ASpeed |
| Fansız Sunucu: | No |
| Güç Kaynağı Sayısı: | 2 |
| Güç Kaynağı Soğutucu: | No |
| Güç kaynağı Watt Değeri: | 2700W |
| HDD form faktörü: | 2.5", 3.5" |
| HotSwap/Sabit Güç Kaynağı: | Hot-Swap |
| HotSwap/Sabit Sürücüler: | Yes |
| IPMI / BMC Yönetimi: | Yes |
| Kart Okuyucu Desteği: | No |
| Maksimum Bellek: | 8TB |
| Performans Sınıfı: | Yüksek Kalite |
| RAID Desteği: | Yes |
| RAM DIMM Türü: | RDIMM |
| Sabit disk yuva sayısı: | 12 |
| Soğutucu Sayısı: | 4 |
| Tasarım: | Rack |
| Uygulamalar: | AI/Deep Learning, AI Inference, Cloud Computing, Enterprise, GPU Server, High-Performance Computing (HPC), High End Enterprise Server, Machine Learning (ML), Networking, Visual Computing |
| Uygunluk: | Server |
| Wi-Fi Desteği: | None |
| Yedekli güç kaynağı: | Yes |
| Yükseklik birimleri: | 2U |
| Ön Giriş/Çıkış: | LAN Activity LED, NMI button, Power button with LED, Storage Activity LED, System Reset button, System status LED, UID button with LED, USB |
| Önceden Kurulmuş Bileşenler: | None |
| Önceden Yüklenmiş Yazılım: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, Windows Server 2019, Windows Server 2022, Windows Server 2025 |
| Ürün Modeli: | R283-S93-AAL1 |
| İşlemci Kod Adı: | Emerald Rapids, Sapphire Rapids |
| İşlemci Soketi: | E (LGA 4677) |
| İşlemci Türü: | Xeon CPU Max, Xeon Ölçeklenebilir 4. Nesil |
| İşlemci soket sayısı: | No |
| İşlemci Üreticisi: | Intel |
| Şasi Girişi Algılama: | No |
