R283-Z93-AAF1 | Gigabyte Dual Socket Epyc 9004 2U Server
Başlayan €6.028,23*
KDV artı nakliye masrafları dahil fiyatlar

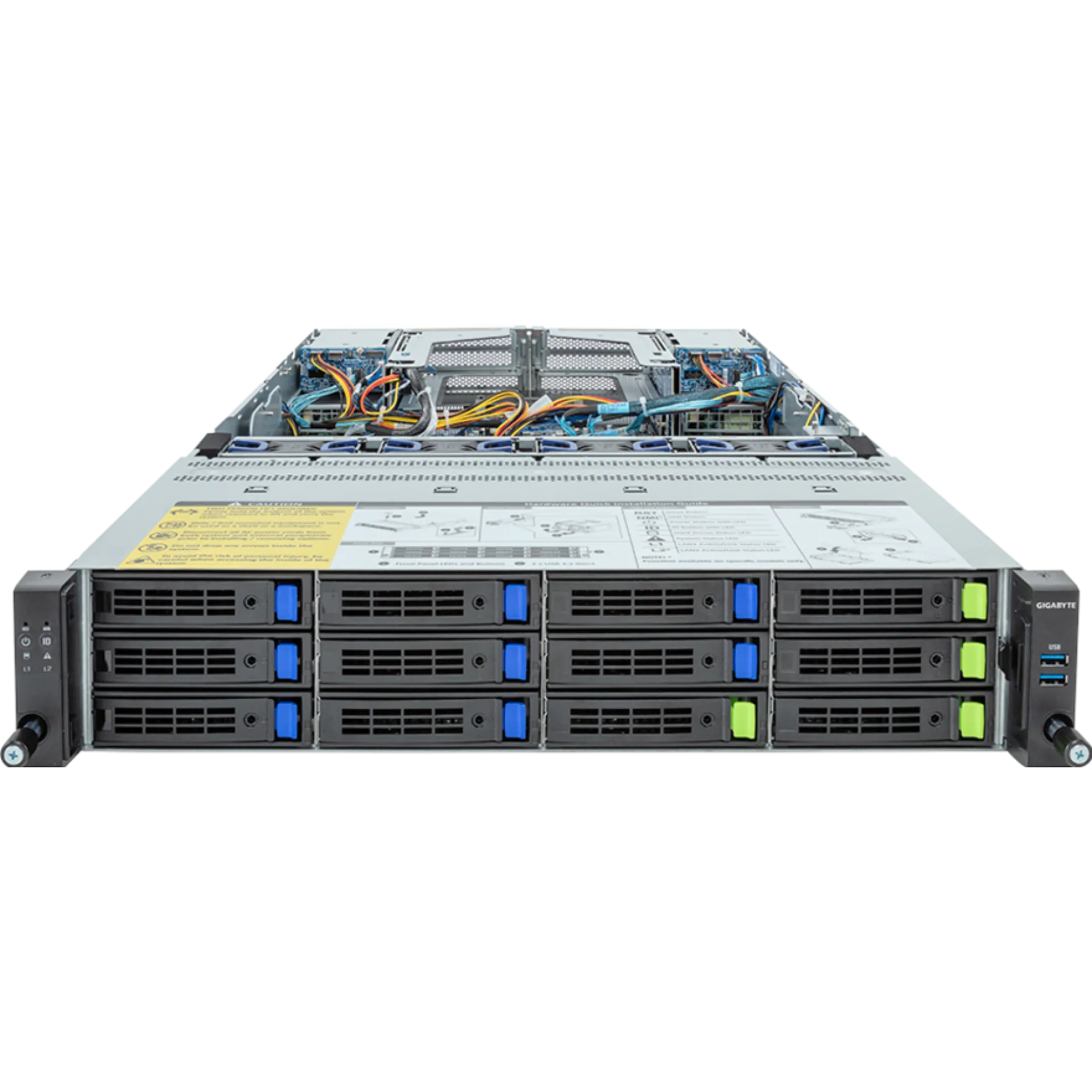

Gigabyte R283-Z93-AAF1
Empower Next-Gen Workloads with the Gigabyte R283-Z93-AAF1 Barebone System
The Gigabyte R283-Z93-AAF1, powered by the latest AMD EPYC™ 9004 Series processors, redefines server architecture with superior performance, scalability, and energy efficiency. This 2U dual-processor server is engineered for handling data-intensive applications and demanding workloads. Equipped with PCIe Gen5 accelerators, high-speed Gen5 NVMe storage, and DDR5 memory, it is an optimal solution for AI, high-performance computing, large-scale virtualisation, and data analytics.
Why Choose the Gigabyte R283-Z93-AAF1?
The Gigabyte R283-Z93-AAF1 is designed to accelerate complex workloads with its advanced architecture, providing unmatched speed and scalability. Powered by the latest 4th Gen AMD EPYC processors, this server supports high-throughput PCIe Gen5 and DDR5 memory, ensuring your operations are future-proof and ready for the most resource-intensive tasks.
With its high-density design and flexible configuration, this server is tailored to handle simultaneous large-scale workloads with efficiency. Whether it's for scaling AI models, managing large data sets, or optimising high-performance computing (HPC) applications, the R283-Z93-AAF1 guarantees reliable, high-performance results. Its innovative approach to cooling and power efficiency ensures businesses reduce operational costs without sacrificing performance.
Key Applications:
• Networking
Contact us today to discover how this cutting-edge server can elevate your performance and optimise your infrastructure. Call us now or register your company as a partner of Happyware for exclusive support and benefits. Don’t miss the opportunity to power your business with the Gigabyte R283-Z93-AAF1!
Gigabyte R283-Z93-AAF1 Teknik Özellikleri
| Dual AMD EPYC 9004 Series CPU, 12x 3.5/2.5" + 4x 2.5" hot-swap drive bays, 4x PCIe (2x FHFL for GPUs, 2x FHHL), 2x OCP 3.0, 2x 1GbE LAN, 2x 2400W Redundant PSUs |
| Dimensions (WxHxD, mm) | 2U 438 x 87 x 815 | |
| Motherboard | MZ93-FS0 | |
| CPU | AMD EPYC™ 9004 series processors Dual processor, 5nm technology Up to 32-core, 64 threads per processor Supports CPU 240W at ambient 30°C Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable | |
| Socket | 2 x LGA 6096 Socket SP5 | |
| Chipset | System on Chip | |
| Memory | 24 x DIMM slots DDR5 memory supported only 12-Channel memory architecture per processor RDIMM modules up to 128GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz | |
| LAN | Rear side: 2 x 1GbE LAN ports (1 x Intel® I350-AM2) Support NCSI function 1 x 10/100/1000 management LAN | |
| Video | Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM | |
| Storage | Front side: 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays 8 x 3.5"/2.5" SATA/SAS hot-swappable bays - (NVMe from CPU_1, 6 x SATA via CRS2810 from CPU_0, 6 x SATA via CRS2810 from CPU_1) Rear side: 4 x 2.5" SATA/SAS hot-swappable bays, via CRS2810 from CPU_1 SAS card is required for SAS devices support | |
| SAS | Depends on SAS Add-on card | |
| RAID | N/A | |
| Expansion Slots | Riser Card CRS101T: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 Riser Card CRS101Q: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 Riser Card CRS201I: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs Riser Card CRS2227: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0 Supports NCSI function 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1 Supports NCSI function 1 x M.2 slot: - M-key - PCIe Gen3 x4, from CPU_0 - Supports 2280/22110 cards - Occupied by CRS2810 - 6 x SATA ports 1 x M.2 slot: - M-key - PCIe Gen3 x4, from CPU_1 - Supports 2280/22110 cards - Occupied by CRS2810 - 6 x SATA ports 1 x M.2 slot: - M-key - PCIe Gen3 x2, from CPU_1 - Supports 2280/22110 cards - Occupied by CRS2810 - 4 x SATA ports | |
| Internal I/O | 1 x TPM header 2 x OCP 3.0 slots | |

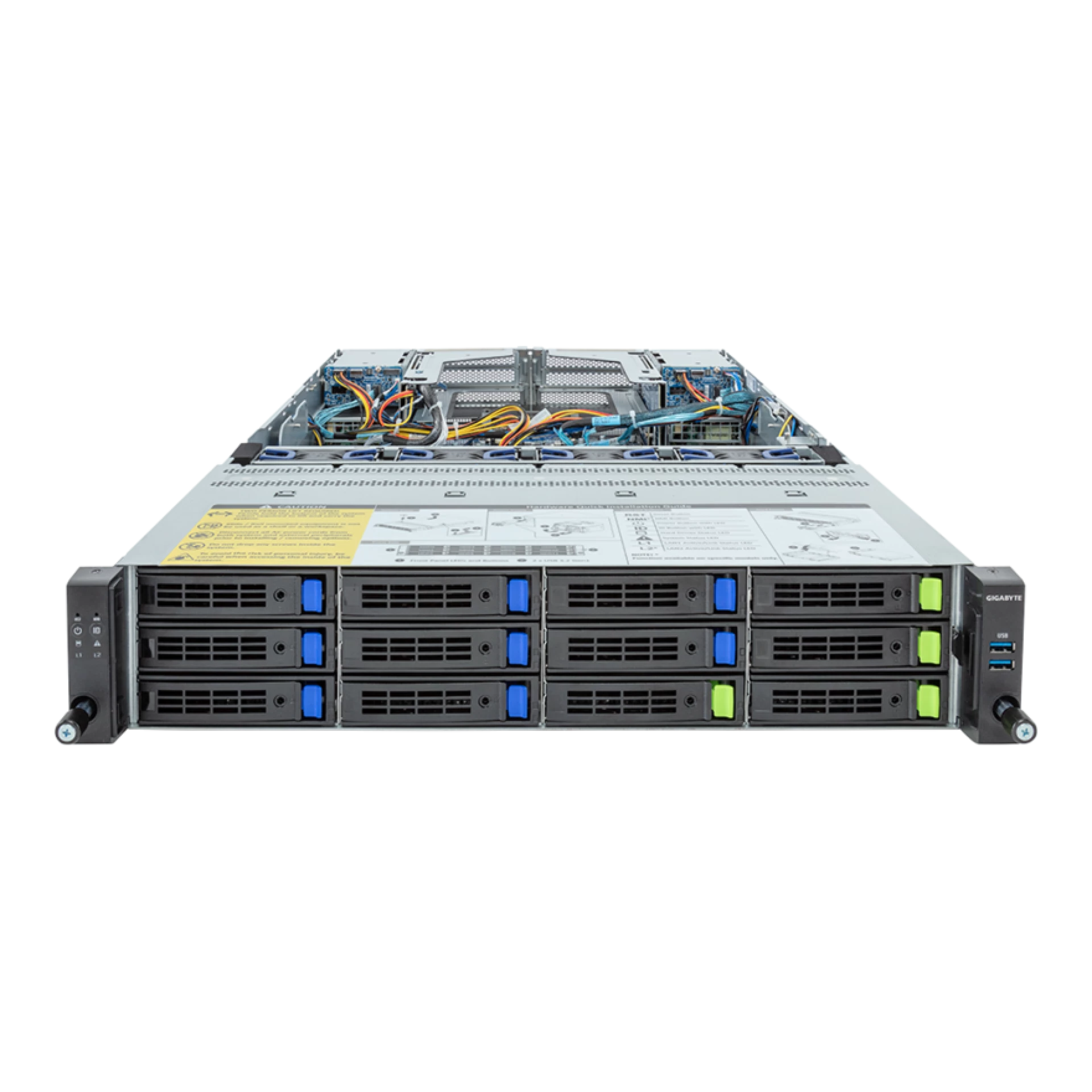

| Front I/O | 2 x USB 3.2 Gen1 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED | |

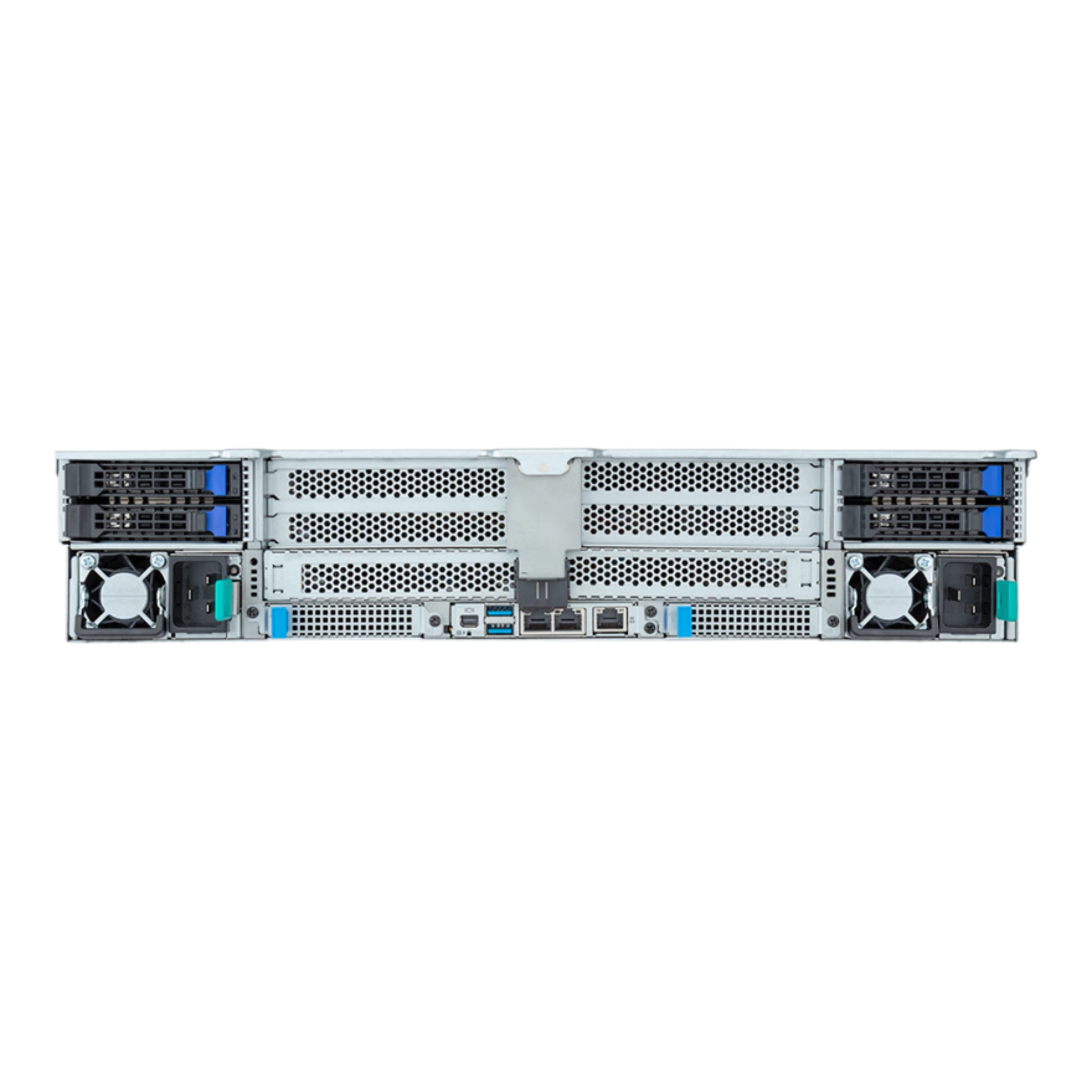

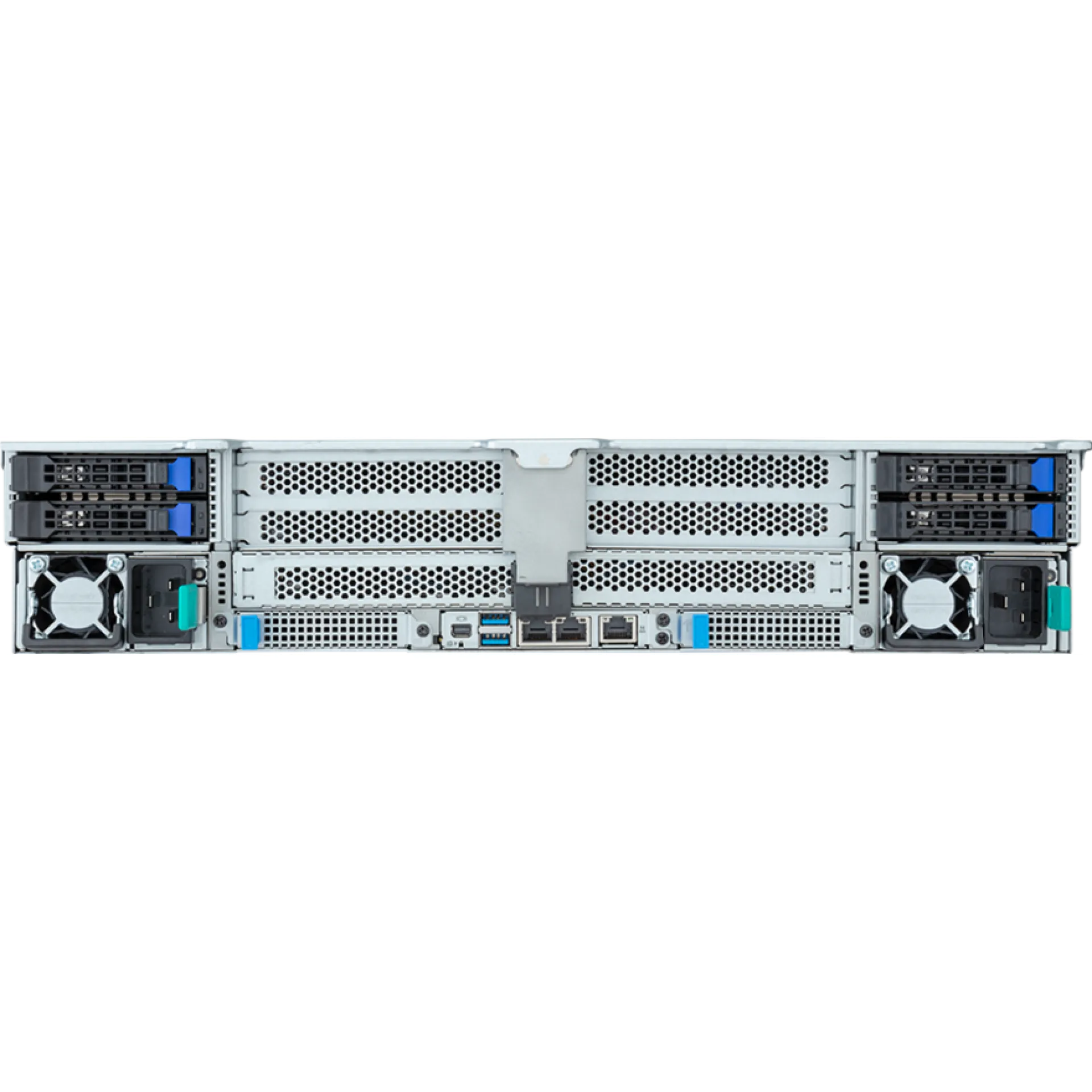

| Rear I/O | 2 x USB 3.2 Gen1 1 x Mini-DP 2 x RJ45 1 x MLAN 1 x ID LED | |
| Backplane I/O | Speed and bandwidth: Front side CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear side CBP2022: SATA 6Gb/s or SAS 12Gb/s | |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 | |
| Power Supply | Dual 2400W (240V) 80 PLUS Platinum redundant power supply AC Input: - 100-127V~/ 12.5A, 47-63Hz - 180-240V~/ 14.5A, 47-63Hz DC Input: - 240Vdc/ 12A DC Output: - Max 1000W/ 100-127V~ + 12V/ 84A + 12Vsb/ 3A - Max 2200W/ 180-200V~ + 12V/ 180A + 12Vsb/ 3.5A - Max 2400W/ 200-240V~ or 240Vdc + 12V/ 197A + 12Vsb/ 3.5A Note: The system power supply requires C19 power cord | |
| System Management | Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings | |
| OS Compatibility | Windows Server 2019 | |
| System Fans | 4 x 80x80x38mm (18,300rpm) | |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) | |
| Packaging Dimensions | 1077 x 679 x 300 mm | |
| Packaging Content | 1 x R283-Z93 2 x CPU heatsinks 1 x Rail kit | |
| Part Numbers | - Barebone package: 6NR283Z93DR000AAF1* - Motherboard: 9MZ93FS0UR-000 - Rail kit: 25HB2-3A0206-K0R - CPU heatsink: 25ST1-553202-A0R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20C5: 9CBP20C5NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101T: 9CRS101TNR-00 - Riser card - CRS101Q: 9CRS101QNR-00 - Riser card - CRS201I: 9CRS201INR-00 - Riser card - CRS2227: 9CRS2227NR-00 - M.2 to SATA card: 9CRS2810NR-00 - G-SC Module: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-224000-D0S - C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional) - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional) | |
| Order Information | ||
| Manufacturer SKU | R283-Z93 (6NR283Z93DR000AAF1) | |
| System Building | R283-Z93 (6NR283Z93DR000AAF1) can be configured individually | |
Gigabyte R283-Z93-AAF1 Nitelikleri
| Add-on card form factor: | FH, HH, OCP 3.0 |
|---|---|
| Applications: | Big Data, Database, Networking, Virtualization |
| Backplane: | Yes |
| Backplane Interface: | PCIe Gen 4, SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Platinum |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators, USB Type-A |
| GPU quantity per node: | 2 |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 2400W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, Windows Server |
| Product Model: | R283-Z93-AAF1 |
| Product Version: | Rev-1.x |
| Quantity of Cooler: | 4 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | Display Ports, M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports |
| Suitability: | Server |
| Use case: | Database Server, GPGPU, Networking, Virtualization |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
