BA-SAE35-TFTV4-R | Happyware Single Socket Epyc 9004 Server
Ürün numarası: TR8B3049-263770
|
Üretici numarası: BA-SAE35-TFTV4-R
Fiyat sor ↓
KDV artı nakliye masrafları dahil fiyatlar
Happyware BA-SAE35-TFTV4-R
Happyware BA-SAE35-TFTV4-R Teknik Özellikleri
| SKU Overview | ||
|---|---|---|
| BA-SAE35-TFTV4-R | Single AMD EPYC 9004 CPU, 8x 3.5/2.5" drive bays + 2x 5.25 HDD, 5x PCIe (FHFL), 2x 1GbE LAN, 2x 920W redundant PSUs | |
| BA-SAE35-TFTV4-T-R | Single AMD EPYC 9004 CPU, 8x 3.5/2.5" drive bays + 2x 5.25 HDD, 5x PCIe (FHFL), 2x 10GbE LAN, 2x 920W redundant PSUs | |
| Processor | ||
| CPU | Single Socket SP5 (LGA 6096) AMD EPYC™ 9004 Series Processors CPU TDP 400W TDP | |
| Cores | 96/192 | |
| System Memory | |
|---|---|
| Memory Capacity | 12 DIMM slots Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz |
| Memory Type | 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC) |
| DIMM Sizes | 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T Dual LAN with Broadcom BCM57416 10GBase-T — for BA-SAE35-TFTV4-T-Ronly |
| Input / Output | |
|---|---|
| LAN | 2x 1GbE RJ45 LAN ports 2x 10GbE RJ45 LAN ports — for BA-SAE35-TFTV4-T-Ronly 1 RJ45 Dedicated IPMI LAN port |
| USB | 6 USB 3.0 ports (4 USB; 2 via header) |
| Video Output | 1 VGA port |
| Serial Port | 1 COM port (Header) |
| TPM | 1 TPM Header |
| Others | 1 MCIO (PCIe 5.0 x8/SATA3) ports 2 MCIO (PCIe 5.0 x8) ports |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support |
| Management | |
|---|---|
| Software | SuperDoctor® 5 SPM SUM SSM Watchdog IPMICFG IPMIView for Linux/Windows SMCIPMITool IPMI 2.0 KVM with dedicated LAN |
| PC Health Monitoring | |
|---|---|
| Voltage | VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| LED | UID/Remote UID BMC/IPMI Heartbeat LED |
| Other Features | RoT |
| Chassis | |
|---|---|
| Form Factor | Tower |
| Dimensions and Weight | |
|---|---|
| Height | 45.21cm (452 mm) |
| Width | 17.78cm (178 mm) |
| Depth | 64.77cm (647 mm) |
| Gross Weight | 64 lbs (29.03 kg) |
| Net Weight | 62 lbs (28.12 kg) |
| Packaging (W x H x L) | 62.48cm (625 mm) x 35.56cm (356 mm) x 79.50cm (795 mm) |
| Available Color | Black |

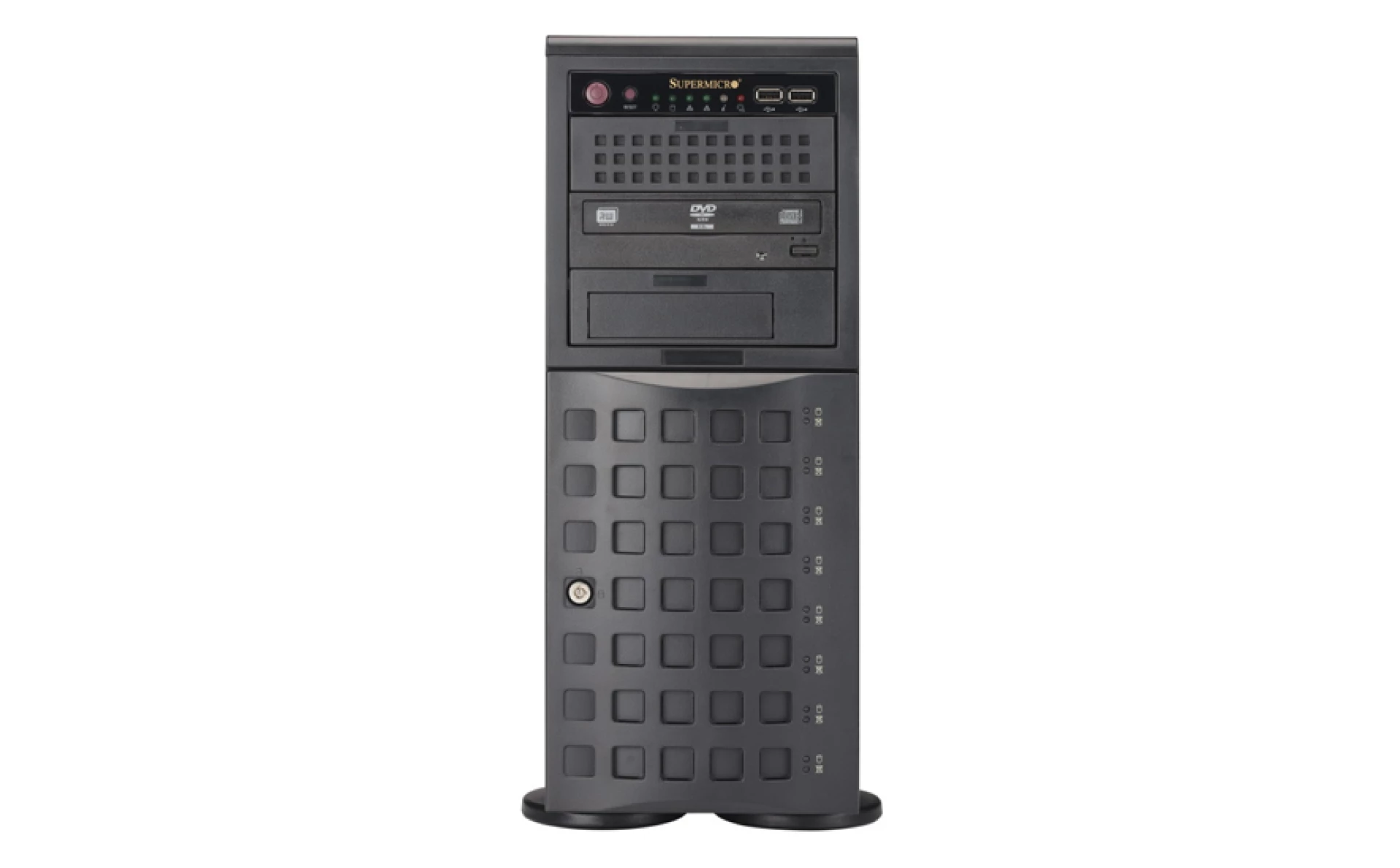

| Front Panel | |
|---|---|
| Buttons | Power On/Off button System Reset button |
| LEDs | Power status LED HDD activity LED System Information LED 2 Network Activity LEDs Fan Fail/System Over Heat LED |
| Port | 2x USB 3.0 Ports |
| Expansion Slots | |
|---|---|
| PCI-Express | — 5x PCI-E full-height, full-length slots: 3 PCI-E 5.0 x16 (in x16 slot) 2 PCI-E 5.0 x8 |
| Storage | |
|---|---|
| Drive Bays | 8x 3.5/2.5" hot-swap SAS3/SATA drive bays — 2.5" Adapter not included |
| M.2 | M.2 Interface: 2 SATA/PCI-E 4.0 x4 |
| Peripheral Drives | |
|---|---|
| 2x standard 5.25" drive bay 1x 3.5" internal fixed drive bay | |
| Backplane | |
|---|---|
| 743 SAS BACKPLANE W/AMI MG9072 | |
| System Cooling | |
|---|---|
| Fans | 5x fans (2x rear fans) |
| Power Supply | |
|---|---|
| 1U 920W Redundant Platinum Super Quiet power supplies W/PMbus | |
| Dimension (L x W x H) | 336 x 76 x 40 mm |
| Total Output Power and Input | 920W with Input 100 - 240Vac |
| AC Input | 50-60Hz |
| +12V | Max: 75A / Min: 1A (100Vac - 240Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| Power Distributor | PDB-PT747-4648 O/P: 12/212 +5V Max: 30A +3.3V Max: 24A -12V Max: 0.6A |
| Power Efficiency | 94% |
| Certification | 80 PLUS Platinum Certified |
| Regulatory (Power Supply) | |
|---|---|
| Power Supply Safety / EMC | BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | BA-SAE35-TFTV4-R | |
| System Building | BA-SAE35-TFTV4-R configured by Happyware as Complete System | |
Happyware BA-SAE35-TFTV4-R Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | Application and data serving, Big Data, Compute Intensive Applications, Data Center Optimized, Database, Enterprise Server, Virtualization |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Platinum |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Full-Tower |
| Front I/O: | LED Indicators, USB Type-A |
| Height units: | not applicable |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | No |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 920W |
| Performance Class: | Enterprise-Class, Mid-Range |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Citrix Hypervisor (formerly XenServer), Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, Windows Server |
| Product Model: | SAE35-TFTV4-R |
| Quantity of Cooler: | 5 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, SAS Ports, SATA Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Application Hosting, Database Server, Virtualization |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
