ASG-2015S-E1CR24H | Supermicro Single Socket Epyc 9004 2U Server
Başlayan €6.885,98*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro ASG-2015S-E1CR24H
Optimise Storage with Unmatched Flexibility and Performance with the Supermicro ASG-2015S-E1CR24H
Introducing the ASG-2015S-E1CR24H from renowned technology leader Supermicro. Engineered for success, this premium barebone system is a groundbreaking blend of cutting-edge innovation and superior design, crafted to cater to the most demanding computing needs. It's also designed for Power Users, Whether you are setting up a robust server for your business or building a high-performance workstation, the ASG-2015S-E1CR24H offers unmatched adaptability and scaling opportunities. Trust Supermicro to deliver exceptional quality and performance to elevate your operational efficiencies.
Why Choose the Supermicro ASG-2015S-E1CR24H?
The Supermicro ASG-2015S-E1CR24H stands out for its exceptional adaptability and efficiency in high-demand storage environments. Powered by AMD EPYC™ 9004/9005 Series Processors, it integrates seamlessly with PCIe 5.0 to ensure optimal bandwidth for modern workloads. The 24 hot-swap 3.5" SAS/SATA bays make it a reliable choice for continuous operations, reducing the risks of downtime. Additionally, the system is equipped with an advanced RAID solution that provides enterprise-class data protection, ensuring your business's critical information remains secure.
Supermicro’s commitment to cutting-edge technology ensures that the ASG-2015S-E1CR24H is both scalable and future-ready. The 1600W Titanium-Level Power Supply maximises energy efficiency while delivering consistent performance, supporting up to 6 PCIe 5.0 slots for expansion. Remote management capabilities like IPMI 2.0 make it ideal for businesses looking for flexibility and ease of monitoring. For enterprises focused on reliability and growth, this storage server provides a superior foundation for mission-critical applications and data-heavy tasks. This barebone model stands as a testament to Supermicro's commitment to advanced technology solutions.
Key Applications:
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Elevate your computing dynamics with the unrivaled power and versatility of Supermicro's ASG-2015S-E1CR24H. Experience seamless performance and the capacity to conquer today’s and tomorrow’s technological challenges. Contact Happyware now for more information and let us help you optimise your storage infrastructure. Reach out today to discover how this system can meet your growing data management needs.
Supermicro ASG-2015S-E1CR24H Teknik Özellikleri
| Single AMD EPYC 9004 Series CPU, 26x hot-swap drive bays(24x 3.5", 2x 2.5"), 8x PCIe (6x FHHL, 2x AIOM), 2x 1600W redundant PSUs |
| Processor/Chipset | |
|---|---|
| CPU | Single Socket SP5 AMD EPYC™ 9004 Series Processors |
| Core Count | Up to 84C/168T; Up to 384MB Cache |
| Note | Supports 200W - 290W TDP CPUs (Air Cooled) |
| System Memory | |
|---|---|

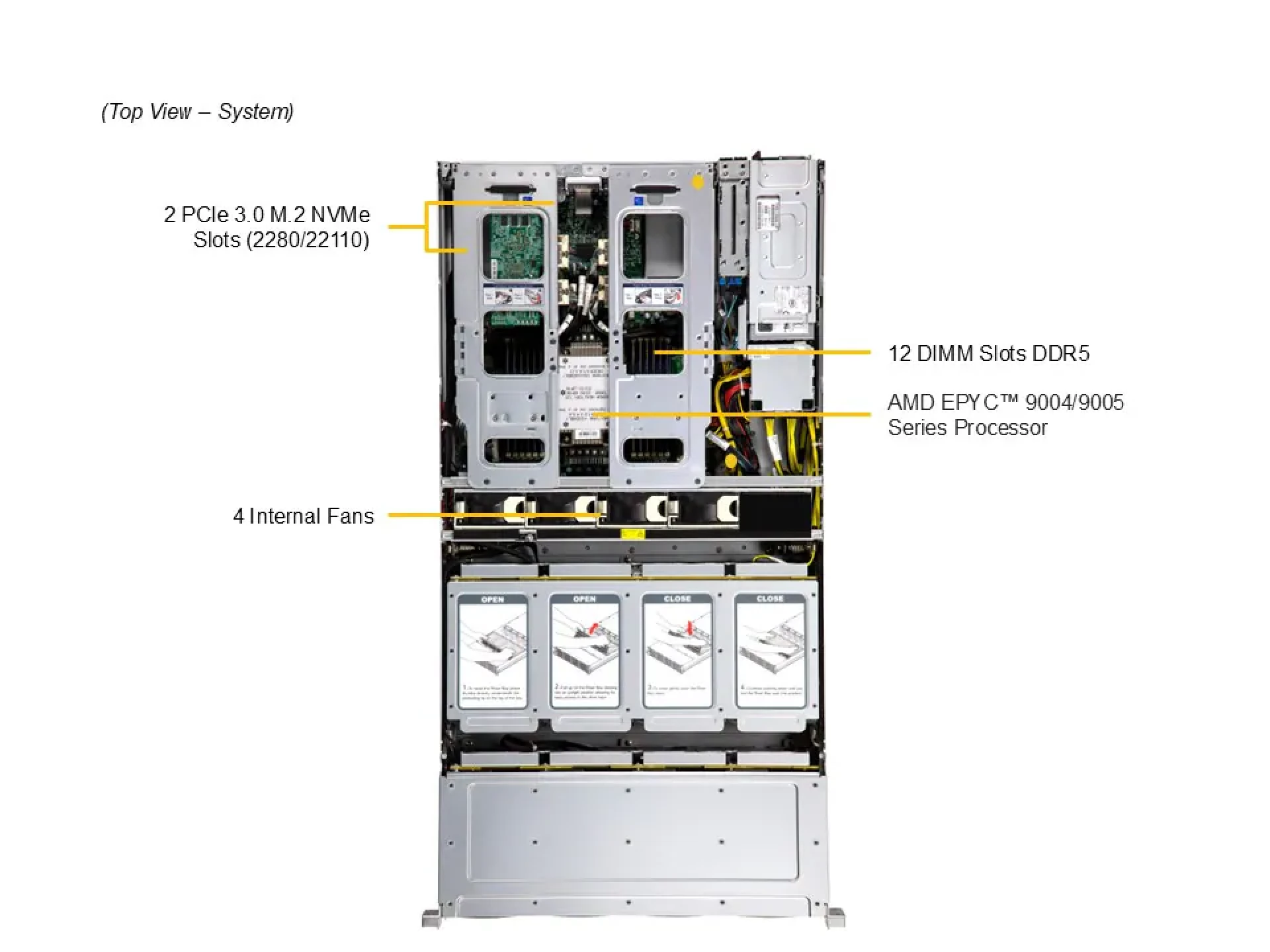

| Memory | Slot Count: 12 DIMM slots Max Memory (2DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U |
| Model | CSE-826S3TS-R1K62P1 |
| Dimensions and Weight | |
|---|---|
| Height | 8.89cm |
| Width | 43.68cm |
| Depth | 86.36cm |
| Package | 30.48cm (H) x 73.66cm (W) x 132.08cm (D) |
| Weight | Gross Weight: 74.5 lbs (33.79 kg) Net Weight: 52 lbs (23.59 kg) |
| Available Color | Silver |
| Front Panel | |
|---|---|
| LED | Network activity Power status SSD activity System information (overheat/UID) |
| Buttons | Power On/Off |
| Expansion Slots | |
|---|---|

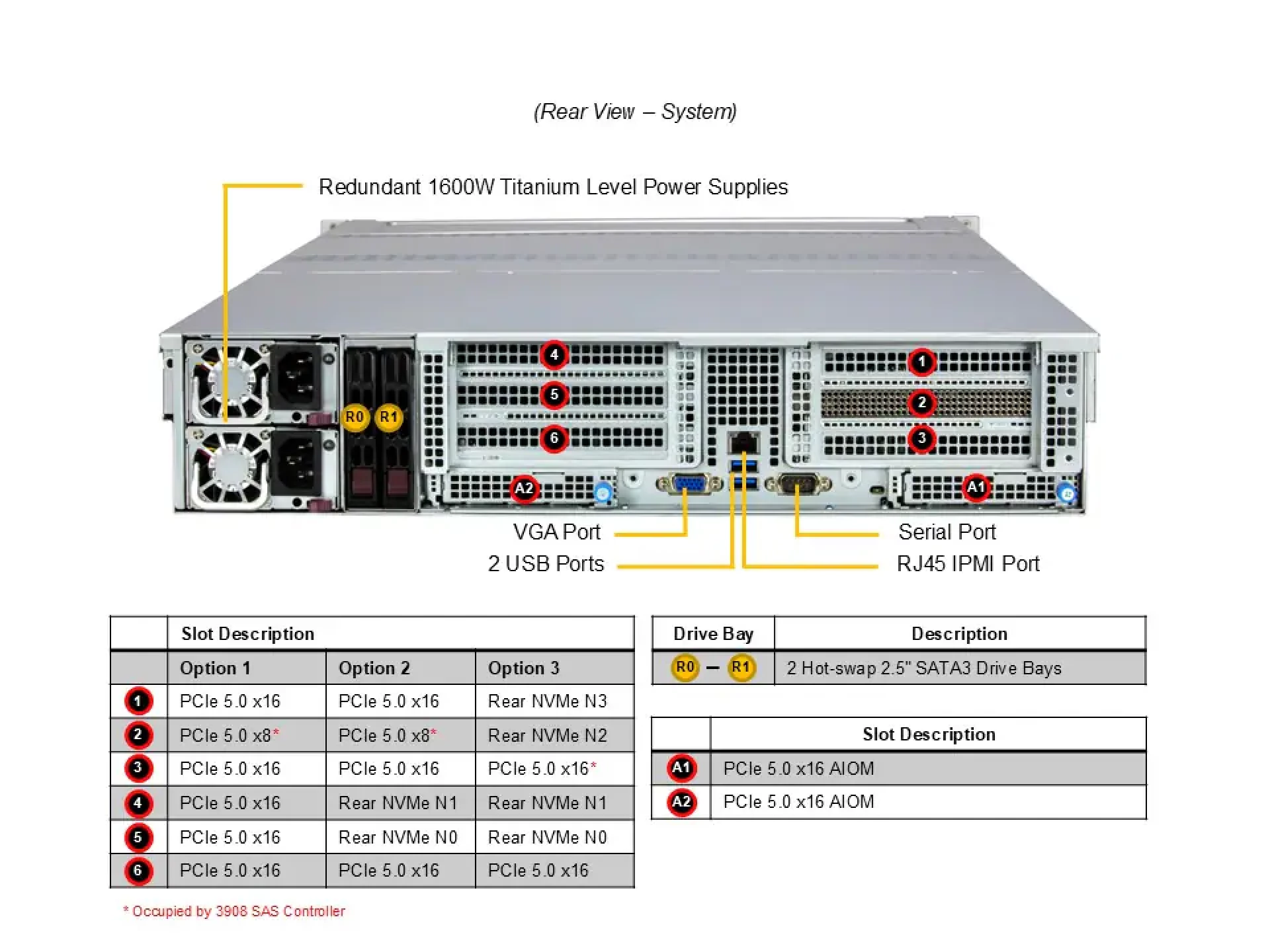

| PCI-Express (PCIe) Configuration | Default 5 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 FHHL slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option A 3 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 FHHL slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Storage | |
|---|---|

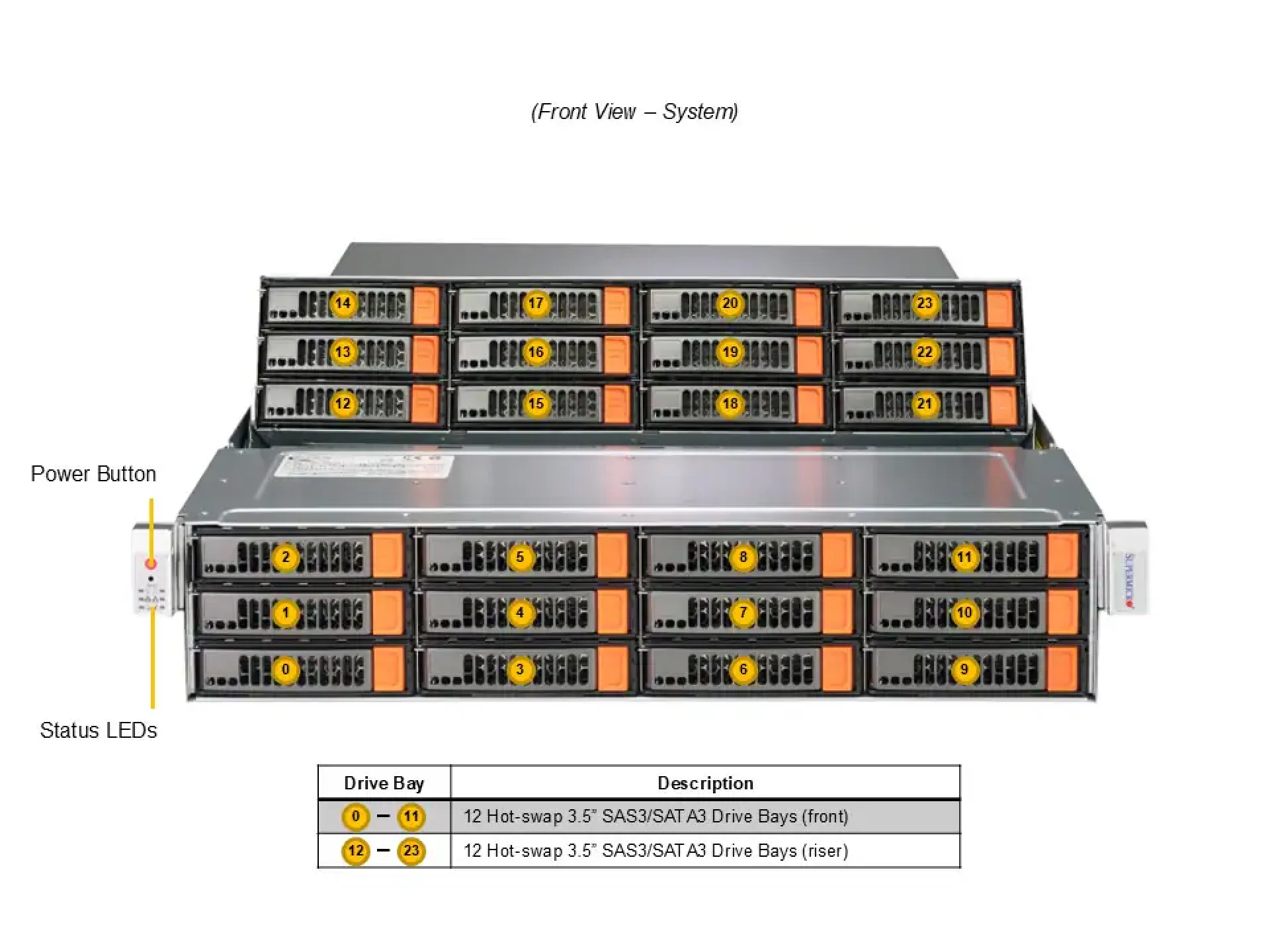

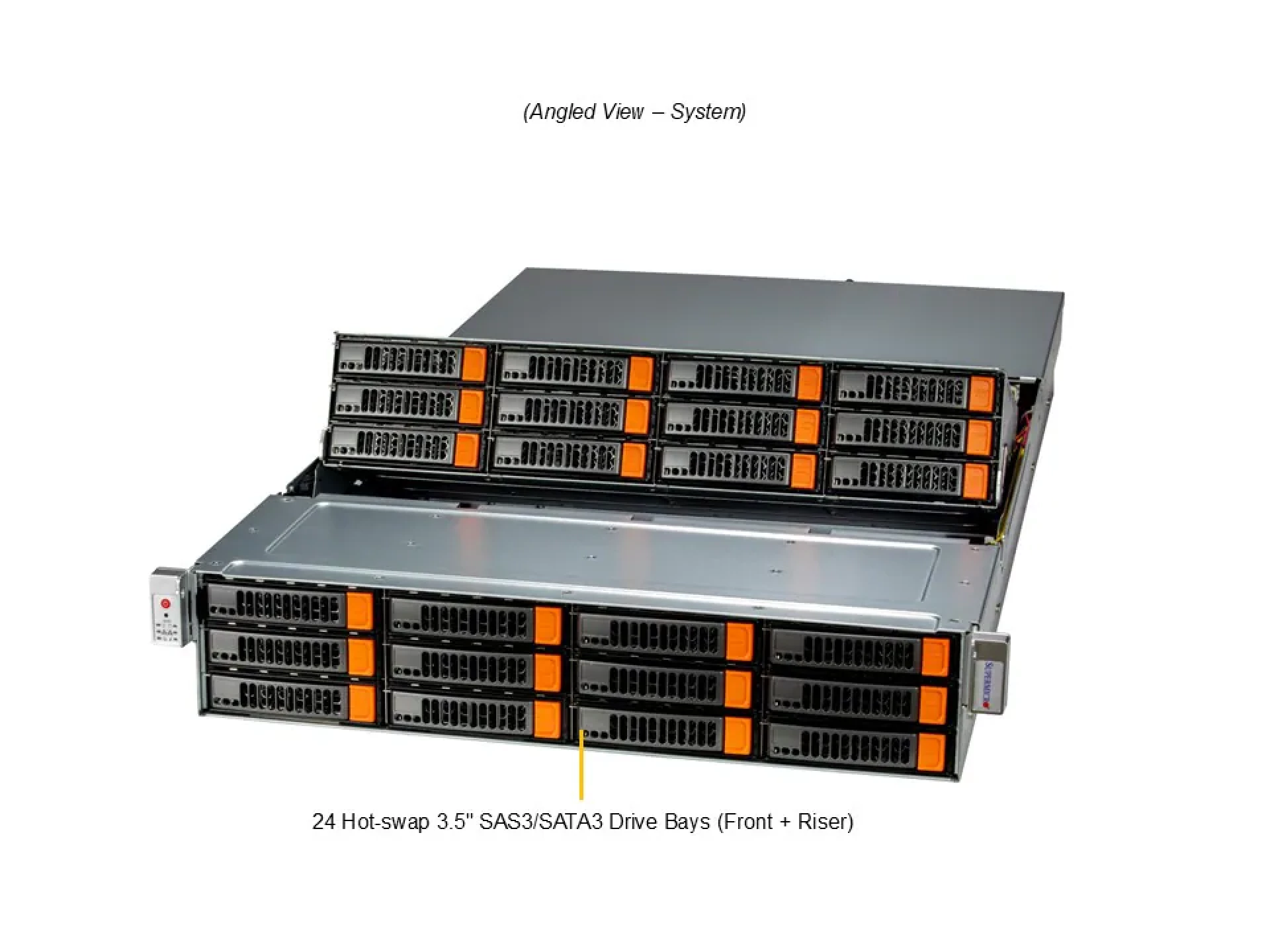

| Drive Bays | Default: Total 26 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays Option A: Total 28 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading fixed 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays 2 rear hot-swap 2.5" NVMe drive bays Option B: Total 30 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 4 rear hot-swap 2.5" NVMe drive bays 2 rear hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 4 Heavy Duty 8cm Fan(s) |
| Power Supply | |
|---|---|
| 1x 1600W Redundant Titanium Level (96%) power supply | |
| Dimension (WxHxL) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | 80 PLUS, Titanium Level |
| Operating Environment / Compliant | ||
|---|---|---|
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | |
| Environmental / Recycling | ||
|---|---|---|
| Recycle | Return Server-End of Life Product | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | ASG-2015S-E1CR24H | |
| System Building | ASG-2015S-E1CR24H configured by Supermicro as Complete System | |
Supermicro ASG-2015S-E1CR24H Nitelikleri
| Add-on card form factor: | FH, HH, OCP 3.0 |
|---|---|
| Applications: | Application and data serving, Big Data, DB Processing & Storage, Data Center Optimized, Database, Database/Storage, Database Processing and Storage, Enterprise Server, HPC |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Controller: | AIOM |
| Onboard Graphic: | No |
| Onboard LAN: | No |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 1600W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 2015S-E1CR24H |
| Quantity of Cooler: | 4 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | Yes |
| RAM DIMM Type: | LRDIMM, RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, SAS Ports, SATA Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Database Server, File Storage and Sharing, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
