SSG-621E-ACR16L | Supermicro Dual Xeon Scalable 4th Gen Xeon Scalable 5th Gen 2U Rack Server

High-Density 2U Storage Server Architecture with PCIe Gen5 Expansion using the SSG-621E-ACR16L Supermicro

The SSG-621E-ACR16L Supermicro is a 2U dual-socket storage platform engineered for capacity-led services while preserving modern compute and I/O headroom. Built on the Intel Xeon Scalable 5th/4th Gen platform (LGA4677, C741), it supports high core-count configurations and sustained power envelopes to keep storage stacks, databases, and virtualization layers responsive under mixed read/write pressure.

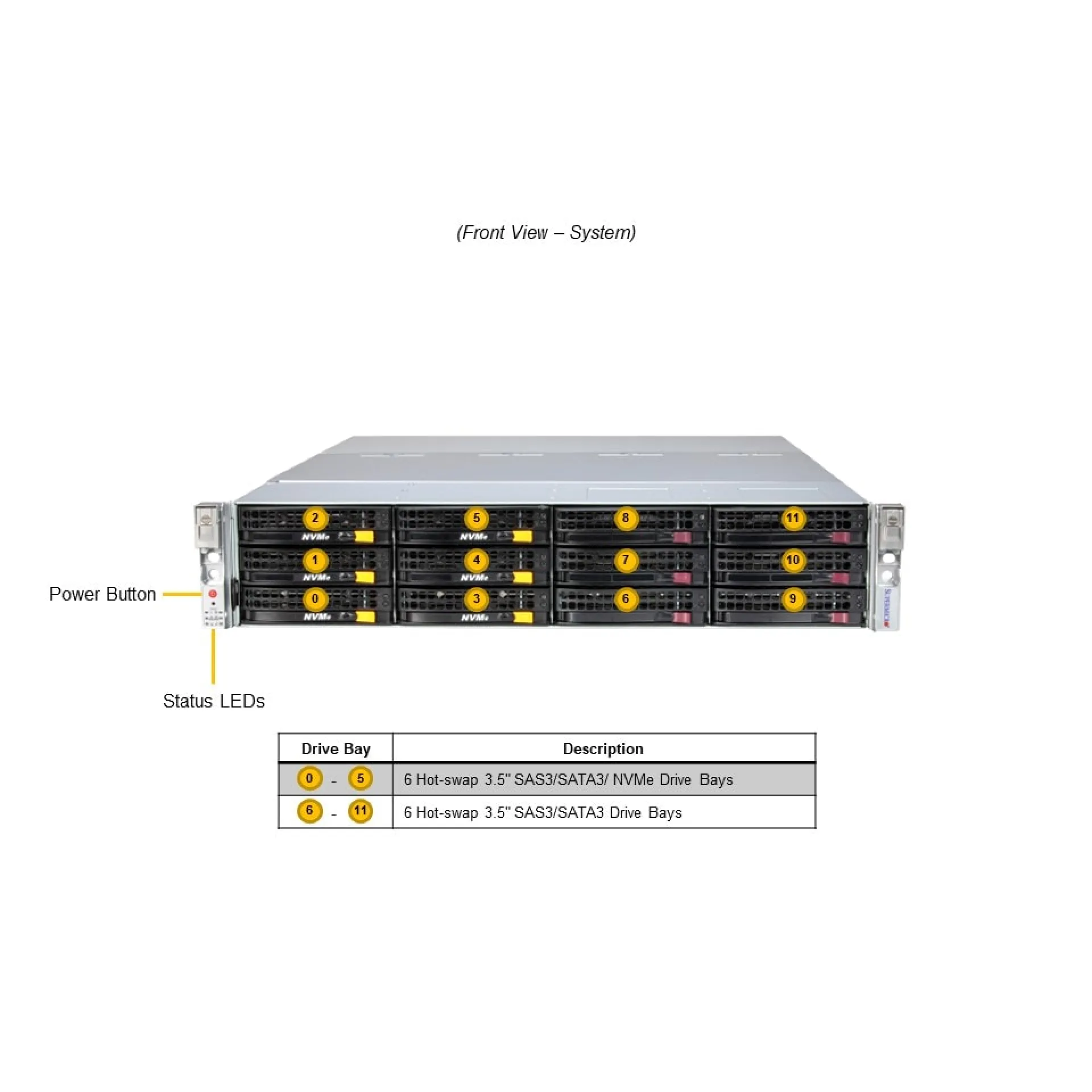

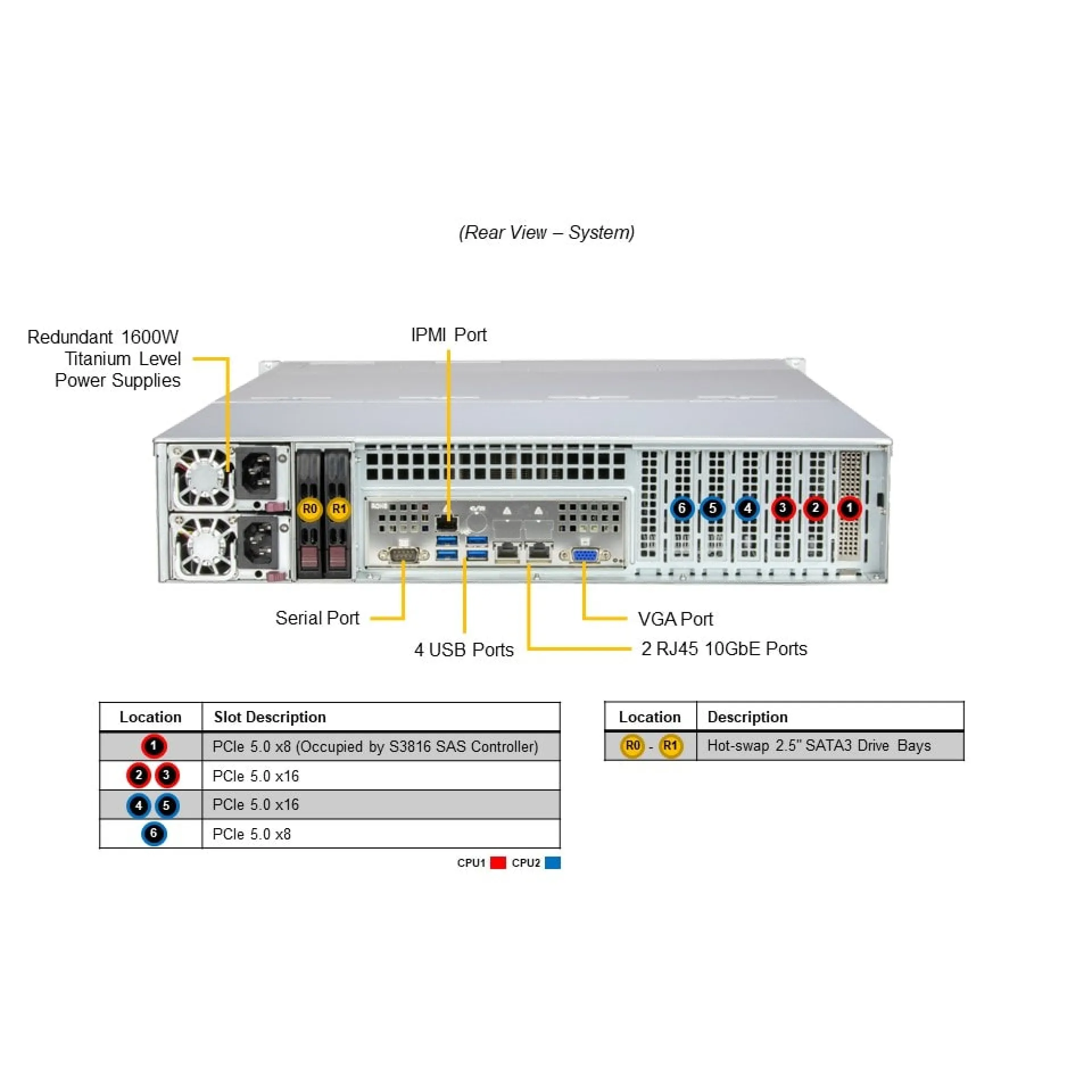

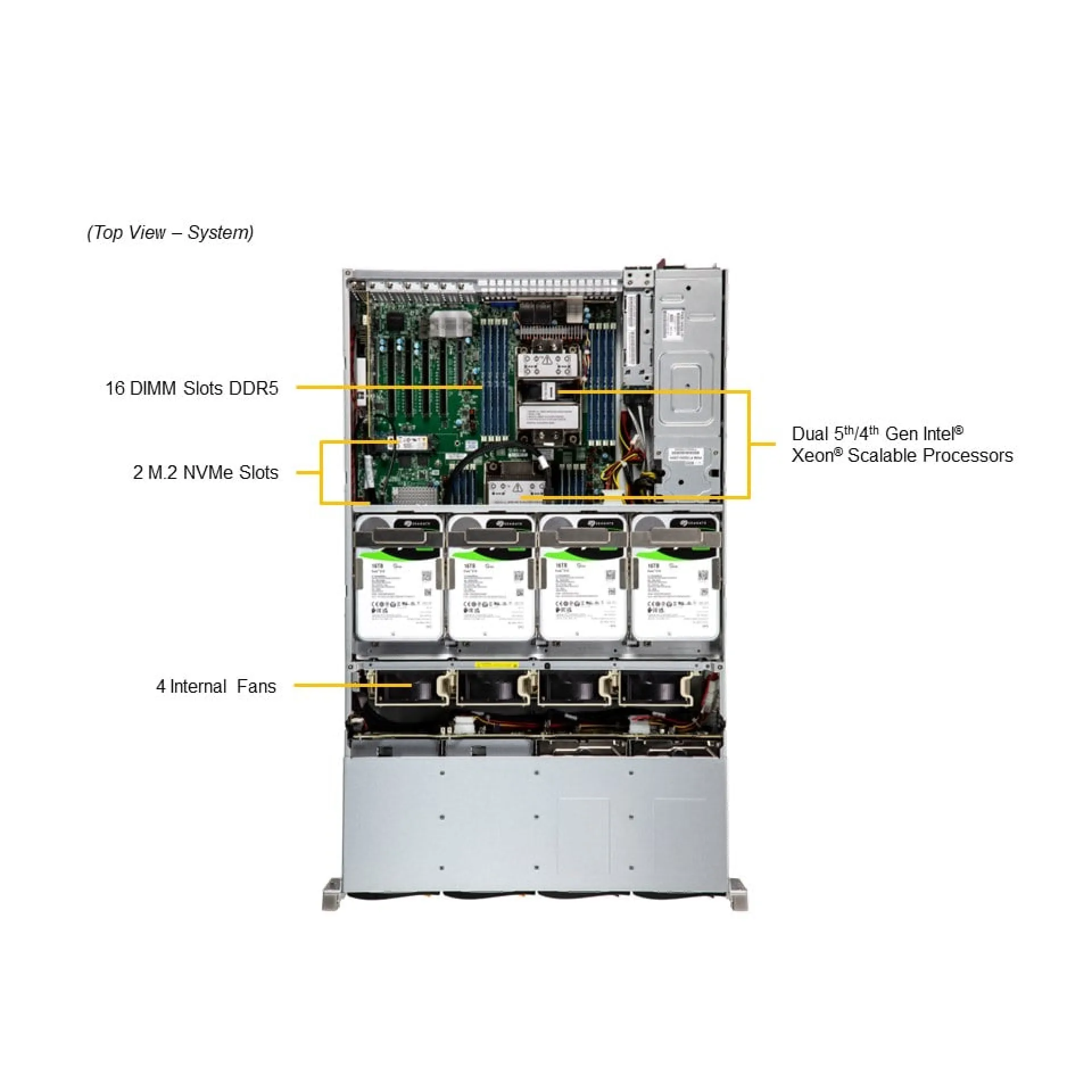

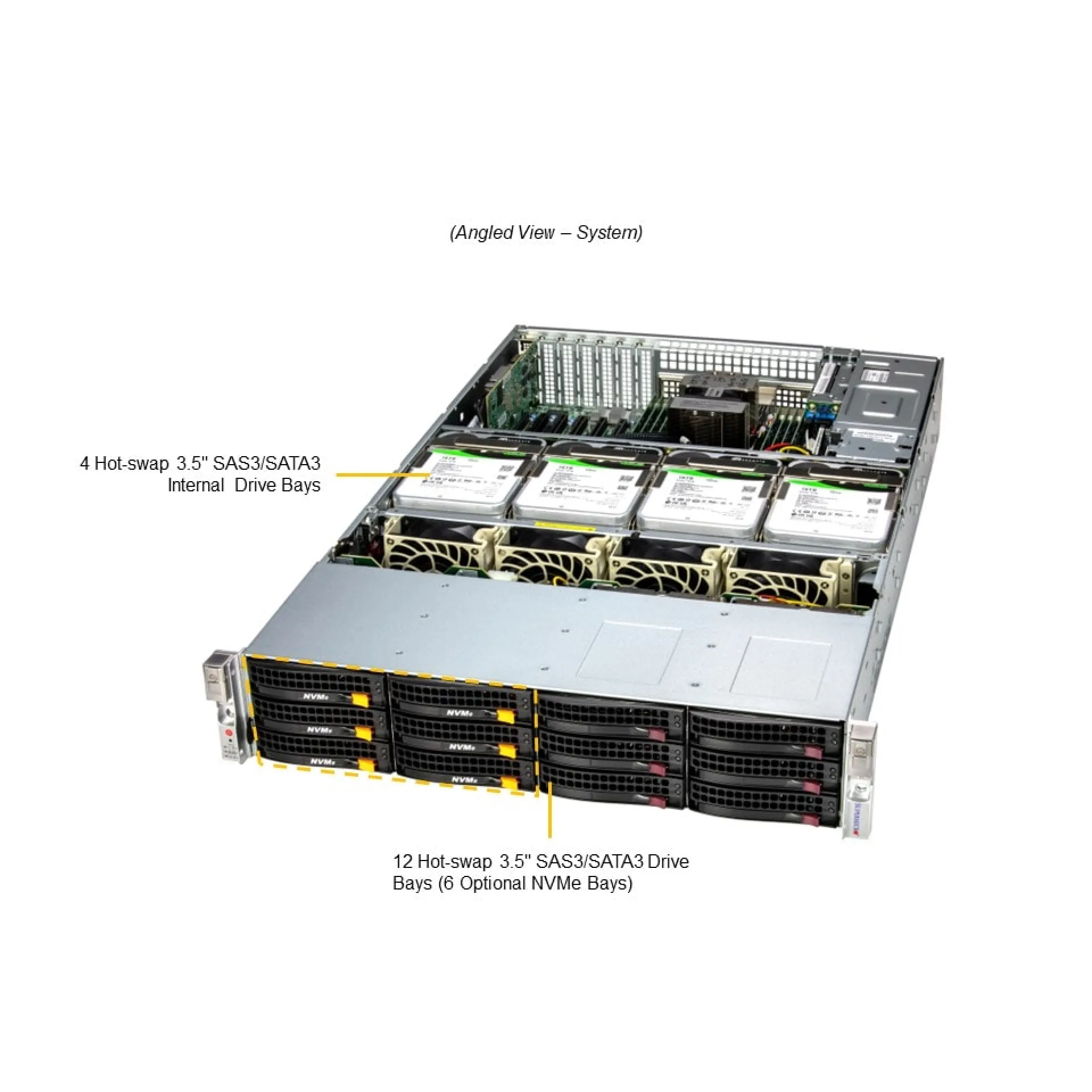

For memory-bound data services, the SSG-621E-ACR16L Supermicro integrates 16 DDR5 ECC RDIMM slots with scale-up capacity for large page caches, metadata-heavy filesystems, and dense VM consolidation. Storage is centered on 16 front 3.5in SAS/SATA hot-swap bays (12+4) plus 2 additional 2.5in SATA hot-swap bays for tiering or journaling, while dual M.2 NVMe PCIe Gen4 sockets isolate OS and boot workloads. PCIe Gen5 low-profile expansion (x16 and x8) enables high-throughput HBA/RAID, NVMe enablement, and advanced networking without sacrificing front serviceability, with optional front 3.5in PCIe 5.0 x4 NVMe capability for selective flash acceleration.

Why Choose the SSG-621E-ACR16L Supermicro?

The SSG-621E-ACR16L Supermicro delivers a pragmatic density-to-performance profile for SAN building blocks and capacity tiers, combining dual-socket compute, DDR5 bandwidth, and PCIe Gen5 expansion in a service-friendly 2U footprint. With redundant 1600W Titanium PSUs, dedicated BMC management, and predictable drive topology, it scales cleanly across racks for consistent operations and standardized spares.

Supermicro platforms emphasize validated server subsystems, efficient power delivery, and manageability aligned to modern data centre standards. With IPMI/BMC remote administration, TPM 2.0, and NIST 800-193 silicon Root of Trust support, the SSG-621E-ACR16L Supermicro is designed for controlled lifecycle management and secure provisioning in enterprise environments.

Key Applications:

• iSCSI and SAN storage nodes
• Capacity-oriented object and file storage
• Database and log storage tiers
• Virtualization and VM hosting
• HPC and big data storage pools

At Happyware Turkiye you benefit from streamlined B2B procurement for the SSG-621E-ACR16L Supermicro, including pre-sales configuration guidance, integration-focused fulfillment, and responsive post-purchase support to align platform selection with your rack, networking, and storage architecture requirements.
