AS-4125GS-TNRT | Supermicro Dual Socket Epyc 9004 4U Server
Başlayan €9.434,01*
KDV artı nakliye masrafları dahil fiyatlar
Supermicro AS-4125GS-TNRT
Elevate Your Data Centre Performance with the Supermicro AS-4125GS-TNRT Barebone System
Introducing the Supermicro AS-4125GS-TNRT, the ultimate Barebone solution designed for the most demanding applications and environments. Crafted by renowned technology leader, Supermicro, this powerhouse offers unmatched performance and reliability, ensuring your systems are always at the cutting edge. Supermicro has established itself as a pioneer in high-performance computing solutions. With the AS-4125GS-TNRT, experience the perfect convergence of innovative technology and robust architecture. Whether you're managing data-intensive tasks or innovative AI applications, this barebone server has the potential to elevate your operations to new heights.
Why Choose the AS-4125GS-TNRT?
Engineered to support the latest in computing infrastructure, the AS-4125GS-TNRT offers flexibility and scalability that meets today’s and tomorrow’s demands. Its modular design ensures easy upgrades and maintenance, making it a future-proof investment for growing businesses.
This server leverages the latest AMD EPYC™ processors, ensuring top-tier computational power. With extensive GPU support, it’s NVIDIA-Certified, making it the ideal choice for graphics-intensive and AI-driven workloads. Its robust storage and networking capabilities, combined with Supermicro’s trusted quality, ensure a seamless user experience for demanding applications.
Key Applications:
• Deep Learning / AI / Machine Learning Development
• High-performance Computing
Contact Happyware today to explore how the Supermicro AS-4125GS-TNRT can optimise your business operations. Call us now or register your company as a partner to unlock exclusive benefits and premier support. Don’t wait—empower your data centre with this powerful solution today!
Supermicro AS-4125GS-TNRT Teknik Özellikleri
Datasheet for Supermicro A+ Server 4125GS-TNRT
| SKU Overview | ||
|---|---|---|
| AS-4125GS-TNRT | Dual AMD EPYC 9004 Series CPU, 6x 2.5" hot-swap drive bays, 9x PCIe (FHFL), 2x 10GbE LAN, 8x DW GPUs, 4x 2000W redundant PSUs | |
| Processor/Cache | ||
| CPU | Dual Socket SP5 AMD EPYC™ 9004 Series Processors | |
| Cores | Up to 128C/256T | |
| Note | Supports up to 400W TDP CPUs (Air Cooled) | |
| GPU | |
|---|---|
| Max GPU Count | Up to 8 double-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, H100, RTX 4000 ADA, L40, RTX A5500, RTX A4000, RTX 6000, RTX 5000, L40S, A40, A30, A100 AMD PCIe: Instinct MI210 |
| CPU-GPU Interconnect | Direct Attached |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | |
|---|---|

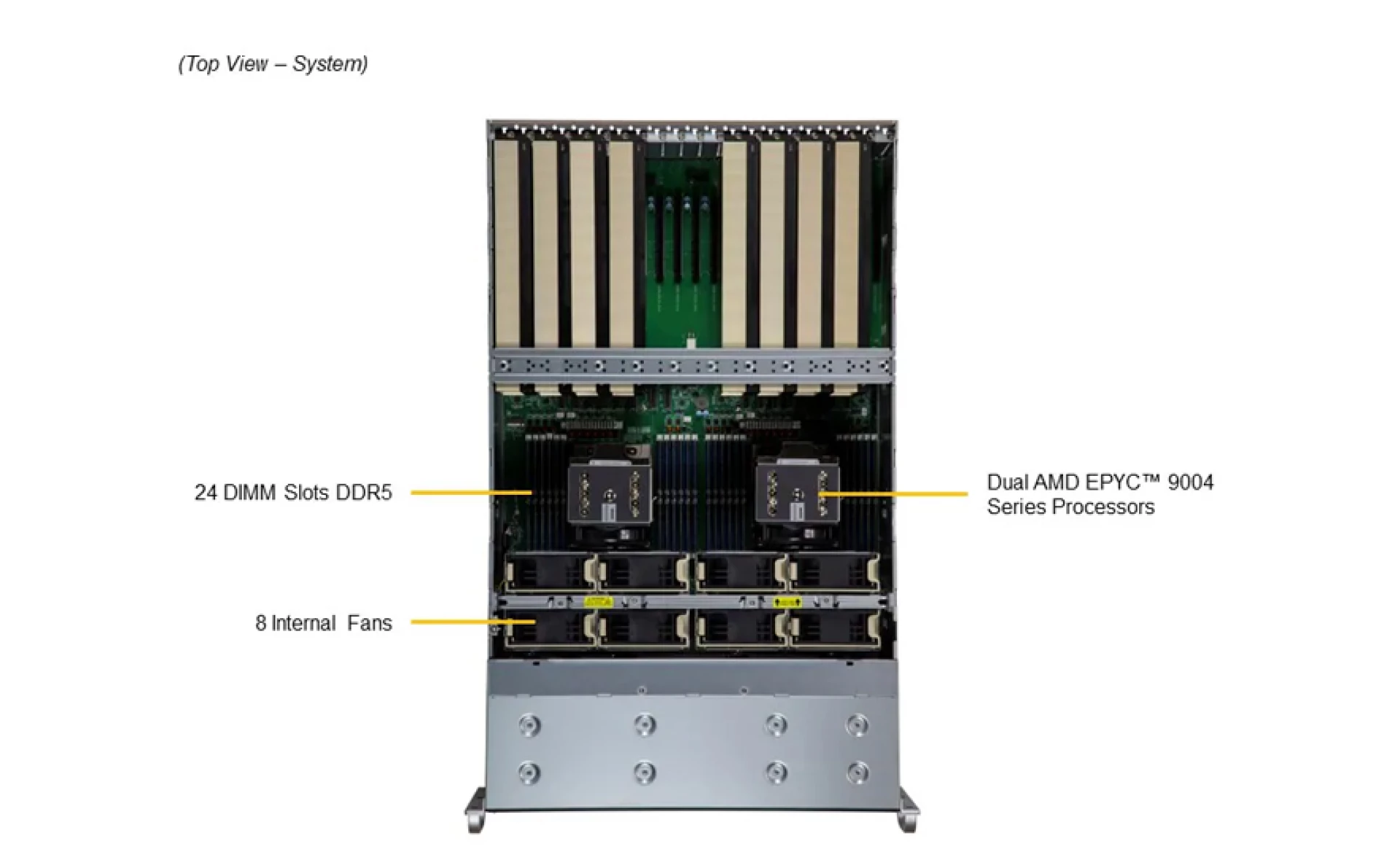

| Memory Capacity | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Type | 1.1V |
| On-Board Devices | |
|---|---|
| SATA | SATA (6Gbps) |
| Chipset | AMD SP5 |
| Network Connectivity | 2 RJ45 10GbE |
| NVMe | - |
| Input / Output | |
|---|---|

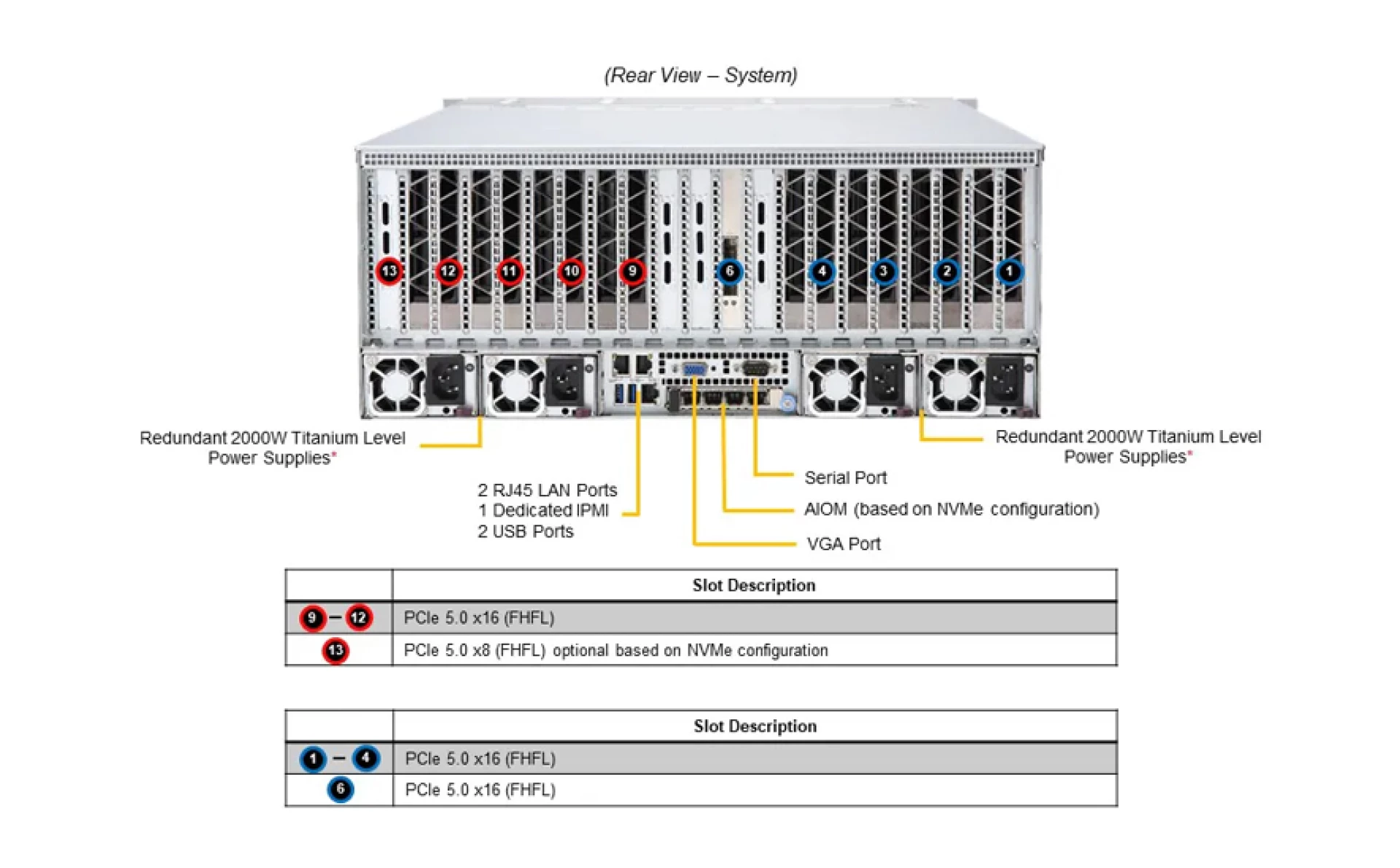

| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 ports (rear) |
| Video | 1 VGA port |
| Serial | 1 COM ports (Rear) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32Mb SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SAA(new!) |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmountable |
| Model | CSE-418G2TS |
| Dimensions | |
|---|---|
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Colors | Black Front & Silver Body |
| Front Panel | |
|---|---|
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Drive Bays / Storage | |
|---|---|

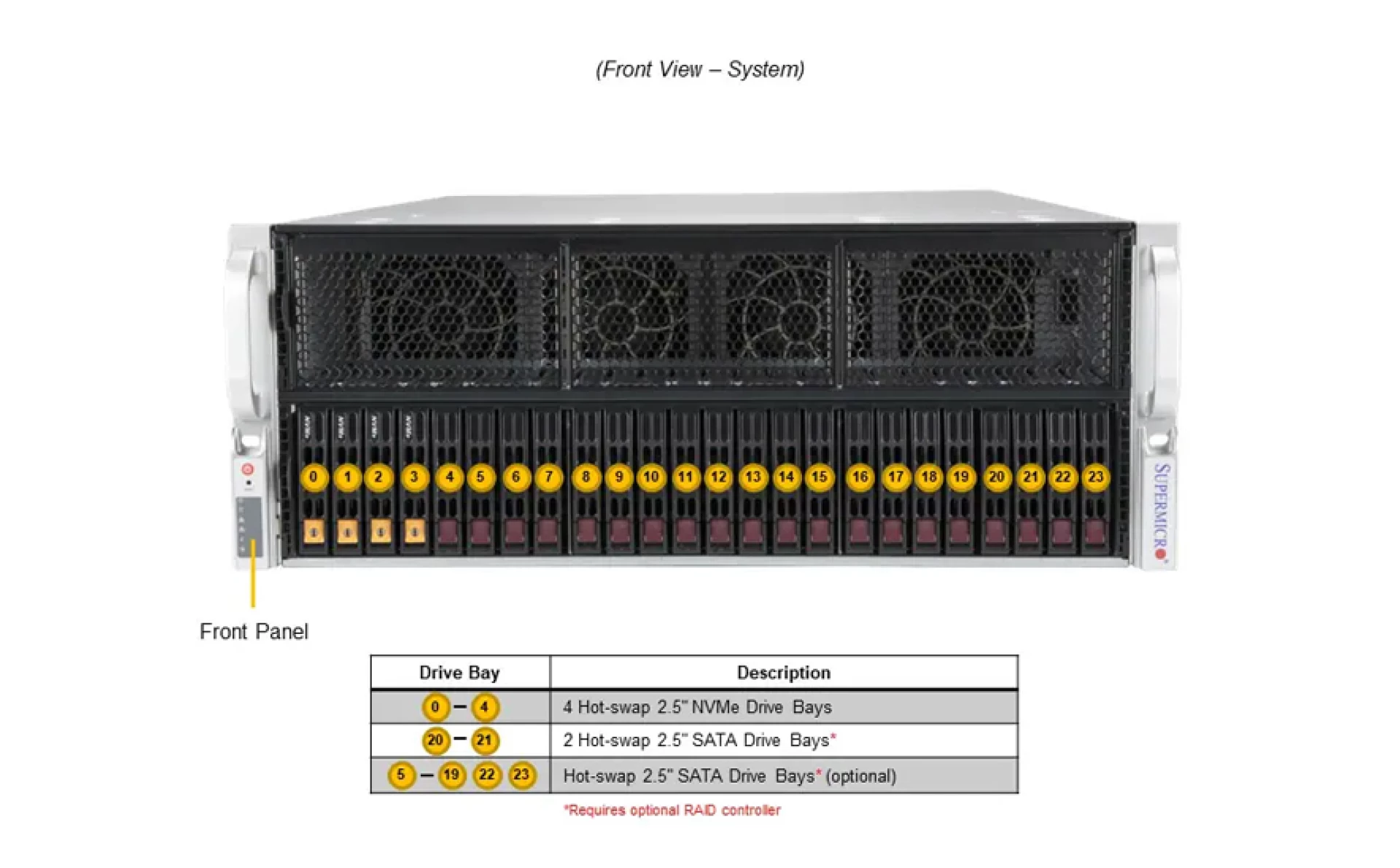

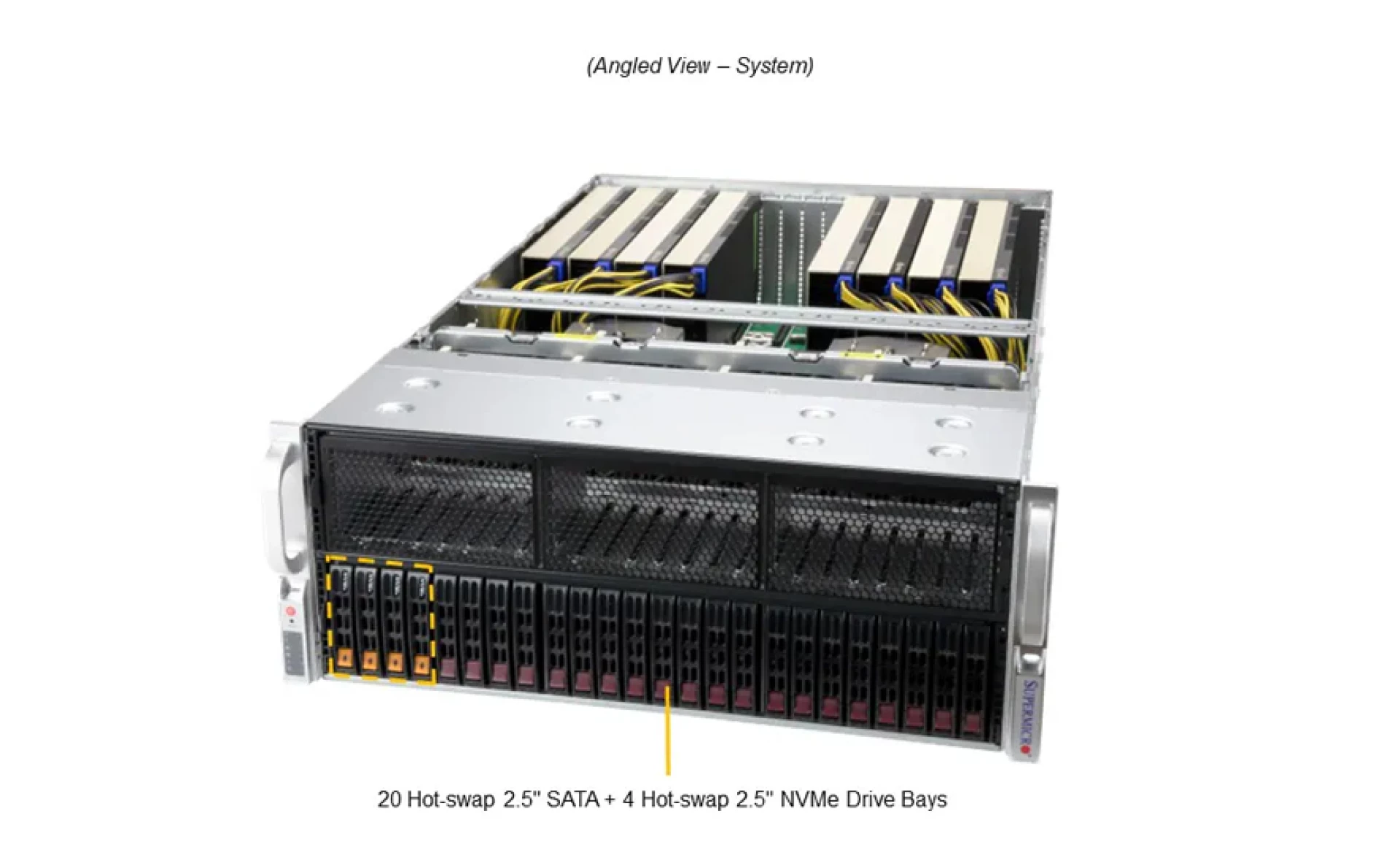

| Drive Bays Configuration | Default: Total 6 bays: 2 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe drive bays |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key) |
| Expansion Slots | |
|---|---|
| PCI-Express | 9 PCIe 5.0 x16 FHFL slots |
| System Cooling | |
|---|---|
| Fans | 8 heavy duty fans with optimal fan speed control |
| Power Supply | |
|---|---|
| 2+2 2000W Redundant Titanium Level power supply | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| +12V | Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A |
| AC Input | 2000W: 230-240Vdc / 50-60Hz (for China only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Environmental / Recycling | ||
|---|---|---|
| Recycle | Return Server-End of Life Product | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-4125GS-TNRT | |
| System Building | AS-4125GS-TNRT configured by Supermicro as Complete System | |
Supermicro AS-4125GS-TNRT Nitelikleri
| Add-on card form factor: | FH |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, GPU server, HPC |
| Backplane: | Yes |
| Backplane Interface: | SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| GPU quantity per node: | 8 |
| Height units: | 4U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | SP5 |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | No |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 10 Gb/s |
| PSU Power Wattage: | 2000W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 4125GS-TNRT |
| Quantity of Cooler: | 8 |
| Quantity of Power Supplies: | 4 |
| RAID Support: | No |
| RAM DIMM Type: | LRDIMM, RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, NVMe Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
