SYS-420GP-TNR | Supermicro Dual Socket Xeon Scalable 4U Server
Ürün numarası: TR3B9541-271184
|
Üretici numarası: SYS-420GP-TNR
Başlayan €10.304,38*
KDV artı nakliye masrafları dahil fiyatlar

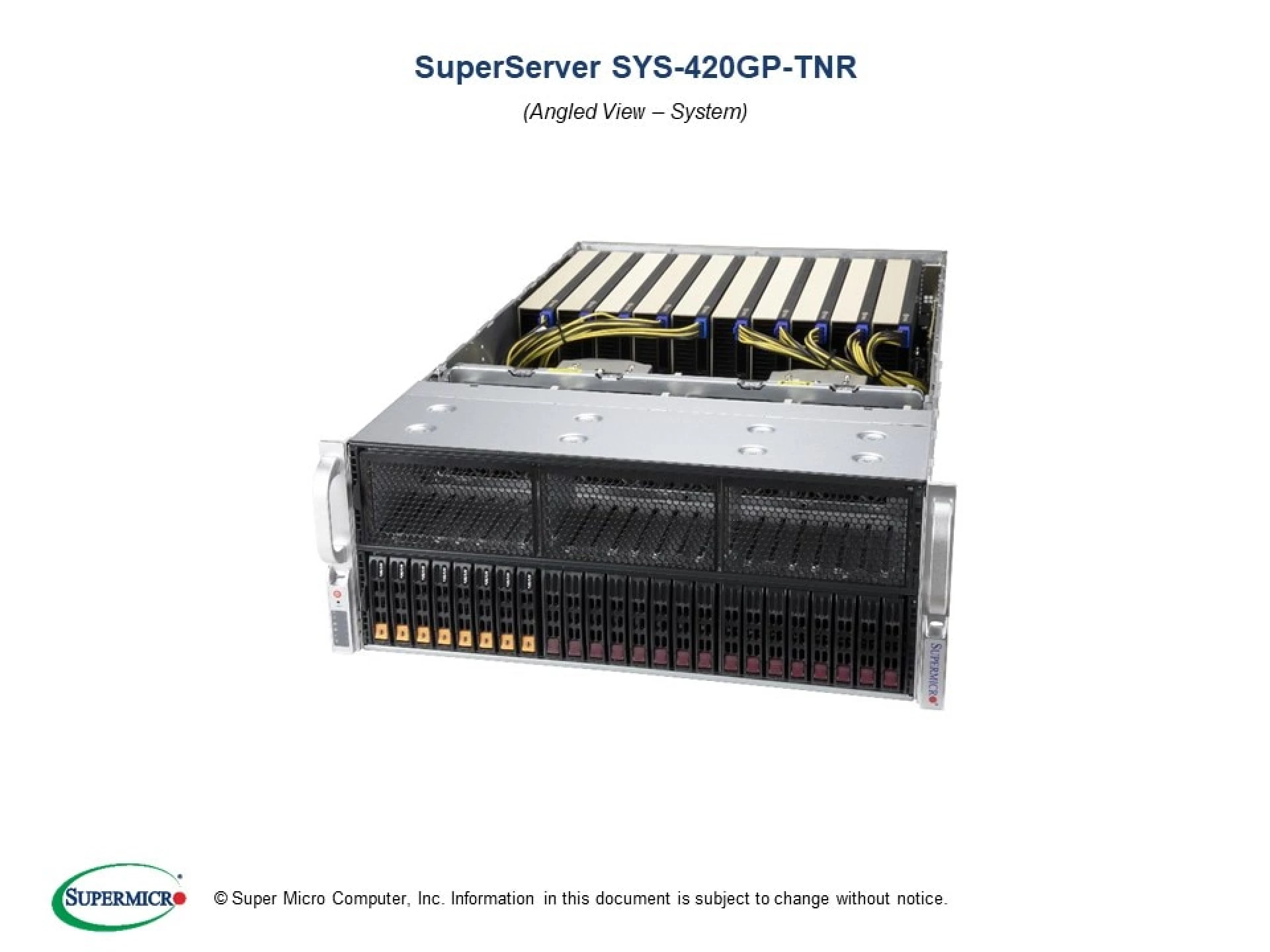

Supermicro SYS-420GP-TNR
Supermicro SYS-420GP-TNR Teknik Özellikleri
| Processor/Cache | |
|---|---|

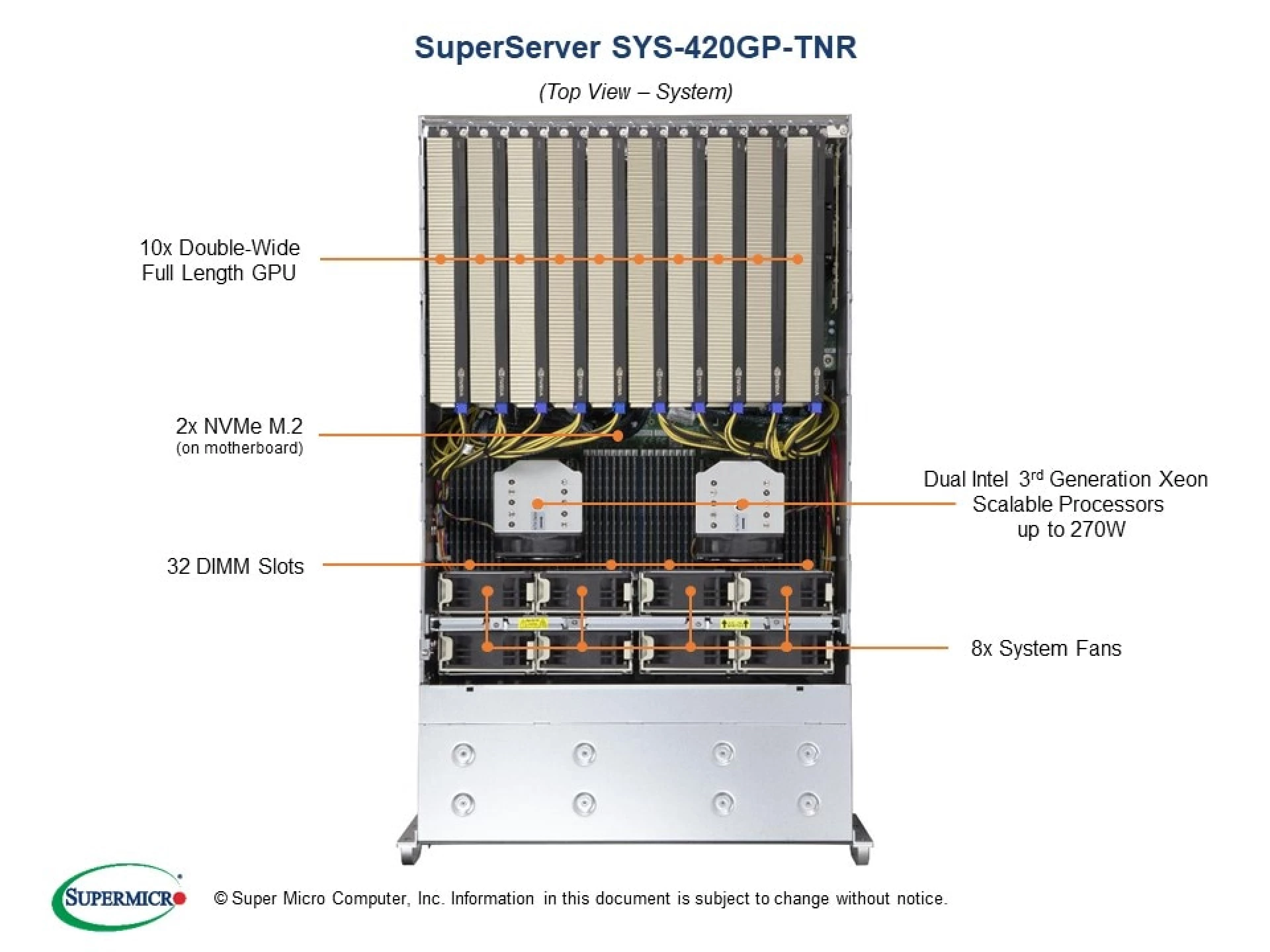

| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors 3 UPI up to 11.2GT/s Support CPU TDP 270W |
| GPU | |
|---|---|
| Supported GPU | NVIDIA A100,A40, and RTX A6000 |
| CPU-GPU Interconnect | PCI-E 4.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | None |
| System Memory | |
|---|---|
| Memory | 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Up to 12TB: 16x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM Intel® Optane™ persistent memory 200 series |
| Memory Type | 320 |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | |
|---|---|
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 1GbE BaseT with Intel® I350 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| BMC | ASPEED AST2600 BMC |
| Input / Output | |
|---|---|
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
|---|---|
| CPU | 7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmount |
| Model | CSE-418G2TS-R4016BP |
| Dimensions and Weight | |
|---|---|
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) |
| Available Color | Black Front & Silver Body |
| Expansion Slots | |
|---|---|

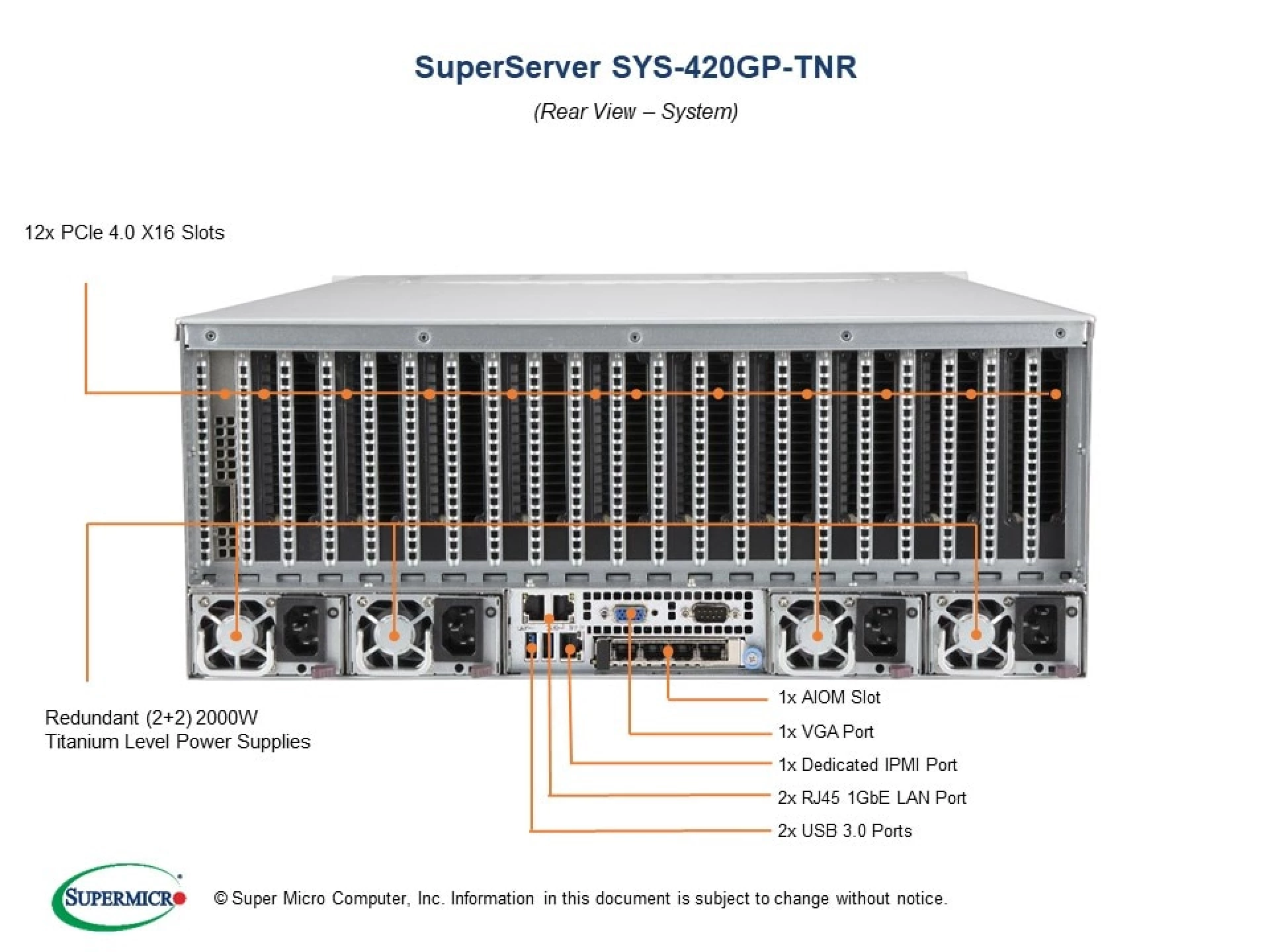

| PCI-Express | Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL Slot 4: PCI-E 4.0 x16 FHFL Slot 5: PCI-E 4.0 x16 FHFL Slot 6: PCI-E 4.0 x16 FHFL Slot 7: PCI-E 4.0 x16 FHFL Slot 8: PCI-E 4.0 x16 FHFL Slot 9: PCI-E 4.0 x16 FHFL Slot 10: PCI-E 4.0 x16 FHFL Slot 11: PCI-E 4.0 x16 FHFL Slot 12: PCI-E 4.0 x16 FHFL |
| Drive Bays / Storage | |
|---|---|

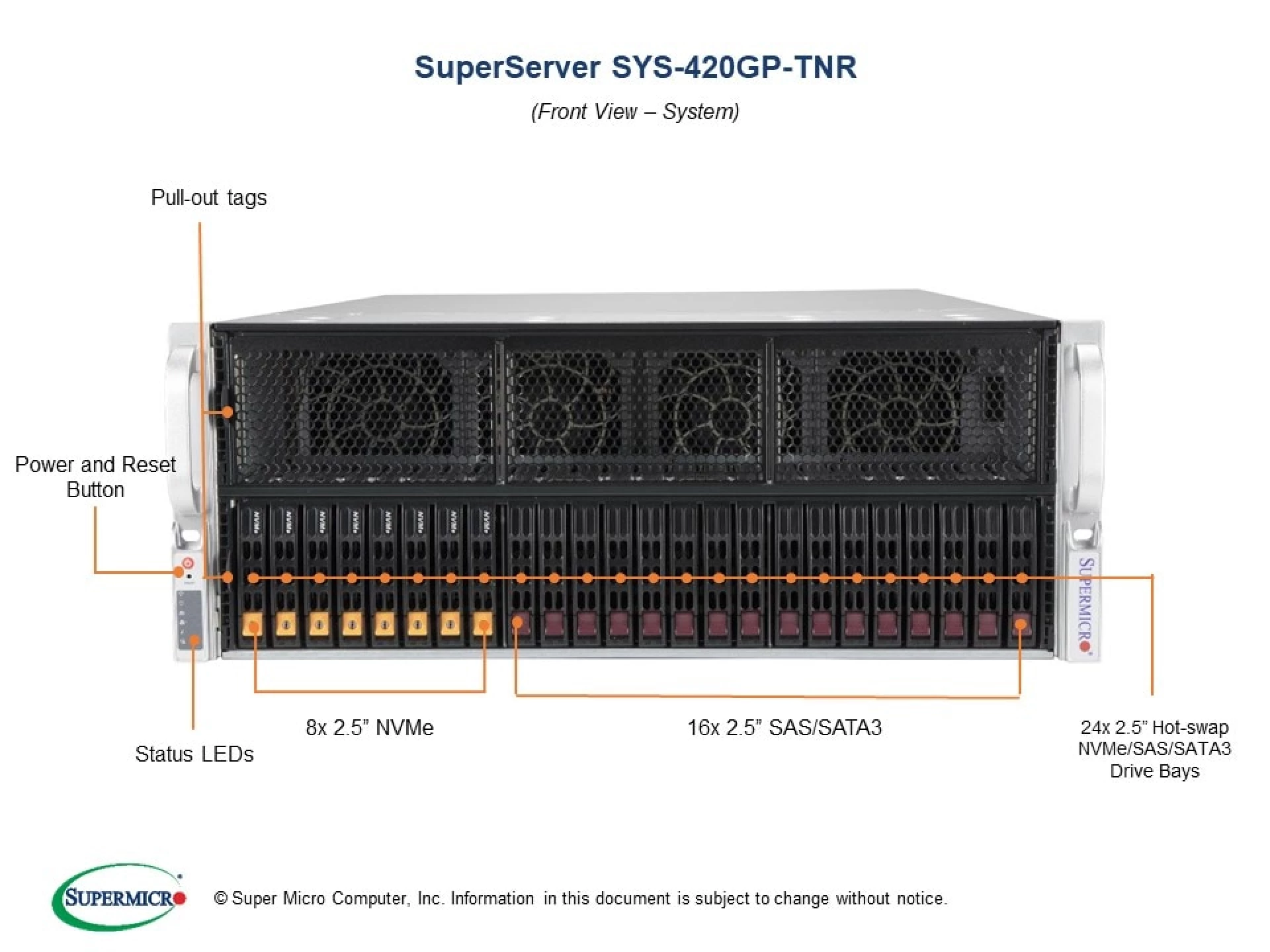

| Hot-swap | 24x 2.5" hot-swap SATA/SAS Laufwerkseinschübe (8x 2.5” NVMe drive dedicated) |
| M.2 | 2 M.2 NVMe |
| System Cooling | |
|---|---|
| Fans | 8 heavy duty fans with optimal fan speed control |
| Power Supply | |
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc (For CCC Only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-420GP-TNR | |
| System Building | SYS-420GP-TNR configured by Supermicro as Complete System | |
Supermicro SYS-420GP-TNR Nitelikleri
| Add-on card form factor: | FH |
|---|---|
| Applications: | AI / Deep Learning, AI Inference and Machine Learning, AI inferencing, Enterprise Server, GPU server, HPC, High End Enterprise Server, High Performance Computing |
| Backplane: | Yes |
| Backplane Interface: | SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Ice Lake |
| CPU Manufacturer: | Intel |
| CPU Socket: | LGA 4189 |
| Card Reader Support: | No |
| Certification: | 80 Plus Titanium |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators |
| GPU quantity per node: | 10 |
| Height units: | 4U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C621A |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Controller: | Intel I350 |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 2000W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Windows Server |
| Product Model: | 420GP-TNR |
| Quantity of Cooler: | 8 |
| Quantity of Power Supplies: | 4 |
| RAID Support: | Yes |
| RAM DIMM Type: | LRDIMM, RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs, Suitable for continuous operation |
| Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Deep Learning - Machine Learning, GPGPU, High-Performance Computing (HPC) |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | Nvidia |
