SYS-531R-I | Supermicro Single Xeon 6300 Mini-Tower

Compact tower workstation and edge server platform with PCIe Gen5 expansion using SYS-531R-I Supermicro

SYS-531R-I Supermicro is a mini-tower platform built around the single-socket Intel Xeon E-2400/Xeon 6300 architecture on LGA1700 with the C262 chipset, targeting cost-controlled engineering desktops and branch deployments. The CPU envelope up to 95W with up to 8 cores/16 threads aligns with sustained office and edge compute while maintaining predictable thermals in a compact chassis.

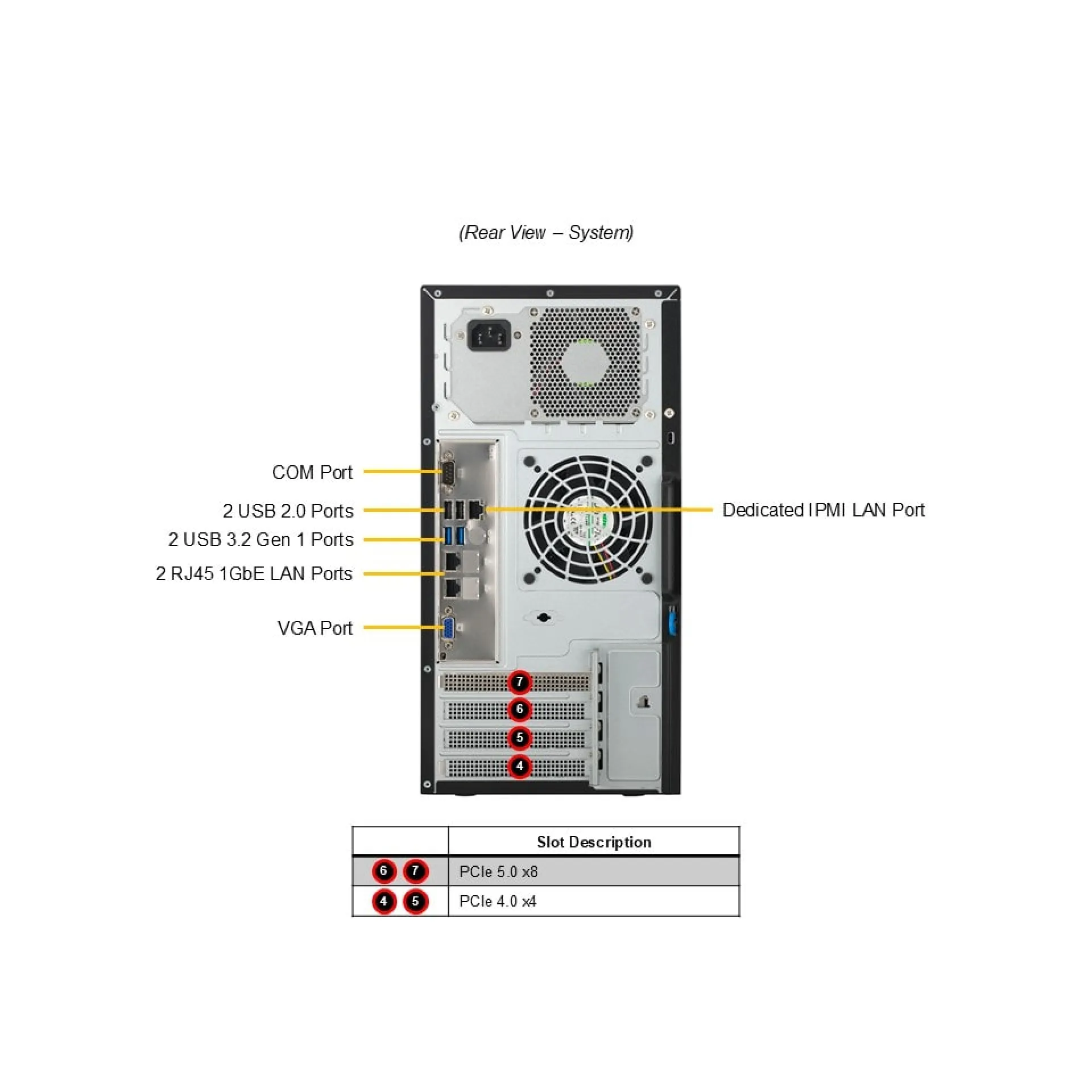

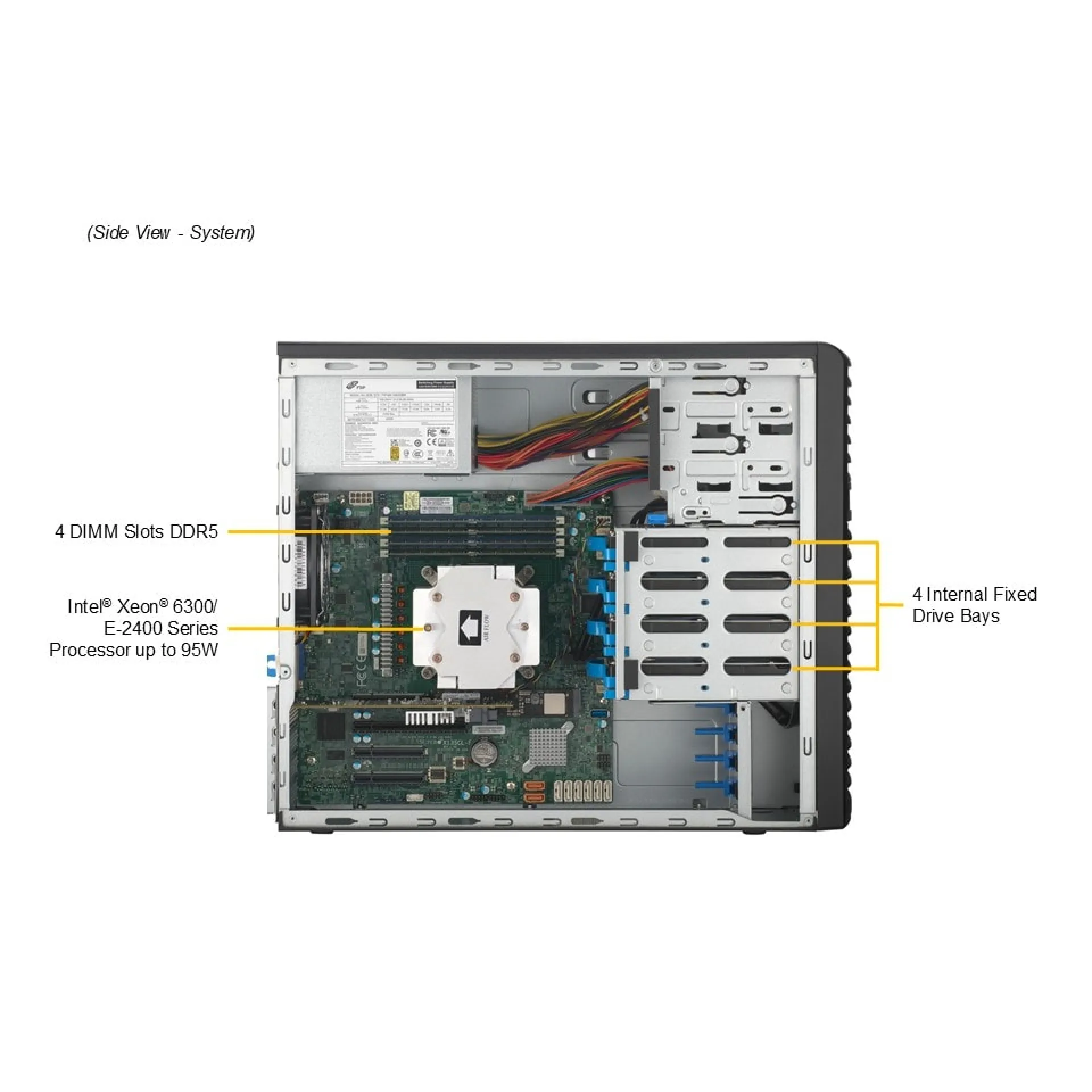

For memory integrity, SYS-531R-I Supermicro uses 4 DDR5 ECC UDIMM slots supporting up to 128GB, delivering low-latency capacity for CAD/EDA, light virtualization, and SMB server workloads without buffered-memory complexity. Expansion is optimized for accelerator and high-bandwidth I/O needs: two PCIe 5.0 x8 full-height full-length slots enable a double-width or single-width GPU, while additional PCIe Gen4 slots support capture, storage, or networking adapters. Storage design focuses on serviceable internal capacity with 4 x 3.5" SATA 6Gb/s bays and an M.2 PCIe Gen4 NVMe option for OS or cache separation.

Why Choose the SYS-531R-I Supermicro?

SYS-531R-I Supermicro combines workstation-class responsiveness with server-oriented manageability, delivering a high density-to-performance ratio for deskside, lab, and edge racks where space and power are constrained. Its balanced PCIe topology and ECC DDR5 profile support scalable growth from standalone engineering use to remote-managed branch infrastructure with consistent operational behavior.

Supermicro engineering emphasizes platform longevity, validated component interoperability, and data centre-aligned features such as IPMI/BMC remote management, TPM 2.0, and NIST 800-193 Silicon Root of Trust. SYS-531R-I Supermicro integrates these controls in a practical tower form factor suited to modern security and lifecycle requirements.

Key Applications:

• CAD/EDA and engineering workstations
• SMB file/print and line-of-business services
• Branch office virtualization and remote-managed edge
• Local backup and recovery repositories
• GPU-accelerated visualization

At Happyware Turkiye you benefit from deploying SYS-531R-I Supermicro with partner-grade procurement, configuration guidance for CPU, memory, storage, and PCIe expansion, and a reliable supply process aligned to enterprise rollout schedules for workstation, SMB server, and edge installations.
