SSG-621E-ACR12H | Supermicro Dual Xeon Scalable 4th Gen Xeon Scalable 5th Gen 2U Rack Server

High-Density 2U Enterprise Storage Server Architecture with the SSG-621E-ACR12H Supermicro

The SSG-621E-ACR12H Supermicro is a 2U dual-socket storage server barebone built on the Intel Xeon Scalable 5th/4th Gen platform (LGA4677, C741), targeting hybrid capacity tiers with deterministic I/O. It aligns CPU throughput, PCIe Gen5 expansion, and RAID-ready SAS connectivity to sustain database serving, iSCSI SAN building blocks, and high-throughput data staging.

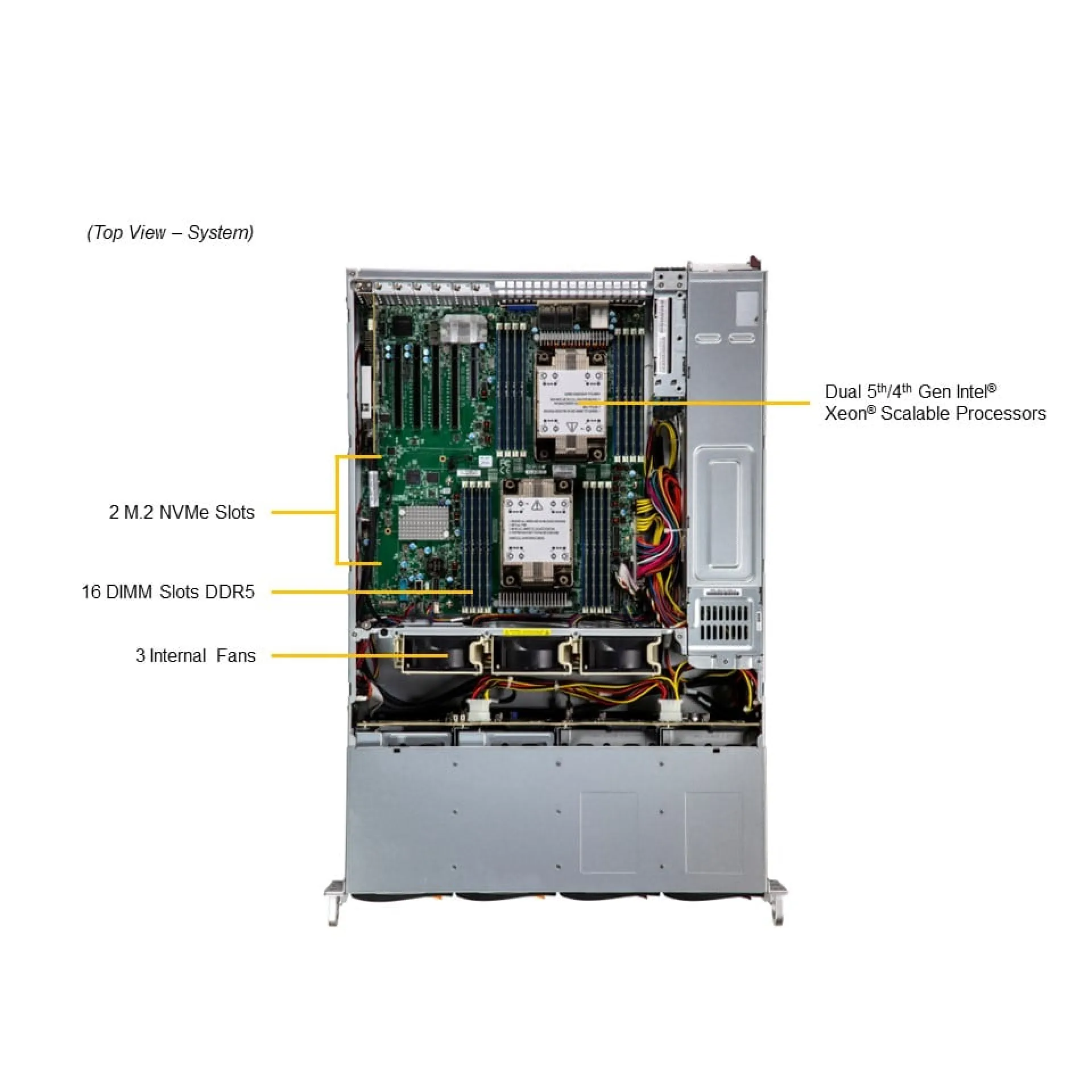

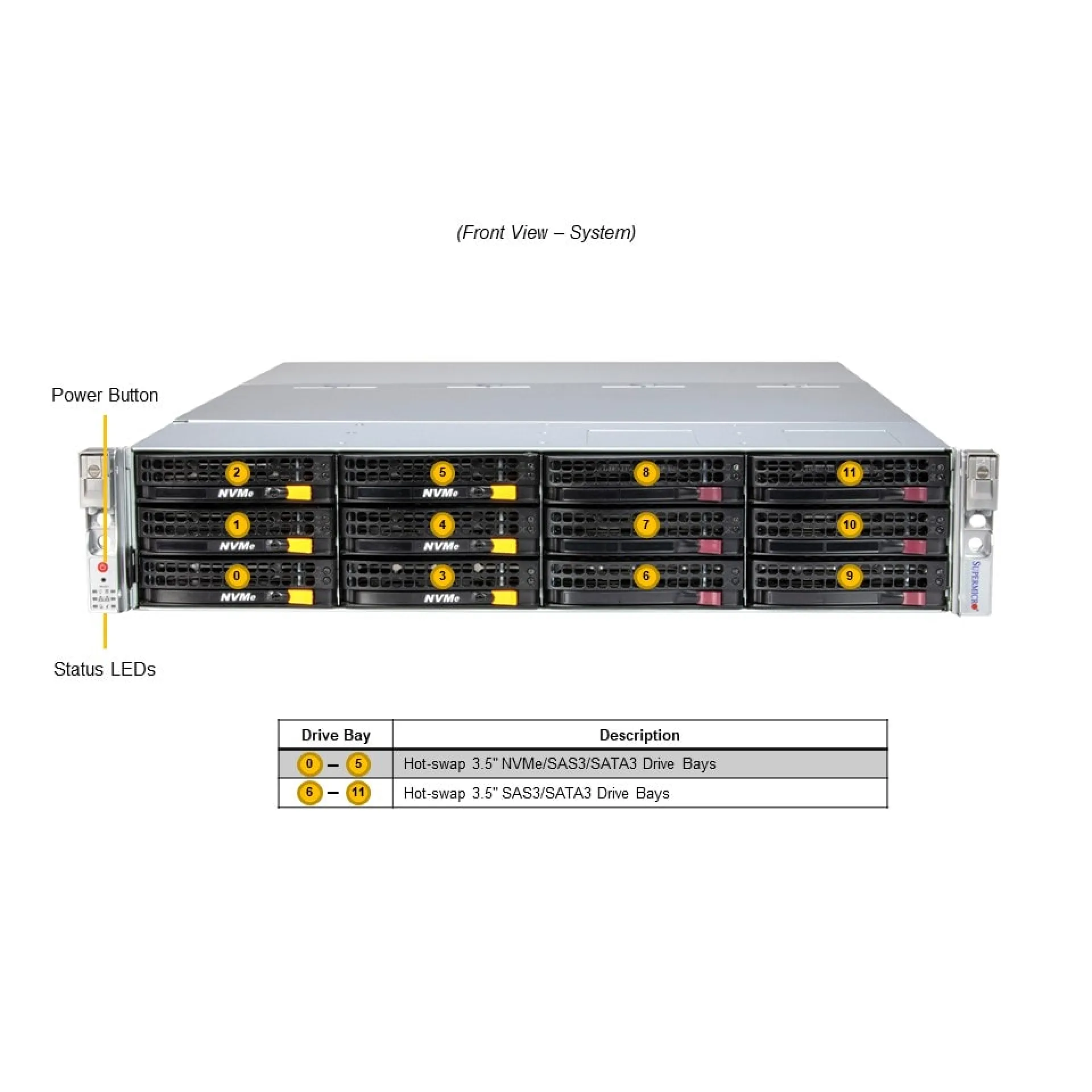

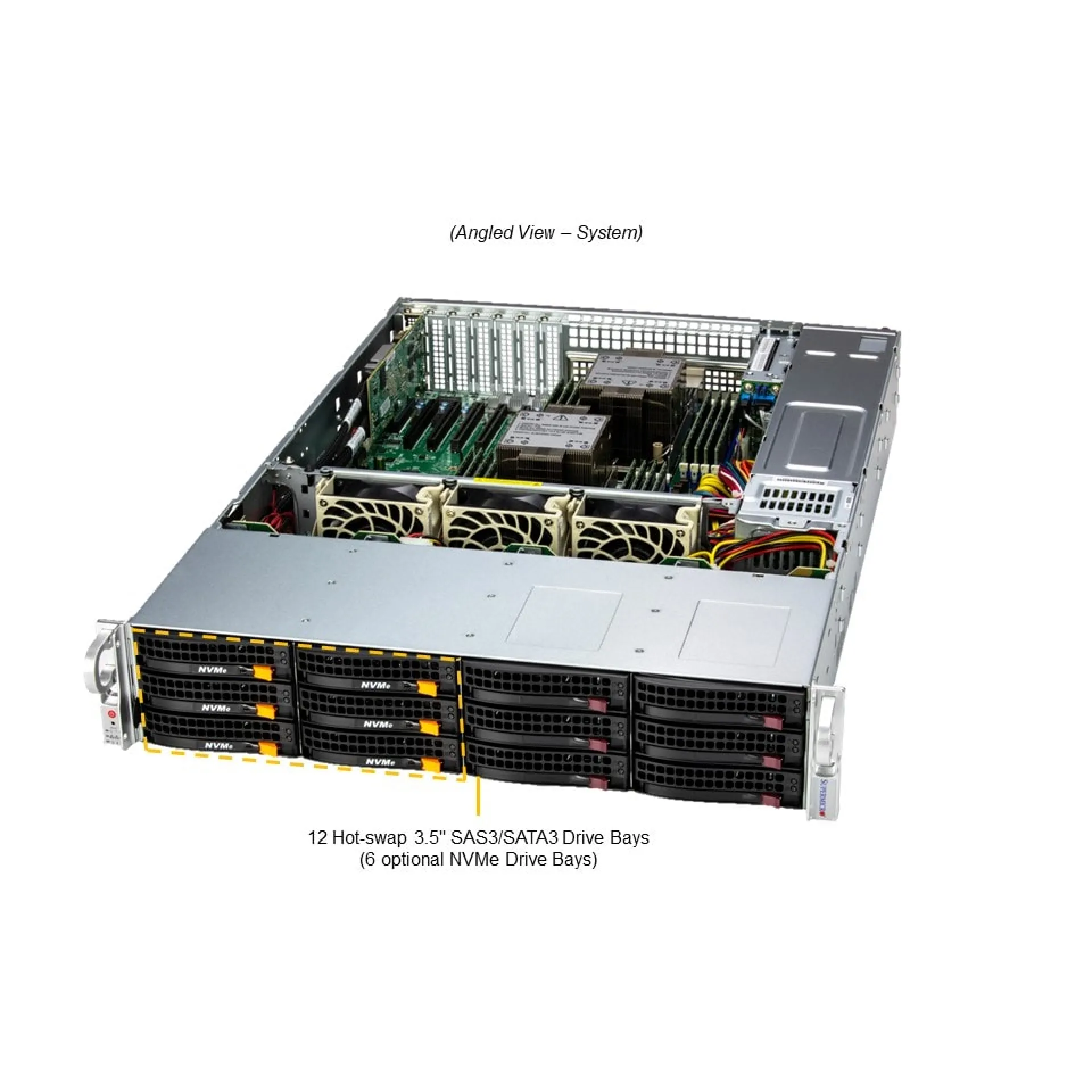

With 16 DDR5 ECC RDIMM slots supporting up to 4TB, the SSG-621E-ACR12H Supermicro provides a resilient memory footprint for caching, metadata-heavy datasets, and parallel ingest. The chassis combines 12 x 3.5-inch hot-swap SAS/SATA bays plus 2 x 2.5-inch hot-swap SATA bays, with configuration-dependent optional front NVMe support up to 6 drives to accelerate hot tiers while preserving economical capacity. Dual M.2 PCIe Gen4 NVMe enables isolated boot or mirrored OS, and PCIe Gen5 low-profile slots (4 x x16 and 2 x x8) support modern HBAs, NICs, or storage-class accelerators without GPU-mechanical constraints.

Why Choose the SSG-621E-ACR12H Supermicro?

The SSG-621E-ACR12H Supermicro is engineered for predictable density-to-performance in a 2U footprint, pairing dual 270W-class CPU headroom with a bay layout optimized for RAID-protected SAS/SATA datasets and selective NVMe acceleration. It scales cleanly in clustered storage and SDS deployments while maintaining serviceability through hot-swap drive access and redundant power.

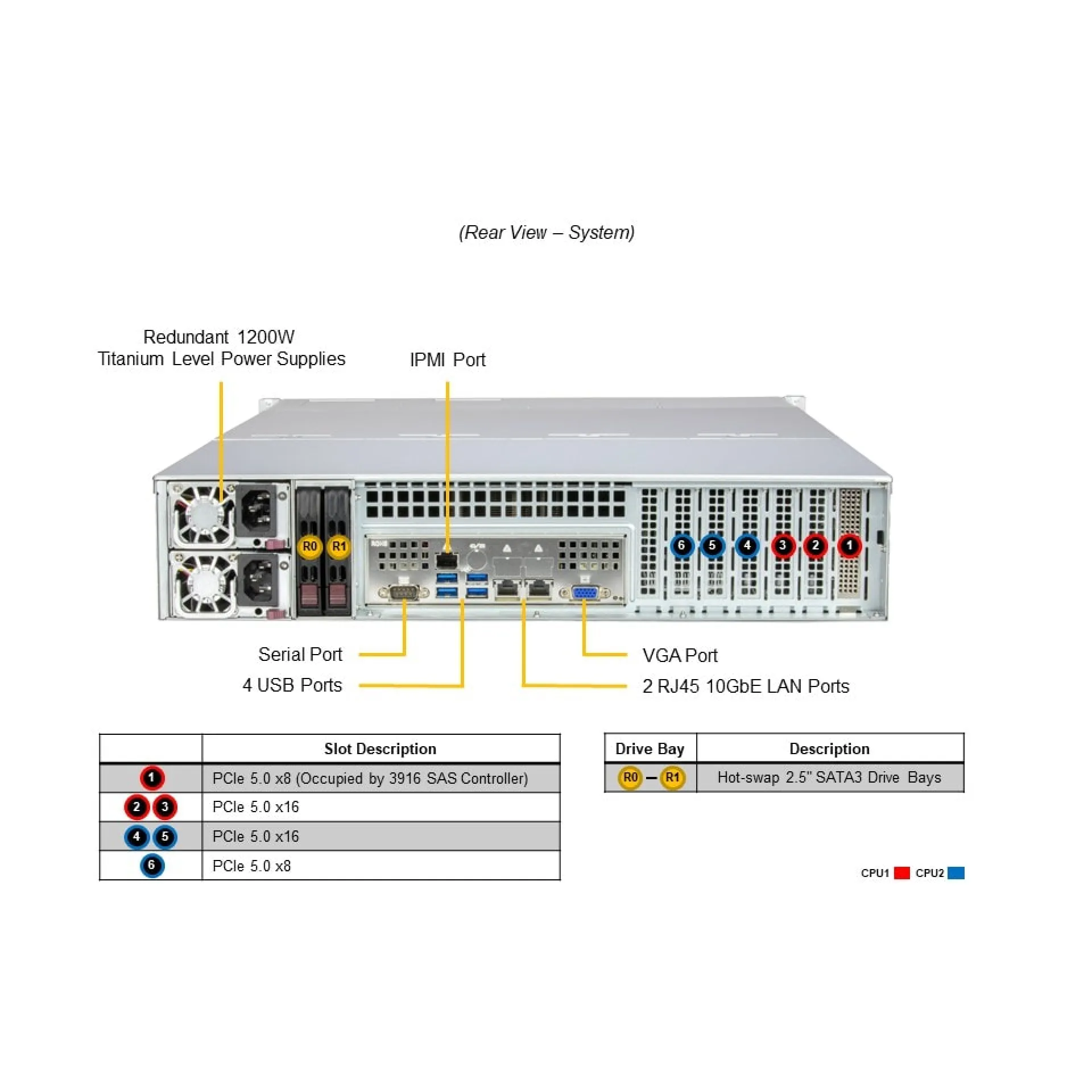

Supermicro designs this platform around data centre operability: IPMI/BMC remote management, AMI UEFI, and enterprise security with TPM 2.0 and silicon Root of Trust for signed firmware, secure boot, and recovery. The SSG-621E-ACR12H Supermicro also integrates 2 x 10GbE for storage traffic and a dedicated management port to separate control and data planes.

Key Applications:

• SAS/SATA RAID-protected storage tiers
• iSCSI SAN and software-defined storage nodes
• Database and data serving
• HPC data staging and ingest
• Backup and archival repositories

At Happyware Turkiye you benefit from efficient procurement of the SSG-621E-ACR12H Supermicro with pre-sales configuration guidance, compatibility-checked component selection, and reliable project delivery for enterprise storage rollouts and scale-out deployments.
