SSG-621E-ACR12L | Supermicro Dual Xeon Scalable 4th Gen Xeon Scalable 5th Gen 2U Rack Server

High-Density 2U Enterprise Storage Server featuring dual-socket Intel Xeon Scalable and PCIe Gen5 expansion with the SSG-621E-ACR12L Supermicro

The SSG-621E-ACR12L Supermicro is a 2U rack storage server barebone engineered as a scalable building block for iSCSI/SAN, file, and object storage tiers that require balanced CPU throughput and high drive density. It supports dual 5th/4th Gen Intel Xeon Scalable processors on the LGA4677 platform, enabling high core counts for storage services, compression, encryption, and database-adjacent data serving while keeping latency predictable under mixed workloads.

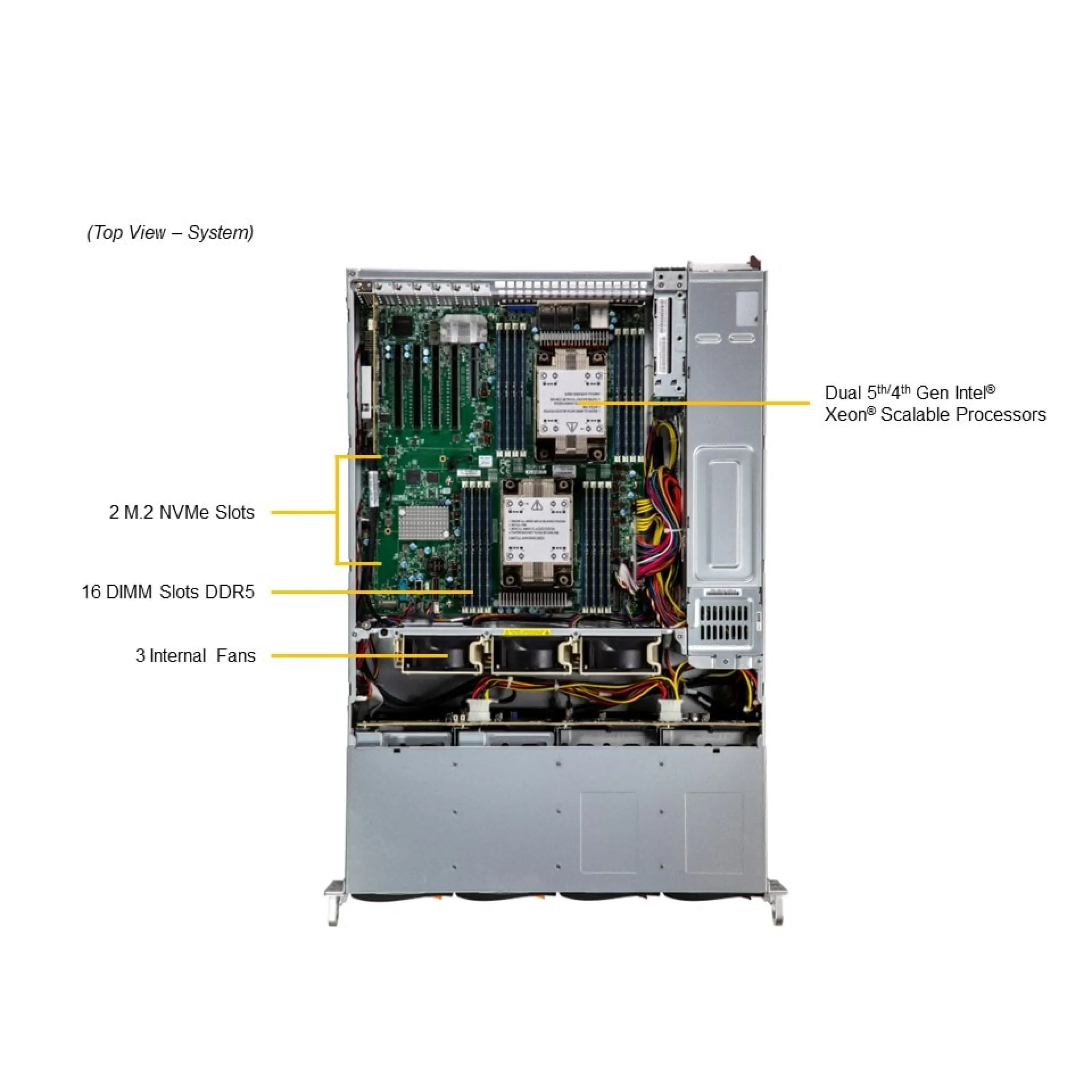

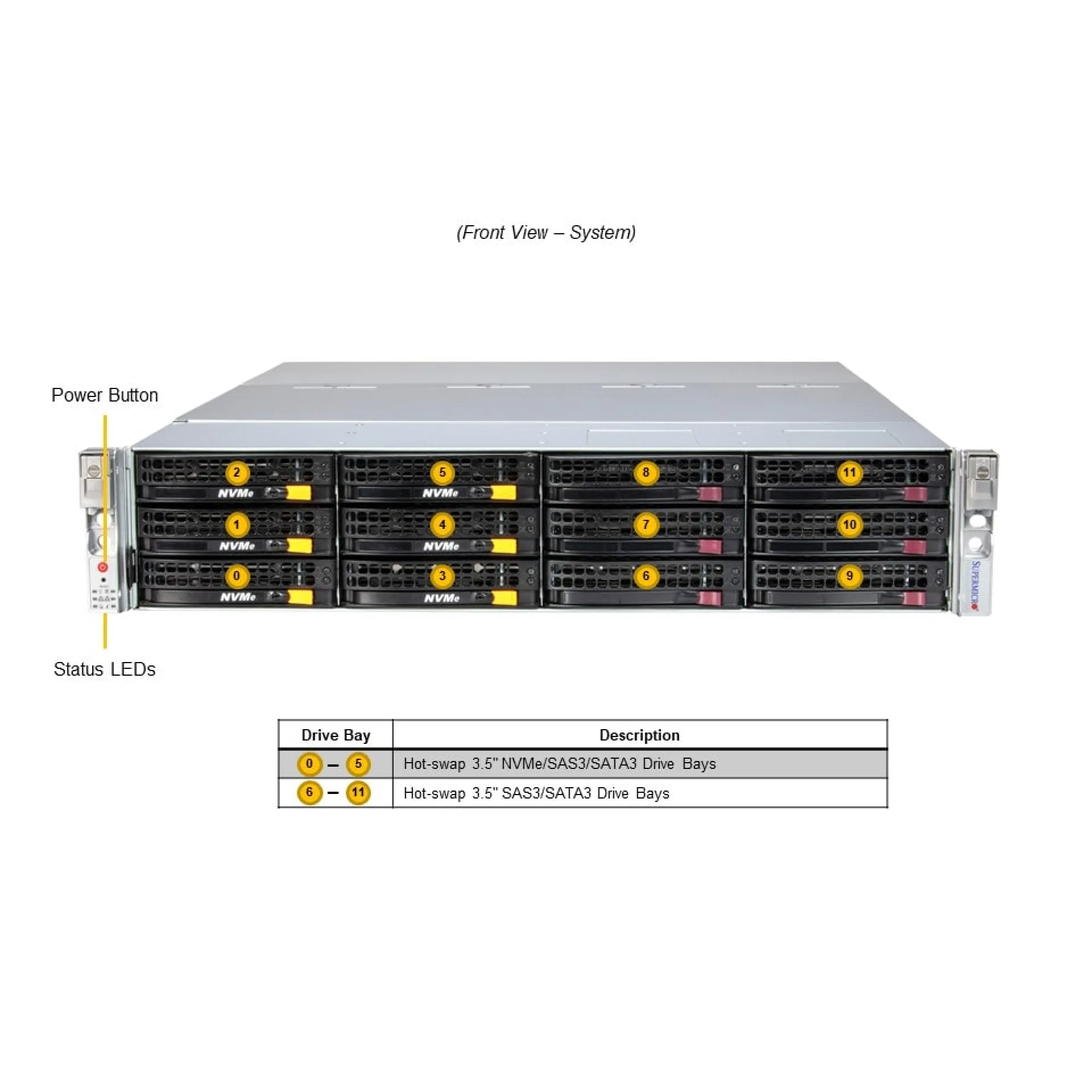

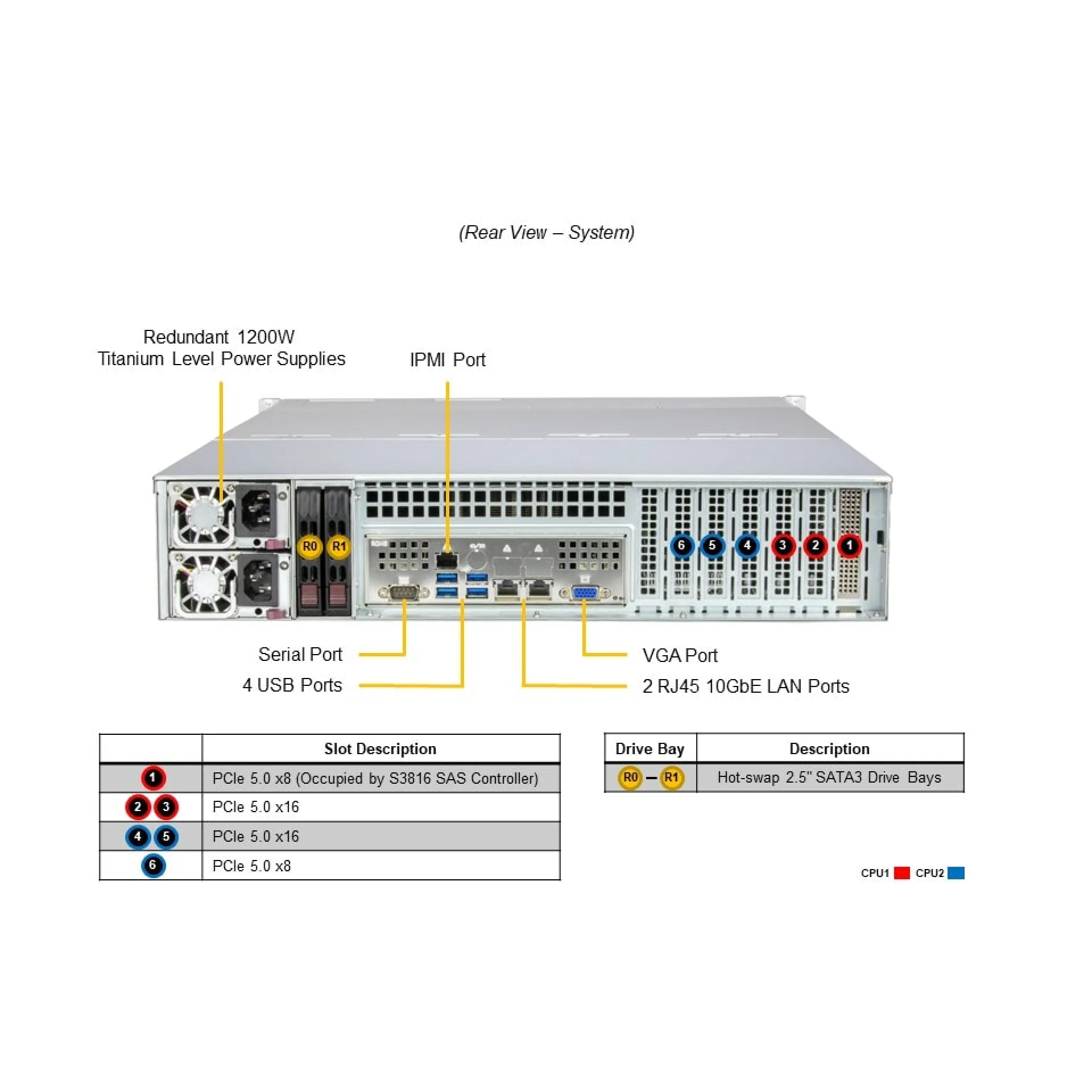

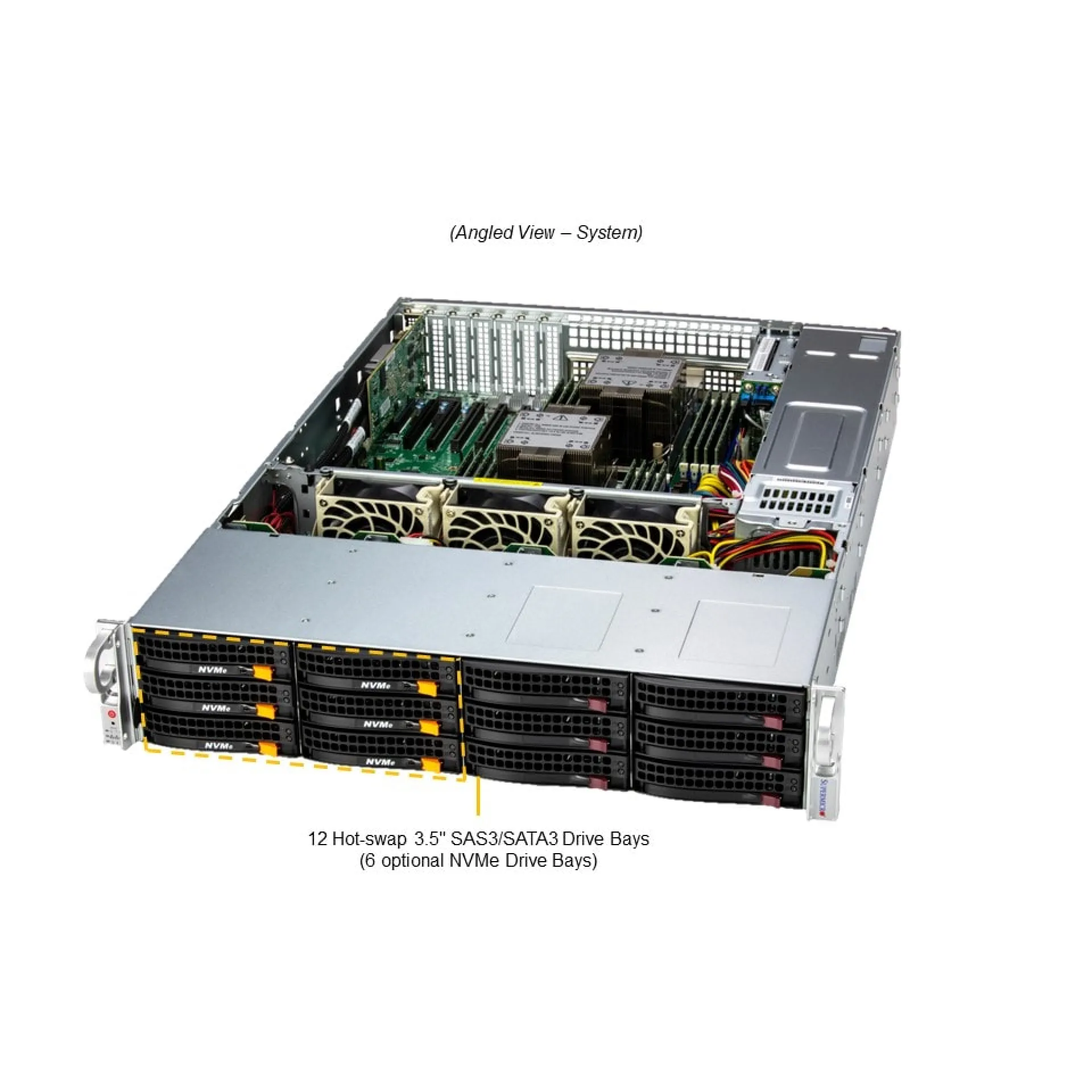

With 16 DDR5 ECC RDIMM slots and up to 4TB capacity, the SSG-621E-ACR12L Supermicro sustains large page cache footprints and metadata-heavy operations. Storage architecture centers on 12 hot-swap 3.5-inch SAS/SATA bays, with optional PCIe 5.0-ready NVMe front bay configurations for tiering or high-IOPS journals, plus 2 additional 2.5-inch SATA hot-swap bays and dual M.2 PCIe Gen4 NVMe for boot. PCIe Gen5 low-profile expansion provides multiple x16 and x8 electrical slots for HBAs, RAID controllers, and high-speed networking to match target fabrics.

Why Choose the SSG-621E-ACR12L Supermicro?

The SSG-621E-ACR12L Supermicro delivers a strong density-to-performance ratio for enterprise storage nodes by combining dual-socket compute, large DDR5 memory headroom, and flexible SAS/SATA plus optional NVMe front-end layouts. Redundant Titanium-rated power, hot-swap serviceability, and secure platform features support repeatable deployment at scale across clustered storage designs.

Supermicro engineering emphasizes modular platform consistency, validated server subsystems, and data center-aligned manageability. Integrated BMC/IPMI remote management, TPM 2.0, Silicon Root of Trust, Secure Boot, and signed firmware workflows help administrators standardize lifecycle control for the SSG-621E-ACR12L Supermicro in regulated environments.

Key Applications:

• iSCSI/SAN storage nodes
• File and object storage
• Database processing and data serving
• HPC and Big Data ingest/staging
• Data lake capacity nodes

At Happyware Turkiye you benefit from streamlined B2B procurement for the SSG-621E-ACR12L Supermicro, with solution-focused pre-sales guidance on controller, networking, and drive-tier configurations, plus reliable fulfillment and responsive enterprise support to accelerate deployment into your rack standards.
