Supermicro SYS-741P-TR
Supermicro SYS-741P-TR Teknik Özellikleri
SKU Overview | ||
---|---|---|
SYS-741P-TR | Dual Intel Xeon Scalable 5th/4th Gen CPU, 8x 3.5" hot-swap drive bays, 6x PCIe (FHFL), 2x 1GbE LAN, 2x 1200W redundant PSUs | |
Processor/Cache | ||
CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | |
Note | Supports up to 300W TDP CPUs (Air Cooled) |
System Memory | |
---|---|

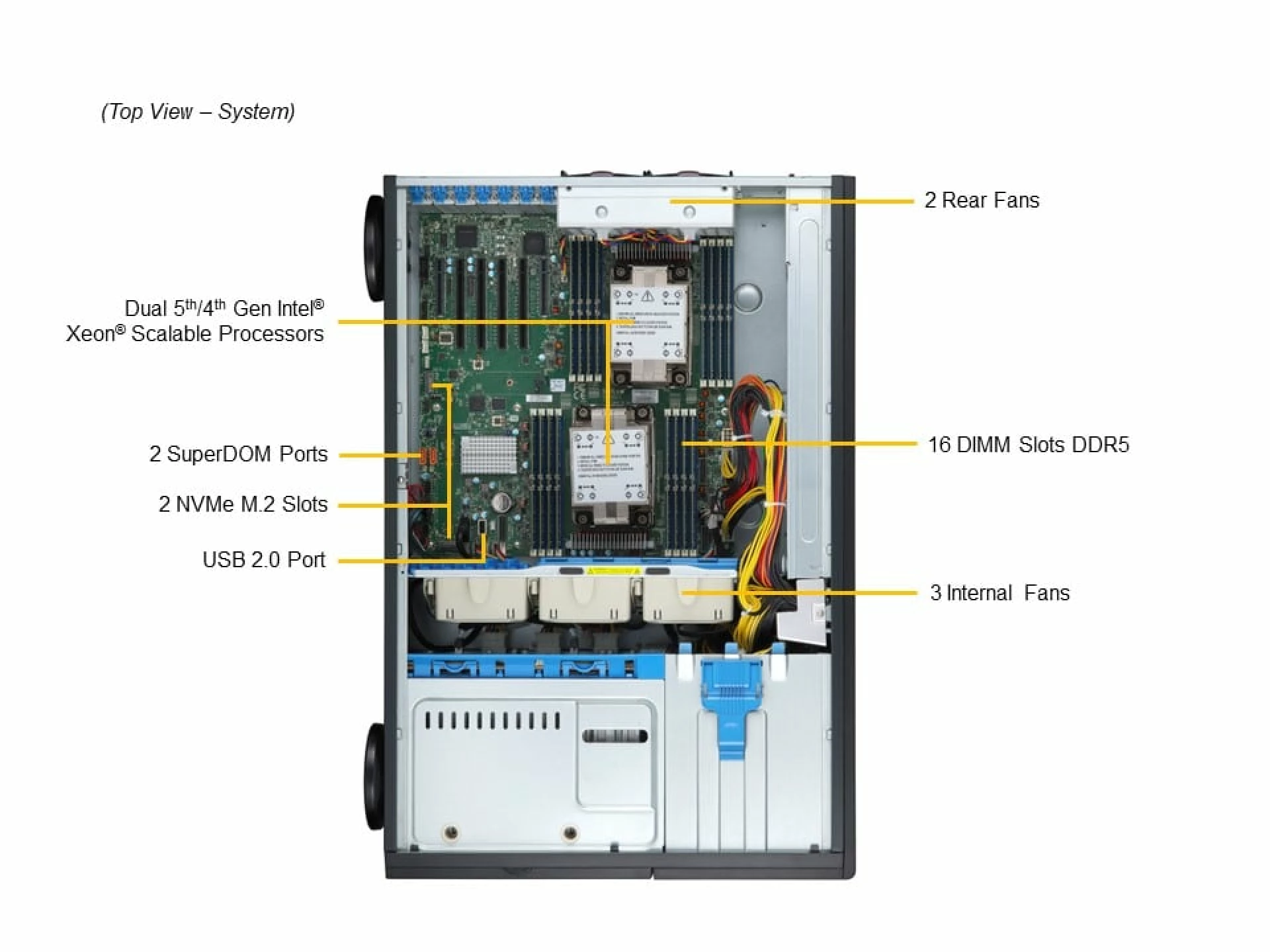

Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
On-Board Devices | |
---|---|
SATA | SATA (6Gbps) |
Chipset | Intel® C741 |
Network Connectivity | 2 RJ45 1GbE |
NVMe | - |
Input / Output | |
---|---|
LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
USB | 2 USB 3.0 ports (front) 4 USB 3.0 ports (rear) |
Video | 1 VGA port |
Serial | 1 COM port (Rear) |
DOM | 2 SuperDOM (Disk on Module) ports |
TPM | 1 TPM Onboard/port 80 |
System BIOS | |
---|---|
BIOS Type | AMI 32MB SPI Flash EEPROM |
Management | |
---|---|
Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
Power Configurations | ACPI/APM Power Management |
Security | |
---|---|
Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
PC Health Monitoring | |
---|---|
CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Chassis | |
---|---|
Form Factor | Tower/4U |
Model | CSE-745BTS-R1K23BP |
Dimensions and Weight | |
---|---|
Height | 45.21cm (452 mm) |
Width | 17.78cm (178 mm) |
Depth | 64.77cm (647 mm) |
Package | 62.48cm (H) x 35.56cm (W) x 79.50cm (D) |
Weight | Gross Weight: 73.5 lbs (33.9 kg) Net Weight: 56 lbs (25.9 kg) |
Available Color | Black |

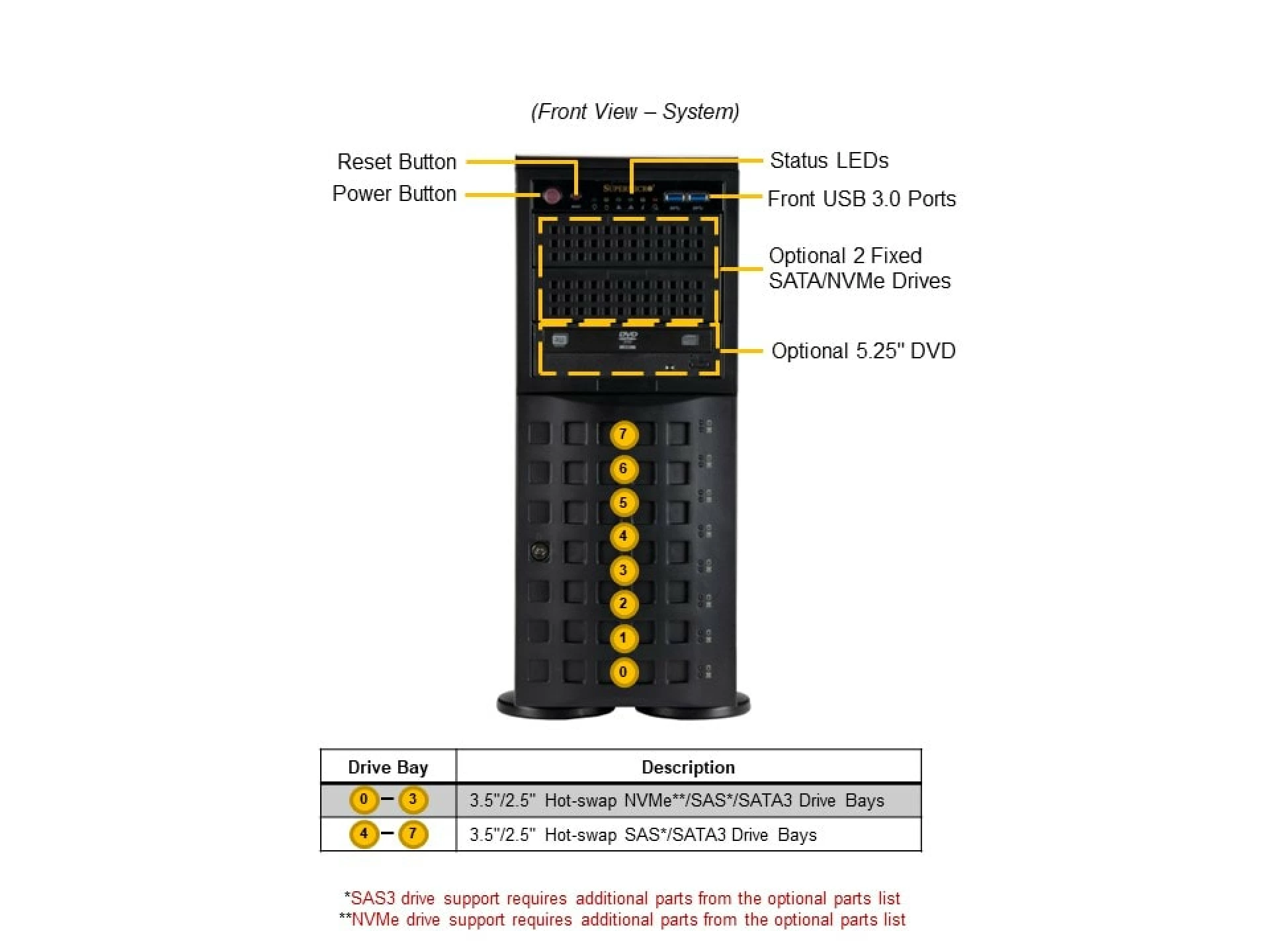

Front Panel | |
---|---|
LEDs | HDD activity Network activity Power status System information (overheat/UID) |
Buttons | Power On/Off System Reset |
Expansion Slots | |
---|---|

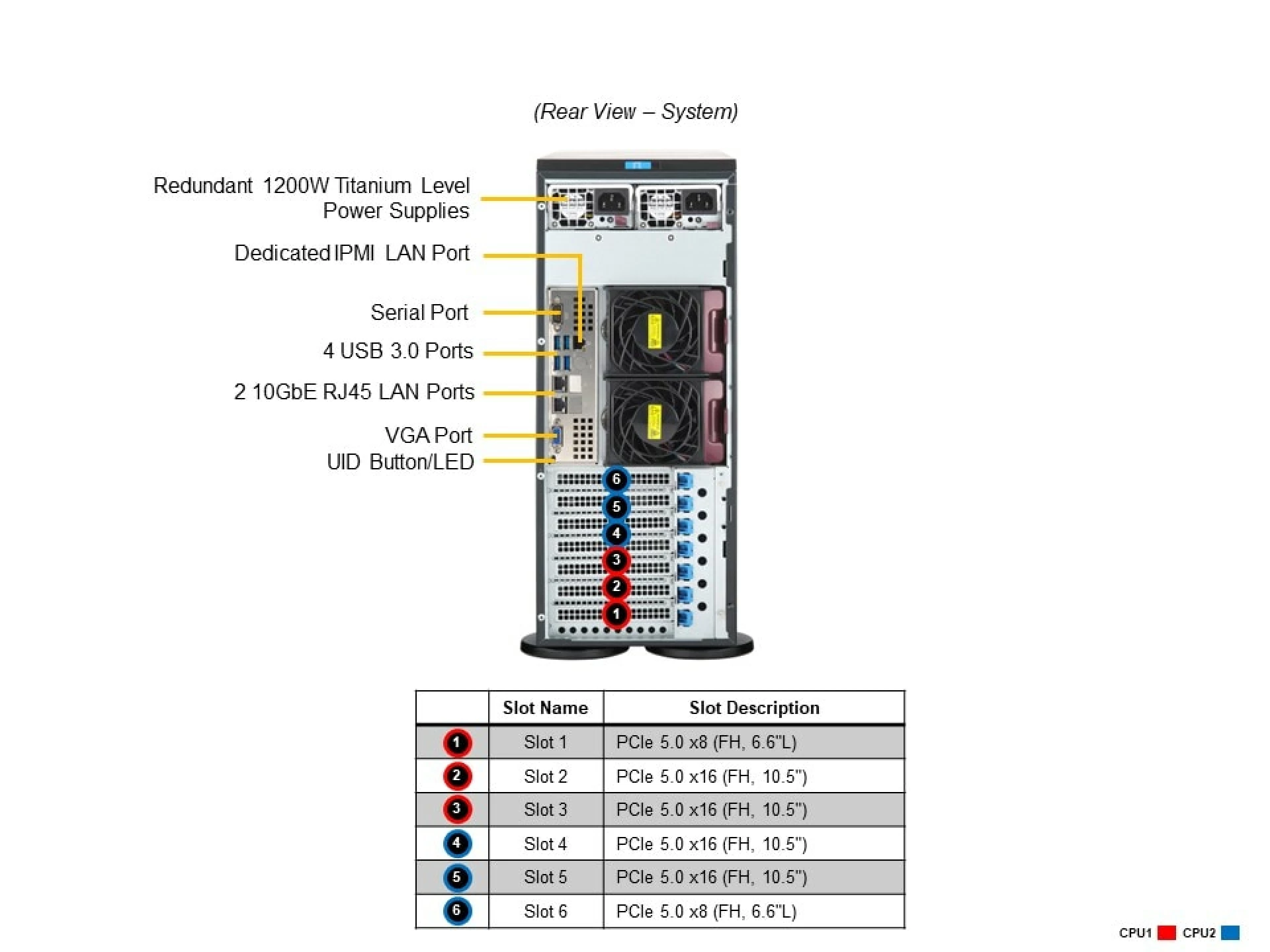

PCI-Express | Default 2 PCIe 5.0 x8 FHFL slots 4 PCIe 5.0 x16 FHFL slots |
Storage | |
---|---|

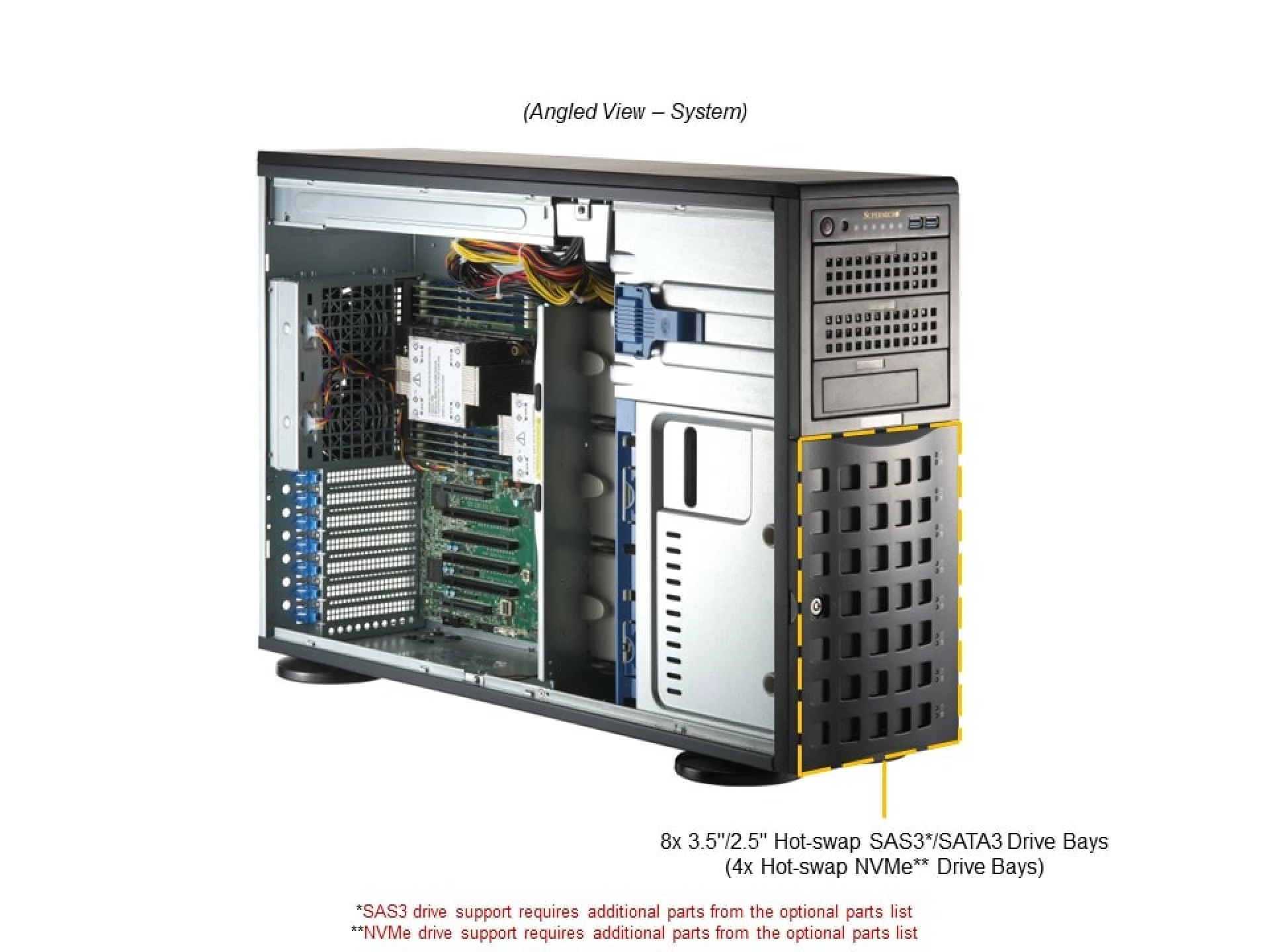

Drive Bays | Default: Total 8 bays 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5" SAS*/SATA drive bays |
M.2 | 2 M.2 NVMe slot, M-Key |
Peripheral Bays | 3x 5.25" DVD bays (optional) |
System Cooling | |
---|---|
Fans | 2 rear Fans 3 middle Fans |
Power Supply | |
---|---|
2x 1200W Redundant Titanium Level (96%) power supplies | |
Dimension (W x H x L) | 76 x 40 x 336 mm |
AC Input | 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) |
+12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) |
5V SB | Max: 4A / Min: 0A |
Output Type | Backplanes (Gold Finger) |
Certification | Titanium Level |
Operating Environment | ||
---|---|---|
ROHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
Order Information | ||
---|---|---|
Manufacturer SKU | SYS-741P-TR | |
System Building | SYS-741P-TR can be configured individually |
Supermicro SYS-741P-TR Nitelikleri
Add-on card form factor: | FH, HH |
---|---|
Applications: | Application and data serving, Compute Intensive Applications, Enterprise Server, Virtualization |
Backplane: | Yes |
Backplane Interface: | PCIe Gen 5, SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
Bluetooth Support: | None |
CPU Codename: | Emerald Rapids, Sapphire Rapids |
CPU Manufacturer: | Intel |
CPU Socket: | 4677 |
Card Reader Support: | No |
Certification: | 80 Plus Titanium |
Chassis Intrusion: | No |
Computer group: | Server |
Design: | Rackmount/Tower |
Front I/O: | LED Indicators, USB Type-A |
Height units: | 4U |
HotSwap/Fixed Drives: | Yes |
HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
IPMI / BMC: | Yes |
Lighting: | LED |
Motherboard Chipset: | C741 |
Number of CPU sockets: | No |
Number of RAM Pins: | 288 |
Number of RAM Slots: | N/A |
Onboard Graphic: | No |
Onboard LAN: | No |
Onboard Network Speed: | 1 Gb/s |
PSU Power Wattage: | 1200W |
Performance Class: | Enterprise-Class, High-End |
Power Supply Cooler: | No |
Pre-installed Components: | None |
Pre-installed Software: | Windows 10, Windows 11, Windows Server |
Product Model: | 741P-TR |
Quantity of Cooler: | 5 |
Quantity of Power Supplies: | 2 |
RAID Support: | No |
RAM DIMM Type: | RDIMM |
RAM ECC: | ECC |
RAM registered/unregistered: | Registered |
Redundant power: | Yes |
Server Fanless: | No |
Special Features: | LEDs |
Specific Ports: | M.2 Ports, NVMe Ports, SAS Ports, SATA Ports, U.2 Ports, USB Ports, VGA Ports |
Suitability: | Server |
Use case: | Application Hosting, Database Server, Virtualization |
Wi-Fi Support: | None |
iGPU Manufacturer: | N/A |
