SYS-E201-14AR | Supermicro Single Ultra 5 Ultra 7 Ultra 9 Mini-ITX

High-Density Embedded Edge AI and Analytics System with Intel Core Ultra Series 2 using the SYS-E201-14AR Supermicro

The SYS-E201-14AR Supermicro is a compact Mini-ITX embedded edge system designed around Intel Core Ultra 5/7/9 Series 2 (Arrow Lake, LGA1851) on the W880 chipset, targeting space-constrained enterprise deployments that require local compute, rich display I/O, and deterministic network connectivity. With up to a 65W CPU envelope and up to 24 cores, the SYS-E201-14AR Supermicro aligns to edge AI inference, on-prem analytics, and multi-stream media endpoints where CPU efficiency and platform I/O matter more than discrete GPU expansion.

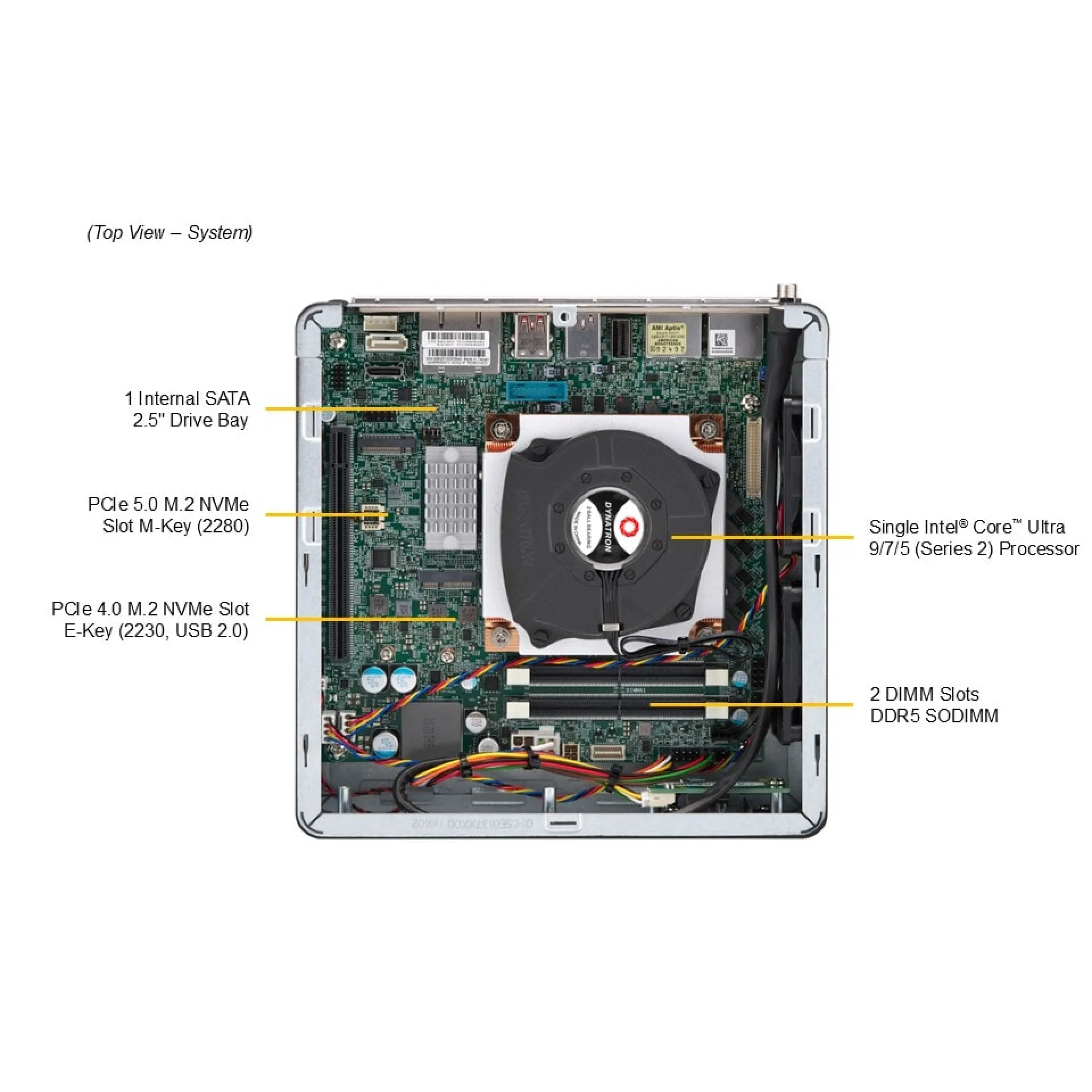

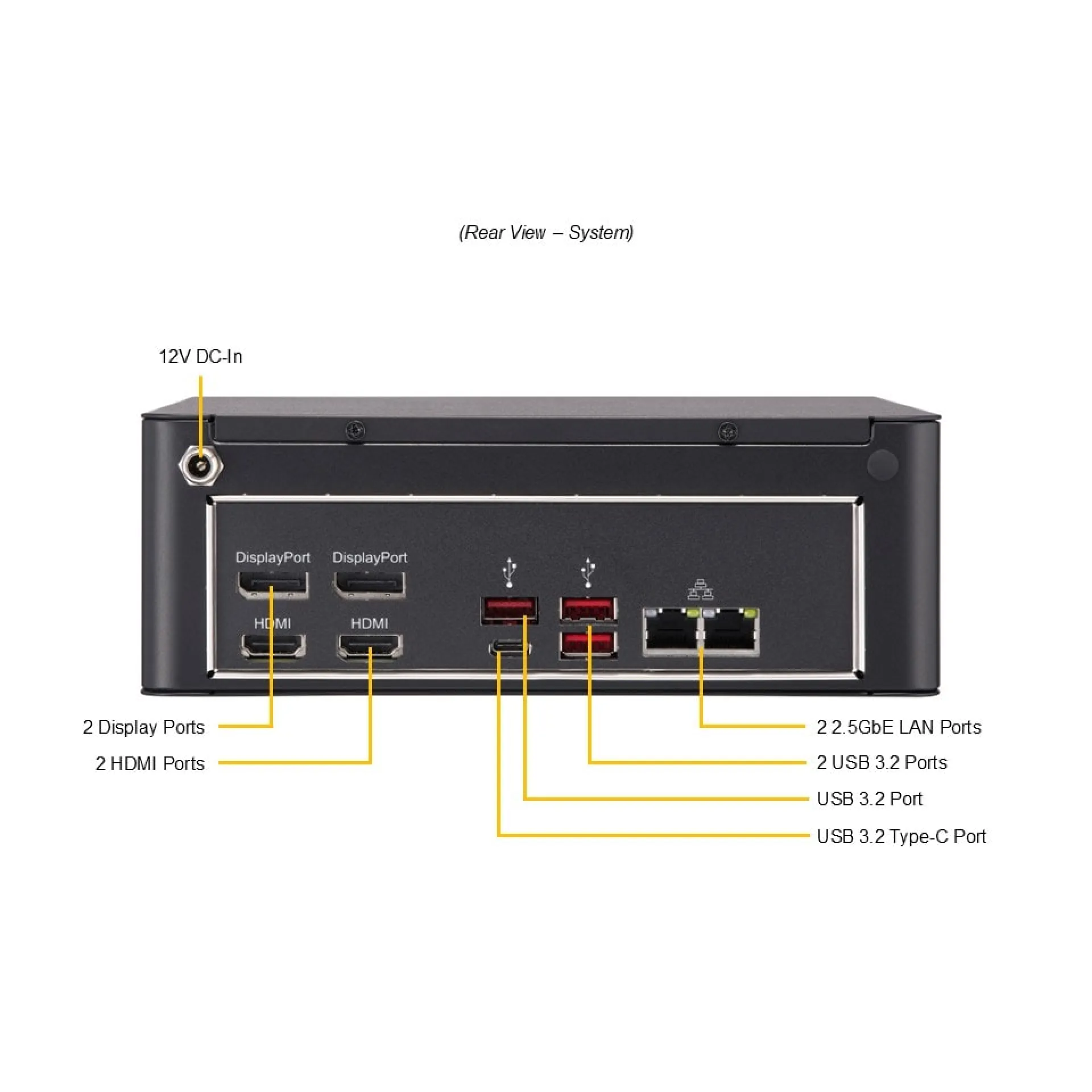

Memory is optimized for edge reliability and bandwidth with 2x DDR5 SO-DIMM supporting ECC or non-ECC up to 96GB and up to 6400MT/s, enabling higher in-memory caching and low-latency preprocessing. Storage architecture combines a fixed internal 2.5" SATA bay for cost-efficient capacity and an M.2 2280 M-Key NVMe device on PCIe Gen5 x4 for high-IOPS telemetry, model artifacts, or fast local datasets. Expansion via M.2 2230 E-Key (PCIe Gen4 x1) supports WLAN or dedicated I/O modules, while dual Intel I226 2.5GbE ports provide segmented uplinks for OT/IT separation or resilient aggregation.

Why Choose the SYS-E201-14AR Supermicro?

The SYS-E201-14AR Supermicro delivers a balanced density-to-performance profile for edge racks, cabinets, kiosks, and micro data centre nodes, combining modern PCIe Gen5 NVMe throughput with dual 2.5GbE and multi-display outputs. The SYS-E201-14AR Supermicro is suited to standardized rollouts where consistent platform behavior, TPM 2.0-based trust, and straightforward serviceability are priorities over BMC-managed fleets.

Supermicro engineering focuses on practical platform integration, ensuring the SYS-E201-14AR Supermicro supports enterprise deployment standards through validated component interoperability, stable firmware baselines, and chassis designs optimized for continuous operation in constrained environments.

Key Applications:

• Edge AI inference gateways
• Industrial IoT data acquisition and analytics
• Digital signage and kiosk controllers
• Video processing and streaming endpoints
• Branch-office compute and security appliances

At Happyware Turkiye you benefit from procurement-ready quoting, technically accurate configuration guidance for the SYS-E201-14AR Supermicro, and dependable B2B fulfillment aligned to enterprise rollout schedules and documentation requirements.
