G493-SB0-AAP1 | Gigabyte Dual Xeon Scalable 4th Gen Xeon Scalable 5th Gen Xeon CPU Max 4U Rack Server
Fiyat sor ↓
Fiyatlar hariç. KDV artı nakliye masrafları
Gigabyte G493-SB0-AAP1
6NG493SB0DR000AAP1 Gigabyte ile PCIe Gen5 Hızlandırmalı Yüksek Yoğunluklu 4U GPU Sunucu Barebone
6NG493SB0DR000AAP1 Gigabyte, AI eğitimi, çıkarım ve HPC hızlandırması için öngörülebilir ölçeklendirme ihtiyacı duyan işletmeler için tasarlanmış 4U, 1 düğümlü bir GPU sunucu barebonudur. Intel C741 platformu üzerinde çift LGA4677 soketle inşa edilmiştir ve 4. ve 5. Nesil Intel Xeon Scalable işlemcileri veya Xeon CPU Max işlemcilerini destekleyerek veri hazırlama, boru hattı orkestrasyonu ve karma hesaplama iş akışları için dengeli CPU-GPU oranları sağlar.
6NG493SB0DR000AAP1 Gigabyte'ın bellek alt sistemi, 32 DIMM yuvası ile 8 kanallı mimari üzerinden DDR5 RDIMM ECC kullanır; bu da büyük model parametreleri, bellek içi analizler ve VM konsolidasyonu için 8TB'a kadar yüksek kapasiteli çözümler sunar. G/Ç için, 8 PCIe Gen5 x16 FHFL yuvası, tam bant genişliğinde GPU bağlantısını iki CPU arasında eşit şekilde paylaşırken, ön sıcak takas tasarımı, yüksek IOPS veri setlerini kapasite katmanları ve kontrol noktası depolarından ayırmak üzere 8 Gen5 NVMe/SATA yuvası ile 4 ek SATA yuvasını birleştirir.
Neden 6NG493SB0DR000AAP1 Gigabyte'ı Tercih Etmelisiniz?
6NG493SB0DR000AAP1 Gigabyte, çift soket işlemci, PCIe Gen5 genişletme ve sıcak takas servis kolaylığını tek bir 4U düğümde birleştirerek güçlü yoğunluk ve performans dengesi sunar. Yedekli 3+1 Titanium güç kaynağı ve BMC tabanlı uzaktan yönetim, güvenilir ölçeklenebilir dağıtımları desteklerken, platformun dengeli lane topolojisi ve depolama esnekliği AI ve HPC kümelerinde standartlaştırmayı basitleştirir.
Gigabyte, bu sistemi veri merkezi operasyonel sürekliliği göz önünde bulundurarak tasarlamış, doğrulanmış sunucu platformlarını, AST2600 BMC üzerinden tutarlı uzaktan yönetimi (IPMI/HTML5 KVM ile) ve TPM desteği, RAID seçenekleri ve özel yönetim ağı gibi modern güvenlik ve kullanılabilirlik uygulamalarını entegre etme konularında hassasiyet göstermiştir.
Ana Uygulamalar:
- AI eğitim ve çıkarım kümeleri
- HPC simülasyon ve modelleme
- GPU hızlandırmalı görselleştirme
- Büyük bellek ayak izine sahip sanallaştırma
- Veri ön işleme ve ETL boru hatları
Happyware Türkiye'de 6NG493SB0DR000AAP1 Gigabyte konfigürasyonları için tedarik rehberliği, GPU, depolama ve ağ bileşenleri için hızlı uyumluluk teyidi ve işletme dağıtım takvimleri ile uyumlu güvenilir bir B2B teslimat sürecinden faydalanırsınız.
Gigabyte G493-SB0-AAP1 Teknik Özellikleri
| Dual Intel Xeon Scalable 5th/4th Gen CPU, 12x 3.5"/2.5" hot-swap drive bays, 8x PCIe (FHFL) for GPUs, 4x 3000W redundant PSUs |
| Dimensions (WxHxD, mm) | 4U 448 x 176 x 880 |
|
| Motherboard | MSB3-G40 | |
| CPU | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, CPU TDP up to 350W Note: If only 1 CPU is installed, some PCI-E or memory functions might be unavailable |
|
| Socket | 2 x LGA 4677 Socket E |
|
| Chipset | Intel® C741 Chipset | |
| Memory | 32 x DIMM slots DDR5 memory supported only 8-Channel memory architecture RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported 5th Gen Intel® Xeon®: Up to *5600MHz (1DPC), 4400MHz (2DPC) 4th Gen Intel® Xeon®: Up to 4800MHz (1DPC), 4400MHz (2DPC) Intel® Xeon® Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC) *5600MHz support under 2DPC configuration requires verified memory and BIOS setup. |
|
| LAN | Front side: 2 x 10Gb/s BASE-T LAN ports (1 x Intel® X710-AT2) NCSI function supported 1 x 10/100/1000 management LAN |
|
| Video | Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
|
| Storage | Front side: 8 x 3.5"/2.5" Gen5 NVMe/SATA hot-swappable bays 4 x 3.5"/2.5" SATA hot-swappable bays - (4 x NVMe from CPU_0, 4 x NVMe from CPU_1) |
|
| SAS | N/A | |
| RAID | Intel® SATA RAID 0/1/10/5 | |
| Expansion Slots | 4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs 4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs - System is validated for population with a uniform GPU model - Support is not provided for mixed GPU populations 1 x M.2 slot: - M-key - PCIe Gen3 x1, from PCH - Supports 2280/22110 cards |
|
| Internal I/O | 1 x TPM header 1 x VROC connector |
|

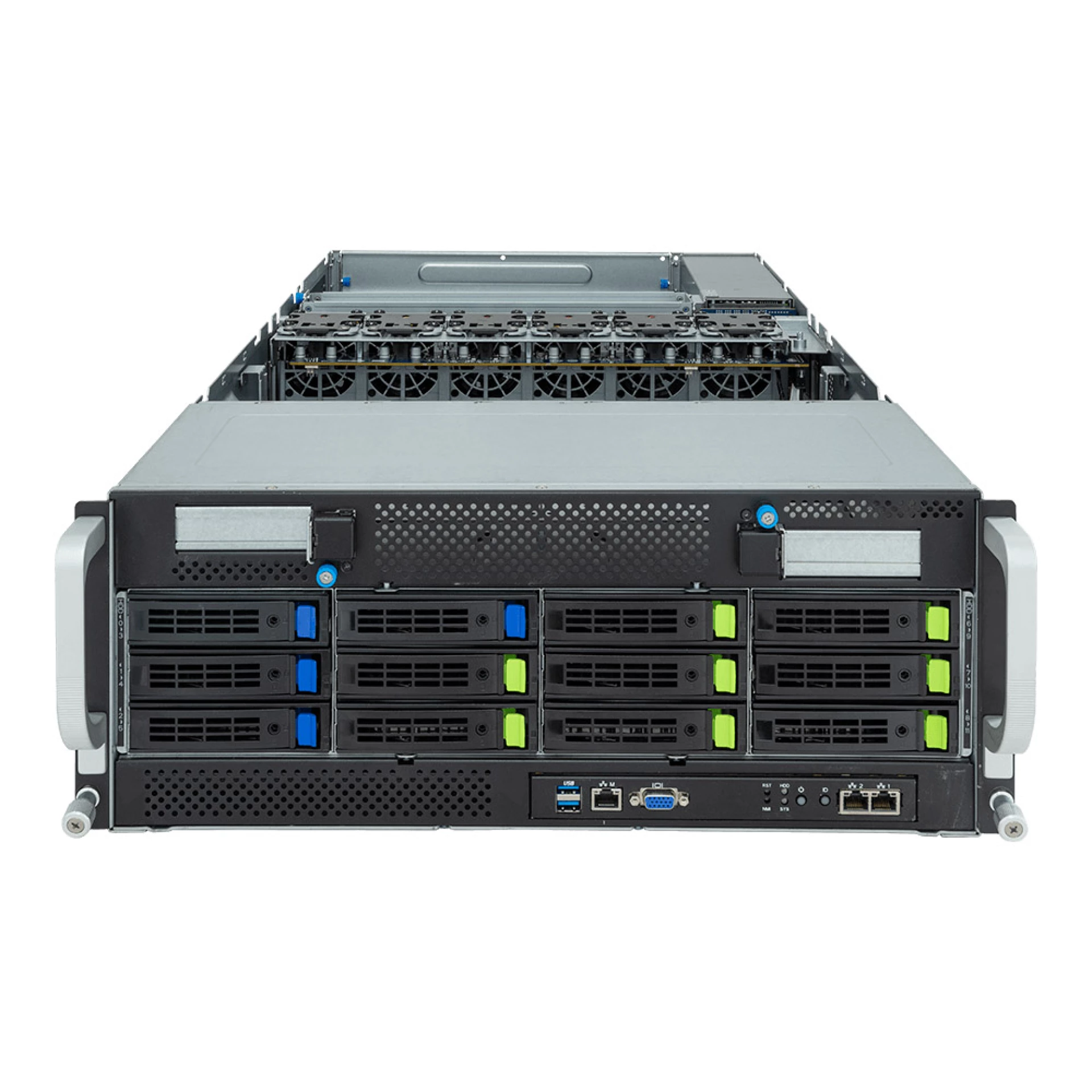

| Front I/O | 2 x USB 3.2 Gen1 1 x VGA 2 x RJ45 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED 1 x HDD access LED |
|

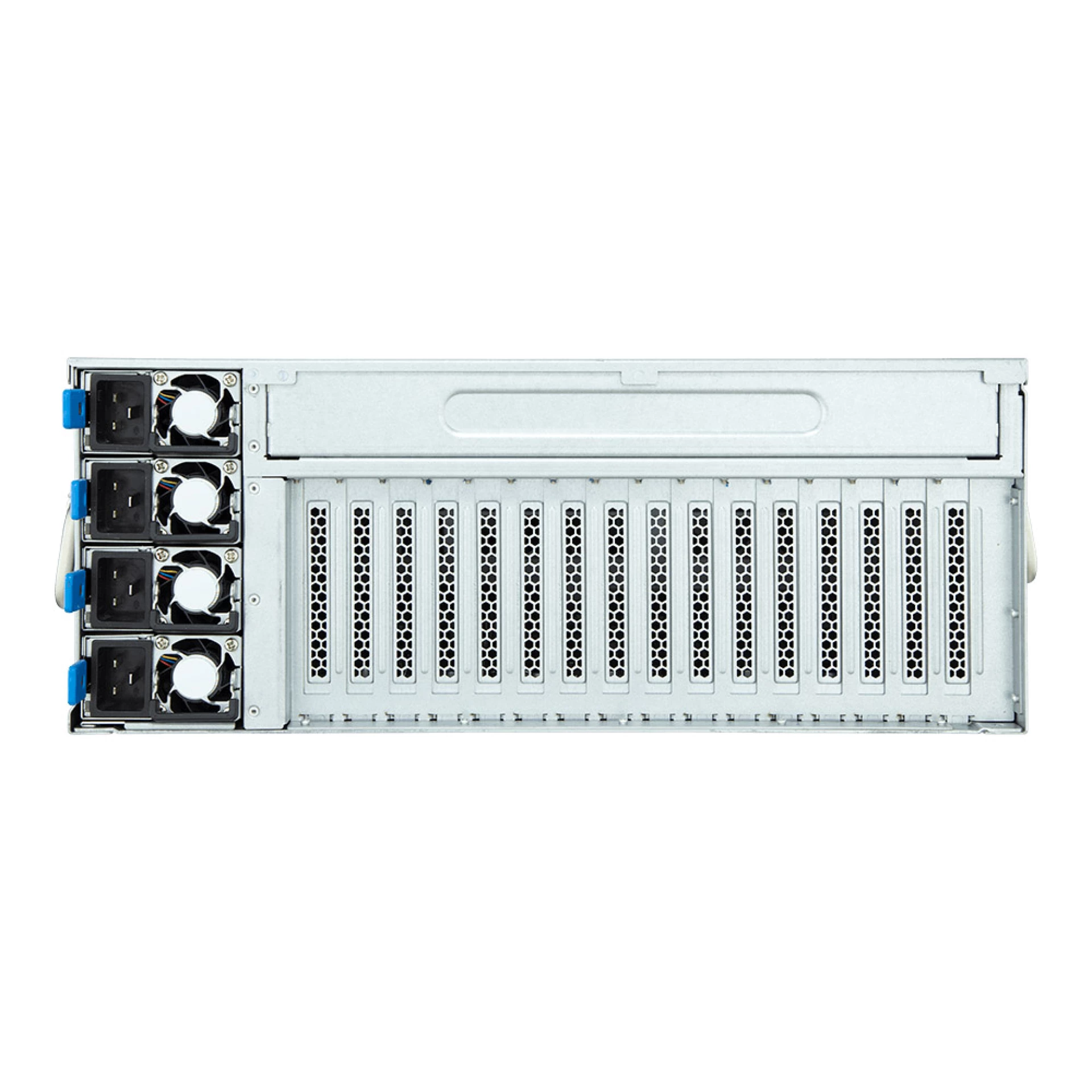

| Rear I/O | N/A | |
| Backplane I/O | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s |
|
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
|
| Power Supply | 3+1 3000W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 15.5A, 50-60Hz - 200-220V~/ 15.5A, 50-60Hz - 220-240V~/ 15.5A, 50-60Hz DC Input: - 240Vdc/ 15.5A DC Output: - Max 1000W/ 100-127V~ + 12.2V/ 81A + 12Vsb/ 3A - Max 2600W/ 200-220V~ + 12.2V/ 213A + 12Vsb/ 3A - Max 3000W/ 220-240V~ or 240Vdc Input + 12.2V/ 245A + 12Vsb/ 3A Note: The system power supply requires C19 type power cord |
|
| System Management | Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
|
| OS Compatibility | Windows Server 2019 or later Windows Server 2022 or later Red Hat Enterprise Linux 8.6 (x64) or later Red Hat Enterprise Linux 8.7 (x64) or later Red Hat Enterprise Linux 8.8 (x64) or later Red Hat Enterprise Linux 8.9 (x64) or later Red Hat Enterprise Linux 9.0 (x64) or later Red Hat Enterprise Linux 9.1 (x64) or later Red Hat Enterprise Linux 9.2 (x64) or later Red Hat Enterprise Linux 9.3 (x64) or later SUSE Linux Enterprise Server 15 SP4 (x64) or later SUSE Linux Enterprise Server 15 SP5 (x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 20.04.1 LTS (x64) or later Ubuntu 20.04.2 LTS (x64) or later Ubuntu 20.04.3 LTS (x64) or later Ubuntu 20.04.4 LTS (x64) or later Ubuntu 20.04.5 LTS (x64) or later Ubuntu 20.04.6 LTS (x64) or later Ubuntu 22.04 LTS (x64) or later Ubuntu 22.04.1 LTS (x64) or later Ubuntu 22.04.2 LTS (x64) or later Ubuntu 22.04.3 LTS (x64) or later VMware ESXi 7.0 Update 3i or later VMware ESXi 7.0 Update 3o or later VMware ESXi 8.0 or later VMware ESXi 8.0 Update 1 or later VMware ESXi 8.0 Update 2 or later Citrix Hypervisor 8.2 LTSR CU1 or later |
|
| System Fans | 12 x 60x60x38mm (23,000rpm) | |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
|
| Packaging Dimensions | 1200 x 800 x 444 mm w/ pallet | |
| Packaging Content | 1 x G493-SB0 2 x Fansinks 6 x Carrier clips 1 x L-shape Rail kit |
|
| Part Numbers | - Barebone package (4th/5th Gen): 6NG493SB0DR000ABP1* - Barebone package (4th Gen): 6NG493SB0DR000AAP1* - Motherboard: 9MSB3G40NR-000 - L-shape Rail kit: 25HB2-A96100-K0R - CPU Fansink: 25ST1-363204-C1R - Backplane board - CBP20C7: 9CBP20C7NR-00 - Fan module: 25ST2-663823-F1R - I/O board - CDCG120: 9CDCG120NR-00 - PCIe bridge board - CPBG084: 9CPBG084NR-00 - Power supply: 25EP0-230005-G1S |
|
| Optional parts | - C19 power cord 125V/15A (US): 25CP1-018000-Q0R - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R - RMA packaging: 6NG493SB0SR-RMA-A100 |
|
| Order Information | ||
| Manufacturer SKU | G493-SB0-AAP1 (6NG493SB0DR000AAP1) | |
| System Building | G493-SB0-AAP1 (6NG493SB0DR000AAP1) can be configured individually | |
Gigabyte G493-SB0-AAP1 Nitelikleri
| Anakart Yonga Seti: | Intel C741 |
|---|---|
| Arka panel: | Yes |
| Belgelendirme: | 80 Plus Titanium |
| Belirli Bağlantı Noktaları: | USB 3.2 Type-A |
| Bellek ECC Desteği: | ECC |
| Bellek kayıtlı/kayıtsız: | Registered |
| Bluetooth Desteği: | None |
| Dahili Ağ Hızı: | 10 Gbps |
| Dahili Grafik: | Yes |
| Dahili LAN: | 2 |
| Dahili M.2: | x1 M-Key (M.2 22110, M.2 2280) (NVME, PCIe Gen 3) 0 |
| Düğüm başına GPU sayısı: | 0 |
| Düğüm sayısı: | 1 |
| Eklenti kartı form faktörü: | Full-Height Full-Length (Standard) |
| Eklenti kartı sayısı: | 8 |
| Entegre GPU Üreticisi: | ASpeed |
| Fansız Sunucu: | Yes |
| Güç Kaynağı Sayısı: | 4 |
| Güç Kaynağı Soğutucu: | No |
| Güç kaynağı Watt Değeri: | 3000W |
| HDD form faktörü: | 2.5", 3.5" |
| HotSwap/Sabit Güç Kaynağı: | Hot-Swap |
| HotSwap/Sabit Sürücüler: | Yes |
| IPMI / BMC Yönetimi: | Yes |
| Kart Okuyucu Desteği: | No |
| Maksimum Bellek: | 8TB |
| Performans Sınıfı: | Yüksek Kalite |
| RAID Desteği: | Yes |
| RAM DIMM Türü: | RDIMM |
| Sabit disk yuva sayısı: | 12 |
| Soğutucu Sayısı: | 12 |
| Tasarım: | Rack |
| Uygulamalar: | AI/Deep Learning, AI Inference, Enterprise, GPU Server, High End Enterprise Server, Virtualization, Visual Computing |
| Uygunluk: | Server |
| Wi-Fi Desteği: | None |
| Yedekli güç kaynağı: | Yes |
| Yükseklik birimleri: | 4U |
| Ön Giriş/Çıkış: | LED Indicators, USB |
| Önceden Kurulmuş Bileşenler: | None |
| Önceden Yüklenmiş Yazılım: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, VMware vCenter, Windows Server |
| Ürün Modeli: | G493-SB0-AAP1 |
| İşlemci Kod Adı: | Emerald Rapids, Sapphire Rapids |
| İşlemci Soketi: | E (LGA 4677) |
| İşlemci Türü: | Xeon CPU Max, Xeon Ölçeklenebilir 4. Nesil, Xeon Ölçeklenebilir 5. Nesil |
| İşlemci soket sayısı: | No |
| İşlemci Üreticisi: | Intel |
| Şasi Girişi Algılama: | No |
