R183-SF1-AAJ1 | Gigabyte Dual Xeon Scalable 5th Gen Xeon Scalable 4th Gen Xeon CPU Max 1U Rack Server
Fiyat sor ↓
Fiyatlar hariç. KDV artı nakliye masrafları

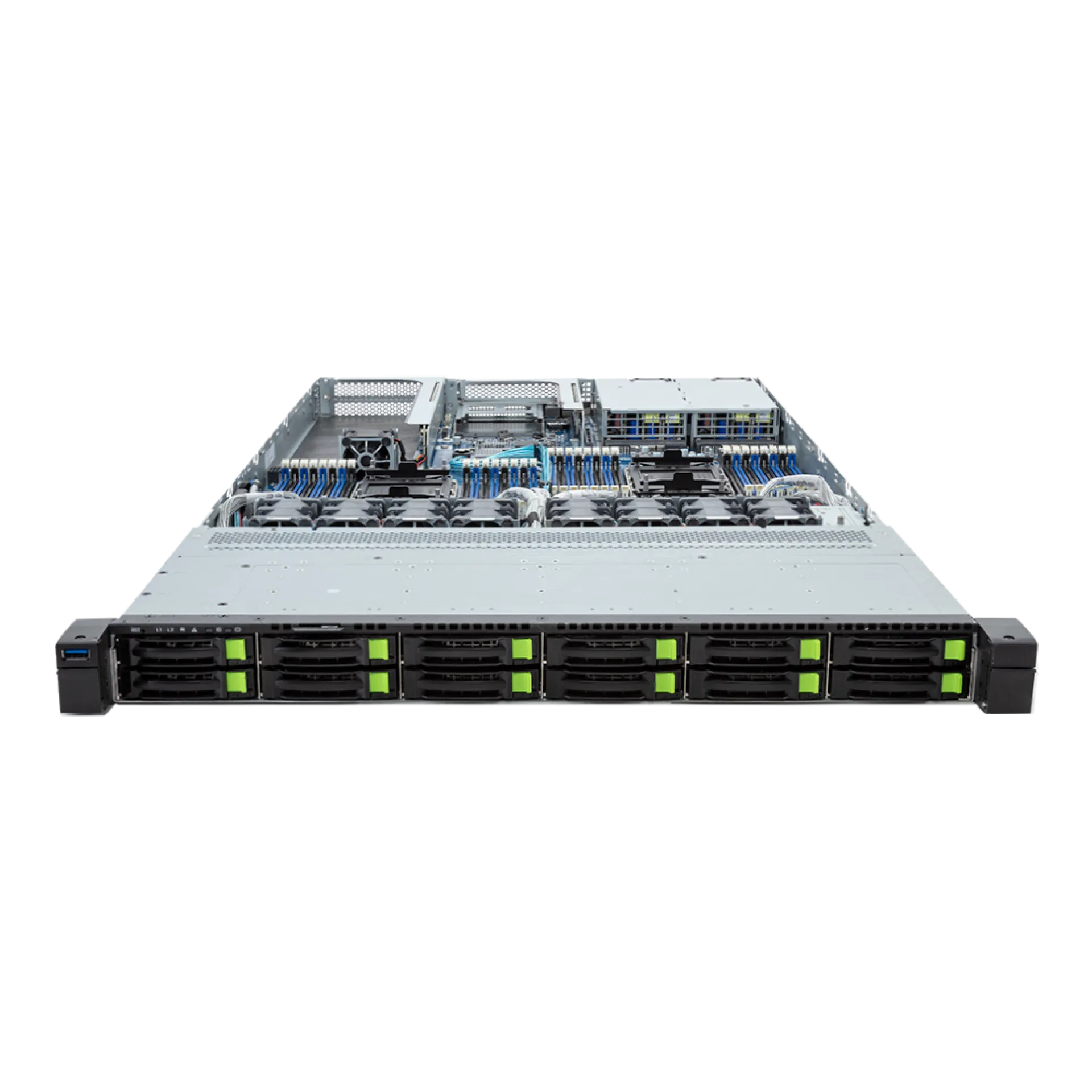

Gigabyte R183-SF1-AAJ1
PCIe Gen5 genişlemesi ile 6NR183SF1DR000ABJ1 Gigabyte özellikli Yüksek Yoğunluklu 1U GPU Destekli Rack Sunucu Barebone
6NR183SF1DR000ABJ1 Gigabyte R Serisi R183-SF1-AAJ1, raf seviyesinde yoğunluk ve deterministik G/Ç'nin kritik olduğu GPU destekli çıkarım ve hesaplama için tasarlanmış kompakt bir 1U barebonedir. 4. ve 5. Nesil Intel Xeon Scalable (LGA4677) işlemciler için Intel C741 platformu üzerine inşa edilmiştir ve CPU başına 350W’a kadar çift soket yapılandırmalarını destekleyerek yüksek çekirdek sayıları ve karışık CPU/GPU iş yükleri için güçlü düğüm başına verim sağlar.
32 DIMM yuvasında DDR5 ECC RDIMM ve CPU başına 8 kanallı bellek desteği ile 6NR183SF1DR000ABJ1 Gigabyte, bellek içi analizler, sanallaştırma konsolidasyonu ve HPC önişleme aşamaları için gereken bant genişliği ve kapasite profilini sunar. PCIe Gen5, birden fazla x16 mekanik slot ile düşük gecikmeli genişletme olanağı sağlarken; depolama paralel G/Ç için optimize edilmiştir: ön yüzde 12 adet 2.5 inç sıcak takas yuvası, Gen5 NVMe ve SATA desteği ile, ayrıca HBA üzerinden SAS-4 yeteneği bulunur. Entegre yönetim, IPMI ve uzaktan KVM destekli AST2600 BMC ile gerçekleştirilir ve ışık kapalı operasyonlarla uyum sağlar.
6NR183SF1DR000ABJ1 Gigabyte'ı Neden Tercih Etmelisiniz?
6NR183SF1DR000ABJ1 Gigabyte, 1U form faktörü ile kurumsal düzeyde ölçeklenebilirliği dengeler: çift soket işlemci, DDR5 bellek yoğunluğu ve GPU ile yüksek hızlı ağ bağlantısı için PCIe Gen5 hatları. Bu mimari, AI çıkarım havuzlarında, HPC kümelerinde veya özel bulut kaynak gruplarında standartlaştırılmış bir düğüm olarak öngörülebilir dağıtımı destekler ve kesintisiz operasyon için yedekli sıcak takas güç kaynakları ile güçlendirilmiştir.
Gigabyte, R Serisini servis kolaylığı ve veri merkezi uyumluluğu göz önünde bulundurarak tasarlar; sıcak takas depolama, OCP NIC 3.0 entegrasyonu ve BMC merkezli yönetimle otomatik sağlama, yaşam döngüsü kontrolü ve modern güç ile soğutma kısıtlamaları altında tutarlı filot operasyonlarını destekler.
Ana Kullanım Alanları:
- AI çıkarım düğümleri
- GPU destekli analiz
- HPC hesaplama ve önişleme
- Sanallaştırma ve özel bulut
- Yüksek hızlı NVMe depolama katmanları
Happyware Türkiye olarak, 6NR183SF1DR000ABJ1 Gigabyte için rehberli yapılandırma, hızlı B2B tekliflendirme ve dağıtıma uygun lojistik avantajlarından faydalanırsınız; bu sayede bu 1U platformu, güvenilir satış öncesi mühendislik desteği ve kurumsal projeler için verimli teslimat ile kümeler arasında standartlaştırabilirsiniz.
Gigabyte R183-SF1-AAJ1 Teknik Özellikleri
| Dual Intel Xeon Scalable 5th/4th Gen CPU, 12x 2.5" hot-swap drive bays, 4x PCIe (1x FHFL for GPU, 1x FHFL, 1x FHHL, 1x OCP 3.0), 2x 2000W redundant PSUs |
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 815 |
|

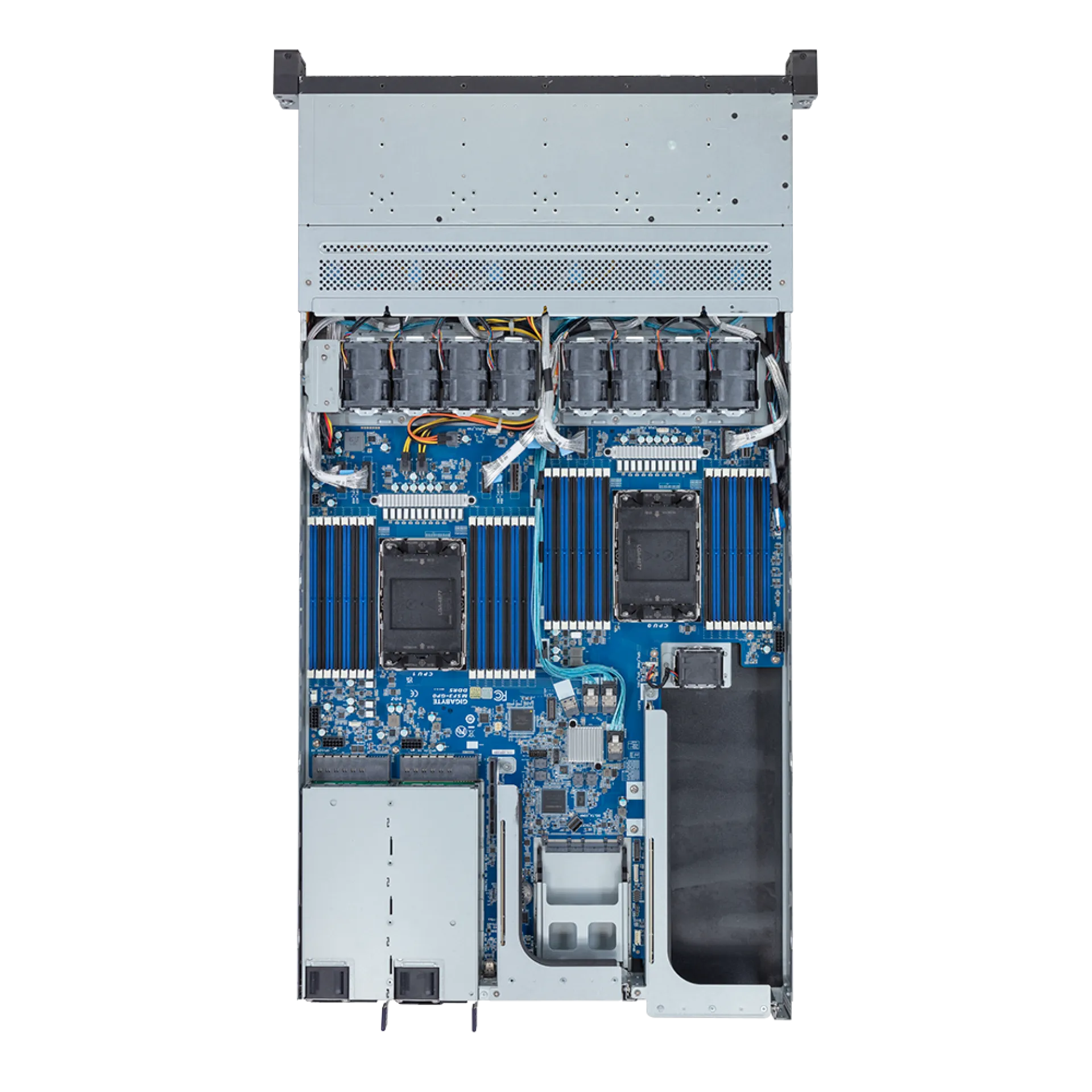

| Motherboard | MSF3-GP0 | |
| CPU | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
|
| Socket | 2 x LGA 4677 Socket E |
|
| Chipset | Intel® C741 | |
| Memory | 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
|
| LAN | Rear: 1 x 10/100/1000 Mbps Management LAN |
|
| Video | Integrated in Aspeed® AST2600 - 1 x Mini-DP |
|
| Storage | Front hot-swap: 12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1] - (6 x NVMe from CPU_0, 6 x NVMe from CPU_1) [2] SAS card is required to support SAS drives. |
|
| SAS | Require SAS add-in cards | |
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header Support optional RAID add-in cards |
|
| Expansion Slots | Riser Card CRS102B: - 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs - 1 x FHFL x16 (Gen5 x16), from CPU_0 [1] Riser Card CRS101U: - 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function [1] Blocked when a Dual slot GPU is installed. |
|
| Front I/O | 1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED |
|

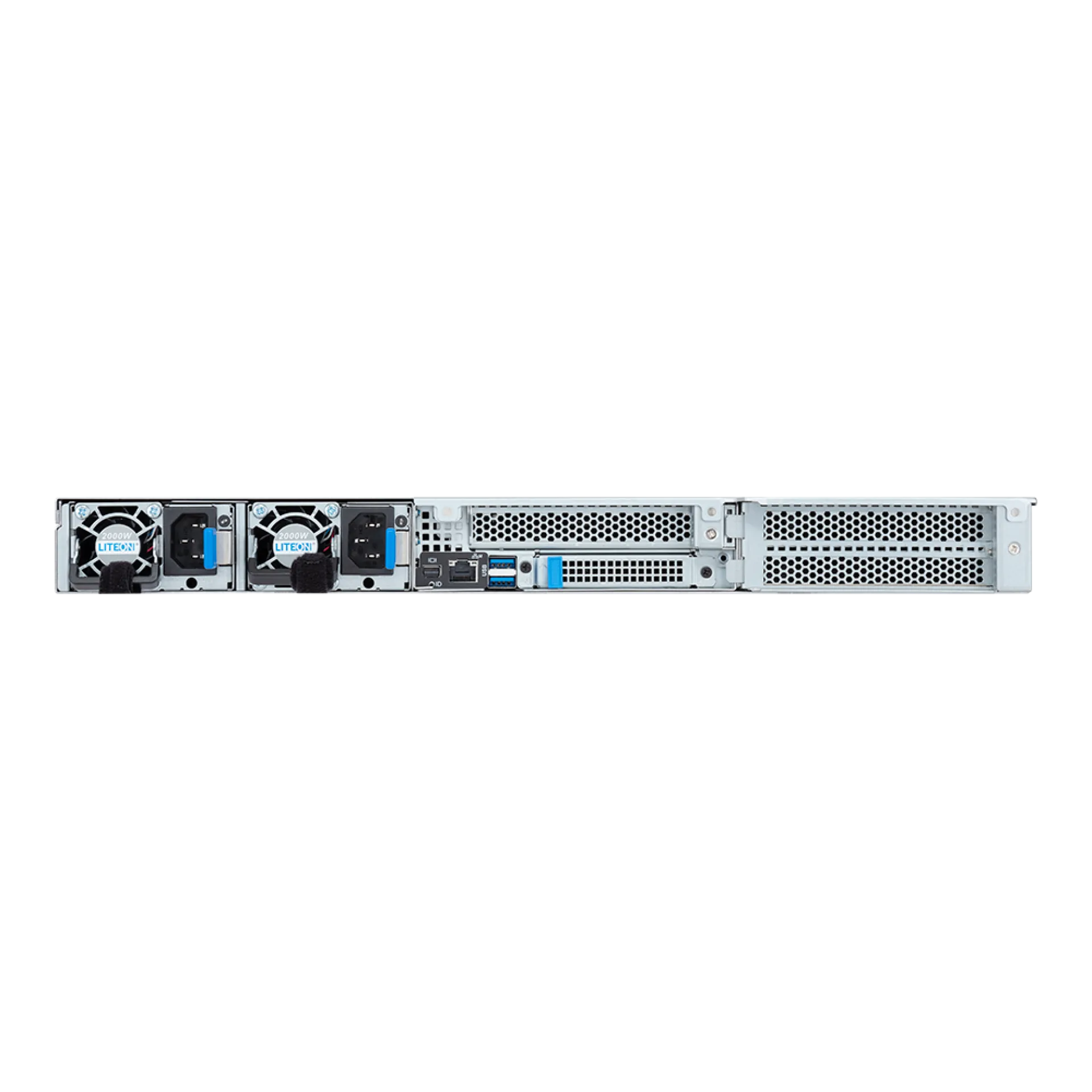

| Rear I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x MLAN port 1 x ID LED |
|
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
|
| Security Modules | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
|
| Power Supply | 1+1 2000W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 13A, 50-60Hz - 200-220V~/ 10A, 50-60Hz - 220-240V~/ 10A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 10A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A - Max 1800W/ 200-220V~ +12.2V/ 148A +12.2Vsb/ 3A - Max 2000W/ 220-240V~ or 240Vdc Input +12.2V/ 164A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. |
|
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
|
| OS Compatibility |
Windows Server 2019 |
|
| System Fans | 1 x 40x40x28mm (34,000rpm) 8 x 40x40x56mm (32,000rpm) |
|
| Operating Properties | Operating temperature: 10°C to 30°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
|
| Weight | Net Weight: 28.81 kg Gross Weight: 30.81 kg |
|
| Packaging Dimensions | 1038 x 588 x 238 mm | |
| Packaging Content | 1 x R183-SF1-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x GPU power cable (12VHPWR, 100mm) 6 x Carriers 1 x 2-Section Rail kit |
|
| Part Numbers | - Barebone package (5th/4th Gen): 6NR183SF1DR000ABJ1* - Barebone package (4th Gen): 6NR183SF1DR000AAJ1* - Motherboard: 9MSF3GP0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Front panel board - CFP1030: 9CFP1030NR-00* - Backplane board - CBP10C2: 9CBP10C2NR-00* - Fan module: 25ST2-40562H-A0R/25ST2-44282I-N2R - Riser card - CRS101U: 9CRS101UNR-00* - Riser card - CRS102B: 9CRS102BNR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (12VHPWR, 100mm): 25CRI-1001C0-Y4R - Power supply: 25EP0-22000J-G1S |
|
| Optional parts: | - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R - RMA packaging: 6NR183SF1SR-RMA-A100 |
|
| Order Information | ||
| Manufacturer SKU | R183-SF1-AAJ1 (6NR283SF0DR000ABL1) | |
| System Building | R183-SF1-AAJ1 (6NR283SF0DR000ABL1) can be configured individually | |
Gigabyte R183-SF1-AAJ1 Nitelikleri
| Anakart Yonga Seti: | Intel C741 |
|---|---|
| Arka panel: | Yes |
| Belgelendirme: | 80 Plus Titanium |
| Belirli Bağlantı Noktaları: | USB 3.2 Gen 1 Type-A |
| Bellek kayıtlı/kayıtsız: | Registered |
| Bluetooth Desteği: | None |
| Dahili Grafik: | Aspeed AST2600 |
| Düğüm sayısı: | 1 |
| Eklenti kartı form faktörü: | Full-Height Full-Length (Standard), Full-Height Half-Length |
| Eklenti kartı sayısı: | 3 |
| Entegre GPU Üreticisi: | ASpeed |
| Fansız Sunucu: | No |
| Güç Kaynağı Sayısı: | 2 |
| Güç Kaynağı Soğutucu: | No |
| Güç kaynağı Watt Değeri: | 2000W |
| HDD form faktörü: | 2.5" |
| HotSwap/Sabit Güç Kaynağı: | Hot-Swap |
| HotSwap/Sabit Sürücüler: | Yes |
| IPMI / BMC Yönetimi: | Yes |
| Kart Okuyucu Desteği: | No |
| Maksimum Bellek: | 8TB |
| Performans Sınıfı: | Yüksek Kalite |
| RAID Desteği: | Yes |
| RAM DIMM Türü: | RDIMM |
| Sabit disk yuva sayısı: | 12 |
| Soğutucu Sayısı: | 9 |
| Tasarım: | Rack |
| Uygulamalar: | AI/Deep Learning, AI Inference, Cloud Computing, Enterprise, GPU Server, High-Performance Computing (HPC), High End Enterprise Server, Hybrid/Private Cloud Server, Visual Computing |
| Uygunluk: | Server |
| Wi-Fi Desteği: | None |
| Yedekli güç kaynağı: | Yes |
| Yükseklik birimleri: | 1U |
| Ön Giriş/Çıkış: | LAN Activity LED, Power button with LED, Storage Activity LED, System Reset button, System status LED, UID button with LED, USB |
| Önceden Yüklenmiş Yazılım: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, Windows Server |
| Ürün Modeli: | R183-SF1-AAJ1 |
| İşlemci Kod Adı: | Emerald Rapids, Sapphire Rapids |
| İşlemci Soketi: | E (LGA 4677) |
| İşlemci Türü: | Xeon CPU Max, Xeon Ölçeklenebilir 4. Nesil, Xeon Ölçeklenebilir 5. Nesil |
| İşlemci soket sayısı: | No |
| İşlemci Üreticisi: | Intel |
