R283-Z90-AAD3 | Gigabyte Dual Socket Epyc 9004 2U Server
Başlayan €5.183,09*
KDV artı nakliye masrafları dahil fiyatlar

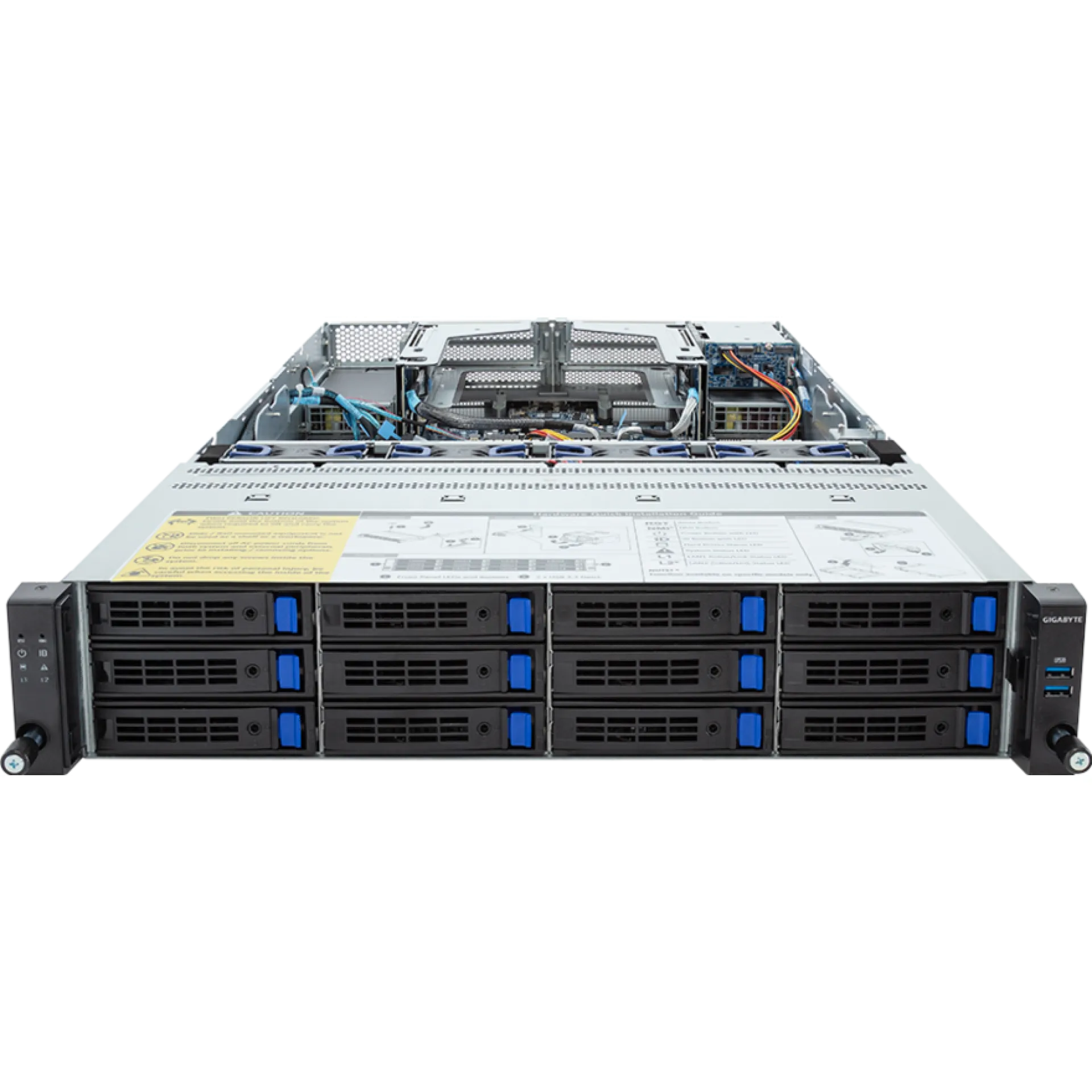

Gigabyte R283-Z90-AAD3
Unleash Unprecedented Performance with the Gigabyte R283-Z90-AAD3 Barebone System
Introducing the Gigabyte R283-Z90-AAD3, leverage the cutting-edge power of the AMD EPYC™ 9004 Series processors built on 5nm Zen 4 architecture for unparalleled performance and efficiency. The Gigabyte R283-Z90-AAD3 Rack Server is engineered to maximise the potential of these advanced processors, delivering exceptional processing power for demanding workloads. With support for PCIe Gen5 accelerators, Gen5 NVMe storage, and DDR5 memory, this server is optimised for the next generation of AI, HPC, and cloud computing applications.
Why Choose the Gigabyte R283-Z90-AAD3?
The Gigabyte R283-Z90-AAD3 Rack Server is built for high-performance workloads, supporting dual AMD EPYC™ 9004 processors and next-generation technologies like PCIe Gen5 accelerators, Gen5 NVMe storage, and DDR5 memory. This powerful combination ensures your business can handle demanding applications such as AI, big data analytics, virtualisation, and cloud computing with ease. The server’s 12+2-Bay SATA/SAS Platinum storage delivers both flexibility and scalability, allowing you to meet the growing data requirements of your enterprise.
Designed for high-density environments, the R283-Z90-AAD3 maximises space utilisation without sacrificing performance. With its advanced thermal management system, this server maintains stable operations even under heavy workloads, ensuring reliability in mission-critical applications. Optimised for energy efficiency, it allows your business to scale quickly while controlling operational costs. Whether you're running computational simulations, managing virtual machines, or executing data-intensive workloads, the R283-Z90-AAD3 provides a robust, future-proof solution that will adapt to your enterprise's evolving demands.
Key Applications:
• Networking
Boost your enterprise’s capabilities with Happyware and the Gigabyte R283-Z90-AAD3. Optimise your infrastructure with cutting-edge technologies for superior performance, scalability, and energy efficiency. Contact us and partner with us today to explore how this server can revolutionise your operations.
Gigabyte R283-Z90-AAD3 Teknik Özellikleri
| Dual AMD EPYC 9004 Series CPU, 12x 3.5/2.5" + 2x 2.5" drive bays, 6x PCIe (FHHL), 2x OCP 3.0, 2x 1GbE LAN, 2x 1600W Redundant PSUs |
| Dimensions (WxHxD, mm) | 2U 438 x 87 x 815 | |
| Motherboard | MZ93-FS0 | |
| CPU | AMD EPYC™ 9004 Series processors AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology Dual processor, 5nm technology *Up to 128-core, 256 threads per processor cTDP up to 300W at ambient 35°C Supports EPYC 9654 cTDP 400W. *cTDP supported up to 400W under limited thermal conditions. | |
| Socket | 2 x LGA 6096 Socket SP5 | |
| Chipset | System on Chip | |
| Memory | 24 x DIMM slots DDR5 memory supported only 12-Channel memory architecture RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz | |
| LAN | Rear side: 2 x 1GbE LAN ports (1 x Intel® I350-AM2) Support NCSI function 1 x 10/100/1000 management LAN | |
| Video | Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM | |
| Storage | Front side: 12 x 3.5"/2.5" SATA/SAS hot-swappable bays, from CPU_0 Rear side: 2 x 2.5" SATA/SAS hot-swappable bays, from CPU_0 SAS card is required for SAS devices support | |
| SAS | Depends on SAS Add-on card | |
| RAID | N/A | |
| Expansion Slots | Riser Card CRS101T: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 Riser Card CRS101Q: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 Riser Card CRS202M: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 - 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU_1 Riser Card CRS202N: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 - 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU_1 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0 Supports NCSI function 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1 Supports NCSI function 1 x M.2 slot: - M-key - PCIe Gen3 x4, from CPU_0 - Supports 2280/22110 cards 1 x M.2 slot: - M-key - PCIe Gen3 x4, from CPU_1 - Supports 2280/22110 cards 1 x M.2 slot: - M-key - PCIe Gen3 x2, from CPU_1 - Supports 2280/22110 cards | |
| Internal I/O | 3 x M.2 slots 1 x TPM header 2 x OCP 3.0 slots | |

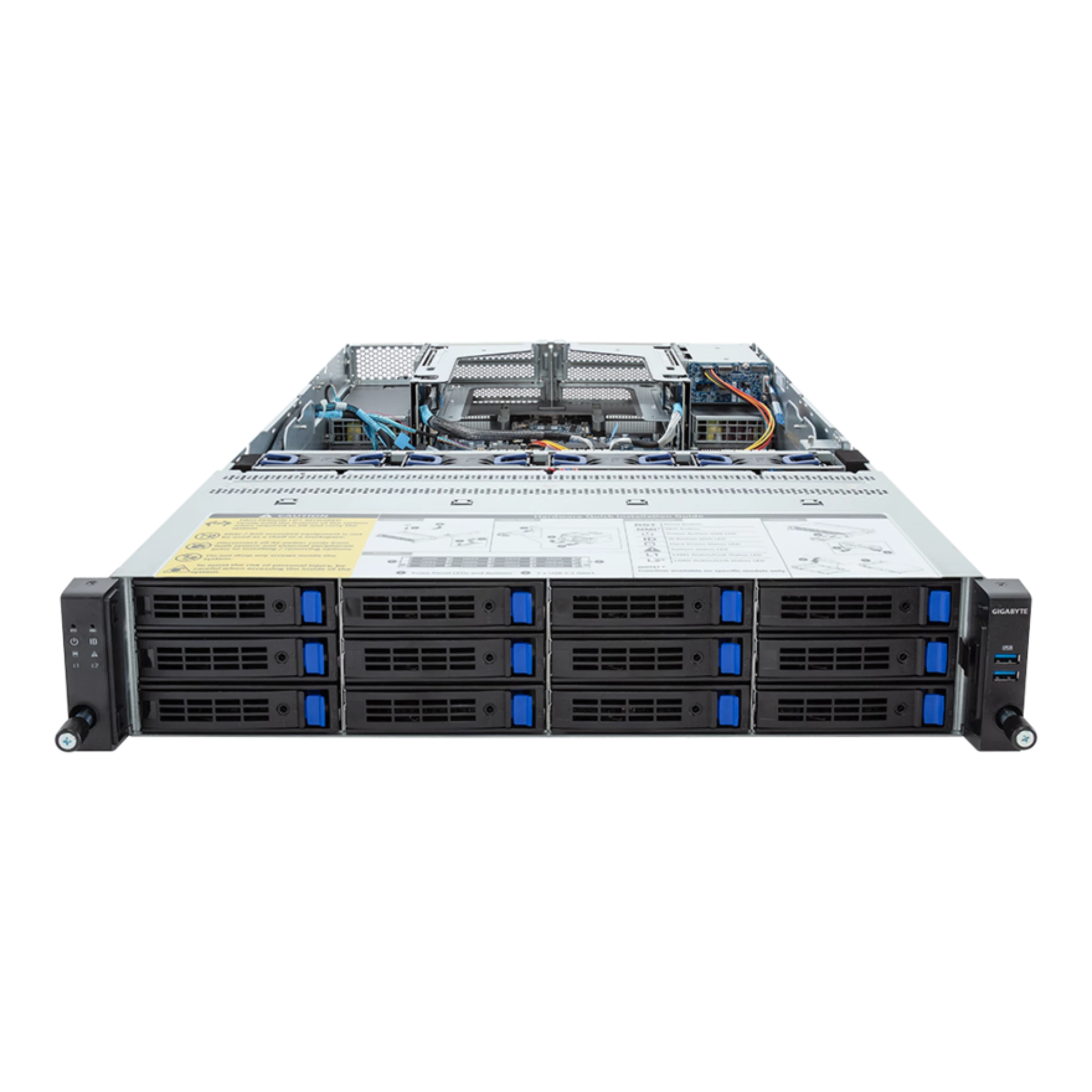

| Front I/O | 2 x USB 3.2 Gen1 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED | |

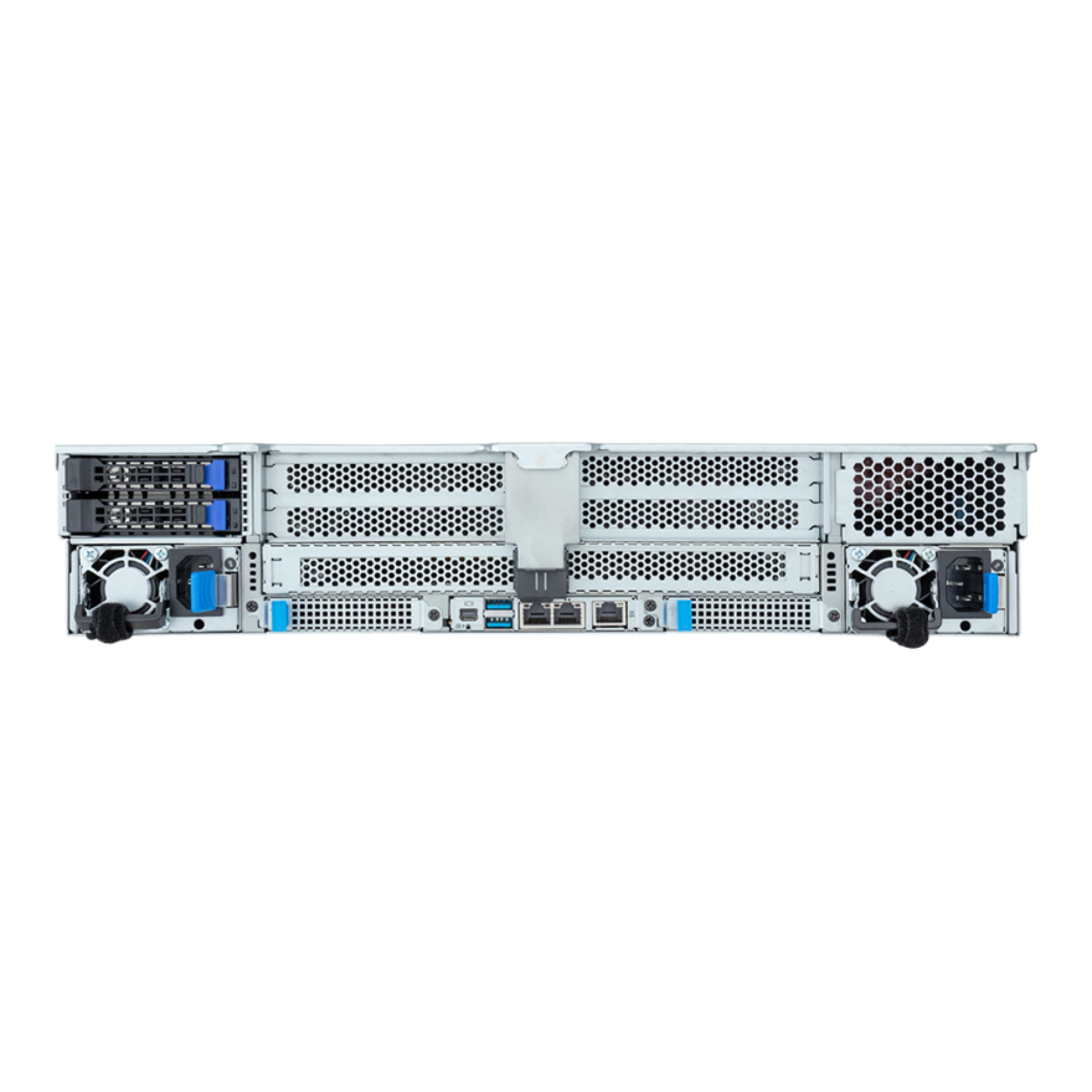

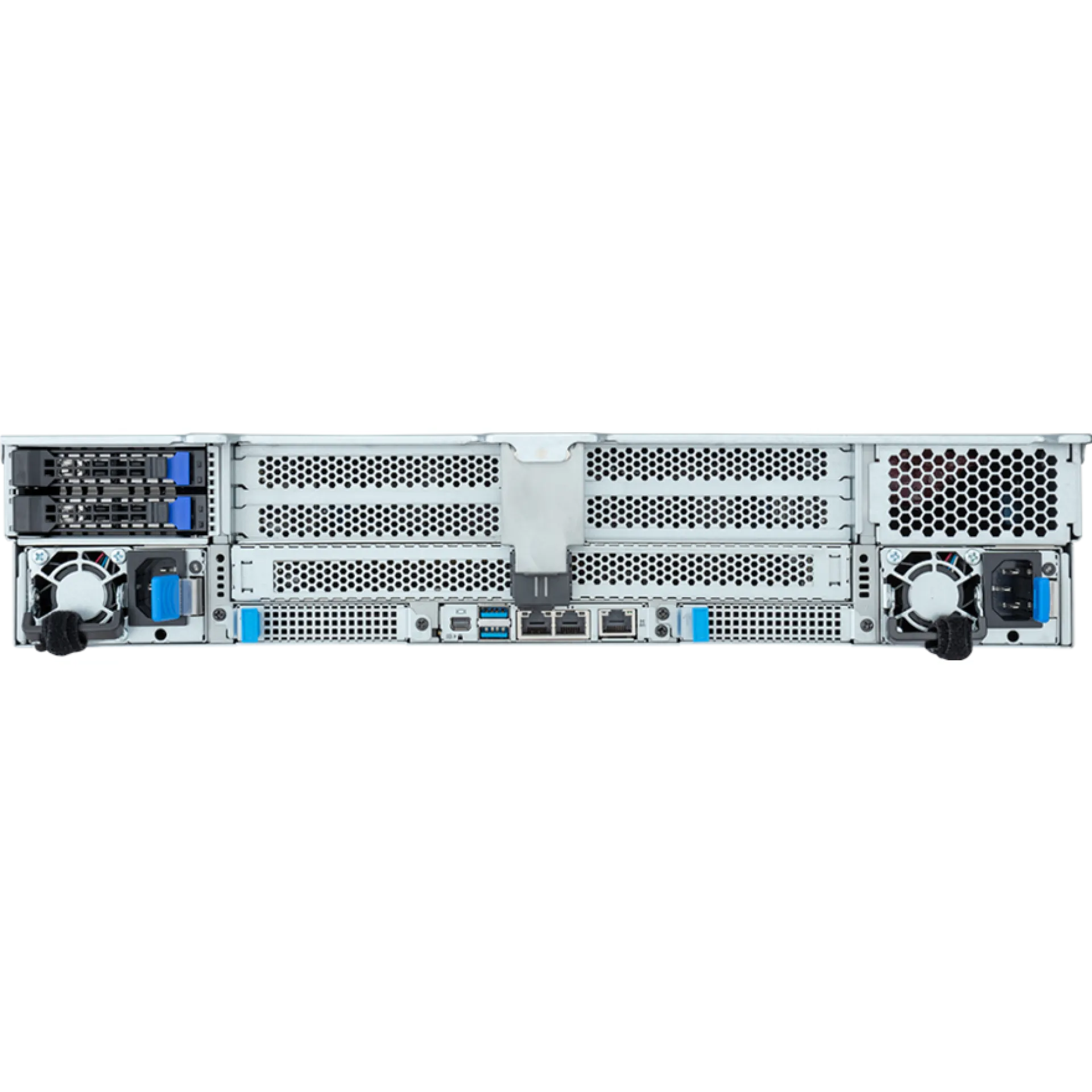

| Rear I/O | 2 x USB 3.2 Gen1 1 x Mini-DP 2 x RJ45 1 x MLAN 1 x ID LED | |
| Backplane I/O | Speed and bandwidth: Front side - CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s | |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 | |
| Power Supply | Dual 1600W (240V) 80 PLUS Platinum redundant power supply AC Input: - 100-120V~/ 12A, 50-60Hz - 200-240V~/ 10A, 50-60Hz DC Input: - 240Vdc/ 10A DC Output: - Max 1000W/ 100-120V~ + 12V/ 81.5A + 12Vsb/ 2.5A - Max 1600W/ 200-240V~ or 240Vdc Input + 12V/ 133A + 12Vsb/ 2.5A | |
| System Management | Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings | |
| OS Compatibility | Windows Server 2019 | |
| System Fans | 4 x 80x80x38mm (18,300rpm) | |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) | |
| Packaging Dimensions | 1077 x 679 x 300 mm | |
| Packaging Content | 1 x R283-Z90 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit | |
| Part Numbers | - Barebone package: 6NR283Z90DR000AAD3* - Motherboard: 9MZ93FS0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-15320G-A0R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Backplane board - CBP20C5: 9CBP20C5NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101Q: 9CRS101QNR-00 - Riser card - CRS101T: 9CRS101TNR-00 - Riser card - CRS202M: 9CRS202MNR-00 - Riser card - CRS202N: 9CRS202NNR-00 - G-SC Module - CDCR114: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-216008-L0S | |
| Optional parts: | - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R - RMA packaging: 6NR283Z90SR-RMA-A100 | |
| Order Information | ||
| Manufacturer SKU | R283-Z90 rev. AAD3 (6NR283Z90DR000AAD3) | |
| System Building | R283-Z90 rev. AAD3 (6NR283Z90DR000AAD3) can be configured individually | |
Gigabyte R283-Z90-AAD3 Nitelikleri
| Add-on card form factor: | FH, HH, OCP 3.0 |
|---|---|
| Applications: | Big Data, Database, Networking, Virtualization |
| Backplane: | Yes |
| Backplane Interface: | PCIe Gen 4, SAS 1.0, SAS 2.0, SAS 3.0, SATA I, SATA II, SATA III, U.2 NVMe |
| Bluetooth Support: | None |
| CPU Codename: | Genoa |
| CPU Manufacturer: | AMD |
| CPU Socket: | SP5 |
| Card Reader Support: | No |
| Certification: | 80 Plus Platinum |
| Chassis Intrusion: | No |
| Computer group: | Server |
| Design: | Rackmount |
| Front I/O: | LED Indicators, USB Type-A |
| Height units: | 2U |
| HotSwap/Fixed Drives: | Yes |
| HotSwap/Fixed Power Supply: | Hot-Swap Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | System on Chip |
| Number of CPU sockets: | No |
| Number of RAM Pins: | 288 |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 1600W |
| Performance Class: | Enterprise-Class, High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, Windows Server |
| Product Model: | R283-Z90-AAD3 |
| Product Version: | Rev-1.x |
| Quantity of Cooler: | 4 |
| Quantity of Power Supplies: | 2 |
| RAID Support: | No |
| RAM DIMM Type: | RDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Registered |
| Redundant power: | Yes |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | Display Ports, M.2 Ports, SAS Ports, SATA Ports, USB Ports |
| Suitability: | Server |
| Use case: | Database Server, Networking, Virtualization |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
