BA-SXE35H-MFNV4 | Happyware Single Socket Xeon E-2400 not applicable Server
Ürün numarası: TR0B5229-444106
|
Üretici numarası: BA-SXE35H-MFNV4
Başlayan €882,98*
KDV artı nakliye masrafları dahil fiyatlar
Happyware BA-SXE35H-MFNV4
Unlock Exceptional Performance with the Happyware MidTower Xeon E2400!
Are you ready to elevate your computing experience? Discover the powerhouse that is the Happyware MidTower Xeon E2400 no Backplane. Designed for seamless efficiency and built for those who demand nothing but the best, this barebone system is your ticket to superior performance.
A High-Performance Engine
Equipped with a robust Xeon E2400 processor, this is not just a midtower; it’s a performance-enhancing beast that’s perfect for data-intensive tasks. Say goodbye to bottlenecks and hello to lightning-fast processing speed.
Memory and Connectivity Galore
Boasting the capability to support 4x RAM modules, you’ll never run out of memory when you need it most. Plus, with 2x LAN connectivity, stay connected with the speed and reliability that meet your most demanding data transfer and networking needs.
Quality You Can Trust
Crafted by Happyware, this unit symbolizes top-notch construction and reliability. With a single PSU, it simplifies your setup process while providing all the power your system requires for high-level operations.
Ready to transform your workstation? Learn more about how the Happyware MidTower Xeon E2400 can redefine your computing standards today!
Act Now and Revolutionize Your Tech!
Don’t miss out on owning a key player in high-end technology. Upgrade to the Happyware MidTower Xeon E2400 and experience unprecedented power and precision. Reach out to your trusted Happyware reseller today!
Happyware BA-SXE35H-MFNV4 Teknik Özellikleri
| SKU Overview | ||
|---|---|---|
| BA-SXE35H-MFNV4 | Single Intel Xeon E-2400 CPU, 4x 3.5" fixed + 2x 5.25" external drive bays, 3x PCIe (FHFL), 2x 1GbE LAN, 1x 400W Single PSU | |
| BA-SXE35H-MFNV4-LN4-R | Single Intel Xeon E-2400 CPU, 4x 3.5" fixed + 2x 5.25" external drive bays, 3x PCIe (FHFL), 4x 1GbE LAN, 2x 600W redundant PSUs | |
| BA-SXE35H-MFNV4-LN4 | Single Intel Xeon E-2400 CPU, 4x 3.5" fixed + 2x 5.25" external drive bays, 3x PCIe (FHFL), 4x 1GbE LAN, 1x 400W Single PSU | |
| BA-SXE35H-MFNV4-R | Single Intel Xeon E-2400 CPU, 4x 3.5" fixed + 2x 5.25" external drive bays, 3x PCIe (FHFL), 2x 1GbE LAN, 2x 600W redundant PSUs | |
| Processor | ||
| CPU | Single Socket V (LGA-1700) Intel® Xeon® E-2400/Pentium G7400 and G7400T® Processor CPU TDP 95W | |
| Cores | 8 cores | |
| System Memory | |
|---|---|
| Memory Capacity | 4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MHz |
| Memory Type | 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC) |
| DIMM Sizes | 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C266 |
| SATA | Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2600 BMC |
| Graphics | 1 ASPEED AST2600 BMC port |
| Network Controllers | Quad LAN with 1GbE with Intel® I210 — for BA-SXE35H-MFNV4-LN4 and BA-SXE35H-MFNV4-LN4-R skus only Dual LAN with 1GbE with Intel® I210 — for BA-SXE35H-MFNV4 and BA-SXE35H-MFNV4-R skus only |
| Input / Output | |
|---|---|
| SATA | 8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports — for BA-SXE35H-MFNV4-LN4 and BA-SXE35H-MFNV4-LN4-R skus only 2 RJ45 Gigabit Ethernet LAN ports — for BA-SXE35H-MFNV4 and BA-SXE35H-MFNV4-R skus only 1 RJ45 Dedicated IPMI LAN port |
| USB | 6 USB 2.0 ports (4 via header; 2 rear) 5 USB 3.2 Gen1 ports (2 via header; 2 rear; 1 type A) |
| Video | 1 VGA D-Sub Connector port |
| Serial Port | 2 COM Ports (1 header; 1 rear) |
| TPM | 1 TPM Header |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB AMI UEFI |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 UEFI 2.8 Plug and Play (PnP) PCI FW 3.3 |
| Management | |
|---|---|
| Software | Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0 |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN |
| PC Health Monitoring | |
|---|---|
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby |
| LED | UID/Remote UID CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support PECI |
| Fan | 7x 4-pin fan headers (up to 7 fans) Fan speed control 7 fans with tachometer monitoring Overheat LED indication |
| Other Features | WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Chassis | |
|---|---|

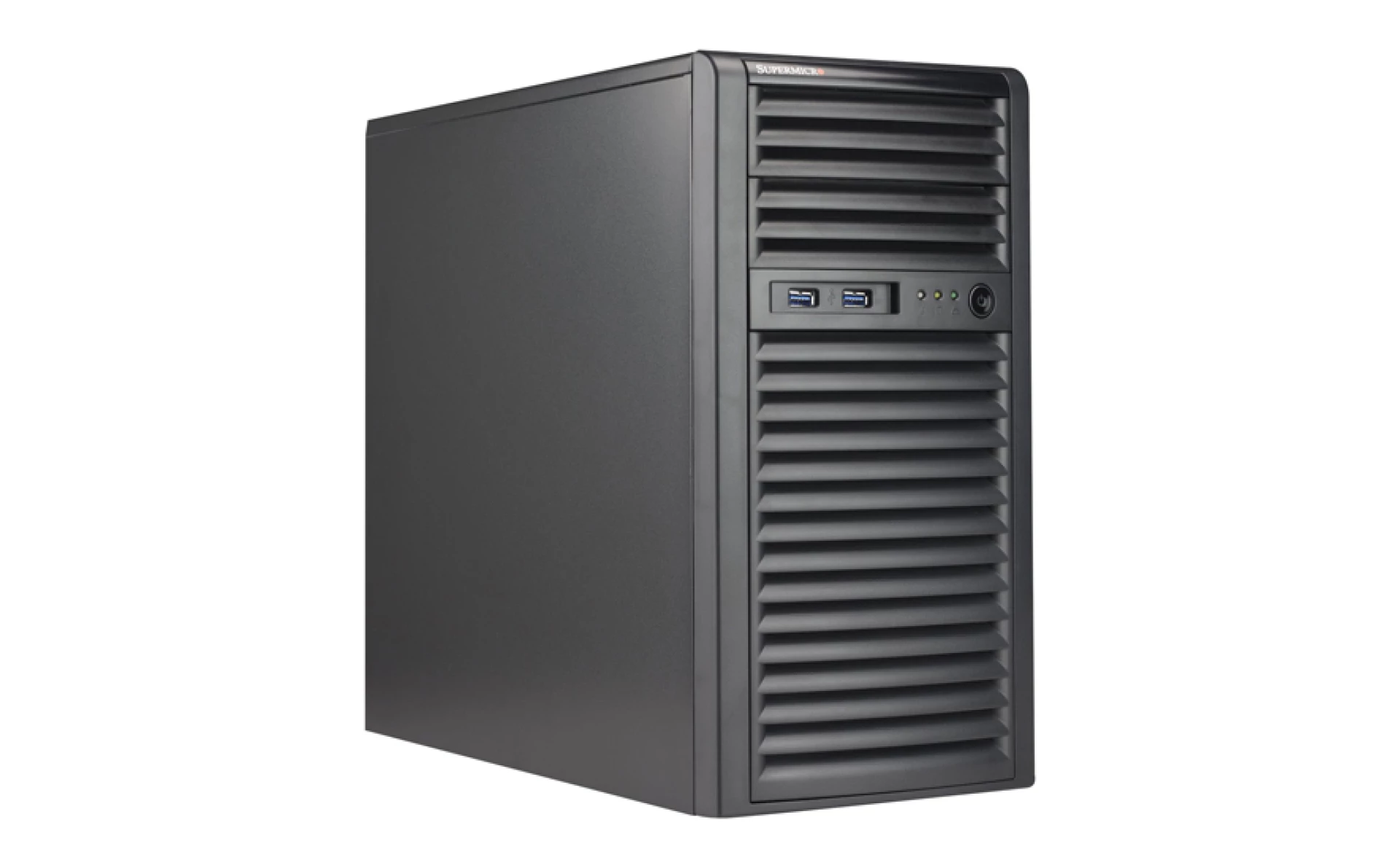

| Form Factor | Mini-Tower |
| Dimensions and Weight | |
|---|---|
| Height | 36.19cm (362 mm) |
| Width | 18.41cm (184 mm) |
| Depth | 42.54cm (425 mm) |
| Gross Weight | 11 lbs (4.99 kg) |
| Net Weight | 16 lbs (7.26 kg) |
| Packaging (W x H x L) | 27.94cm (279 mm) x 50.8cm (508 mm) x 53.34cm (533 mm) |
| Available Color | Black |

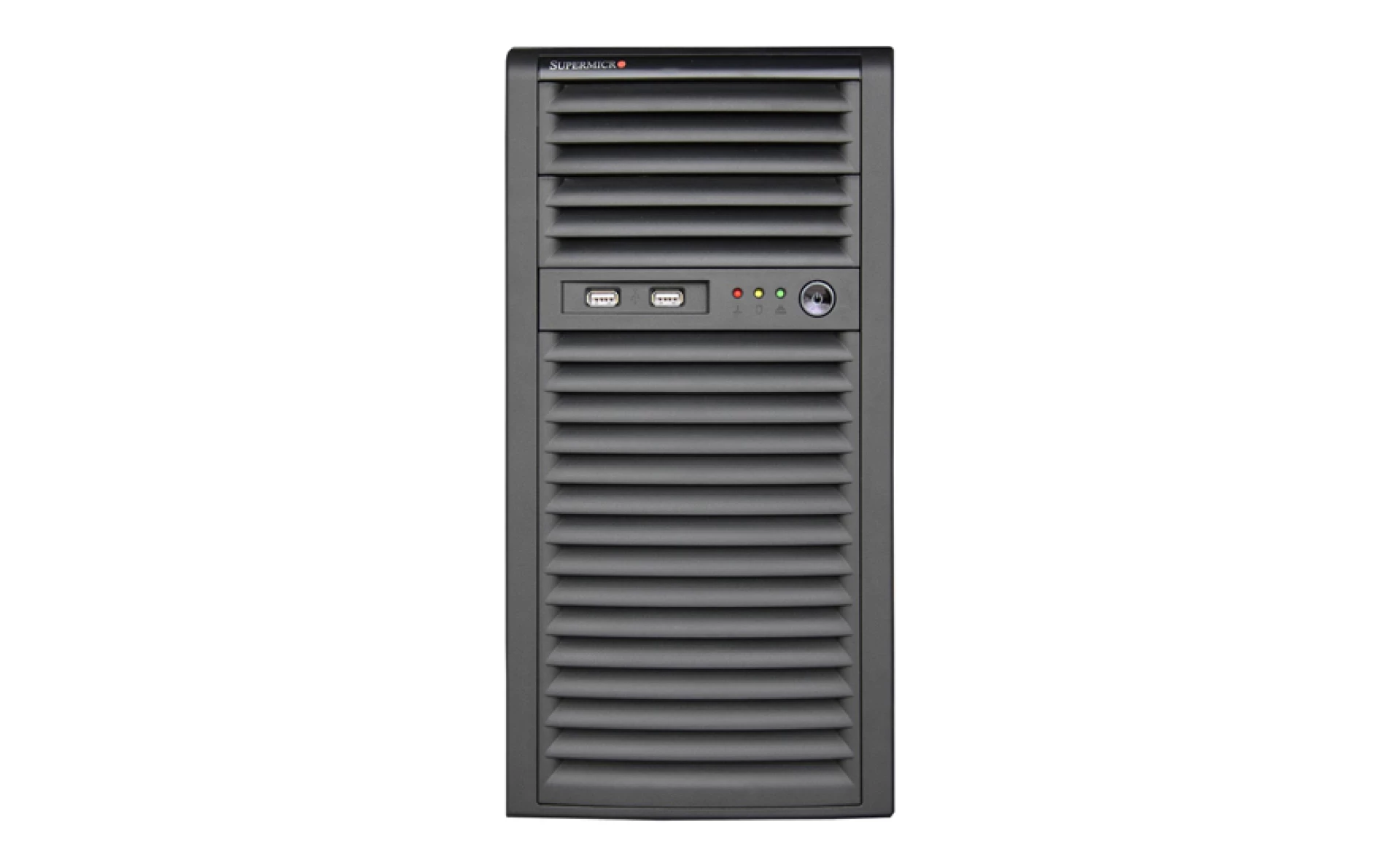

| Front Panel | |
|---|---|
| Buttons | Power On/Off button |
| LEDs | HDD activity LED 1 Network activity LEDs Power status LED System Over Heat LED |
| Ports | 2x USB 3.0 Ports |
| Expansion Slots | |
|---|---|
| PCI-Express | 1 PCIe 5.0 x16 full-height, full-length expansion slot 2 PCIe 4.0 x4 (in x8 slot) full-height, full-length expansion slots |
| Storage | |
|---|---|
| Drive Bays | 4x 3.5" fixed SATA drive bays 2x 5.25" drive bay |
| M.2 | M.2 Interface: 2 PCIe 4.0 x4 |
| System Cooling | |
|---|---|
| Fans | 1x 9cm (2050 RPM) rear exhaust fan Optional 1x 8cm (front) cooling fan |
| Power Supply | |
|---|---|
| 1x 400W ATX/PS2 Multi-output Power Supply — for BA-SXE35H-MFNV4 and BA-SXE35H-MFNV4-LN4 skus only 2x 600W PS2 Multi-output redundant Power Supplies — for BA-SXE35H-MFNV4-R and BA-SXE35H-MFNV4-LN4-R only | |
| Dimensions (H x W x D) | 140 x 150 x 86 mm 190 x 150 x 84 mm |
| Total Output Power and Input | 400W with Input 100 - 240Vac 600W mit Input 100 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Output Type | 24pin ATX |
| -12V | Max: 0.37A / Min: 0A Max: 0.5A / Min: 0A |
| +12V | Max: 12.62A / Min: 0A (100Vac - 240Vac) Max: 12.62A / Min: 0.05A (100Vac - 240Vac) Max: 49A / Min: 1A |
| +5V | Max: 8.75A / Min: 0.2A Max: 20A / Min: 0A |
| +3.3V | Max: 11.48A / Min: 0A Max: 20A / Min: 0A |
| +5Vsb | Max: 2.23A / Min: 0A Max: 3A / Min: 0A |
| Regulatory (Power Supply) | |
|---|---|
| Power Supply Safety / EMC | BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | BA-SXE35H-MFNV4 | |
| System Building | BA-SXE35H-MFNV4 configured by Happyware as Complete System | |
Happyware BA-SXE35H-MFNV4 Nitelikleri
| Add-on card form factor: | FH, HH |
|---|---|
| Applications: | Big Data, Database, Database Applications, Networking, Virtualization |
| Backplane: | No |
| Bluetooth Support: | None |
| CPU Codename: | Alder Lake |
| CPU Manufacturer: | Intel |
| CPU Socket: | 1700 |
| Card Reader Support: | No |
| Chassis Intrusion: | Yes |
| Computer group: | Server |
| Design: | Mid-Tower |
| Front I/O: | LED Indicators, USB Type-A |
| Height units: | not applicable |
| HotSwap/Fixed Drives: | No |
| HotSwap/Fixed Power Supply: | Fixed Power Supply |
| IPMI / BMC: | Yes |
| Lighting: | LED |
| Motherboard Chipset: | C266 |
| Number of CPU sockets: | No |
| Number of RAM Slots: | N/A |
| Onboard Graphic: | Yes |
| Onboard LAN: | Yes |
| Onboard Network Speed: | 1 Gb/s |
| PSU Power Wattage: | 400W |
| Performance Class: | High-End |
| Power Supply Cooler: | No |
| Pre-installed Components: | None |
| Pre-installed Software: | Oracle Linux, Red Hat Enterprise Linux, Rocky Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, Windows Server |
| Product Model: | SXE35H-MFNV4 |
| Quantity of Cooler: | 2 |
| Quantity of Power Supplies: | 1 |
| RAID Support: | Yes |
| RAM DIMM Type: | UDIMM |
| RAM ECC: | ECC |
| RAM registered/unregistered: | Unbuffered |
| Redundant power: | No |
| Server Fanless: | No |
| Special Features: | LEDs |
| Specific Ports: | M.2 Ports, SATA Ports, USB Ports, VGA Ports |
| Suitability: | Server |
| Use case: | Database Server, Networking, Virtualization |
| Wi-Fi Support: | None |
| iGPU Manufacturer: | N/A |
